02-07-2008, 12:26 PM
Peter Burg

Looks nice. I kinda miss the DFI nF4 series .. :)

I can't wait to make some pics of my new config
02-07-2008, 01:29 PM
crazydiamond

alpha v1 (built it for my roomate, he added some hd's)

nzxt alpha
x2 5000 windsor @ 3.0
ac freezer 64 pro
abit an52
bfg 8800gt oc (i wish evga used the black pcb)
4x1gb adata
couple hd's, over 1tb total w/ external
sony dvdrw
antec neo power 500w

http://i70.photobucket.com/albums/i8.../aIMG_5264.jpg
http://i70.photobucket.com/albums/i8...IMG_5254-1.jpg
http://i70.photobucket.com/albums/i8.../aIMG_5255.jpg
http://i70.photobucket.com/albums/i8.../aIMG_5262.jpg
02-07-2008, 01:33 PM
crazydiamond

alpha v2 (seller)

nzxt alpha
asus m3a
x2 5000be
rosewill rcx-z3
xfx 8800gt
4x1gb adata extreme
500gb wd sata hd
lite-on dvdrw
xclio greatpower 500w

http://i70.photobucket.com/albums/i8...2/IMG_5212.jpg
http://i70.photobucket.com/albums/i8...2/IMG_5218.jpg
http://i70.photobucket.com/albums/i8...2/IMG_5223.jpg
http://i70.photobucket.com/albums/i8...2/IMG_5219.jpg
http://i70.photobucket.com/albums/i8...2/IMG_5225.jpg
02-07-2008, 01:54 PM
crazydiamond

alpha v3 (waiting on 6400be and zerotherm nirvana, should be here tomorrow freakin snow storm)

nzxt alpha
asus m3a
x2 5000be @ 3.2
zalman 9500 (going to be lapped as soon as i get that nirvana, not impressed with it so far)
4x1gb ballistix 5-5-5-15 @ 1066
evga 8800gt 700/975
2 seagate 320gb 7200.10 raid 0, external 500gb esata
lite-on dvdrw
xclio greatpower 500w

http://i70.photobucket.com/albums/i8.../bIMG_5249.jpg
http://i70.photobucket.com/albums/i8.../bIMG_5245.jpg
http://i70.photobucket.com/albums/i8.../bIMG_5229.jpg
http://i70.photobucket.com/albums/i8.../bIMG_5251.jpg
http://i70.photobucket.com/albums/i8.../bIMG_5233.jpg
02-07-2008, 02:58 PM
AriciU

Will get a Scythe Kaze 130CFM for the TRU :) Add some UV's too for the DFI to really shine.

http://ocidb.com/albums/userpics/101...l_IMG_2757.jpg

http://ocidb.com/albums/userpics/101...l_IMG_2767.jpg

http://ocidb.com/albums/userpics/101...l_IMG_2769.jpg
02-07-2008, 05:03 PM
Smokin_Joe

1 Attachment(s)

Nice rigs guys! :up: I won't show my entire messy setup just yet. I plan on doing a major overhaul in a few weeks so after that is done i will post pics. But i just wanted to share something i just did to my 8800GTS 640Mb. I was inspired by AriciU's custom videocard cooling so thanks AriciU and everybody in here that has posted pics. You guys have given me some really good ideas. :)

I strapped a 92mm Delta Fan + an 80mm TT SmartFanII to my 8800GTS hooked up to my Sunbeam Rheobus to kill the noise when not needed. My load temp went from 65C to 56C. :D I haven't tried to push it more yet but i'm hoping the core can go higher. Currently at 625Mhz, 630 locks up COD4 with stock cooling. :(
02-07-2008, 07:27 PM
AriciU

NP but it wasn't my idea. Stole it from another XS member who posted previously :D How's that 80mm Delta doing? Holy loudness. I remember i used to run one of those 24/7 on some heatsink called "The CORE" (huge back then) in my old Athlon TBird days :D It made so much noise i get goosebumps just remembering it :)
02-08-2008, 03:35 AM
Peter Burg

@ Joe

Holy crap, do you smoke inside the room? xD
02-08-2008, 07:57 AM
Janno

first post, woot
here's my antec nine hundred, which i just received
stuffed everything inside right away and just can't believe how impossible it was to organize the wires
looks so messy
i'll sort it out, when my dremel arrives :up:

http://img87.imageshack.us/img87/7083/p1010081fo7.jpg
http://img88.imageshack.us/img88/9393/p1010083hs9.jpg
http://img131.imageshack.us/img131/6550/p1010088wm8.jpg
http://img228.imageshack.us/img228/6218/p1010093qc8.jpg
http://img159.imageshack.us/img159/8274/p1010094dl3.jpg
http://img228.imageshack.us/img228/9171/p1010096fr4.jpg
02-08-2008, 09:19 AM
illidan

nice.. but cable management :)
02-08-2008, 09:34 AM
TEDY

janno: tsssssss......
02-08-2008, 09:37 AM
HaGGaRd

I know how you mean Janno, however mine are still quite tidy in my antec, even without a dremel :D

but i'm thinking of borrowing my mates dremel to cut out a few holes at the base of the mobo tray to feed them wires through..
02-08-2008, 09:58 AM
HaGGaRd

Have you guys seen this case yet, its an Antec 1200, and does anyone know when its available on the market?? : O

http://pc.watch.impress.co.jp/docs/2...11/antec_1.jpg

Looks pretty nice imo
02-08-2008, 10:17 AM
taylormsj

Quote:

Originally Posted by HaGGaRd

I know how you mean Janno, however mine are still quite tidy in my antec, even without a dremel :D

but i'm thinking of borrowing my mates dremel to cut out a few holes at the base of the mobo tray to feed them wires through..

Youve got a better chance of growing a pair of breasts than using my dremel :p: :p: :p:

Rofl
02-08-2008, 10:24 AM
AriciU

Quote:

Originally Posted by HaGGaRd

Have you guys seen this case yet, its an Antec 1200, and does anyone know when its available on the market?? : O

http://pc.watch.impress.co.jp/docs/2...11/antec_1.jpg

Looks pretty nice imo

Is the PSU out of the case a feature or a necessity? :ROTF: Sorry, couldn't resist :)
02-08-2008, 02:02 PM
HaGGaRd

Quote:

Originally Posted by taylormsj

Youve got a better chance of growing a pair of breasts than using my dremel :p: :p: :p:

Rofl

You bastard :down: :shakes:

Quote:

Originally Posted by AriciU

Is the PSU out of the case a feature or a necessity? :ROTF: Sorry, couldn't resist :)

ROFL :P
02-08-2008, 02:14 PM
Janno

LMAO, btw, the twelve hundred doesn't look half as good as the nine
but i hope antec manages to do something about the cable management
the nine hundred is poo for that

btw, i want to have a watercooling system in mine, eventually :D
02-08-2008, 04:48 PM
=[PULSAR]=

heres what I got so far, not in a case...yet ;)

120 Xtreme
HR-07L
HR-09S Type 2
HR-05 SLI/IFX
HR-05 IFX
All lapped with 2000 grit

http://img442.imageshack.us/img442/2884/p2080041pw3.jpg
02-08-2008, 04:51 PM
Smokin_Joe

Quote:

Originally Posted by AriciU

NP but it wasn't my idea. Stole it from another XS member who posted previously :D How's that 80mm Delta doing? Holy loudness. I remember i used to run one of those 24/7 on some heatsink called "The CORE" (huge back then) in my old Athlon TBird days :D It made so much noise i get goosebumps just remembering it :)

Ahh, it's a 92mm Delta but it still screams! I have 1X140mm Fan(came out of a super flower psu),4X80mm Tornados, 1X92mm Tornado, 1X92mm Delta and 1X80mm SFII now and yes this thing is loud:D. But i crank up my stereo when i game so it doesn't really bother me. :)

@Peter Burg, nope haven't for 2 yrs. It's just that dusty in my room. Just ordered 2 dust filters for my intakes but still have the 140mm intake to worry about.

That Antec 1200 is gonna be my next case, i love how it is setup.

@=[PULSAR]=, i'm jealous...Thermalright FTW! :up:
02-08-2008, 05:04 PM
Origin_Unknown

=[PULSAR]= is that p35 or x38?
02-08-2008, 05:07 PM
=[PULSAR]=

Quote:

Originally Posted by Origin_Unknown

=[PULSAR]= is that p35 or x38?

its a P35 didn't have the big bucks for the x38
02-08-2008, 06:51 PM
emoners

@=[PULSAR]=: can you show a pic of the PWM area? that has always been my prob if i wanna change my NB/SB/PWM into Thermalright. thanks.
02-08-2008, 08:09 PM
turtletrax

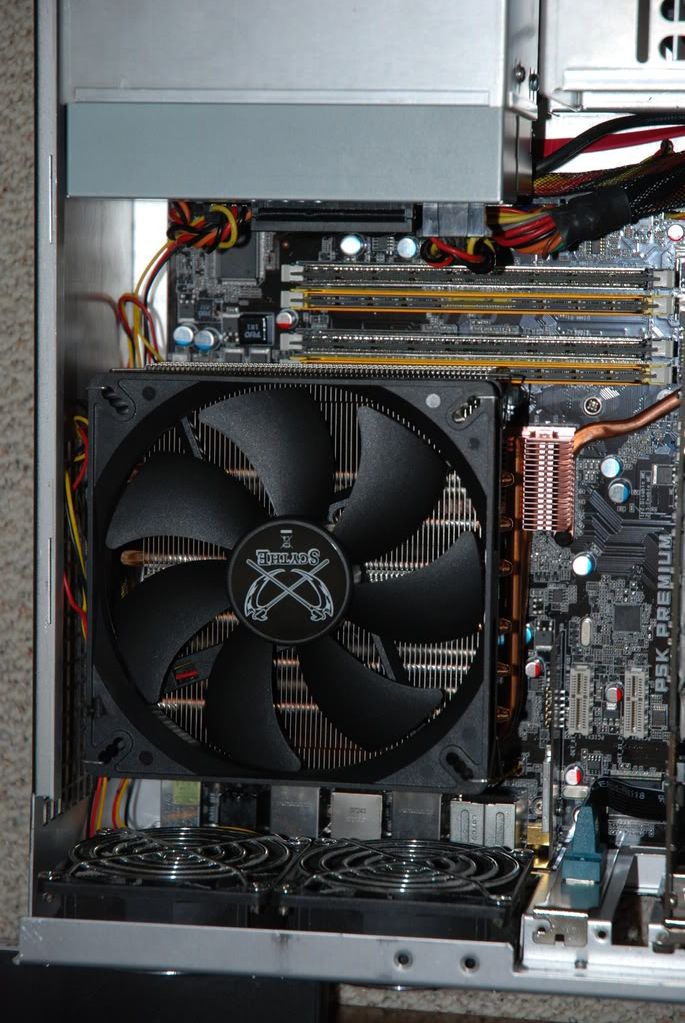

My air HTPC :)

http://img.photobucket.com/albums/v6...DSC_0022-1.jpg

http://img.photobucket.com/albums/v6...DSC_0016-2.jpg

http://img.photobucket.com/albums/v6...x/DSC_0026.jpg

Running 4GB of GMH @1Ghz 5-5-5-15 and my E8400 at 4Ghz. Snappiest I have ever felt vista and I have not installed SP1 yet. Gonna start sime minor benching this weekend to see what she can do. Has been a LONG time since I have benched on air so I am kinda excited to see what it can do :)
02-08-2008, 09:23 PM
ThatGuy16

I bought a really nice brand new OCZ ram cooler, but it almost comes in contact with my graphics card, without using the bottom clamp. Too close for comfort with it being metal :down:

http://i151.photobucket.com/albums/s.../DSCF2278b.jpg
02-08-2008, 09:55 PM
Morais

Nice setup and cable management ThatGuy16 :up:
Im interested in buying the same motherboard you have.Does the north chipset get hot at load? And the pwm area?Thanks.
