10-18-2006, 05:15 AM
sierra_bound

You're missing the point. Run Priority at 9, not 1. And don't have a cow when someone gives you advice.
10-18-2006, 05:16 AM
ssabripo

Quote:

Originally Posted by sierra_bound

You're missing the point. Run Priority at 9, not 1. And don't have a cow when someone gives you advice.

true.dat :toast:

it's called dealing with my wife this morning...:( ;)
10-18-2006, 06:29 AM
NO1B4ME

Quote:

Originally Posted by ssabripo

dude....we not gone over this before in this very thread:http://xtremesystems.org/forums/show...&postcount=139
:p

IT IS A SNAPSHOT MAN!!!!! I just posted the snapshot to show that it is up and running last nite in my excitement....it ran all nite long, no problems!:woot:
I never call success unless it can run 2 hours blend+2 hours SmallFFT, so dont worry.

the only issue is that my temps are now 1-2C higher....:confused:

well you do have a new motherboard correct? I don't think t he new one will read exactly like your previous one :) .

ALso take a chill pill man. People give you advice and you snap to fast:nono: . The board members here are to help each other out.

You definitely do not want to Piss in Sierras Cherrios :) .
10-18-2006, 06:35 AM
ssabripo

yeah dude....i sent an apology already. loong nite, battling with the lady this morning = snappy mood.

I'm good now though. :toast:

yo Sierra...my bad bro!
10-18-2006, 07:28 AM
Stratcat

Quote:

Originally Posted by sierra_bound

Don't you think it rather odd that Intel says no more than 1.55 for core voltage, and yet some of the boards they sell like the Bad Axe have VCore higher than that in the bios.

Perhaps because the board may also be used to run other currently available CPU's, and others that are yet to be released?

Well, just a thought...

~ Strat ~

:pls ignore sig - will change it asap:
10-18-2006, 05:00 PM
Romano

i dont see a thread for P5WDH DX like this...
10-18-2006, 10:58 PM
blank

hey guys, i have a couple questions.
specs:
E6600 (week 24 if i recall)
p5B deluxe wifi
gskill 2x1gbHZ at 4-4-4-12
CPU Freq. - 339
DRAM Freq. - 4:5
PCI-E Freq. - 100
PCI Clock - 33.33 MHz
Spread Spectrum - auto
Memory Voltage - 2.10V
CPU Vcore - 1.36
(all other settings on this page - Auto)

Advanced -> CPU Conf.:
Modify Ratio - DISABLED
C1E - DISABLED
Max CPUID - Disabled
Vanderpool - Enabled
CPU TM - enabled
Execute Disable - enabled
PECI - Disabled
Speed Step Disabled

Firstly, my bios FSB voltage doesn't reflect what it reports in windows. Is that normal or is something wrong. For example I set it to 1.36 but it only displays 1.31.

secondly, orthos priority 9 failed after 30 minutes at 1.36 at only 9x339. that freq seems rather low to fail compared to some of you guys. should i investigate or just stick with adding more volts?
10-18-2006, 11:03 PM
sierra_bound

Try running 1:1 and see if that helps. Or if you want to stay 4:5, raise memory to 2.2v.

And welcome to XS.:)
10-18-2006, 11:05 PM
blank

thanks, i forgot about that, reminds me of my ochem test today...always forgetting something
10-19-2006, 12:08 AM
Kakulukia

Quote:

Originally Posted by blank

hey guys, i have a couple questions.
specs:
E6600 (week 24 if i recall)
p5B deluxe wifi
gskill 2x1gbHZ at 4-4-4-12
CPU Freq. - 339
DRAM Freq. - 4:5
PCI-E Freq. - 100
PCI Clock - 33.33 MHz
Spread Spectrum - auto
Memory Voltage - 2.10V
CPU Vcore - 1.36
(all other settings on this page - Auto)

Advanced -> CPU Conf.:
Modify Ratio - DISABLED
C1E - DISABLED
Max CPUID - Disabled
Vanderpool - Enabled
CPU TM - enabled
Execute Disable - enabled
PECI - Disabled
Speed Step Disabled

Firstly, my bios FSB voltage doesn't reflect what it reports in windows. Is that normal or is something wrong. For example I set it to 1.36 but it only displays 1.31.

secondly, orthos priority 9 failed after 30 minutes at 1.36 at only 9x339. that freq seems rather low to fail compared to some of you guys. should i investigate or just stick with adding more volts?

why didn't u say welcome to me too? :)

Let's begin with the cpu settings,
let

Vanderpool, CPU TM,Execute bit enabled. The others disabled.

My g.skill hz can are having enough with 2.1V @ 475MHz and 266SPD timings, but i recommend u to set it to 2.15V or 2.2V.

Like u have noticed, somehow the voltage drops by 0.05 V (therefore, 2.15V).

Try running 1:1, it musnt be a problem. Disable spread spectrum.

Set the voltages 2 above default.

I have (i thought):

VNB=1.45V
VFSB=1.30V
Vcore= 1.500 (1.45 in windows), TEST THIS OUT!! You mag require less volt
Vsb=1.6V
Vich= 1.057V
Vdimm=2.15

I hope this is a bit usefull.
10-19-2006, 12:53 AM
blank

Quote:

Originally Posted by Kakulukia

why didn't u say welcome to me too? :)

Let's begin with the cpu settings,
let

Vanderpool, CPU TM,Execute bit enabled. The others disabled.

My g.skill hz can are having enough with 2.1V @ 475MHz and 266SPD timings, but i recommend u to set it to 2.15V or 2.2V.

Like u have noticed, somehow the voltage drops by 0.05 V (therefore, 2.15V).

Try running 1:1, it musnt be a problem. Disable spread spectrum.

Set the voltages 2 above default.

I have (i thought):

VNB=1.45V
VFSB=1.30V
Vcore= 1.500 (1.45 in windows), TEST THIS OUT!! You mag require less volt
Vsb=1.6V
Vich= 1.057V
Vdimm=2.15

I hope this is a bit usefull.

i'm trying this now. 1.500 does read 1.45 in windows, so i guess that's normal. temps are getting hot though at around 58-64C load. Maybe I can lower the voltage if this doesn't fail. thanks

Is there a safe permanent Vcore voltage? hmm, after searching the forum some, i see there isn't too much agreement on this issue
10-19-2006, 01:34 AM
Pt1t

I do this :

with bios 0801

DRAM Freq. - 1:1
Memory Voltage - 2.45v
CPU Vcore - 1.7
and all other settings on Auto

Advanced -> CPU Conf.:
Modify Ratio - DISABLED
C1E - DISABLED
Max CPUID - Disabled
Vanderpool - Enabled
CPU TM - enabled
Execute Disable - enabled
PECI - Disabled
Speed Step Disabled

under single phase :D

http://users.skynet.be/pt1t/6600es/1M_4560mhz.PNG
10-19-2006, 02:22 AM
Kakulukia

Thats a lot of juice for 506MHz :D

Can't u get higher?

Where have u got bios 0801, i cant see it on the asus site.
Is it an official release? or beta?

2blank, i use 1.5000, that does NOT mean that u shall need too. Just try to get the right Vcore by testing, not too high not too less.
10-19-2006, 02:40 AM
blank

thanks. this forum is the place to be these days. when did this place become popular? where have i been all these years?
10-19-2006, 04:19 AM
Pt1t

Quote:

Originally Posted by Kakulukia

Thats a lot of juice for 506MHz :D

Can't u get higher?

Where have u got bios 0801, i cant see it on the asus site.
Is it an official release? or beta?

2blank, i use 1.5000, that does NOT mean that u shall need too. Just try to get the right Vcore by testing, not too high not too less.

yes i can :D

http://valid.x86-secret.com/show_oc.php?id=131228
10-19-2006, 04:20 AM
JoeBar

Quote:

Originally Posted by blank

thanks. this forum is the place to be these days. when did this place become popular? where have i been all these years?

Someplace else maybe...? :p:

Welcome to XS! :)
10-19-2006, 04:45 AM
jVIDIA

Pt1t, where did you get that bios ? And does it have any improvement ?
10-19-2006, 04:50 AM
ssabripo

Quote:

Originally Posted by Pt1t

yes i can :D

http://valid.x86-secret.com/show_oc.php?id=131228

holy momma!!:clap: :clap:

outstanding!!! wow, great chip, and great OC
10-19-2006, 05:08 AM
Pt1t

Quote:

Originally Posted by jVIDIA

Pt1t, where did you get that bios ? And does it have any improvement ?

i posted it here : http://www.xtremesystems.org/forums/...&postcount=173

I compared 0711 and 0801 in aircooling and i saw none improvement.
10-19-2006, 09:18 AM
mhorgel

Quote:

Originally Posted by blank

hey guys, i have a couple questions.
specs:
E6600 (week 24 if i recall)
p5B deluxe wifi
gskill 2x1gbHZ at 4-4-4-12
CPU Freq. - 339
DRAM Freq. - 4:5
PCI-E Freq. - 100
PCI Clock - 33.33 MHz
Spread Spectrum - auto
Memory Voltage - 2.10V
CPU Vcore - 1.36
(all other settings on this page - Auto)

Advanced -> CPU Conf.:
Modify Ratio - DISABLED
C1E - DISABLED
Max CPUID - Disabled
Vanderpool - Enabled
CPU TM - enabled
Execute Disable - enabled
PECI - Disabled
Speed Step Disabled

Firstly, my bios FSB voltage doesn't reflect what it reports in windows. Is that normal or is something wrong. For example I set it to 1.36 but it only displays 1.31.

secondly, orthos priority 9 failed after 30 minutes at 1.36 at only 9x339. that freq seems rather low to fail compared to some of you guys. should i investigate or just stick with adding more volts?

Yeah, it's a good idea to loosen the timings on the memory, or go to a 1:1 divider to take the memory out of the equation while you find your highest FSB. I have the same memory, however, and I am running them at a FSB of 390, 4:5 divider (DDR2 975) at 4-4-3-8 timings, so they are capable of much more than they are doing now. I have them at 2.3v in BIOS, which reads 2.25v in ASUS AI suite. AI Suite reems to read .06 volts low, I have my Vcore at 1.5v, and AI suite reads 1.44. Many people have their NB and FSB termination voltages at auto, I have mine almost maxed out. You are probably going to hav eto increase your Vcore a bit to get a beter overclock...as long as CPU temps stay under 60 degrees at load (get the Intel Thermal Analysis Tool) you should be safe.

Mark
10-19-2006, 12:13 PM
Mulambo

hello ^^ my english is terrible i know, but i hope you understand me

i've bought a e6600 and p5b and some g.skill (6400 2ghbz) rams. Cpu and graficcard are watercooled, i remove the top of the northbridge and change the conductive paste. np temp: 35° and cpu 40°!

i want to bring my e6600 7x500 1:1! i read the nbcc variable... can i bring it 24/7 stable?

if yes, can anyone post his settings?

thnx

mulambo
10-19-2006, 01:49 PM
blank

what are your settings right now?

as for me, i'm at 9x356 now, 1.40 vcore, 1.45 bios, i tried one step below but olthoi failed, so i guess if i want to stay at 3.2 i'll need 1.40. thanks guys
10-24-2006, 03:56 AM
Sadhana

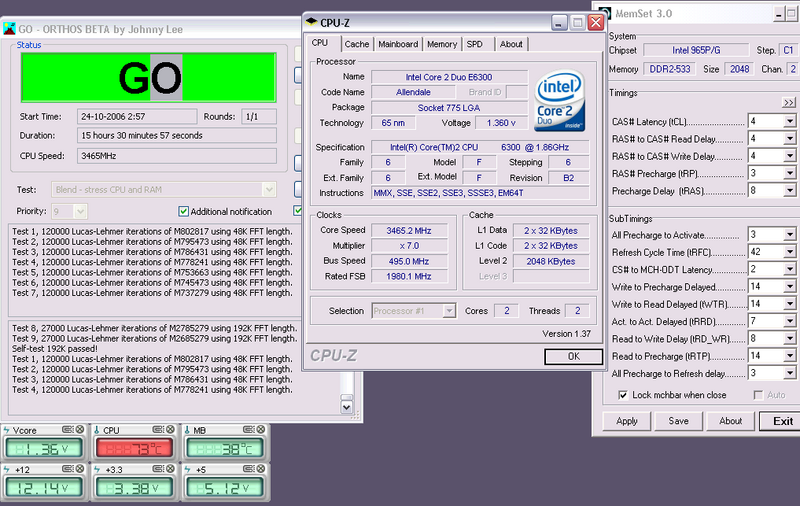

I'm very satisfy with these babies: P5B Deluxe Wifi AP Bios 0801 + Teamgroup Extreem 2GB Kit + Allendale 6300 :up:

Right now, I toasted them to look the stability for my daily used.

http://i135.photobucket.com/albums/q..._98/FSB495.png
10-24-2006, 05:36 AM
heikis

Quote:

Originally Posted by Sadhana

I'm very satisfy with these babies: P5B Deluxe Wifi AP Bios 0801 + Teamgroup Extreem 2GB Kit + Allendale 6300 :up:

Right now, I toasted them to look the stability for my daily used.

http://i135.photobucket.com/albums/q..._98/FSB495.png

73'C doesn't feel very safe to me. stock cooling?
10-24-2006, 06:04 AM
ssabripo

here is my latest.....booted up in 460 fsb in BIOS, Vcore up to 1.375, Vdimm up to 2.30v, loosened up timings from 4-4-4-8 to 5-5-5-12 and then used clockgen to get to 486fsb:

http://upshizzle.com/gallery/albums/...super%20Pi.jpg

I broke the sub 17s SuperPi, and can run 3Dmarks, etc......BUT, Orthos is NOT fully stable still (only 4 hours, 13min, and then it stopped). but I think I'm gonna go back to 3.304 @ 4-4-4-8.... 30 points in 3Dmarks, and .4 secs off SuperPi is not worth the orthos instability after 4 hours.....what do you guys think?

I mean, for the most part, I'll be running Photoshop, and some games, as my intensive stuff....the rest is email/internet, etc. Is it worth it to go to 3.4ghz, or just stay at 3.265-3.3?

need some feedback.

ps- if you have any ideas for me to try to see if I can get stable at higher speeds, by all means, let me know.
