use this tool to make your USB drive into a bootable drive:Quote:
Originally Posted by Alik4041
http://files.extremeoverclocking.com/file.php?f=197
Printable View
use this tool to make your USB drive into a bootable drive:Quote:
Originally Posted by Alik4041
http://files.extremeoverclocking.com/file.php?f=197
thx for the feedback i went ahead and ordered today from the egg, thxQuote:
Originally Posted by Ace-a-Rue
Thanks. I'm doing your heatpipe mod as I post this :D Homedepot only had the #4 Galvanized washer. And the #4 bolts are flat head bolts but it'll do. I'm gonna leave the thermal tape on until I receive my MX-2. BTW, do you guys think it's worth the upgrade from a Zalman 9500 to a TRUE?Quote:
Originally Posted by Ace-a-Rue
cool!:up:
you are not going to be disappointed...the card just smokes...hehehehehehe:DQuote:
Originally Posted by neonflx

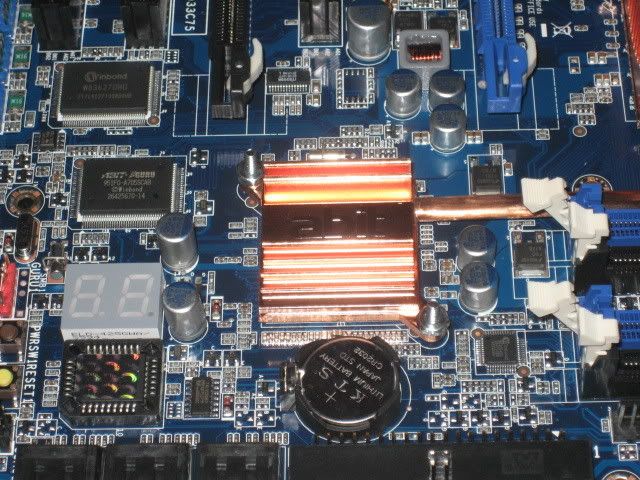

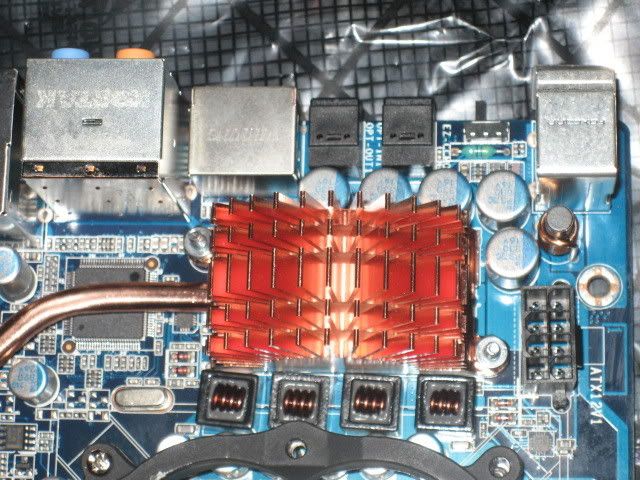

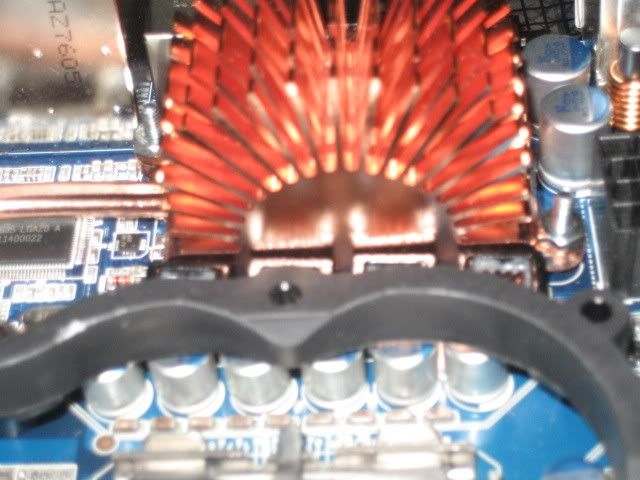

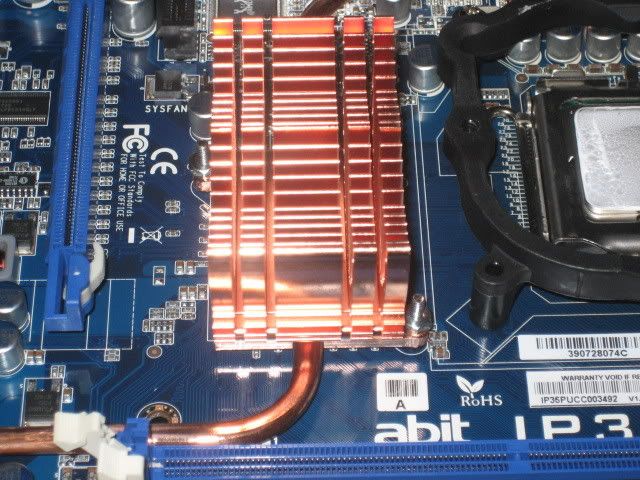

Heatpipe Mod done! I think that 1/2inch would have done it. The 3/4 inch is simply too much. Although I think it would have been harder to install a 1/2inch so I'm happy :p: Here's some pix. Enjoi :D
http://i11.photobucket.com/albums/a1...rum/Ali008.jpg
http://i11.photobucket.com/albums/a1...rum/Ali007.jpg
http://i11.photobucket.com/albums/a1...rum/Ali006.jpg
http://i11.photobucket.com/albums/a1...rum/Ali005.jpg

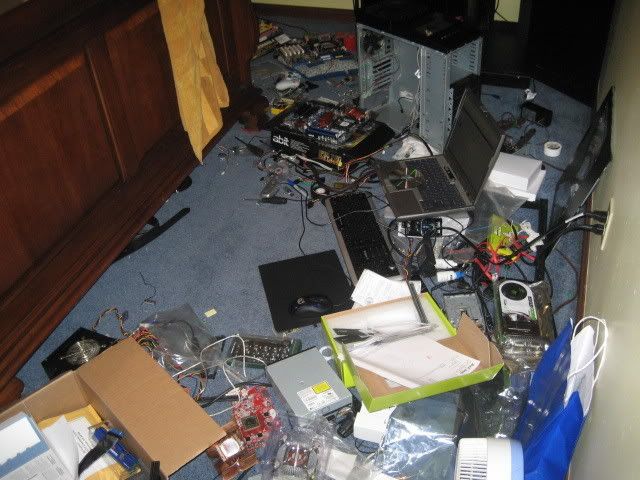

Finally my work area (bed room)
http://i11.photobucket.com/albums/a1...rum/Ali009.jpg
That mod is much easier if you bring the bolts down from the top and then use some dikes to cut the extra bolt length flush with the nut... Either way it works quite well.
Anyone know what settings I should set in bios to boot from the flash drive? It's not as simple as my old p4 system :(
your way is as good!:up:Quote:
Originally Posted by pcdoc1
Quote:
Originally Posted by Alik4041
that work room is like mine...LOL:p:
Great minds work a like :D BTW, I installed that hp program. I just don't know where to find my Dos files. Any idea? it says it needs them from my pc. I've done this before but it really has been a while :rolleyes: I took the win 98 files in the link instead. But the motherboard is either having a hard time booting from the usb drive, or the files aren't working.Quote:
Originally Posted by Ace-a-Rue
YOU, above!:clap:Quote:
Originally Posted by JPxM0Dz
--------------------------------------------------------
ME, below!:p: :sonic: :sonic: :sonic:
lets see...hmmmmm...i beat you by 2 whole Mhz...LOL:up:
hey guys..this is a workable Mhz..open up the browser and sent/received email.
you make a boot disk using windows format toolQuote:
Originally Posted by Alik4041
Well you can't use windows format tool to make an ms dos usb boot drive. But I figured it out. The link you gave me had two links. One for win98 dos files and the other was the hp tool. You were supposed to use the win98 dos files as the source. Bah I guess I'm tired. But no sleep, not yet anywayz :DQuote:
Originally Posted by Ace-a-Rue
hp tool FTW.
I just flashed it, but I'm not all happy yet. It went through the steps and started flashing it and I started praying :D It said flash complete and I hit F1. Now the monitor went off but the motherboard didn't reset. And because you said this will take 2 minutes when it took 20 seconds, I'm scared to reset it :eek:
EDIT: Ok, I grew some balls in the last 30 seconds and decided to reset and it failed :( it's not working any more. I don't know whether to RMA or what. Just kidding it worked :D
LOL...you prankster!...hehehehehehehehe:D
Quote:
Originally Posted by Alik4041
yes, you can!...you make the disk and when you open the USB format tool, you just point to the "A" drive to pull the boot command off from the floppy.

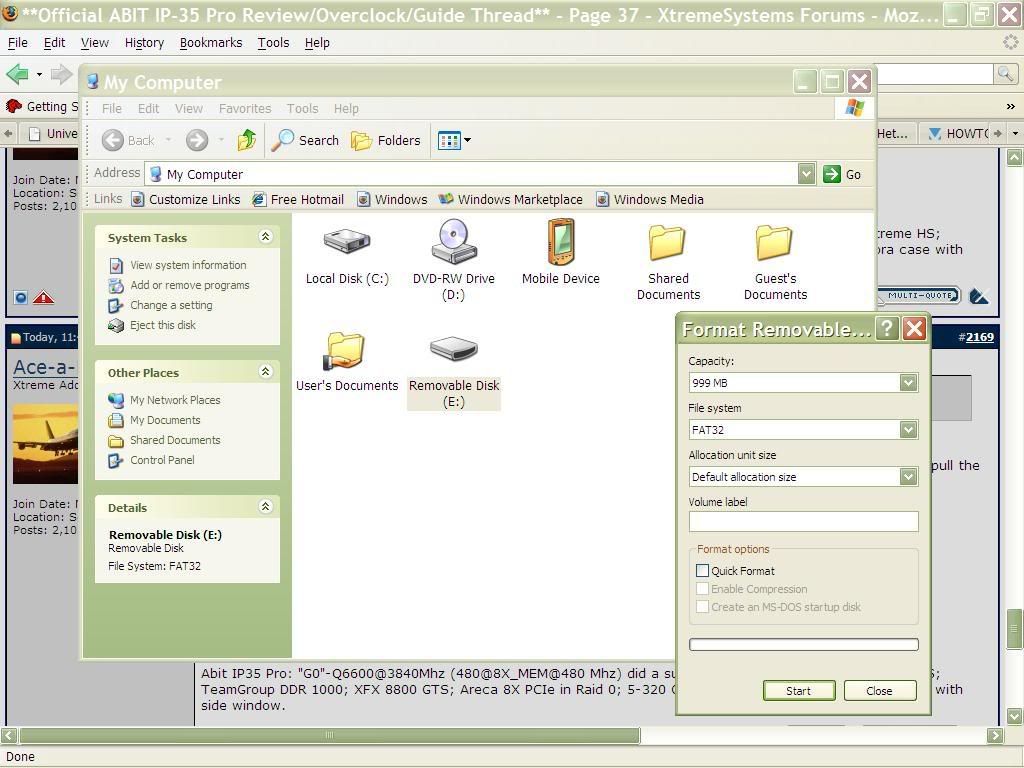

I don't understand. It doesn't let me choose the ms dos start up. I don't have a floppy drive, hence why I've been talking about usb the whole time :p:Quote:
Originally Posted by Ace-a-Rue
http://i11.photobucket.com/albums/a1...rdForum/uh.jpg
you are trying to fool me!:D
Ok my new IP35 pro is running about 80-81c on the PWM after 30 minutes at 3.8ghz 1.55 vcore. Wondering if I should still do the PWM mod.
Here are my verified via DMM vcore readings
Bios set 1.615
Bios Reading 1.56
DMM 1.56 to 1.57 (actual)
In windows:
UGURU: 1.55 to 1.57
DMM : 1.56
Under Load at above Bios setting @ 3.95 ghz
UGURU: 1.53 to 1.54
DMM: 1.52
So my vdroop doesn't seem to bad (0.04v) at load. It's the Bios setting vs the DMM actual that is the big difference.
Uguru is pretty accurate at reporting vcore but the temps to me don't seem to be acurate. It's about 10c above Coretemp.
I'm going to throw one of my micro thermistors between the motherboard's cpu pins and put it there permanently to get the real temp.
http://i75.photobucket.com/albums/i3..._s_Photo-1.jpg
http://www.mcshaneinc.com/html/Sens_TS91HP.html
Just happens that it fits without hindering anything. These things are very accurate.
the PWM temps should be somewhere in the 60's...to high for my own liking...your decision on the mod but you won't regret it if you do it.
your vdrop+vdroops is close to mine...somewhere between a total of 0.08 to 0.09 under load.
Can you guys please tell me what's going on here. At first I was not doing anything and was at 1.3vcore then I ran orthos on each core, and my vcore started to go down (vdroop). But after I stopped orthos, it started going lower and lower. WTF is going on. Is this the vdroop everyone else was talking about. I'm definitely doing the vdroop mod. I bough the vr before I bought the motherboard :P:
http://img260.imageshack.us/my.php?i...ntitledfu7.png
Have you got C1E or EIST enabled in BIOS as these can reduce both your multiplier & voltage.Quote:
Originally Posted by Alik4041
CN
That's weird though. I had the pc on for an hour or so. Finally when I start to stress test it goes down? And the worst part is it doesn't go back up after done stress testing. Even if I let it sit for a while and stress test again. I just turned eist and c1e off. Hopefully I won't have this issue any more after the vdroop mod. BTW, I'm attempting to overclock the fsb right now. I just maxed out on default voltage at 340FSB. Don't know if that's good or bad. Will keep testing. Thanks for the reply CN.Quote:
Originally Posted by C-N
