somebody :shrug:
cant get stable even at 4.35- I stuck and can get up!
Heres where I'm at:
478x9=4300
CPU
vcore 1.343
term 1.26
pll 1.45
ref .863
MCH
v 1.32
ref .798
Ram ( g.skill lv 9600s, 4x2gb, 2.4b )
v 1.8
ref .9
all others auto
have booted up to 4550, but not able to do more than 1 run intel burn. At settings above I can run prime 95 overnight at temps in low to mid 60s, 50 runs of intelburn at temps in high 70s to low 80s. NB run about 3 degrees hotter under load. 4300 is rock solid stable for everything- stress test, benchmarking, gaming, multitasking, etc. But I want more!! Am I maxed out due to temps?
I have tried literally hundreds of combination and logged results to try and find a trend. I need some guidance on how to slowly move the clock up to at least 4500-if it is possible on air that is....
thanks all
Try this,
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.35GHz...........................[ 483 x 9.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 483 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 0ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066...........................[ 1159 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD[3].........................................[ 3 ]
tWTR[3].........................................[ 3 ]
tWR[6]..........................................[ 6 ]
tRFC[54]........................................[ 54 ]
tRTP[3].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ 2T ]
******Channel A Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ]...................[ 1.3875 ]
CPU Termination [ 1.20 ]...................[ 1.280 ]
CPU PLL [ 1.50 ]...................[ 1.500 ]
CPU Reference [ 0.760 ]...................[ 0.835 ]
MCH Core [ 1.100 ]...................[ 1.340 ]
MCH Reference [ 0.760 ]...................[ 0.850 ]
MCH/DRAM Refernce [ 0.900 ]...................[ 0.900 ]
ICH I/O [ 1.500 ]...................[ 1.500 ]
ICH Core [ 1.100 ]...................[ 1.100 ]
DRAM Voltage [ 1.800 ]...................[ 1.800 ]
DRAM Termination [ 0.900 ]...................[ 0.900 ]
Channel A Ref [ 0.900 ]...................[ 0.900 ]
Channel B Ref [ 0.900 ]...................[ 0.900 ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
tried your settings, hoss- and it wont even post!
messed around with it some and found that the advanced mem settings were the biggest holdup. it also seems my processor likes less volts but more reference.
too late, will try again tomorrow...
thx
congrats hoss awesome :up:Quote:
Originally Posted by Hoss331
Thanks. Ive had it for a couple months now, just havent bothered to play with it much other than some air max clock runs.
everest scores for 469*9.5 1250 PL7 on Extreme are 10441R, 9955W, 10305C and 47.1L
turbo never seemed to make a difference for me but extreme surely does
Lol HOSS that is a X3380 cpu and this is the Q9650 thread so because of the OT nobody really answered or nobody really know how a X3380 should clock.Quote:
Originally Posted by andressergio
I already asked for ya to ship that to me and we can compare results on the appropriate thread... :yepp:
The "somebody" post was my answer to where I got it. :up:
Trying some benching today with my 9650 and gtx280 in Windows 7 64bit.
http://img12.imageshack.us/img12/2327/best0646ghzm.jpg
Nice Score OC Nub
But Me With Q9550 @4300Mhz Can Got 6500 CPU Score Why Ur Quad Can give Like Me @4600Mhz?
I Tested Yesterday With 4330Mhz Just CPU Test Alone And Got 6900 Scores
But It's Not Stable My Mobo Is Not Well For Quad
Nice 3DMark06 score Nub, your Q9650 + GTX280 are putting some HD4890 in the back :up:Quote:
Originally Posted by OC Nub
Quote:
Originally Posted by ViViD
If you using XP that would be why your score is higher.
Thanks Jor, This card clocks well. In certain benchmarks it destroyed my 4890 even at 1000mhz core. In Furmark bench the 4890 wins hands down. In game though they are pretty evenly matched.Quote:
Originally Posted by Jor3lBR
Thanks Vivid: Hoss is correct, in XP the score is much higher than in Windows7. I don't have XP installed to run ATM but Sergio got around 2k higher using XP vs 7.
Ran these with the same setup, q9650 4.25ghz. 1st one hd4890 2nd gtx280.
http://img189.imageshack.us/img189/4392/asuseah4890.jpg
http://img34.imageshack.us/img34/6682/06425ghz.jpg
Great Score mate :up:Quote:
Originally Posted by OC Nub
Cheers :up:
Sergio
Thanks Sergio, also thanks you for all your help in getting this thing stable. :up:
Trying Hyper PI using 250a with OCZ Platinum pc2 9200's, PL8 turbo. This is all new to me, I normally just run Prime and LinX. It is nice to try new things.
http://img195.imageshack.us/img195/2...0apl8turbo.jpg
hmm look here 4.6GHZ to 72XX IN cpu score http://hwbot.org/result.do?resultId=826826
Watercooling
3Dmark 2006 - 23758 marks Radeon HD 3870 X2 @ 945/1100mhz on H20
Nice score Martin.

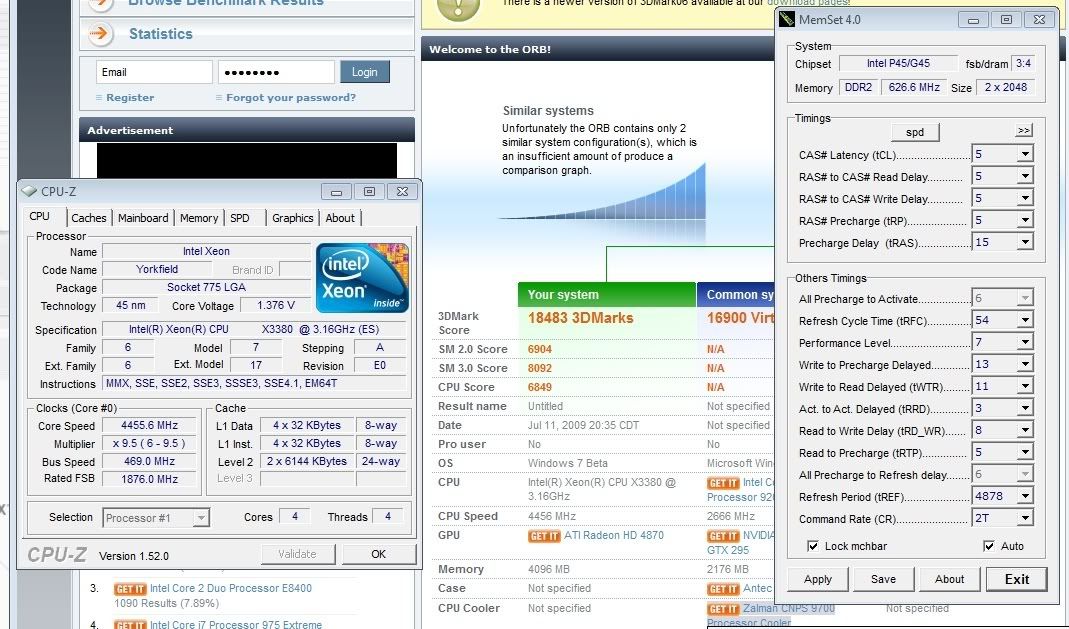

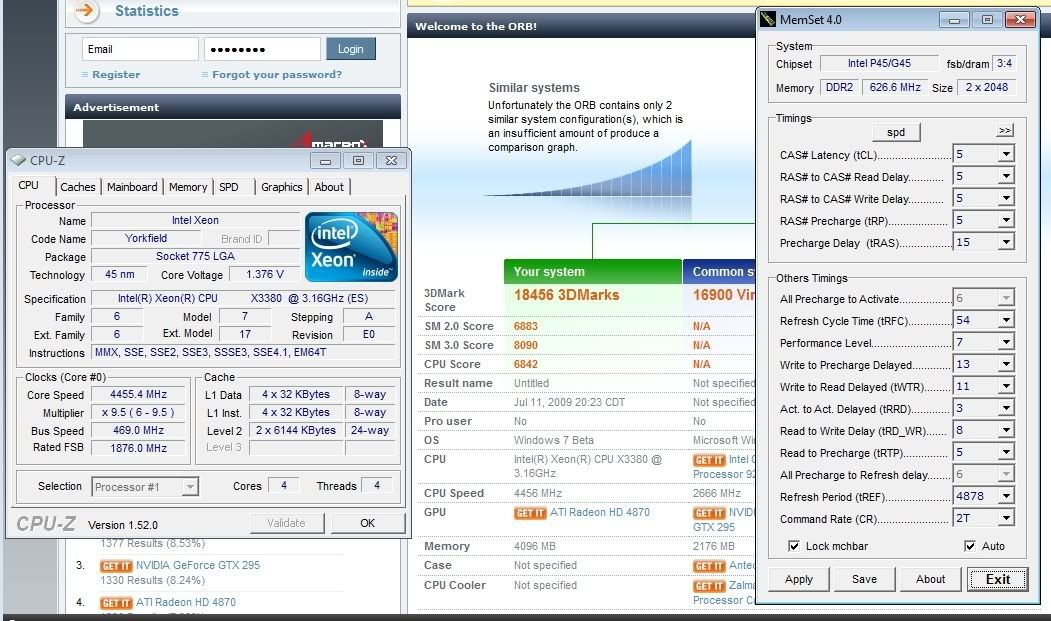

OC Nub, was your memory set to 1:1 for those 3D06 runs? I was thinking that cpu score does seem a little low for 4.6, just wondering if memory would be causing it. I ran a couple runs at 4.45 1250 and am getting in the mid 6800s with win7. :shrug: To bad my 4870 wont put up a good score though. :down:
http://i131.photobucket.com/albums/p.../Untitledx.jpg
http://i131.photobucket.com/albums/p.../Untitleds.jpg
Well today i started playing again with the BFG GTX285 H20 and the quad
http://img189.imageshack.us/img189/4617/dibujo35.jpg
Cheers all :up:
Sergio
WOW :shocked:. Excellent score Sergio!!!
on my way to the 25k :DQuote:
Originally Posted by OC Nub
thank you mate !!!
Cheers :up:
Sergio
[QUOTE=Hoss331;3900631]OC Nub, was your memory set to 1:1 for those 3D06 runs? I was thinking that cpu score does seem a little low for 4.6, just wondering if memory would be causing it. I ran a couple runs at 4.45 1250 and am getting in the mid 6800s with win7. :shrug: To bad my 4870 wont put up a good score though. :down:
Yes I was using 200d. I couldn't get stable at 1200mhz. Trying the OCZ Platinum 1.8v now, working on 1200 now to see if it brings the score up.
oh yea i think it will :up:Quote:
Originally Posted by OC Nub
Was able to get my mem to run 1200mhz but using the 250a-4:5, not 240b-5:6 divider. That limits my oc to 4.32ghz. Ran 06 again today in Windows 7 using my HIS cards.
http://img528.imageshack.us/img528/8...0mem432ghz.jpg
