flclisgreat : Nice, custom bracket for AM2. :D
Printable View
flclisgreat : Nice, custom bracket for AM2. :D
thanks, its not the prettiest but it works
Here is a few Pictures of my Watercooled Stacker hopefully by the end of the year I will have the $$ for GPU block.
http://www.wilkinsinc.com/IMG_2038.JPG
http://www.wilkinsinc.com/IMG_2043.JPG
http://www.wilkinsinc.com/IMG_2078.JPG
http://www.wilkinsinc.com/IMG_2083.JPG
http://www.wilkinsinc.com/pump%20002.jpg
http://www.wilkinsinc.com/IMG_2074.JPG
And if you would like to see all of my Pictures of my build check out my Website
Just... :shocked: :shocked:
^ sex ^
SDkevin..awesome work
That is a PA120.3 in the bottom? ..fans in a pull setup?
Doesnt PSU block some of the fan performance?
The HDD mounts are fixed on the top and bottom as well...did you have to modd that as well?
Hey SDkevin, can you post a pic of the bottom of the case? How did you mod it to allow the fans of the rad to pull fresh air?
sdkevin: thats how i am going to (attempt to) mount my rad in the bottom of my v1000. Although I am not going to have the hdd there as well... Very nice setup.
Yes PA120.3 is at the bottom w/ pull configuration, PSU doesn't block the fan performance since this is a pull configuration, PSU only block the part of airflow but it doesn't matter at all on this setup. I have the HDD rack cutting in half and reverse it so I can have better wire management, w/ pull configuration which helps to cool my hard drives very well, not only I have fresh air pull into system and provides somewhere airflow to PSU tooQuote:
Originally Posted by nealh
http://i19.photobucket.com/albums/b1...vin/Triple.jpgQuote:
Originally Posted by thunderstruck!
http://i19.photobucket.com/albums/b1...vin/Grills.jpg
http://i19.photobucket.com/albums/b1...in/Grillss.jpg
BTW, my case is not on the floor :) too dangerous at the floor, as far as I know carpet is radiator killer. I had my case on the table at all time so dust don't get into my case that much, I did the mod w/ jigsaw
Those are some nice cutting lines man. Nice job. Close ups of the DelRez!
Usama aka Ferrari Freak
so you can unscrew the HDD mounts and reattach them? wow..your work is awesome...Quote:
Originally Posted by sdkevin
Just wish I felt I had the skills, I would get the V2100B and "copy" your work...you know Imitation is the sincerest form of flattery
yes you can unscrew the HDD mounts by using a drill, then reattch it by rivets.Quote:
Originally Posted by nealh
Pat's Latest Updates on His RIG! :P
Specs in Sig.
Let's Start whit the hole i did for the Thermochill PA120.3 Radiator.
I did it using a Jigsaw, Steel File*, a Drill and Finaly but not least... Some Strong hands!
I began by tracing the hole whit a rule and then started to drill some hole to get the Steel blade of the Jigsaw into the case...
And boom the hole was Completed after an hour. Filed of the sides of the hole and added some Black Electrical Tape all around the hole and it was done.
PS: I feel like a noob posting what kind of hole i did for the Radiator... Posting right after the Master of cuting holes for the Rad... **Cough**sdkevin**Cough** :P
http://img528.imageshack.us/img528/2...2314ff1.th.jpg
When the Rad and all the Job was done, I added some mosquito net to Prevent the dust and all other stuff.
http://img488.imageshack.us/img488/8...2308om1.th.jpg
http://img528.imageshack.us/img528/2...2317pt1.th.jpg
http://img528.imageshack.us/img528/4...2318gk6.th.jpg
http://img90.imageshack.us/img90/8486/img2319su1.th.jpg
Some Front Shots
http://img380.imageshack.us/img380/3...2336hh4.th.jpg
http://img255.imageshack.us/img255/2...2361wk2.th.jpg
http://img255.imageshack.us/img255/3...2362gw2.th.jpg
http://img255.imageshack.us/img255/1...2366hk1.th.jpg
Pic Of the Filport and Vandal Switches. I used a Drill & hole saws to make the holes...Yes, I suck whit Drills and craped all the Steel around the holes...lol
http://img255.imageshack.us/img255/8...2378tu7.th.jpg
Pic of the Vandal Switches whit Sleeved cables.
http://img168.imageshack.us/img168/3...2438bj5.th.jpg
http://img456.imageshack.us/img456/2...2389we6.th.jpg
http://img480.imageshack.us/img480/1...2394eg7.th.jpg
Pump Shots. I Mounted the pump Upside down... Drilled some holes in my Hard Drive Caddy and used the provided Pad (that is suppose to absorbe vibrations) and Voila!
http://img269.imageshack.us/img269/4...2403at8.th.jpg
http://img519.imageshack.us/img519/8...2406pm9.th.jpg
http://img92.imageshack.us/img92/9231/img2413tq1.th.jpg
http://img92.imageshack.us/img92/918/img2431rm2.th.jpg
http://img475.imageshack.us/img475/8...2463yu1.th.jpg
http://img475.imageshack.us/img475/2...2464sl3.th.jpg
http://img396.imageshack.us/img396/6...2465mx2.th.jpg
http://img518.imageshack.us/img518/6...2466dy7.th.jpg
http://img518.imageshack.us/img518/1...2469ui7.th.jpg
http://img518.imageshack.us/img518/9...2476as3.th.jpg
http://img181.imageshack.us/img181/1...2477jo9.th.jpg
Wires/Cables Disaster!
http://img181.imageshack.us/img181/5...1899eg0.th.jpg
My Gaming Environement! :)
http://img529.imageshack.us/img529/1...8999pg3.th.jpg
The Systeme itself is More silent than my previous WC set-up. because of thoses Scythe S-FLEX™ 120mm Fans Ultra Silent. Also as you can see i added the CMS Crosflow fans which blow cold air from outside directly onto important components. Oh and the Temps droped a lot from my Previous set-up!
Thanks To all Of you Guys That helped me out on which Radiator to get and all other stuff!
Next Updates: Adding an X1900 Crossfire Edition whit another MCW60 GPU Waterblock. Also Getting Swiftech's Storm Waterblock. And Maybe an Viewsonic VP2030B 8ms 1600 x 1200 Monitor :)
Quote:
Originally Posted by flclisgreat
ur a genius i was wondering how to my rbx over to am2 if id ever decided to:)
:rolleyes: .....
Click on the image to see full sized
http://www.atris.it/Forum/photoplog/...1_IMG_0774.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0746.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0755.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0735.jpg
http://www.atris.it/Forum/photoplog/...1_IMG_0736.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0753.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0762.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0771.jpg
http://www.atris.it/Forum/photoplog/...1_IMG_0770.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0766.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0738.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0758.jpg
http://www.atris.it/Forum/photoplog/...1_IMG_0772.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0769.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0742.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0767.jpg
http://www.atris.it/Forum/photoplog/...1_IMG_0761.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0763.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0745.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0768.jpg
http://www.atris.it/Forum/photoplog/...1_IMG_0760.jpg http://www.atris.it/Forum/photoplog/...1_IMG_0773.jpg
on the desk.....
http://www.atris.it/Forum/photoplog/...1_IMG_0754.jpg
Nice i like it! Damn Watercooled Stakers looks so sexy dosen't they ? lol
Oh and By-the-way: We gotta be a registered member to see your full sized pics...
vkbms, beauty case... but why does it stand under the table :)?
Quote:
Originally Posted by Patriote
Thanks....
Oh...I didn't know it....when i have a little time i'll upload pics on imageshack
Thanks for the congrats.... it's under the table cos i like a clean desk.... I'll get nervous with a messy table.... :DQuote:
Originally Posted by L'enFer
PS: now i've a p5b dlx mounted....the Ds4 is gone....
I recently did a new build around a x1900 crossfire card I got a good deal on. Several hundred $'s on top of that led to this. I had the following goals...
1. high performance on demand / low power idling
2. Efficient
3. Quiet
I am absolutely blown away on how good this computer does on all three fronts. :woot: The Opteron 148 runs at 2.76Ghz (11x251) in games and at 1.02GHz (5x104) idling and using low power apps like DVD viewing. (Thanks to RightMark's RMClock and microGuru from ABIT). In quiet mode, it is essentially inaudible and the system has enough reserve heat dissipative capacity to run the fans at 7 or 8 volts and still handle stress tests like Madden 07 at 14xAA 1600x1200 with flying colors, e.g. CPU at around 45C.
Other watercooling stuff in there...
Thermochill PA 120.3 <----THE RADIATOR for low airflow usage!
Swiftech 6002 (CPU) and MCW60's (GPU's)
Swifttech pump (The blue one...you know the one!)
I don't think you care what HDD's, keyboards, mice, power cords, etc. I use so I won't put in the whole list. Case is the Lian-Li PC-G70 with the optional HDD rack installed. I removed the original HDD rack to make room for the radiator. Great case BTW.
http://img513.imageshack.us/img513/1...sidepz5.th.jpg
http://img172.imageshack.us/img172/5...rontvh7.th.jpg
I have a Stacker T01. They're nice and all but nothing really for looks, but man, vkbms, that has got to be the sexiest Stacker I have ever seen. Good job man. And I like your rad mount on the bottom Patriote, will prolly do as you did.
Usama aka Ferrari Freak
P.S. Still waiting on Petra's DDC top before ordering may loop...........
vkbms, very nice integration indeed. (come se non l'avessi mai vista prima... :D )
Wise componets choice. ;)
Bye! :banana:

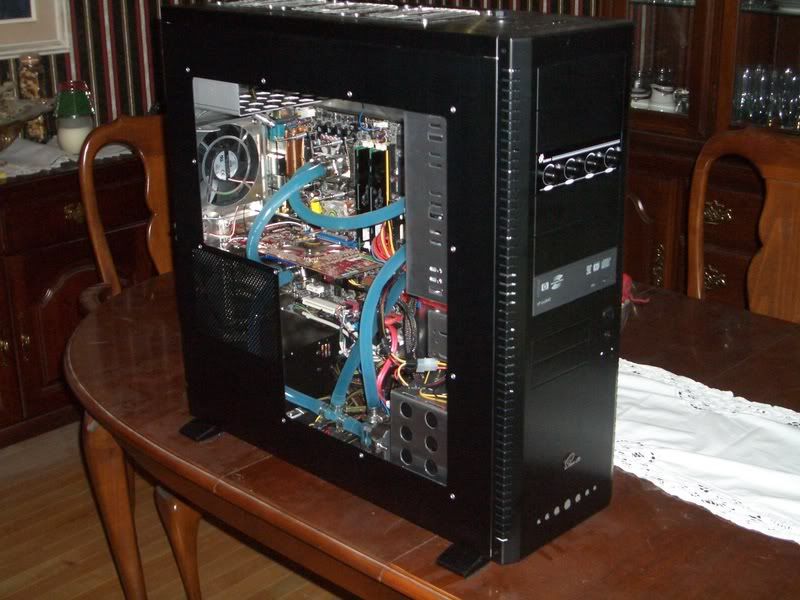

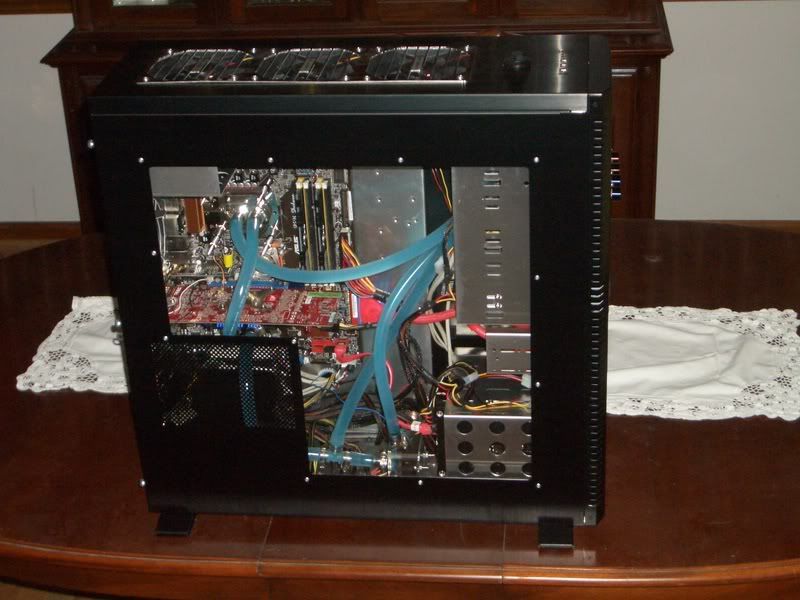

I have a worklog in another thread in this forum, the link is in my sig, but I'll just post a pic or 2 here...
http://i99.photobucket.com/albums/l2...t/CIMG1348.jpg
http://i99.photobucket.com/albums/l2...t/CIMG1350.jpg
Ugh! I tehsuxxorzz at cable management, gotta do some more of that.
