i just don't understand why abit didn't put active cooling to this mobo in the first place, i don't know what temps u get @stock but even with little oc and it's like sauna for those heatsinks. Now i added one 8cm fan to nb and got temp drop from 67c --> 56-60c ^^;
Quote:
Originally Posted by Atlan1980
Same here, 4:5 is no go! 1:1 works great but it has always worked at least for me. As already said cpu features can't be turned off or it won't boot.
the heatpipe is cheaply made, even the thermal paste is bad,Quote:
Originally Posted by Keiki
the sb is covered with a plate of copper and then the sink.and the copper is sticked to sink with some very cheap thermal glue
so everything on SB needs to go thru 2 layers of thermalpaste :slapass:
the NB is so close to cpu socket that mostly of good coolers dont fit :D
Hilfiger: yep i noticed "the great paste" when i changed mine :) and as i got tuniq now too it's really hard to get any bigger fan to on nb, definetly harder than when i used watercooling :)

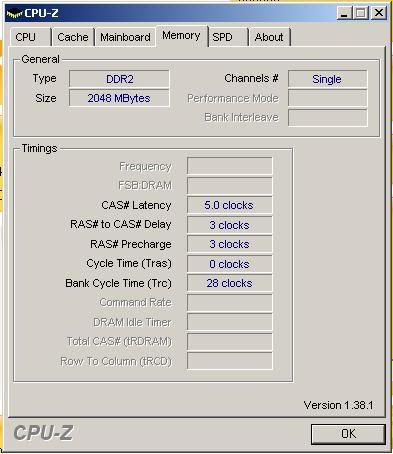

using 1333strap 415x8 ram 1:1 and cpu-z tells me this:
http://i65.photobucket.com/albums/h2.../cpu-z_ram.jpg
hih..
Guess it likes the new bios even less.
If you are having ratio issues on your dimms its down to the SPD on the dimms. There should be tables for each speed in SPD with subtimings etc...if these are not to the boards liking you will have issues.
well i'm only having those "issues" when using 1333strap so i don't think there is any big problem
Posted @ Abit Forum
Well, gonna flash A02 now... :PQuote:
For those with error 20, try to boot with 1 RAM stick only and try different slots
Here it is what error 20 means:
(20)[Beep]=3-1-1 master DMA register test in-progress or failure. Test DRAM
refresh.(Beep)=1-3-1-1. Upper 16 of 32 bit test failed.
okay.
so after some testing here and there this 14 bios didn't improve my fsb much maybe couple mhz, so my max is around 410-420mhz which is enough if i use 10multi :)
flash complete.. bootet in bios, take my options and.. black screen :P
well after xx cmos clear i found the bug was "virtualization technology".. is the problem new? my last bios was 13 beta 03.
Well... BIOS14.A02 gives "20" error when running 1333 strap. In my case, I was at 400FSB on 1066 strap 1:1, then tried to run at 1333 strap 1:1 but got "20" error. Shutting off and turning on the PSU brought back the system to its previous working setting. Gotta love abit's OC recovery thingy ;)
I could Memtest1.65 at 472FSB x 7 on my E6300 but doesn't boot into Windows properly. Nevertheless, this was the first time I've tested my E6300 to do 3.3GHz on a 975X.
The "400FSB ORTHOS Blend" bug is still there... erros out at about 6mins into Blend at 2.0vMCH. Trying higher vCore now to see if it helps. Overall, AW9D-MAX is looking better by the day, provided you don't mess around with the CPU Feature :P
well when i use 10x401 my comp hangs at loading windows.. :mad:Quote:
Originally Posted by Keiki
i am afraid to go over 1.6v in bios ,even if i have week1 cpu it should boot at 4Ghz :stick:
anyone got any ideas why comp hangs at loading windows when over 3.8Ghz? tryed all voltages and stuff at max, except cpu :)
you mean to disable all cpu features in order to overclock?Quote:
Originally Posted by pcmoddingmy
M606C_14.B01 is working fine for me, flashed BIOS in DOS... I'm off to watch some playoff football so I am not going to fool around tonight...
I do like the new bootscreen with the Samurai though! Peace out have a good weekend.
I liked the HardOCP review too untill they started bashing the OC potential of the board. They made some pretty bold statements about the board in the the opening and closing of review....
"The abit AW9D-MAX motherboard is abit’s premier offering for the Core 2 Duo line. With abit’s stellar reputation and the overclocking potential of the Core 2 Duo, this could be the match to beat...but it is not."
and in the "Bottom Line"
"The abit AW9D-MAX will prove to be a great motherboard for many folks. When it comes to overclocking, we highly suggest you spend you money elsewhere."
No... don't mess around with CPU Features means leave it to default mode. If you disable the CPU Features, your BIOS will not overclock. Meaning, it will keep reverting back to the previous FSB during the time that you disabled the CPU Features.Quote:
Originally Posted by Hilfiger
The new bootscreen looks nice, I kinda like it.
Also, another interesting problem with A02. Everytime you clear CMOS with dual DIMMs, you will get "20" error code. To prevent this, run single DIMM whenever you clear CMOS. Now doing 400FSB at 1333 strap... no issues so far. Will try ORTHOS Blend later.
Edit: The A02 BIOS still has weird "missing Onboard Devices" issues where LAN and SATA enable/disable options will go missing upon Clear CMOS. Sometimes its visible, sometimes its invisible.. LOL
mh anyone notice that you need much more vcore for 400 stable or is it just me? but less vmch.. than in the old bios versions..
think my little infinity has to do lot of work :p:
Well the 14.02bios took me from not being able to boot above 405fsb to being able to boot at 430fsb. I can get into memtest at 420 and run spi 1m and 32m at 410. Running orthos now at 405. If it passes it will be an increase of 14mhz over my previous best. I did have to up the vmch to 2.0 and the vcore to 1.5. On 13 b03 voltage did not help to get me over 400.
diable all cpu features except VT..Quote:
Originally Posted by Hilfiger
ya... if u disable Virtualization technology u gonna get problems with either of those:
1) 8.3 error code on Post
2) Double and Triple reboots everytime u get into bios and change something
3) No POST and/or No Boot
4) Restarting causes all hard drives to power off and takes time to reboot due to delay with hard drive powering on..
those are at least the bugs i get.......
testing bios BIOS14.A02 1,5v vcore - 1.95v mch - 1,45v vfsb - 2.20v mem,1066strap , only one stick of EXTREEM, could go higher with my old bios this is not a good bios i think, and cpu-z doesn follow at all it's crystalcpuid that is rhe right one...
http://img455.imageshack.us/img455/3958/446x9ot0.th.jpg
http://media5.filewind.com/g.php?filepath=2659
Quote:
Originally Posted by chefnr1
chefnr1, I just did the vfsb mod and the booster. I just have a question, is your 1.45v vfsb actual or is that 1.45 in guru?
i'm not chefnr1 but i can answer this....Quote:
Originally Posted by SilveradoJ442
uguru shows 0.02 volts higher than the actual. i've verified this by actually measuring the vfsb with a DMM.
in uguru the vfsb is called cpu vtt 1.2 i believe
Quote:
Originally Posted by shimmishim
And can you tell what's the difference between the uguru Vcore and the real Vcore.
Thanks:)
Not sure about uguru but i do know that... what you set in bios is 0.02 higher than the actual at load i believe ( i can't remember if i measured it at load or idle). this i've also measured with a DMM.
