I tested my cloths/meshes this evening; I'll post some numbers from work tomorrow. The copper isn't actually as bad as I initially thought - at least not in terms of air flow. The first piece of copper mesh that I tested was *very* tarnished. The piece I tested tonight was shiny and clean... and only knocked down the air flow by about 40%. It created a hellacious amount of wind noise with the Ultra Kaze, tho... way more than the other meshes.
More tomorrow...
Here are the numbers from my quickie wire mesh and fan grill testing:
http://www.scottallyn.com/images/Mou.../mesh-data.png
...and a few photos of my crude little wind tunnel and the meshes/grills (click on 'em for larger images):
http://www.scottallyn.com/images/Mou...eshes-thmb.pnghttp://www.scottallyn.com/images/Mou...front-thmb.pnghttp://www.scottallyn.com/images/Mou...-rear-thmb.png
For each mesh/grill, I noted the anemometer reading with the filter installed on the intake side of the wind tunnel and then again immediately after removing the filter. There's some turbulence inside the tunnel which caused my anemometer readings to bounce around a bit, so I just averaged out the numbers over a period of a few seconds and noted the before/after numbers for each mesh.
The main thing that I wanted to check with these meshes is their noise level with the Scythe S-Flex fans but figured that, since I actually have a little anemometer, I may as well check the air flow. Almost all of the meshes/grills are noisy when installed directly adjacent to the fan body, so I used an extra fan body as a shroud - made a world of difference, especially with the Ultra Kaze.
I'm probably going to go with the 43 x 43 mesh for my own case (mostly because I already have 12 feet of it). It's a tight enough weave that it should keep most of the pet fur and much of the dust from entering the case, yet it still allows for good airflow and won't create any extra wind noise in my setup. If I didn't already have all of that 43 x 43 mesh, I'd probably go with the 60 x 60 - it'll catch even more dust and still allows for decent air flow.
I think that copper mesh is too restrictive - even without looking at the numbers, you can just *feel* the difference at the end of the wind tunnel. With that weave as tight as it is, it won't take very long to build up an accumulation of dust and fur, which'll make the mesh even *more* restrictive - it'd probably require daily cleaning and I'm waaaay too lazy for that!
I'm sure there are flaws in my setup and test procedure but it told me what I needed to know - maybe it'll be useful to you guys. :)
Edit: Here's a close-up of some mesh swatches to show (more or less) their "transparency" level (Click the image to see *all* of the swatches in the full-size photo):
http://www.scottallyn.com/images/Mou...tches-thmb.jpg
I didn't have any time to set that photo up, but it looks about right. The swatches are the first 10 meshes in the table above, in order from left to right, top to bottom.
Thats completely awesome scott, can you post a picture of each of the mesh's so I can get a feel for what they look like aesthetically as well please?

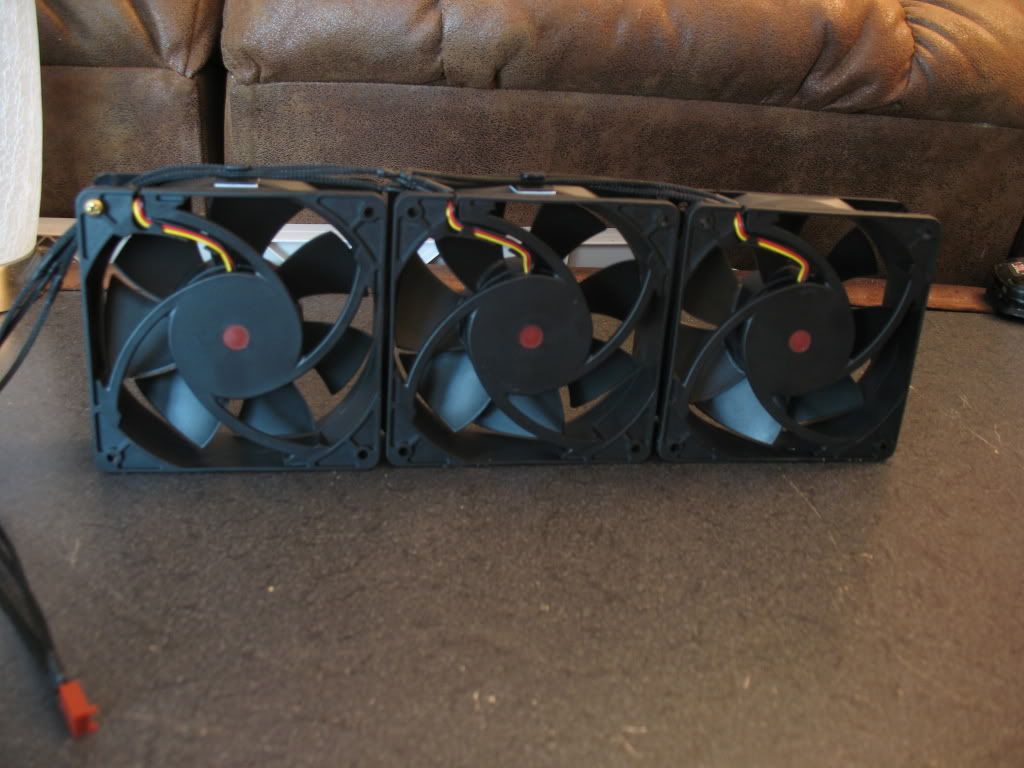

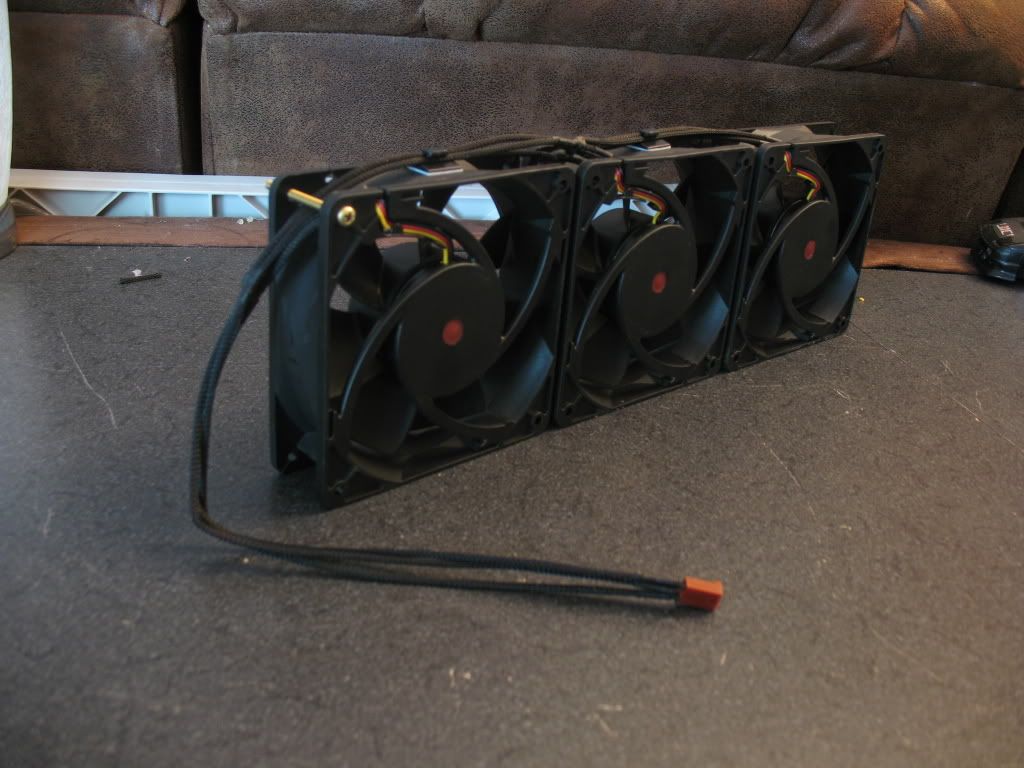

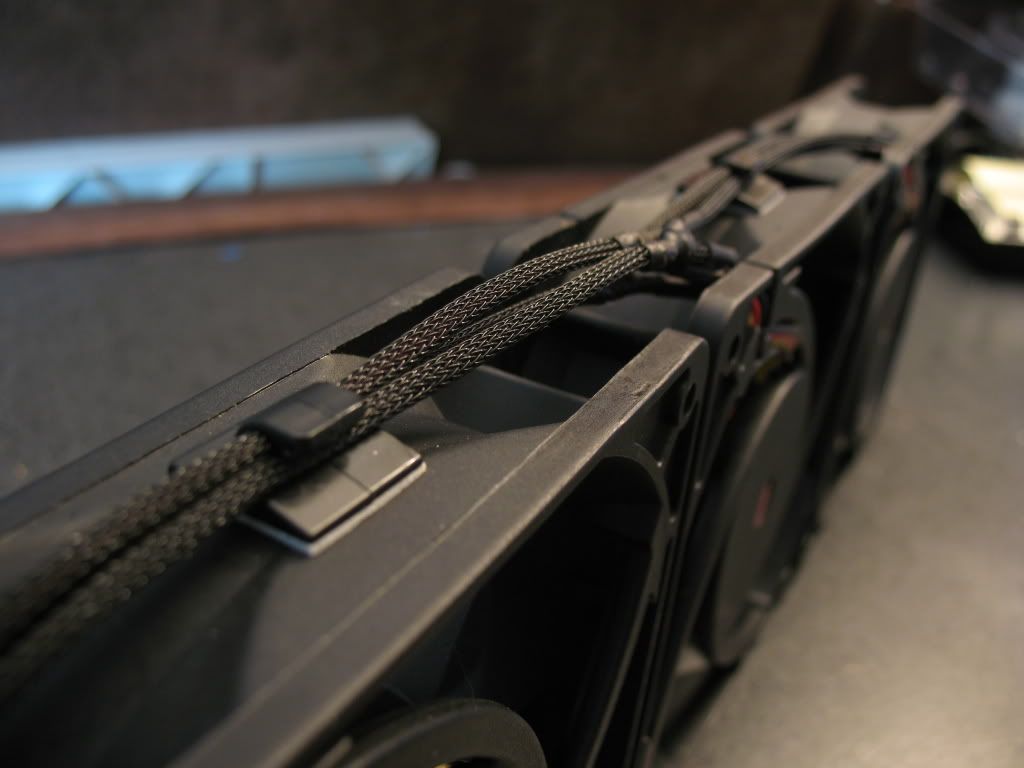

Soldered the second set of three fans together, one more to go!
http://i188.photobucket.com/albums/z...1/IMG_3414.jpg
http://i188.photobucket.com/albums/z...1/IMG_3416.jpg
http://i188.photobucket.com/albums/z...1/IMG_3415.jpg
Nice soldering and sleeving, planning to hook them to a single fan controller?
Very nice test. Just want to double check is a c ryan's filter unnoticable quiet?(thinking about low speed fans and a quiet set up).Quote:
