The Official Dual Core Opteron Overclocking Thread

Printable View

Show 100 post(s) from this thread on one page

11-30-2005, 06:59 AM
cdelatte

Alright, I've got an update. It seems I can run prime95 on either core by itself without a hitch. Whenever I run it on both cores at the same time, prime errors. I have ran it on core 2 for 9 hrs. and core 1 for 2 hrs. If i run it on both at the same time, the first one start fails, but the second one fails. I have followed the direction on how to prime dual core over fdrom another forum, and I even went further to create two directories and set the processor affinity both in prime and windows task manager. I've also uninstalled the processor driver. Now here is the catch, Prime works fine 8hrs on running both cores at stock speeds. I think it maybe my mb still holding me back. Any suggestions, remember 2.4 would be fine with me, but 2.7 would be perfect.
Thanks
11-30-2005, 08:21 AM
uOpt

The 175 retail I ordered from mwave last week just doorstepped here.

It is a CCBWE 0534SPMW 50032.

Looks people had pretty good luck with those. Was expensive enough for sure. I don't have time to pop it in right now :(
11-30-2005, 10:20 AM
arctic-k20

Well my 170 retail just arrived a few minutes ago from ncix canada - here is the stepping info:

ccbwe 0541 rpmw and the batch is 0224

testing very soon....
11-30-2005, 11:35 AM
Budwise

I just got this one in today and was not very happy seeing the week 0541 on it. But right now its priming happily at 2600 w/ 1.44Vcore. I had it at 1.47Vcore, and 2700 was a no go. Not be best of clockers, but not the worst either imo. I can probably end up with it at about 2600 @ 1.41 or so. This is only one of two that im gonna test though. This one will likely not be mine as i have a CCBWE 0543TPMW coming tomorrow. Im praying that the 0530TPMW and the 0543TPMW will be similar in that they are the only ones ive seen with TPMW.

http://www.thecowsaysmoo.org/budwise...170%200541.jpg
11-30-2005, 02:47 PM
phadeout

Hey Budwise,

How does the Opty @ 2.6 compare to the 3800+ @ 2.6?

And make sure to let us know asap about those 0543's.
11-30-2005, 03:55 PM
SLN

ccbwe 0541 rpmw batch is 0096

2700@1.55 (bios setting) fully stable with water cooling
Core1 seems to be stable with 1.525 or even 1.5
Core0 is the limiting factor
Will try and cpuburn it...
2800 cannot be obtained with 1.62-1.64V

edit :forgot the model-- 170 :D
11-30-2005, 04:13 PM
Budwise

Quote:

Originally Posted by phadeout

Hey Budwise,

How does the Opty @ 2.6 compare to the 3800+ @ 2.6?

And make sure to let us know asap about those 0543's.

Im not sure yet. Only had it in for about 5 hours now. The 0541 is kinda a voltage pig though, so im crossin my fingers that the 0543 will kick arse. I did notice that my SuperPi 1M time dropped just from going to the Opteron over the X2. Dropped from 33.4 or so to 32.45. I guess its due to the Opty's better mem controller.
11-30-2005, 05:20 PM
cdelatte

Yay, I finally passed super_pi. I moved my memory from the orange slots to the yellow slots and changed the command rate to 2. I'm ~stable 2.4x10. I'm pushing higher now.
11-30-2005, 05:23 PM
daender

Quote:

Originally Posted by Budwise

Im not sure yet. Only had it in for about 5 hours now. The 0541 is kinda a voltage pig though, so im crossin my fingers that the 0543 will kick arse. I did notice that my SuperPi 1M time dropped just from going to the Opteron over the X2. Dropped from 33.4 or so to 32.45. I guess its due to the Opty's better mem controller.

Could be the extra cache thats helping your SuperPI score. Thats my guess anyhow.
11-30-2005, 07:27 PM
uOpt

Quote:

Originally Posted by Martin Cracauer

The 175 retail I ordered from mwave last week just doorstepped here.

It is a CCBWE 0534SPMW 50032.

Looks people had pretty good luck with those. Was expensive enough for sure. I don't have time to pop it in right now :(

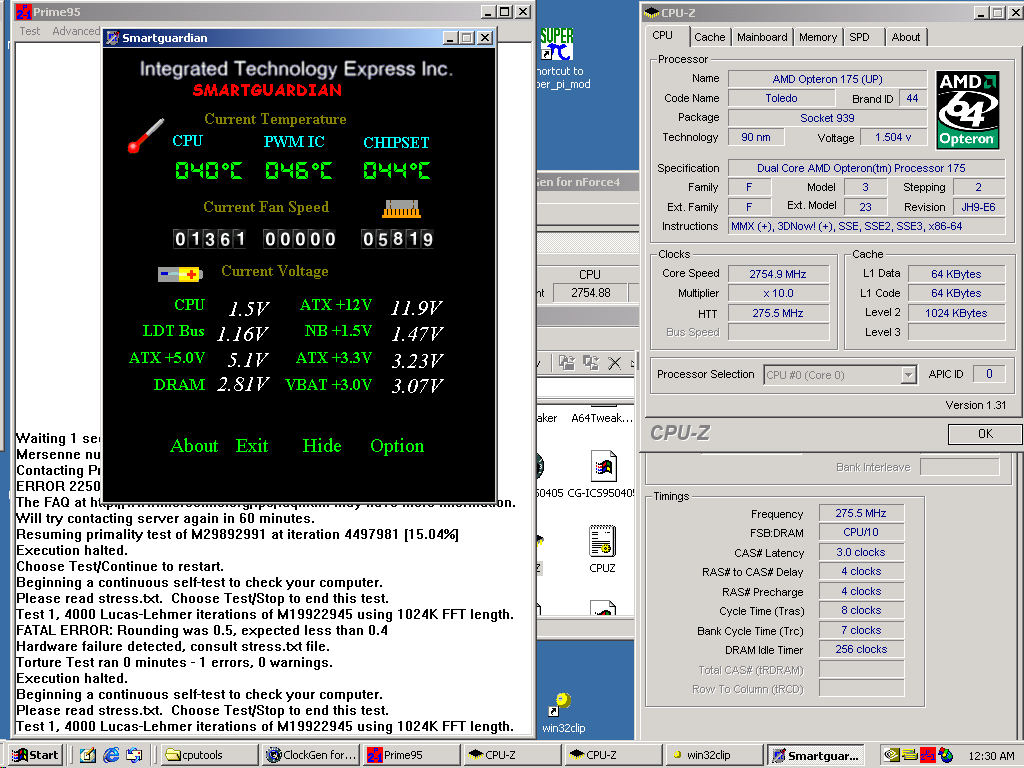

"Suicide prime" below, scaling up until prime fails.

Does not work for long and this is only one core. How do I make Windows 2000 boot the "SMP kernel" or whatever that is called in Windows speech?

I currently target dual prime95 under Linux at 1.50 V with 2.62 GHz.

http://www.cons.org/cracauer/oc-scre...155-prime0.png
11-30-2005, 07:45 PM
ShaidarHaran

Quote:

Originally Posted by alpha0ne

Before blaming the CPU you should try it in a real enthusiast mobo like an Ultra D, or even better, an Expert

I have heard of a few ppl with OC problems using the Infinity series board

Me? I've got a DFI Crossfire board sitting in another rig that's waiting for a video card and an OS. I was contemplating moving my Opty and cards & drives to that rig... Would need better memory as well though. These spectek chips just weren't made for o/cing.

Edit: anyone got any recommendations on a decent 2GB DDR kit that'll do up to PC4000 speed and 1T, preferrably at low volts? I'm not too concerned about timings, but 1T command rate is crucial.
11-30-2005, 08:43 PM
jsriolo

Well I got my DFI NF4 SLI-DR back and everything is hooked up. The voltage reported in windows has always been a little lower than the predicted voltage in bios, but after the rma it seems like anything over 1.45v cpu startup it isn't even close. It scales pretty well with vid up to 1.45 and a % over vid, but after that it drops down to ~1.4v no matter what vid or vid % I put in. Anyways, I can superpi and do everything else I want with perfect stability to 2.8ghz on an opteron 170 with stock voltage except prime. I installed prime in two different directories and set the affinity... Is there anything else I need to do? I'd like to do some real testing as soon as I can.

I had previously edited my startup with the timer thing to stop it from going crazy in games but I have not yet done all of the dual core stuff listed in the thread about how to correctly install dual core drivers.

Anything I could try would be appreciated.
11-30-2005, 08:43 PM
phadeout

Shaid,

Get the Mushkin 2GB Redline PC4000 kit.

I am running 260HTT, 1:1, 3-3-2-8, 1T no problems... I'm sure they could do more if the CPU could... I booted up at the same settings at 270HTT 1:1 too, but the CPU can't handle it (tried a lower ratio to make sure, so it's the CPU).
12-01-2005, 06:51 AM
ShaidarHaran

Quote:

Originally Posted by phadeout

Shaid,

Get the Mushkin 2GB Redline PC4000 kit.

I am running 260HTT, 1:1, 3-3-2-8, 1T no problems... I'm sure they could do more if the CPU could... I booted up at the same settings at 270HTT 1:1 too, but the CPU can't handle it (tried a lower ratio to make sure, so it's the CPU).

The Redline 2GB kit is high on my list, but doesn't Redline need high volts to run high clocks/low timings? The only reason I'm trying to avoid high volts is because I'm air-cooled and my current mobo only goes up to 2.75 VDimm. If low volts isn't an option then I guess I'll just have to move everything over to the other rig with the DFI Crossfire board. No biggie, but I'd like to avoid this if possible.
12-01-2005, 06:56 AM
cx323

Quote:

Originally Posted by ShaidarHaran

The Redline 2GB kit is high on my list, but doesn't Redline need high volts to run high clocks/low timings? The only reason I'm trying to avoid high volts is because I'm air-cooled and my current mobo only goes up to 2.75 VDimm. If low volts isn't an option then I guess I'll just have to move everything over to the other rig with the DFI Crossfire board. No biggie, but I'd like to avoid this if possible.

the old redline that was utt required high volts, but the new 1gb parts don't require high voltage. mushkin rates them for 2.6-2.9

http://mushkin.com/doc/products/memo...ail.asp?ID=273
12-01-2005, 11:15 AM
xgman

anyone else have a ccbwe 0543upmw?
12-01-2005, 11:57 AM
phadeout

Budwise has an 0543TPMW opty 170, is yours the 180?

Results guys!
12-01-2005, 11:59 AM
phadeout

Quote:

Originally Posted by ShaidarHaran

The Redline 2GB kit is high on my list, but doesn't Redline need high volts to run high clocks/low timings? The only reason I'm trying to avoid high volts is because I'm air-cooled and my current mobo only goes up to 2.75 VDimm. If low volts isn't an option then I guess I'll just have to move everything over to the other rig with the DFI Crossfire board. No biggie, but I'd like to avoid this if possible.

I'm running mine at 2.8V 260HTT 1:1 3328 1T, I could prolly use less volts, but I just set 2.8 and have always had it running that way... no mem errors, and it can go higher.

I think at 2.75 you will be able to run 260HTT as well, and more, with good timings.
12-01-2005, 12:08 PM
afireinside

http://afireinside.evilspork.net/AFI/DCopty/

24/7 stable clocks on air and sandra+3d scores :D
12-01-2005, 09:04 PM
Major

4 Attachment(s)

Opteron 180 results

http://www.xtremesystems.org/forums/...id=40597&stc=1

Since I'm low on cash until after Xmas is over I'm just a little hesitant about putting too much Vcore through it. So I forced myself to limit max Vcore for now to 1.7v :D

See sig for rig, running stock Vapochill LS and G.Skill TCCD. The IHS is still on for now (for the same reason I don't want to use too much Vcore ;) )

My TCCD maxed out at 309x10 and the chip maxed out at 3124mhz 284x11 with 1.7v in bios. This is both dual prime and SuperPi32 stable. Got into windows by accident at 3399 when I left the multi at 11x but who cares about suicide shots :stick:

I'm a happy camper so far, I've had several X2's and this dual core is best by far. Here is a list of the previous X2's I've had and max dual prime stable under the Vapochil LS:

4600 = 3180mhz "naked"
4400 #1 = 3050mhz "naked"
4400 #2 = 2980mhz
3800 = 2950mhz

http://www.xtremesystems.org/forums/...id=40598&stc=1

http://www.xtremesystems.org/forums/...id=40599&stc=1

http://www.xtremesystems.org/forums/...id=40600&stc=1
12-01-2005, 09:23 PM
Budwise

Nice Work Major!

So far my 24/7 Overclock on air is 2700 @ 1.48Vcore. I was able to reach 2800, but the volts needed were too much for me (1.56Vcore) although i almost broke into the 20's on SuperPi 1M (30.2 Seconds). Im idling at 27C and the picture you see below is under full load. Im using 704-2BTA bios.

http://www.thecowsaysmoo.org/budwise...%20Closeup.jpg

http://www.thecowsaysmoo.org/budwise...0OC%200543.jpg
12-01-2005, 10:25 PM
irev210

I have been following this thread since it started.

I knew the opterons would dry up fast, so i bought 4x165's. 1x170 and 1x175

The 170 and 175 were the famous 530's and they are just amazing

I got a 0534 and 0541's and honestly they seem to clock about the same for me on the 165's.

I am running a DFI Expert with GEIL one W BH @ 250ish 1.5-2-2-5

The 0530's are just wow, 2900+ no problem. I have to sell the 175 because it is a little rich for my blood, and my buddy stole the 170 for his watercooled rig.

So, here i ended up with a 165 and it made its into my rig with just a stock AMD heatsink and it seems to love 2.7.

I am enjoying lower Vcore of 1.47Vcore @ 2640, 2700 took a little over 1.5vcore, and I am on a stock cooler... so im playing it safe, especially with the screwed up CPU temp that the DFI expert is reporting. I am at 38C on a stock cooler according to smart guardian lol!!!

Memory is at 240mhz 1.5-2-2-5-7

The one thing that is driving me nuts is my GEIL HATES anything above Vdimm of 3.52. Even at stock speeds, it just cant stand 3.6+ vdimm.

Any suggestions on this? I ran it at 200mhz 2-2-2-5 and it would error out.

Any suggestions to help me out here, this DFI expert board seems pretty tricky, but it has been good to me so far. I threw in two 7800gtx's and didnt have any problems with them, so that is a good sign as well.

Again, i am glad to join you guys, and any insight/advice on how to crank up Vdimm would be greatly appreciated. I love the CAS 1.5, I am hitting 38ns latency in everest! Just want something that can do 1.5-2-2-5 at 260+ and if I could use more Vdimm, I know i could do it! I am stuck at 255 :(
12-02-2005, 04:06 AM
Spazilton

Been working on testing out my 170 that I got in a coulpe of weeks ago.

Its a CCBWE 0536MPMW.

What a disappointment..

Im hitting a brick wall at 2450Mhz. I know overclocking isnt guarnteed, but was hoping for a little more seeing the 0530s running 2900+ on stock air.

Is there anything I can do to squeeze some more out of this, I was hoping for around 2600. Im running 245x10 with a 4x HTT. Ram is 1:1 (this stuff does 280 no problem)

Here is my setup.

DFI SLI-DR Expert
AMD OPTY 170 CCBWE 0536MPMW @2.4 10x240 1.45v
Mushkin Redline 1GBx2
XP-90c /w Panaflow H1BX

Estimated Load temps, around 48-53c (SLI-DR Expert reports Opty temps way low)

Any suggestions would be cool.
12-02-2005, 04:13 AM
skogkatt

Quote:

Originally Posted by Spazilton

Is there anything I can do to squeeze some more out of this, I was hoping for around 2600. Im running 245x10 with a 4x HTT. Ram is 1:1 (this stuff does 280 no problem)

Any suggestions would be cool.

Have you tried with a memory divider, to put less stress on the memory controller?
12-02-2005, 04:40 AM
Spazilton

Quote:

Originally Posted by skogkatt

Have you tried with a memory divider, to put less stress on the memory controller?

Ive tried putting it to 166. At 250 x 10, Memory is running around 208.

Fails prime at 1.45 in about 15 seconds.

I think I just have a crappy proc :(
12-02-2005, 05:38 AM
alpha0ne

Quote:

Originally Posted by Spazilton

I think I just have a crappy proc :(

Bad luck m8 though at least you can get to 2.4
12-02-2005, 05:53 AM
uOpt

Quote:

Originally Posted by Spazilton

Its a CCBWE 0536MPMW.

What a disappointment..

Im hitting a brick wall at 2450Mhz. I know overclocking isnt guarnteed, but was hoping for a little more seeing the 0530s running 2900+ on stock air.

These need volts. What voltage do you have?

I have a similar one and at stocks volts it doesn't do jack. However, it reacts very well to volts, and heat and power consumption indicate it is reasonable happy at those volts.
12-02-2005, 05:55 AM
uOpt

new results.

Again, my Opteron 175 CCBWE 0534SPMW, now at higher volts.

I have it at 1.6V, Big Typhoon.

It has been dual-priming all night.

I have been initially disappointed, it doesn't clock well at lower volts. But it seems that this one really likes mid-high volts. Power consumption and heat indicate that the load is not insane, so I might very well settle for this 24/7 and see what happens long-term.

Code:

last pid: 872; load averages: 2.00, 1.99, 1.92 up 0+11:21:44 07:55:30 46 processes: 3 running, 43 sleeping CPU states: 0.0% user, 96.8% nice, 0.4% system, 0.0% interrupt, 2.8% idle Mem: 35M Active, 89M Inact, 65M Wired, 40K Cache, 60M Buf, 303M Free Swap: 3025M Total, 3025M Free PID USERNAME THR PRI NICE SIZE RES STATE C TIME WCPU COMMAND 574 cracauer 1 139 20 8372K 6992K RUN 0 672:11 98.58% mprime-real 530 cracauer 1 139 20 8372K 6984K CPU1 0 673:26 97.22% mprime-real 730 cracauer 1 96 0 2380K 1480K select 0 0:15 0.00% top 761 cracauer 1 96 0 2376K 1476K select 0 0:15 0.00% top 786 cracauer 1 96 0 2380K 1480K select 0 0:13 0.00% top 710 cracauer 1 96 0 6060K 2672K select 0 0:02 0.00% sshd 766 cracauer 1 96 0 6060K 2668K select 0 0:01 0.00% sshd 573 cracauer 1 -8 0 1188K 544K piperd 0 0:01 0.00% tee 531 cracauer 1 -8 0 1188K 544K piperd 1 0:01 0.00% tee 439 root 1 96 0 9148K 4912K select 0 0:01 0.00% httpd 446 daemon 1 96 0 1268K 872K select 0 0:00 0.00% healthd

Sorry for the Unix shot. I have not been able to make Windows 2000 boot or switch to the "SMP kernel" or whatever that is called in Windows land. Any hints?
12-02-2005, 06:27 AM
Spazilton

Quote:

Originally Posted by Martin Cracauer

These need volts. What voltage do you have?

I have a similar one and at stocks volts it doesn't do jack. However, it reacts very well to volts, and heat and power consumption indicate it is reasonable happy at those volts.

Most I have pumped into is is 1.525, It will prime at 2.5 (250x10 1:1 4x HT) for about 30 min at that vcore.

I didnt think it would be safe to pump any more through it with an XP-90.
12-02-2005, 06:34 AM
Spazilton

Going to try your suggestion, kinda risky since I do not have an accurate tempature monitor. (SLI-DR Expert is way off on Opterons) I believe its reading around 20c low. Assuming this is true Dual Priming at 1.568 is still keeping me at ~55c. PWMIC is 41c and Chipset is 43c.
12-02-2005, 07:00 AM
jsriolo

I have everything running smooth at 2.6ghz with stock voltage on my opteron 170. Much more than that and it will become unstable but does not scale at all with voltage. It seems like I just can't get it to play nice with my memory even though all of the timings are really lose. Once I figure it out Ill post some results.
12-02-2005, 09:16 AM
uOpt

Quote:

Originally Posted by Spazilton

Going to try your suggestion, kinda risky since I do not have an accurate tempature monitor. (SLI-DR Expert is way off on Opterons) I believe its reading around 20c low. Assuming this is true Dual Priming at 1.568 is still keeping me at ~55c. PWMIC is 41c and Chipset is 43c.

Nobody can tell you how much volts is safe.

I made a decision that this CPU wants the volts and rewards it with much better clocks. My single-core Opterons have much smaller gains from high volts. My decision to feed this one what it wants includes that I won't complain if it breaks sometime soon. If it does, at least I'll know what an unsafe voltage is :)

As for temperatures, get a fan controller with thermal probes. If you insert the probe under the heatsink's base plate right next to the IHS on the chip, with contact to the IHS, you come very close to accurate readings. Just mentally add 5 degrees, or "calibrate" by using it on a board with working monitoring first.

Another thing to do is get a power meter and observe how much it is drawing. To produce excessive amounts of heat it would also have to draw a lot of power. This is the main reason why I trust my overclock above, the 1.6 volts dual-core with dual prime does not draw more than my 1.6 volts single-core CABYE.

(disclaimer: yes I know volts kill independently of heat, this is why I say I take my chances)
12-02-2005, 10:17 AM
Spazilton

Well so far,

Raised the Vcore to 1.568

Just passed 2 hours Dual Prime at 10x250 1:1 4x HT

Moving up to 10x255 and trying that.. So Far So Good.

Seems you were correct that this stepping like some voltage.

Judging from my experiance on how warm my HSF gets at a specific temp Im estimating around low to mid 50s for temps..
12-02-2005, 10:53 AM
cdelatte

Quote:

Originally Posted by Spazilton

Ive tried putting it to 166. At 250 x 10, Memory is running around 208.

Fails prime at 1.45 in about 15 seconds.

I think I just have a crappy proc :(

Mine is the exact stepping and it sucks just as bad, glad someone else is having the same problem, I thought my board or memory was failing. I can run super pi at 10x2.4ghz and that is my best. I think I am going to ebay mine.
12-02-2005, 11:25 AM
Zeus...

well got the cpu stable 23hrs+ primex2 small ftts @2650Mhz 1.48V CPUx10 HTx3 (600 in Bios) HTT650 but due to mobo not liking TCCD mem its only at 176.7MHz 1T 2 2 2 5 relaxing the mem timings doesnt help to get the mem above 200MHz stable (unless u count 2200MHz htt220 1:1) Hoping for a bios update to improve compatability with TCCD mem - untill then I am stuck out off syn with poorish bandwidth :slapass:

Edit typo error
12-02-2005, 11:32 AM
phadeout

Quote:

Originally Posted by Zeus...

well got the cpu stable 23hrs+ primex2 small ftts @2650Mhz 1.48V CPUx10 HTx3 (600 in Bios) HTT650 but due to mobo not liking TCCD mem its only at 176.7MHz 1T 2 2 2 5 relaxing the mem timings doesnt help to get the mem above 200MHz stable (unless u count 2200MHz htt255 1:1) Hoping for a bios update to improve compatability with TCCD mem - untill then I am stuck out off syn with poorish bandwidth :slapass:

Edit typo error

Do you have your other memory timings set to Auto, and just have the divider and 2225 set? Or do you have other manual settings as well?
12-02-2005, 11:48 AM
Zeus...

Quote:

Originally Posted by phadeout

Do you have your other memory timings set to Auto, and just have the divider and 2225 set? Or do you have other manual settings as well?

well I have tried many differnet setting 1t 2T CAs ras etc had this mem stable at 265MHz on my MSI Neo2 Plat so I have treid so much it hurts - its like a blurr the last week - this Bios 703 doesnt like TCCD or doesnt like mine the settings ATM are auto except the mem is limited to 133MHz in bios any higher and it fails to boot when overclocking -oh set mem to 2.9Volts could take it higher but the mem doesnt need that much its not like I was going for 1:1 @ 300HTT
12-02-2005, 02:42 PM
demenion

Quote:

Originally Posted by jsriolo

I have everything running smooth at 2.6ghz with stock voltage on my opteron 170. Much more than that and it will become unstable but does not scale at all with voltage. It seems like I just can't get it to play nice with my memory even though all of the timings are really lose. Once I figure it out Ill post some results.

weren't you able to hit 2.95 GHz or so on that chip before you fried your old board?
12-02-2005, 02:45 PM
Spazilton

Well just an update on my 0536 Opty 170.

Earlier today I couldnt get 2500 stable until 1.568 vcore. I dual primed it for around 2 hours. Now after that Im running 2500 at 1.52 vcore, and its been stable for over 4 hours. This is the first positive sign I have had out of this processor, maybe this stepping just requires some burn-in to work well. I'm just hoping for 2.6 (Don't think its worth the effort to go any higher with this proc)
12-02-2005, 02:47 PM
uOpt

Quote:

Originally Posted by Martin Cracauer

new results.

Again, my Opteron 175 CCBWE 0534SPMW, now at higher volts.

I have it at 1.6V, Big Typhoon.

It has been dual-priming all night.

[that was 2.70 GHz]

Unfortunately, one core decided to freak out after 20 hours of prime95.

Back to the drawing board I guess...
12-02-2005, 02:59 PM
demenion

Quote:

Originally Posted by Martin Cracauer

[that was 2.70 GHz]

Unfortunately, one core decided to freak out after 20 hours of prime95.

Back to the drawing board I guess...

20 hours? still a pretty good sign of stability for normal use..
:p:
12-02-2005, 03:00 PM
Budwise

after 20 hours? Dude, i think its plenty stable for daily use if it goes that long.
12-02-2005, 03:02 PM
demenion

I was messing with the new ASUS A8N32 SLI board..

http://img234.imageshack.us/img234/9...00653ft.th.jpg
http://img234.imageshack.us/img234/5...00715nw.th.jpg

I thought my DFI board PWMIC temps were holding me back but i basically capped out at the same speeds with the ASUS board.

I just can't get 2.9 GHz primestable. (dual SuperPi 32mb is fine)

2.8 GHz @ 1.4V seems to be the sweet spot..

You think my 12V rail going down to 11.72 could be effecting my overclock?

Anyway, going to be keeping the DFI board.. the Asus board does have some nice features but it was way too expensive ($270). I prefer the DFI bios and I won't be using SLI so it is kind of a waste.
12-02-2005, 03:15 PM
phadeout

12V goes to 11.72... what did it start at? 12? 11.9? etc.
12-02-2005, 03:18 PM
demenion

Quote:

Originally Posted by phadeout

12V goes to 11.72... what did it start at? 12? 11.9? etc.

Smartguardian reports 11.83V idle.

I've seen it drop to 11.72 underload.

It's a Fortron AX450

I have a 7800GT, 2xSATA HDs, DVDRW, and four 120mm case fans.
12-02-2005, 04:10 PM
Spazilton

Quote:

Originally Posted by demenion

Smartguardian reports 11.83V idle.

I've seen it drop to 11.72 underload.

It's a Fortron AX450

I have a 7800GT, 2xSATA HDs, DVDRW, and four 120mm case fans.

Still within the ATX specs, however I think you might need a larger PS.

You are pushing it for a 450w imo. But hell Im pushing my PCP&C 510 ATX-SLI :P

2x7800GT
2xWD Raptors
2xWD 400GB
2xHitachi 160GB
2x120MM Fans
DVDRW, DVD, CDRW :P

But PCP&C tend to underrate thier Powersupplies. I go from 12.09 Idle to 12.04 load..
12-02-2005, 05:00 PM
irev210

I went with the Enermax liberty and that powersupply has really suprised me.

I just got the 500watt version and i was running 7800gtx SLI's, amd opteron 165 w/ 1.55Vcore and some bh memory running at 3.5Vdimm.

My ATX +12V always stays at 12.22, seems like a very strong 12v rail.

ATX +5.0V sits at 4.97-4.99 according to smart gaurdian under CPU load, and 5.02 at idle.
12-02-2005, 05:02 PM
uOpt

Quote:

Originally Posted by Budwise

after 20 hours? Dude, i think its plenty stable for daily use if it goes that long.

Not for me :(

Software developer. If I get a segfault I must know it was mine, not the hardware's.

So more volts or settle for 2650 MHz?
12-02-2005, 05:04 PM
phadeout

Quote:

Originally Posted by demenion

Smartguardian reports 11.83V idle.

I've seen it drop to 11.72 underload.

It's a Fortron AX450

I have a 7800GT, 2xSATA HDs, DVDRW, and four 120mm case fans.

that's a pretty decent drop IMO.

My Enermax 660 keeps my opty, plus my 2GT's (see sig) going strong, Single Instance of Prime plus running 3dmark05, and I see about .02V drop on the 12V rail... Though I have 4 Rails and it's hard to say how this mobo is interpretting that, it's most likely just reading the rail for the 24Pin ATX. The GT's and devices have their own rails, as does the 4Pin CPU connector...
12-02-2005, 05:04 PM
irev210

Quote:

Originally Posted by Martin Cracauer

Not for me :(

Software developer. If I get a segfault I must know it was mine, not the hardware's.

So more volts or settle for 2650 MHz?

settle for the 2650, i did lol

2650 @ 1.4 seems to be great for me, runs nice and cool anyway.

According to this DFI board, it runs at 23C lol while the PWMIC is 36 and chipset is 39.

DFI REALLY needs to fix that.

Glad to see someone else with some GEIL. My memory wont do past 255 ARGE! and it wont even take more than 3.52Vdimm! ARRRGE!
12-02-2005, 05:26 PM
Badge56

Need some advice: No speculation please, I can do that just fine myself.

I am now running a Opty146 @ 2900 mhz (100% stable) (H2O)

I am contemplating on buying a Opty 170 and tryout some dual core happyness... but !

Will I be getting better preformances from the dually even if I dont get it higher than 2600? I have read that on some benchmarks 2900 single = 2600 dual.
Will my system feel faster with the dual running 300mgz slower?

All questions I am asking myself..

Any of you guys actually try both?

Thanks:stick:
12-02-2005, 05:29 PM
Major

Quote:

Originally Posted by Badge56

Need some advice: No speculation please, I can do that just fine myself.

I am now running a Opty146 @ 2900 mhz (100% stable) (H2O)

I am contemplating on buying a Opty 170 and tryout some dual core happyness... but !

Will I be getting better preformances from the dually even if I dont get it higher than 2600? I have read that on some benchmarks 2900 single = 2600 dual.
Will my system feel faster with the dual running 300mgz slower?

All questions I am asking myself..

Any of you guys actually try both?

Thanks:stick:

Dual core is the future.

I gave up an FX57 @ 3.4ghz in favor of dual core at 3ghz and never looked back.

In everyway it is superior to single core
12-02-2005, 06:04 PM
dinos22

yeap my dual core 165 at 2.6GHz beats the crap out of my old 144@2.9GHz......3D/PCMARK/games/encoding/everyday stuff....dual core is great :D i actually scored my highest ever 3DMARK scores with dual core rather than single core even though it runs slower..... ;)

Quote:

Originally Posted by Badge56

Need some advice: No speculation please, I can do that just fine myself.

I am now running a Opty146 @ 2900 mhz (100% stable) (H2O)

I am contemplating on buying a Opty 170 and tryout some dual core happyness... but !

Will I be getting better preformances from the dually even if I dont get it higher than 2600? I have read that on some benchmarks 2900 single = 2600 dual.
Will my system feel faster with the dual running 300mgz slower?

All questions I am asking myself..

Any of you guys actually try both?

Thanks:stick:
12-02-2005, 06:22 PM
Ic3man

Took a Sandra benchy of CPU arithmatic and multimedia vs fx57/55/53 and the 4800x2 vs my humble dual opty 165 @ 2600. This what your looking for?

http://img.photobucket.com/albums/v6...o10/iceypc.jpg

Sorry about the size.
12-02-2005, 06:54 PM
dogsx2

Quote:

Originally Posted by Ic3man

Took a Sandra benchy of CPU arithmatic and multimedia vs fx57/55/53 and the 4800x2 vs my humble dual opty 165 @ 2600. This what your looking for?

Sorry about the size.

Why are you running the clock so slow on the memory?
12-02-2005, 07:41 PM
Ic3man

Coz of the high HTT on CPU. Havn't had much time to tweak timings on the memory yet so all the memory settings are at auto in bios (inc divider) apart from the 1T setting, I guess thats what the mobo has set them at for stability. I'm a bit of a noob when it comes to memory timings anyway and as I am running raid 0 I dont really want to corrupt my install until I get everything backed up. All my efforts have gone into the cpu atm as I'm still burning it in.
12-02-2005, 08:23 PM
cdelatte

Quote:

Originally Posted by Martin Cracauer

These need volts. What voltage do you have?

I have a similar one and at stocks volts it doesn't do jack. However, it reacts very well to volts, and heat and power consumption indicate it is reasonable happy at those volts.

How much are you volting yours?

I just put 1.66 on mine for a little while and was able to get into windows at 2.8ghz. I ran super pi, but it failed instantly. I want to put more, but I'm scared I'll burn the core up. I probably would do great with this thing and some water cooling:p:
12-02-2005, 10:27 PM
Spazilton

I think anything over 1.6 is asking for trouble on a Dual Core Opty.
12-03-2005, 12:12 AM
Zeus...

failed primex2 small ftts on one core @2650Mhz 1.42V CPUx10 HTx3 (600 in Bios) HTT265 after 2hrs trying again @ 1.46Vcpu
12-03-2005, 02:59 AM
demenion

Looks like my PSU may be the problem.

I was getting a bsod SuperPi 32mb 2.9 GHz @ 1.53V.

I disconneceted my other hard drive and dvd-rw.

passed 32mb.. 26m 05s (my fastest time ever) probably could get it under 26m if i wasnt multitasking while benching.
12-03-2005, 05:14 AM
Zeus...

Quote:

Originally Posted by Zeus...

failed primex2 small ftts on one core @2650Mhz 1.42V CPUx10 HTx3 (600 in Bios) HTT265 after 2hrs trying again @ 1.46Vcpu

Failed within two hours upped it a bit more and BSOD whilst priming and gaming on line - so it looks like it needs the 1.5V thats 1.3x + 200mv option in the bios
12-03-2005, 06:08 AM
uOpt

Quote:

Originally Posted by cdelatte

How much are you volting yours?

I just put 1.66 on mine for a little while and was able to get into windows at 2.8ghz. I ran super pi, but it failed instantly. I want to put more, but I'm scared I'll burn the core up. I probably would do great with this thing and some water cooling:p:

I put 1.6 V (DMM measured) for 2.70 GHz to get dual prime 20 hours (that means failed after 20 hours).

It's a tough call. We have one person who burned one up at 1.65 (although I don't know whether that was 1.65 reported in sensors or set in BIOS).

But I am doing prime-stable overclocking only, so to speak. I wonder whether slowly going to prime limits can ever short-term damage the CPU. After all it would start acting up in software first. (yes I know high volts always do long-term damage).

Does anybody remember who was the user who lost a DC at 1.65 V?
12-03-2005, 08:15 AM
Zim

Almost finished testing the OEM 170 0530 I got from NewEgg earlier this week. Looks like 2.7GHz (1.45v) is as high as I can go with reasonable voltage. I can't get it prime stable at 2.8GHz this side of 1.55v. Core 1 is the one that always lets me down.

I'm a little disappointed that this Opty is not as good as some 0530's, but it appears to be better than a lot of other 170's. I've got 10% more performance than my X2 4400+ at $100 less, so it's a definite win.

BTW I discovered that apparently CnQ on an Opteron is not the same as on an X2, and as such I was not able to enable it. However, I found the RightMark CPU Clock Utility that seems to do just as good a job. In fact, because it's fully configurable, I much prefer it to the AMD CPU drivers.
12-03-2005, 08:28 AM
Pyr0

have you still installed the amd cpu drivers?
according to the website:

Quote:

Added support for AMD K8 dual-core processors (latest AMD driver required)

looks like a great little prog :)
i think i'll have to try to work out how to use it tho, lol :p:
12-03-2005, 08:48 AM
Zim

Quote:

Originally Posted by Pyr0

have you still installed the amd cpu drivers?

Yes, but I disabled CnQ in BIOS.

Nice work on that X2! ;)
12-03-2005, 10:11 AM
jsriolo

Yes I had this running at 2.95ghz with some stability (2 hours prime?) and then I started playing with some stuff and fried my board. I was doing that with a ram divider and now im trying to get it stable 1:1 but it just isn't working for me too much higher than 2.6ghz. I know that my ram is capable of >300 mhz but it has been a while since I've done that and I don't really remember how I had it configured. Finals are next week too so I haven't had a whole lot of time :(
12-03-2005, 09:46 PM
cdelatte

Alright, I'm completely aggrevated with my opty. It won't even prime stable at 2.4 with 1.55 volts and lowering the memory divider. Any ideas on how I can get monarch to swap me out a new one. I have a 90 day warranty.
12-03-2005, 10:37 PM
ripken204

i have my 170 at 260x10 w/ 1.45v
the ram is on a 9/10 divider, it is running at 236@3-3-3-8
so far prime hasnt given me any errors :)
12-03-2005, 10:51 PM
pcdoc1

Quote:

Originally Posted by cdelatte

Alright, I'm completely aggrevated with my opty. It won't even prime stable at 2.4 with 1.55 volts and lowering the memory divider. Any ideas on how I can get monarch to swap me out a new one. I have a 90 day warranty.

Sure, just call them and tell 'um that your 170 will only OC 400MHz and your pissed! I'm sure they'll be begging to take it back.... :slapass:
12-04-2005, 04:19 AM
eva2000

Well seems 2700-2750mhz is best stable i can get and 2800mhz benchable right now - have to wait to get some better cooling to go higher ;) :)

For now broke my previous PCmark05 high score of 7,689

Pcmark05 = 7,710 (currently 6th fastest PCmark05 score on the ORB with 'Only highest score/user' criteria used)
http://service.futuremark.com/compare?pcm05=195265

3Dmark05 = 14,460 (58 pts higher than my single core best of 14,402 at 3096mhz)
http://service.futuremark.com/compare?3dm05=1518031

3Dmark2003 = 31,822 (589pts lower than my best single core score of 32,411 at 3014mhz)
http://service.futuremark.com/compare?2k3=4448355

http://www.fileshosts.com/DFI/NF4_SL...97_7710_tn.jpg

http://www.fileshosts.com/DFI/NF4_SL...8_14460_tn.jpg

http://www.fileshosts.com/DFI/NF4_SL...7_31822_tn.jpg
12-04-2005, 11:57 AM
noktekniq

my chip is a piece of Sh"T i can barely run 2.43mhz on 1.39volts on prime for 45 mins... can't seem to pass the 1.5 barrier. and my temps are already on 50C load with xp90c and panaflo fan!
12-04-2005, 03:21 PM
biohead

Quote:

Originally Posted by noktekniq

my chip is a piece of Sh"T i can barely run 2.43mhz on 1.39volts on prime for 45 mins... can't seem to pass the 1.5 barrier. and my temps are already on 50C load with xp90c and panaflo fan!

looks like bad contact, your stepping seems alright
12-04-2005, 03:29 PM
QettoE

Quote:

Originally Posted by noktekniq

my chip is a piece of Sh"T i can barely run 2.43mhz on 1.39volts on prime for 45 mins... can't seem to pass the 1.5 barrier. and my temps are already on 50C load with xp90c and panaflo fan!

Go 1.45 and you should be fine 2.5 dual prime stable. Make sure your RAM can handle it or use a divider. I'm running at that speed 24/7 with no glitch.
12-04-2005, 03:42 PM
demenion

http://img125.imageshack.us/img125/7...erpi6eg.th.jpg

This is on air. Watercooling next week (Swiftech Apogee, MCP655, Black Ice Extreme 2) :)
12-04-2005, 04:26 PM
bugeyes

Quote:

Originally Posted by noktekniq

my chip is a piece of Sh"T i can barely run 2.43mhz on 1.39volts on prime for 45 mins... can't seem to pass the 1.5 barrier. and my temps are already on 50C load with xp90c and panaflo fan!

Welcome to the club... my OSA170 0534 SPMW was the same :( so I promptly sold it off to minimize the depreciation.
12-04-2005, 06:15 PM
dinos22

Quote:

Originally Posted by demenion

http://img125.imageshack.us/img125/7...erpi6eg.th.jpg

This is on air. Watercooling next week (Swiftech Apogee, MCP655, Black Ice Extreme 2) :)

wow that setup will give you a decent boost..........according to a user here at XS going from Thermaltake SI-120 to Apogee resulted in 8-10C temp drop :)
12-04-2005, 06:18 PM
Repoman

So far my 165 CCBWE 0534 SPMW is looking very good.. I have 2.8GHz about 2 hours prime stable at 1.55v, and 2750 with the same volts ran for 49hrs while I was away for the weekend. Running my 1x1GB (until the other comes back from rma :rolleyes: ) at 278MHz with 9/10 divider. The memory controller is not that good, it won't run 1T I have to use 2T, but what do I care.

165 0534 seems to be better than 170 0534
12-04-2005, 06:25 PM
socrilles

what kind of cooling you running repoman
12-04-2005, 06:30 PM
Spazilton

Quote:

Originally Posted by noktekniq

my chip is a piece of Sh"T i can barely run 2.43mhz on 1.39volts on prime for 45 mins... can't seem to pass the 1.5 barrier. and my temps are already on 50C load with xp90c and panaflo fan!

Hey look on the bright side you dont have an 0536 which is even worse.
12-04-2005, 07:25 PM
dinos22

Quote:

Originally Posted by Spazilton

Hey look on the bright side you dont have an 0536 which is even worse.

i don't know about that my 165 is prime stable at 1.43v 2.6GHz.....not the fastest out there but can't go wrong with FX60 speeds either and low voltage
12-04-2005, 07:34 PM
irev210

0534 opty 165 here, stable at 2.7, and not much higher.

0541's that I was playing with seemed pretty similar, stable at 2.6/2.7

The only problem is I am on a stock heatsink, so I dont know. Perhaps the 0534 has more left in her, just waiting for my new heatsink to arrive. I am also waiting to put my 170 0530 under water.
12-04-2005, 10:44 PM
krjalone

So far my 170 CCBWE 0534 SPMW is looking good.I have 2.8GHz about 8 hours prime stable at 1.5v I must do more burning. Witch is better for burning:
running stock volts or running about 1.5 volts and highest semi stable frequency?
12-05-2005, 01:48 AM
skogkatt

Quote:

Originally Posted by dinos22

i don't know about that my 165 is prime stable at 1.43v 2.6GHz.....not the fastest out there but can't go wrong with FX60 speeds either and low voltage

I had two 165 0536MPMW. One clears 2600@1,45V but won't go further. The other one wouldn't hear about overclocking at all : it wouldn't boot in windows with 220*9, even with a Vcore bump (1,4V). I thought about a bad contact (even if temps at stock were normal - 21 idle, 25 Load), but when I removed the CPU block I could see the AS5 evenly spread on the CPU and the block.

I guess it was the black sheep of the waffer...
12-05-2005, 09:45 AM
cdelatte

I just ordered another Opteron 170. Man these things are shooting up in price. I am going to eb@y my old one when I get it.
12-05-2005, 04:59 PM
mad mikee

1 Attachment(s)

Just a teaser (0530 TPMW)

Now to see if I can do anything xcept spi 32M.
Off to run some S&M :cord:
My humble OC :D
http://www.xtremesystems.org/forums/...1&d=1133830567

/edit
As usual, no go w/ anything useful, so running @ 2.8 (2xD2OL) @ 1.35vcore. Maybe next year I will play after the BBQ :D
My wife now has a supercomputer, since I have to fight w/ her Ultra-D
Mine is running like rock @ 10x270 (2GB Z503) / 1.525Vcore (0541.RPMW :( )
Hers is running @ 10x280 (1GB GS TCCD, 0440) maybe just needs some SLLLOOOWWWW Stretches :D
12-05-2005, 05:28 PM
dinos22

mad mike..........very nice.......what is the highest 32M with two instances running at the same time :D
12-05-2005, 05:29 PM
dinos22

Quote:

Originally Posted by skogkatt

I had two 165 0536MPMW. One clears 2600@1,45V but won't go further. The other one wouldn't hear about overclocking at all : it wouldn't boot in windows with 220*9, even with a Vcore bump (1,4V). I thought about a bad contact (even if temps at stock were normal - 21 idle, 25 Load), but when I removed the CPU block I could see the AS5 evenly spread on the CPU and the block.

I guess it was the black sheep of the waffer...

wow really

guess all the guys at OCAU which are getting same if not higher results than mine all got lucky..........man i can't even imagine having that 220*9 dog of a CPU
12-05-2005, 08:16 PM
ShaidarHaran

Just got a Ballistix PC4000 2x1GB kit of Z503. Here's what she does on my Gigabyte :stick: board with my CPU-limited o/c. Anyone think I should try lower timings or go for gold and hit higher mem clocks with a 9x multi?
http://img.photobucket.com/albums/v2...ix260x101T.jpg
http://img.photobucket.com/albums/v2...cy260x101T.jpg
http://img.photobucket.com/albums/v2...bw260x101T.jpg
http://img.photobucket.com/albums/v2...bw260x101T.jpg
12-06-2005, 12:40 AM
mrlobber

Finally two 170 Opties came in from the long-ago flooded OPB's house :D

They look sexy, don't they (despite of the last pic being pretty bad)? :D And the stepping... 0530TPMW :slobber:

Results will follow later ;)

http://mrlobber.svnets.lv/Oc/opterown1.jpg

http://mrlobber.svnets.lv/Oc/opterown2.jpg

http://mrlobber.svnets.lv/Oc/opterown3.jpg
12-06-2005, 01:09 AM
Spazilton

Quote:

Originally Posted by dinos22

i don't know about that my 165 is prime stable at 1.43v 2.6GHz.....not the fastest out there but can't go wrong with FX60 speeds either and low voltage

Mine can only do 2.4 stable at reasonable voltages.
12-06-2005, 12:31 PM
Fluence

My 0534SPMW needs 1,55 volts to do 2700 :stick:

It is core1 that always fails me at the lower voltages.

Burned it in a few times now.
But could not see any noticeable difference at higher clock, only at 2,5-2,6Ghz core1 now needs less volts.

I'd love to see this one hitting 2800Mhz...:nono:

http://www.wanaka.nl/opteron170testing10.jpg
12-06-2005, 12:42 PM
uOpt

Quote:

Originally Posted by Martin Cracauer

[that was 2.70 GHz]

Unfortunately, one core decided to freak out after 20 hours of prime95.

Back to the drawing board I guess...

It now completed 38 hours dual-prime at 2695 MHz.

Either the Ceramique had to set in or the 5 MHz made the difference.

With 4 GB of RAM, too.
12-06-2005, 06:05 PM
ripken204

mine is rly pissing me off. im just trying to get 260x10 stable at a somewhat low voltage, i can only get it stable at 1.45v . anything above 260 isnt stable, at least at 1.5v its not.
12-06-2005, 10:37 PM
irev210

Quote:

Originally Posted by ripken204

mine is rly pissing me off. im just trying to get 260x10 stable at a somewhat low voltage, i can only get it stable at 1.45v . anything above 260 isnt stable, at least at 1.5v its not.

Dont feel bad, I was stable @ 2.7 w/ 1.5vcore, now Im not even stable at 2.6 w/ 1.5vcore once I changed to a new heatsink.

This is frustrating, I am really tempted to just put my 0530 opty 175 in and call it a day.

edit: I really think it is this DFI board. I was testing with my trusty asus A8N-E and I had no problems doing 2800 with my opty 165.

I am going to get to the bottom of this, but I am really not very fond of the expert so far.
12-06-2005, 11:11 PM
eva2000

Quote:

Originally Posted by mrlobber

Finally two 170 Opties came in from the long-ago flooded OPB's house :D

They look sexy, don't they (despite of the last pic being pretty bad)? :D And the stepping... 0530TPMW :slobber:

Results will follow later ;)

oooooooooh can i have one ? throws $$$ your way :D
12-07-2005, 03:46 AM
DltdApS

i want one ! i send you the monney when you want !!! lol
12-07-2005, 06:15 AM
Fluence

Quote:

So far my 170 CCBWE 0534 SPMW is looking good.I have 2.8GHz about 8 hours prime stable at 1.5v I must do more burning. Witch is better for burning:
running stock volts or running about 1.5 volts and highest semi stable frequency?

I was wondering what watercooling do you use on your opteron170. And what are load temperatures?
how much burning in did you do already?
Since I need 1,6+ for 2800 on my 0534SPMW
12-07-2005, 08:09 PM
irev210

Another update on my opteron 165 in DFI expert.

Letting it just sit for a few days seemed to have done something.

Did a little bump up to 1.6vcore with big typhoon, seems happy for now. Seeing if I can lower it after a good 12 hours of prime, maybe it will be stable at 1.55vcore, which i would be much more comfortable with.

My core0 sucks, seems like core1 can do 2800+, but core0 just cant do it.

Currently- HTT: 305 Core speed: 2745 Voltage: 1.6

I would take some screenshots, but my crappy overclock isnt even worth the effort.

I REALLY wish DFI would fix their BIOS. My big Typhoon rocks, but i have no idea what my vcore temp is.

According to Smartguardian it is a nice cool 40C, yah right.

I am guessing it is about 60, which is on the edge, but it is holding stable.

BTW, the bigtypoon: nice cooler, sucks to install.
12-08-2005, 12:56 PM
computersmsa

I ship 12 Opteron 165 BOX "CCBWE 0546 SPMW" tomorrow, soon result :)
(Don't MP me, any stock now, but you can order ... see For Sale section).
12-08-2005, 01:14 PM
Budwise

honestly guys there are alot of 0543TPMW's shipping right now and they are almost if not just as good as the 0530's.

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 10:58 PM.

XtremeSystems
