MaximusIV-Extreme Thread

http://www.mediafire.com/?8hx8f2k332dlpf3

new bios posted over at KC

Quote:

---

Originally Posted by the_real_7

ok guys having a real tricky problem here . switched cpu from a 2600k to a 2700k and now i cant boot both memory anymore , just memory in slot 4 red if i use any other slot im getting a error 2e with diffrent sets of ram and and all if any solutions please let me know what you think , getting frustrated :shakes:

---

bump anyone have any ideas also getting alot of error code 58

Quote:

---

Originally Posted by l0ud_sil3nc3

http://www.mediafire.com/?8hx8f2k332dlpf3

new bios posted over at KC

---

what the differences / changes?

Quote:

---

Originally Posted by l0ud_sil3nc3

http://www.mediafire.com/?8hx8f2k332dlpf3

new bios posted over at KC

---

wow big jump 2105 to 3202 on numbers

Quote:

---

Originally Posted by the_real_7

bump anyone have any ideas also getting alot of error code 58

---

im sorry to hear friend

i would inspect socket for bent pins i have 2 friends here in Uruguay with hell codes and where that, they couldnt see it and i told them to use magnifyer

Quote:

---

Originally Posted by andressergio

im sorry to hear friend

i would inspect socket for bent pins i have 2 friends here in Uruguay with hell codes and where that, they couldnt see it and i told them to use magnifyer

---

I'm going to get a magnifying glass and check each pin , if nothing ill have to order another chip and check to see if chip or board , this is the pita of situtions :mad:

Quote:

---

Originally Posted by the_real_7

I'm going to get a magnifying glass and check each pin , if nothing ill have to order another chip and check to see if chip or board , this is the pita of situtions :mad:

---

im sure u have a bent pin will not error so hard if not

just on a new after rma, just with a comment code 00 motherboard an AMD7970 dead

anyone knows what is the last version of AI SUITE II for MIVE ? i have one but no digi/vrm on software control

or link to the last ?

thanks in advance
Sergio

Guys my M4E keeps pulling codes too mostly 65 which is CPU right? I think imc pulls this code if ram setup isn't happy, it just doesn't seem to like my g.skill psc rams, the rams and CPU run fine on lower end Asus boards.....

Oddly I have a P8Z68-V PRO that runs great except sometime it pulls a post error for excessive USB current draw detected, system shutting down but even when nothing is in USB it still pulls error .... So two problem Asus motherboards ....

:(

Any news on Z77 range yet?

...

Whit Gskill an 2133 7-9-7-24 1T 1.65v org: 7-10-10-27 1T 1.65v I can run 1024wpime but nut use it in game/bf3 In game is set 18XX max

3202 bios is to 68Z ?

opdat
The new bios does not look as before, the new can but see several tweaks at all seen

:D 1 more opdata
100p more in 3Dmark06 cpu score test whit 5.3GHZ I7 2600K an old vcore 1.565v whit new bios 1.525v an farst wprime32m old time 4,8xx new 4.6xx

Quote:

---

Originally Posted by Martin.v.r

Whit Gskill an 2133 7-9-7-24 1T 1.65v org: 7-10-10-27 1T 1.65v I can run 1024wpime but nut use it in game/bf3 In game is set 18XX max

3202 bios is to 68Z ?

opdat
The new bios does not look as before, the new can but see several tweaks at all seen

:D 1 more opdata
100p more in 3Dmark06 cpu score test whit 5.3GHZ I7 2600K an old vcore 1.565v whit new bios 1.525v an farst wprime32m old time 4,8xx new 4.6xx

---

so i take it the new bios is working well for you:)

yes:up:

Quote:

---

Originally Posted by the_real_7

I'm going to get a magnifying glass and check each pin , if nothing ill have to order another chip and check to see if chip or board , this is the pita of situtions :mad:

---

The chip is fine, I run p95 blend 5ghz 1.428vcore 30min on water, that was the max stress the cpu has had on it. I bought it new and didnt own it a week, sold it because of limited multi. Never benched the chip because it is limited to 53x multi. Do you have any other kits of memory to try?

I ran this while talking to Andressergio on MSN, because he was interested in the CPU also.

http://img714.imageshack.us/img714/7342/p95.png

Uploaded with ImageShack.us

Post code 58 is ram related. See if you can boot to bios (with a single slot memory) and change the dram settings like add more vdimm.

Quote:

---

Originally Posted by Martin.v.r

yes:up:

---

so it worth a try ? what are those new things you mentioned ?

uff the look on new bios is horrible letters on bold

i still cant see the dif

Quote:

---

Originally Posted by OC Nub

The chip is fine, I run p95 blend 5ghz 1.428vcore 30min on water, that was the max stress the cpu has had on it. I bought it new and didnt own it a week, sold it because of limited multi. Never benched the chip because it is limited to 53x multi. Do you have any other kits of memory to try?

I ran this while talking to Andressergio on MSN, because he was interested in the CPU also.

http://img714.imageshack.us/img714/7342/p95.png

Uploaded with ImageShack.us

---

Hey thanks for Detective Sergio and you for helping out figure out this problem with the error 58 , man it had us banging are heads , never thought a damn cat hair could knock out part of my chip Oc Nub , you live and learn everyday , chip running great by the way thank again:up:

This was me at first after trying new chip LOL
http://i84.photobucket.com/albums/k7...20pc/Brown.jpg

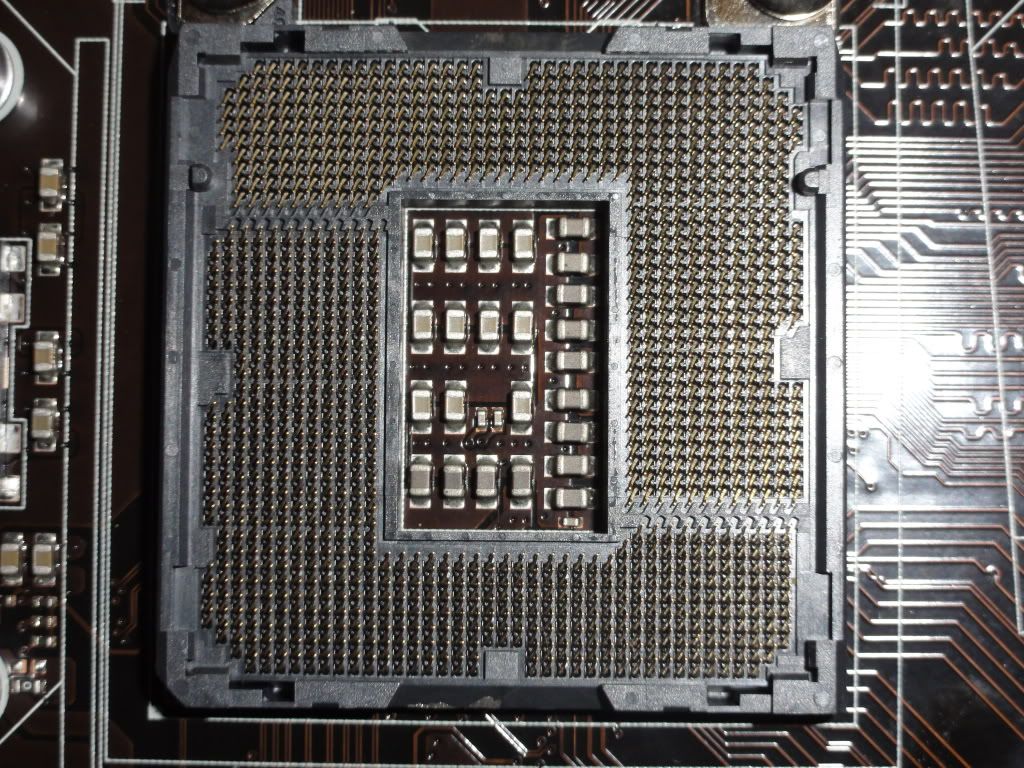

Picture of pins , inspecting pins
http://i84.photobucket.com/albums/k7...c/DSC00652.jpg

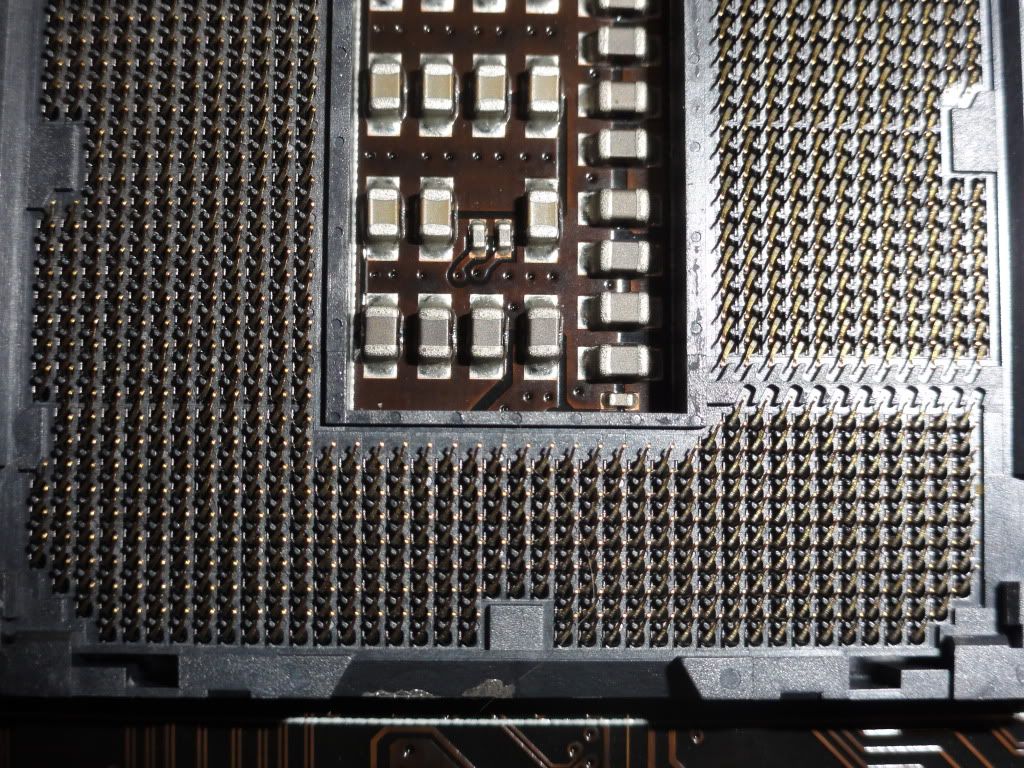

2 x closer picture of pins
http://i84.photobucket.com/albums/k7...c/DSC00656.jpg

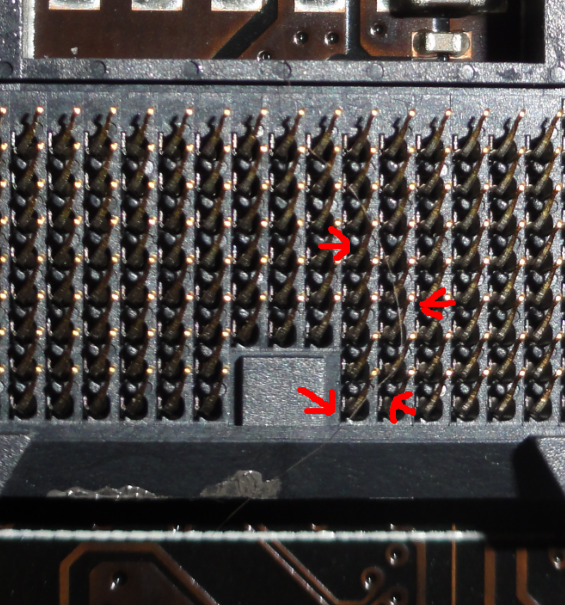

10 x closer picture of pins and the culprit of my error codes " thank sergio for finding this critter "
http://i84.photobucket.com/albums/k7.../hairinpin.png

Quote:

---

Post code 58 is ram related. See if you can boot to bios (with a single slot memory) and change the dram settings like add more vdimm.

---

yea you where right it was ram related cuase i was knocked out 3 slot only for was working thanks Dumo

Quote:

---

Originally Posted by Darknight

what the differences / changes?

---

ivy bridge support

I use xtreme setup

Quote:

---

Originally Posted by aussie-revhead

Guys my M4E keeps pulling codes too mostly 65 which is CPU right? I think imc pulls this code if ram setup isn't happy, it just doesn't seem to like my g.skill psc rams, the rams and CPU run fine on lower end Asus boards.....


...

---

Check secondary and the third set of memory timings - the ROG boards had a few settings that were tighter than the lower end boards last I checked.

Quote:

---

Originally Posted by aussie-revhead

Guys my M4E keeps pulling codes too mostly 65 which is CPU right? I think imc pulls this code if ram setup isn't happy, it just doesn't seem to like my g.skill psc rams, the rams and CPU run fine on lower end Asus boards.....

Oddly I have a P8Z68-V PRO that runs great except sometime it pulls a post error for excessive USB current draw detected, system shutting down but even when nothing is in USB it still pulls error .... So two problem Asus motherboards ....

:(

Any news on Z77 range yet?

...

---

if the GSkill memory you are referring to is what I think it is, then they are BBSE (not PSC) and should clock very well on the M4E.

RMA your board and start fresh, I am sure almost all of your problems have been the board and not all the cpu's that you have binned through.

Quote:

---

Originally Posted by the_real_7

Hey thanks for Detective Sergio and you for helping out figure out this problem with the error 58 , man it had us banging are heads , never thought a damn cat hair could knock out part of my chip Oc Nub , you live and learn everyday , chip running great by the way thank again:up:

---

i told you it was something on the socket, glad we worked it out friend

enjoy your chip

cheers
Sergio

With this new bios i can't run my memory up to 1333mhz, the board reboot infinitely !

I'm going to try new bios tonight.
