1.21vQuote:
Originally Posted by l0ud_sil3nc3
wow so young and he already has i7:DQuote:
Originally Posted by andressergio
i only test about 2hrs prime95 blend and good eneough for me.Quote:
Originally Posted by the_real_7
as to latecy i like when i can get it at 47-49,needs to be at 542+ 1300+ for that:D
:rofl: for sure teaching da basisQuote:
Originally Posted by OC Nub
yeahhh :up:Quote:
Originally Posted by radaja
very nice the motherboard looks great, I can't wait to see everything together:up:
tell me !!! im waiting the GTX's 460 :cheer2:Quote:
Originally Posted by l0ud_sil3nc3
Wow, so good to see everyone is still here, playing with all their toys as usual :D. Glad to see Socket 775 is still alive and kicking. I've been on vacation for the last 2 months in Croatia, Bosnia, and Venice, so I haven't really been able to post or view this thread much. Infact, I completely forgot about it. It's kinda weird knowing these boards and CPUs, when pushed with a decent OC, and even the good old E8400, can still play the latest titles with decent performance without the need of an i7. I've had my UD3P for almost a year and the board was released almost 2 years ago, and it still does pretty damn well.
Well, yeah, just wanted to drop in and say hello, despite not a lot of you being familiar with me :)
Nice board Sergio, but who is the old guy standing behind you?:hehe:
Good to see you Dark-E. Sounds like a fun vaca.
I've successfully overclocked to 4ghz 11hours of prime belnd stable and memtest ran for 2 hours and stable... Can I have more now? maybe 4.25 or even 4.5ghz?
:rofl:Quote:
Originally Posted by NoGuru
try at 4.1 Prime blend hard at 8k 8k for 2 hours if holds move on to 4.25Quote:
Originally Posted by mistargill
Funny one for sureQuote:
Nice board Sergio, but who is the old guy standing behind you?
I currently have q9650 and its 4ghz with 450fsb x9. I'm kinda stuck not knowing where I need to start with on settings.Quote:
Originally Posted by the_real_7
That what I ran at for 24/7 but at 4 4 4 10 timings , what type of ram do you have and what board 1.0 or 1.1 can you give me some setting to looks at i have a stable template for 4250 , but might take cpu 3.5 to 4.5 to hitQuote:
Originally Posted by mistargill
FYI fellow XS'ers...Crucial has some Refurb SSD's on there site right now going fast!
Quote:
Originally Posted by the_real_7
Here it is
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.05GHz...........................[ 450 x 9.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 450 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps
MCH Clock Skew..................................[ 0ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ Auto ]
System Memory Multipler.........................[ 2.66D ]
Memory Frequency 1066...........................[ 1200 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD[3].........................................[ 3 ]
tWTR[3].........................................[ 3 ]
tWR[6]..........................................[ 6 ]
tRFC[54]........................................[ 52 ]
tRTP[3].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ 2 ]
******Channel A Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ OC-1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ OC-1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ]...................[ 1.350v ]
CPU Termination [ 1.20 ]...................[ 1.20 ]
CPU PLL [ 1.50 ]...................[ 1.45 ]
CPU Reference [ 0.760 ]...................[ 0.785 ]
MCH Core [ 1.100 ]...................[ 1.24 ]
MCH Reference [ 0.760 ]...................[ 0.800 ]
MCH/DRAM Refernce [ 0.900 ]...................[ Normal ]
ICH I/O [ 1.500 ]...................[ 1.500 ]
ICH Core [ 1.100 ]...................[ 1.100 ]
DRAM Voltage [ 1.800 ]...................[ 2.10ov ]
DRAM Termination [ 0.900 ]...................[ Normal]
Channel A Ref [ 0.900 ]...................[ Normal ]
Channel B Ref [ 0.900 ]...................[ Normal ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Enabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
Trying to come up with some settings that can get me a stable 4.0
These below setting get me booted into windows but not stable goes BSOD on me with Prime quick
Anyone have any suggestions or better settings that may work ?
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Turbo ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.5GHz............................[ 500 x 8.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 800mv ]
CPU Clock Skew..................................[ 50ps ]
MCH Clock Skew..................................[ 100ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Turbo ]
Extreme Memory Profile (X.M.P)..................[ Disabled ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066...........................[ 1200 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD[4].........................................[ Auto ]
tWTR[4].........................................[ Auto ]
tWR[13].........................................[ Auto ]
tRFC[68] .......................................[ Auto ]
tRTP[4].........................................[ Auto ]
Command Rate (cmd)[0]...........................[ Auto ]
******Channel A Timing Settings******
Static tRead Value [ 9 ] ................[ 8]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ oc1200]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 9 ] ................[ 8]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ oc1200]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.1875 ]...................[ 1.4875v ]
CPU Termination [ 1.20 ]...................[ 1.360 ]
CPU PLL [ 1.50 ]...................[ 1.50 ]
CPU Reference [ 0.760 ]...................[ ] < set 0.745 @ 1.20vtt
MCH Core [ 1.100 ]...................[ 1.46v ]
MCH Reference [ 0.760 ]...................[ ] < set 0.800 @ 1.200 vtt
MCH/DRAM Refernce [ 0.900 ]...................[ normal ]
ICH I/O [ 1.500 ]...................[ 1.59 ]
ICH Core [ 1.100 ]...................[ 1.2 ]
DRAM Voltage [ 1.800 ]...................[ 2.18 ]
DRAM Termination [ 0.900 ]...................[ normal ]
Channel A Ref [ 0.900 ]...................[ normal ]
Channel B Ref [ 0.900 ]...................[ normal ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
First enter bios and Load Optimized Defaults press F10 to save and exit.Quote:
Advanced Clock Control [Press Enter]
CPU Clock Drive...........................: <<< 800
PCI Express Clock Drive.................: <<< 800
It should be this.
Just setting it doesnt work you have to load optimized defaults. Renter bios and reset your settings for your overclock.Quote:
Advanced Clock Control [Press Enter]
CPU Clock Drive...........................: <<< 800
PCI Express Clock Drive.................: <<< 900
If you have tried going higher on other voltages you can try upping CPU PLL 1.6 Max.
Tried both Advanced Clock Control [Press Enter]Quote:
Originally Posted by acebmxer
CPU Clock Drive...........................: <<< 800
PCI Express Clock Drive.................: <<< 900
and upping the CPU PLL both didn't work Won't boot
Any other ideas ?

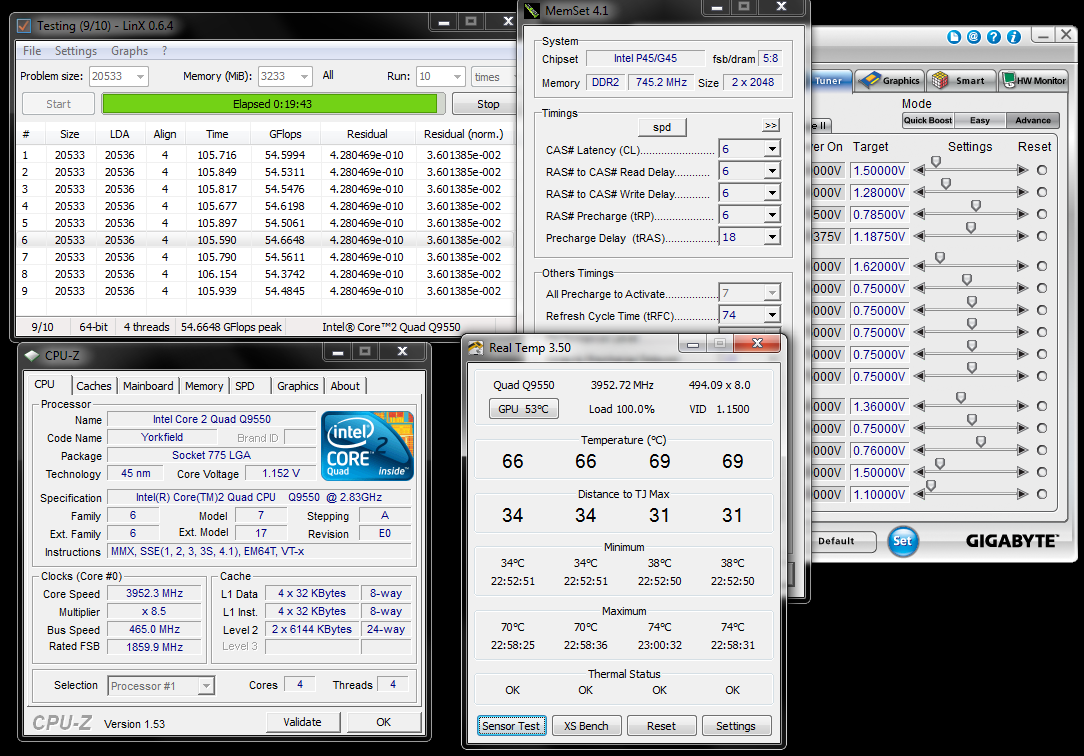

Some early air testing on a Q9550 I just got and so far it seems to be a strong runner. Its definitely a hotter chip so Im going to have to get the water setup on it before I can really feed it.
http://i131.photobucket.com/albums/p...s281/test1.png
Nice low volt's Hoss. Looks like your going to need to put in on DICE soon.:rocker:
Oh its definitely going to get frozen, thats the whole reason why I have it. :up:
Hoss i guess we have the same batch cause mine can do that to on that kind of volts. and thats on my DFI bord. my batch is L844B716
My batch is not quite the same but close, its a L847C084.
@zoddenQuote:
Originally Posted by zodden
I didn't find your settings, I'll have to look again when I have more time-
Thanks!
@radaja
Thanks!
your welcome.Quote:
Originally Posted by al-
heres zoddens settings,they were on page 4:D
Quote:
Originally Posted by zodden
@radaja
Thanks again!
no problem.its the same as i use just slightly higher vmch and vtt than my last template i posted
but the mch ref is the same.0.70v in ET6
Bump this up still looking for some help here
Quote:
Originally Posted by Marke
Some testing that i did with my ex plattform P45 Ud3l and e7400, this really is a nice motherboard and not so expensive :D
The rig
intel core 2 duo E7400
Giga P45 UD3L
Patriot Extreme PC9200
Thermalright Ultra 120A
Cpuz Validation: http://valid.canardpc.com/show_oc.php?id=1253686
Spi 1M:
http://www.pctunerup.com/up/results/...171031_spi.JPG
Wprime 32
http://www.pctunerup.com/up/results/...124_wprime.JPG
Now i would like to take an UD3P with E8600 :D to test it
nice very nice are you on air or waterQuote:
Originally Posted by chucupis
Quote:
Originally Posted by Marke
Sorry was gone working on my build , but try this
[CODE]Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Turbo ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ + 0.0 ]
CPU Frequency 4.5GHz............................[ 500 x 9.0]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 900mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 0ps ]
MCH Clock Skew..................................[ 50ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Turbo ]
Extreme Memory Profile (X.M.P)..................[ Profile1 ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066...........................[ 1200 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD[4].........................................[ 3 ]
tWTR[4].........................................[ 3 ]
tWR[13].........................................[ 4 ]
tRFC[68] .......................................[ 50 ]
tRTP[4].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ Auto ]
******Channel A Timing Settings******
Static tRead Value [ 9 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ Auto ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 9 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ 8 ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ 7 ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ 8 ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ 8 ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ Auto ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.1875 ]...................[ 1.4250 ]
CPU Termination [ 1.20 ]...................[ 1.360 ]
CPU PLL [ 1.50 ]...................[ 1.570 ]
CPU Reference [ 0.760 ]...................[ 0.886 ]
MCH Core [ 1.100 ]...................[ 1.460 ]
MCH Reference [ 0.760 ]...................[ 0.901 ]
MCH/DRAM Refernce [ 0.900 ]...................[ Auto ]
ICH I/O [ 1.500 ]...................[ 1.500 ]
ICH Core [ 1.100 ]...................[ 1.200 ]
DRAM Voltage [ 1.800 ]...................[ 2.200 ]
DRAM Termination [ 0.900 ]...................[ Auto ]
Channel A Ref [ 0.900 ]...................[ Auto ]
Channel B Ref [ 0.900 ]...................[ Auto ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ][
pfff some creepy high temps for just poor low volts hossQuote:
Originally Posted by Hoss331
anybody have marshmallows , so we cant melt over hoss331 q9550 . . . get some cooling dude
The platform was this OneQuote:
Originally Posted by the_real_7
intel core 2 duo E7400
Giga P45 UD3L
Patriot Extreme PC9200
Thermalright Ultra 120A
i miss this rig a lot, i want to get another ud3 again with an e8xxx
These Settings are for 9 x 500 4.5Ghz I'm still trying to get 4.0Ghz
Quote:
Originally Posted by the_real_7
Quote:
Originally Posted by the_real_7
Trust me cooling is taken care of, its not going to be a problem for what I have in mind. :up:
i wanna hear your idea , hope it not pushing further clock just maybe better timings cause , your hot there it seemsQuote:
Originally Posted by Hoss331
The only reason I have this chip is for dice/ln2 benching so current temps arent really going to matter. The way its setup now is just to make sure it works ok, this being with my old S1283 w/ stock fan and whatever paste I found first.
S1283 with a 9550 and those temps awesome , my badQuote:
Originally Posted by Hoss331
thought you were running a wc dude , i was like wow he pulling out his heata proc . . . my bad
doesnt matter i have a megahalems and on 1.25 volts im already hitting 65 its just cause i have an immense low vid.. 1.1375 hosses vid is a bit higher but still a hot chip.
yep them low vid chips are hot hot hot:D
Agreed Radaja . . those suckers need a watercooled showerQuote:
Originally Posted by radaja
Hi guy , back to here for after the year !
Currently I have EP45UD3R
I have change my cpu from E8600 to Q9550 vid 1.200
My ram is limit to not over 1040 MHZ (Crucial ballistix 2x2)@5-5-5-15
And my Cpu cooler may not good enough for OC quad.
Now I can do 450x8.5 = 3.825 MHZ Vcore 1.184(CPUZ) with 1.1 RAM
My temp is quiet high (74,67,72,67)
Do i should change my cpu cooler to archieve 4.0Ghz or more?
Could someone share the setting for OC Quad Plz.
welcome back :up:Quote:
Originally Posted by BuGjAE
1,2 is nice vid man maybe you should get a pair of Gskills PI1200 some guys are selling here kinda cheap then you will not have limit mines went to 1260 - 1300 :)
a true120 will do the job :up:
cheers :toast:
Sergio
:D thanks for advice Sergio ,just bought TR Ultra 120 xtreme It's have a sell promo in my local country shop. Rightnow I m not set it up in my case yet.
Anyway I play around with it for a while and I doubt that my Quad have FSB Wall Limit around 485:confused: if I reach above that It's freeze while booting to Windows I'm current at BIOS F12. Does it concern with this issue?
but below that should work fine
Are there any trick to hit 500+ Fsb?
anyway this is what I got tonight. set in BIOS and shown in ET6 the temp still high
is it possible to create raid 1 without data loss from source sata drive? when attempting to do a raid 1, the raid utility warns me, that all data (both drives) will be erased:(
Yes put all the data on a completly seperate drive.Quote:
Originally Posted by onlavu
Then set up the raid, then tranfer the data to the Raid.
thats the problem i have no other drive for backup but some famous czech computer based website wrote, that it was possibleQuote:
Originally Posted by NoGuru
I got the water setup back together so I went ahead and did some test runs on the 9550. Temps are obviously better but im thinking they should be better than they are, or this chip is just that hot.
http://i131.photobucket.com/albums/p...ss281/4300.png
Hoss331 , how much watt consume when you stress your Quad @4300 mhz
,mine now @ 4164 mhz 1.28 vcore consume at peak 133 W when stress very
high compare with duo.
Anyway could you share your bios setting for 500 fsb.
Im on another bord but i guess i just post here cause this is more likely to get reply's haha and i always wanted an ud3p so let me in (A)??
Im now linx stable at 4.165 GHz with a voltage of 1.2 ~ 1.216 load, restarted to oc this cpu cause my old setting stopped to be stable. lets try to get the same speeds as HOSS haha :) (i doubt if i can do that cause of my mobo) my temps under full linx load are 67C with a Megahalems. but under WCG or Prime it doesnt get anny higher than 55C and 58C so i think its ok.
Quote:
Originally Posted by Hoss331
Temps look good to me being its a 9550 at 4.3 . . . here's a pic of my 9650 at 4.0 my temps where same as yours but at 3hz less . . . it a low vid remember :yepp:
http://i84.photobucket.com/albums/k7...ableSetupA.jpg
I havent ran it at 500fsb but it should be the same basic settings as the 506 just with a little less vcore. Heres the wattage for a small fft run and my 506 test settings.Quote:
Originally Posted by BuGjAE
http://i131.photobucket.com/albums/p...81/wattage.png
Code:******Motherboard Intelligent Tweaker (M.I.T.)******
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ + 0.5 ]
CPU Frequency 4.0GHz............................[ 506 x 8.5]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 506 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2.........................................[ Disabled ]
******Advanced Clock Control******
CPU Clock Drive.................................[ 800mv ]
PCI Express Clock Drive.........................[ 900mv ]
CPU Clock Skew..................................[ 50ps ]
MCH Clock Skew..................................[ 50ps ]
******DRAM Performance Control******
Performance Enhance.............................[ Standard ]
(G) MCH Frequency Latch.........................[ 333 ]
System Memory Multipler.........................[ 2.40B ]
Memory Frequency 1066...........................[ 1214 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Advanced Timing Control******
tRRD[3].........................................[ 3 ]
tWTR[3].........................................[ 3 ]
tWR[6]..........................................[ 6 ]
tRFC[54]........................................[ 54 ]
tRTP[3].........................................[ 3 ]
Command Rate (cmd)[0]...........................[ Auto ]
******Channel A Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel A Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Channel B Timing Settings******
Static tRead Value [ 8 ] ................[ 8 ]
tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
tRD Phase3 Adjustment [ 0 ] ................[ Auto ]
tRD 2rd (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2wr (Differnt Rank) [ 8 ] ................[ Auto ]
tWR 2rd (Differnt Rank) [ 7 ] ................[ Auto ]
tRD 2wr (Same/Difft Rank) [ 9 ] ................[ Auto ]
Dimm 1 Clock Skew Control.......................[ Auto ]
Dimm 2 Clock Skew Control.......................[ Auto ]
DDR Write Training..............................[ Auto ]
******Channel B Driving Settings******
Drive Strength Profile..........................[ 1200 ]
Data Driving Pull Up Level......................[ Auto ]
cmd Driving Pull Up Level.......................[ Auto ]
ctrl Driving Pull Up Level......................[ Auto ]
clk Driving Pull Up Level.......................[ Auto ]
Data Driving Pull Down Level....................[ Auto ]
cmd Driving Pull Down Level.....................[ Auto ]
ctrl Driving Pull Down Level....................[ Auto ]
clk Driving Pull Down Level.....................[ Auto ]
******Motherboard Voltage Control******
Load-Line Calibration...........................[ Enabled ]
CPU Vcore [ 1.15 ]......................[ 1.300 ]
CPU Termination [ 1.20 ]...................[ 1.340 ]
CPU PLL [ 1.50 ]...................[ 1.570 ]
CPU Reference [ 0.760 ]...................[ 0.873 ]
MCH Core [ 1.100 ]...................[ 1.400 ]
MCH Reference [ 0.760 ]...................[ 0.888 ]
MCH/DRAM Refernce [ 0.900 ]...................[ 0.910 ]
ICH I/O [ 1.500 ]...................[ 1.500 ]
ICH Core [ 1.100 ]...................[ 1.100 ]
DRAM Voltage [ 1.800 ]...................[ 1.820 ]
DRAM Termination [ 0.900 ]...................[ 0.910 ]
Channel A Ref [ 0.900 ]...................[ 0.910 ]
Channel B Ref [ 0.900 ]...................[ 0.910 ]
******Advanced BIOS Features******
Limit CPUID Max to 3............................[ Disabled ]
No-Execute memory Protect.......................[ Disabled ]
CPU Enhance Halt (CIE)..........................[ Disabled ]
C2/C2E State Support............................[ Disabled ]
C4/C4E State Support............................[ Disabled ]
CPU Thermal Monitor.............................[ Disabled ]
CPU EIST Function...............................[ Disabled ]
Virtualization Technology.......................[ Disabled ]
Quote:
Originally Posted by MrDucky
Im actually a little suspicious of my pump, I havent used it in a few months but it seems to be down on power/flow (took forever to get the system fully primed) so it may be on its way out. My 9650 is also a 1.15 vid and it runs noticeably cooler than this chip on the same water setup. Heres a run with the 9650 with more voltage but ambients at 21c, ambient temp last night for the 9550 was 23-24C.Quote:
Originally Posted by the_real_7
http://i131.photobucket.com/albums/p...281/4425HK.jpg
it easy to tell if its your pump . . . on your radiator in and out lines should be no less than a 1 - 2 Celsius difference if its say 29 - 30 going in and 25 going out , means the water is staying to long in either side of the loop , pump isn't doing its job :up:Quote:
Originally Posted by Hoss331
I would just stick with the 9650 is doesn't work as hard at higher clocks as the 9550
Well its been priming for a little over an hour now and the temps between the lines are virtually the same, so the pump is looking to be ok. I plan on going to SB when it comes out so really the only reason I have this chip is for bot points, right now im just playing with it before it goes cold. :up:
http://i131.photobucket.com/albums/p...ss281/4429.png
Does anyone know if the Thermalright HR-02 fits OK inside a USB3P? =)
XmX
Well, if it's for socket 775 I would say it does.:slap:Quote:
Originally Posted by XmikeX
@ hoss
I wish i had an ud3p now that high fsb and speed with a Q9550 stable... the highest i reached so far is 1.21v @ 490 FSB cant get it higher or it wil become unstable..
Theres still a few ud3s floating around out there, get one. :up:
i know just dont have the money and i dont want to pay like 50 euros for just 2 or 300 mhz..
me too.... I can only do 490x8.5 @4165 1.28 vcore :down: but temp isQuote:
Originally Posted by MrDucky
high enough I think I 'll stop Oc at this clock. Anything over 500 fsb is not possible to stabil. Even 495 my chip can't do also.:down:
I can boot and stress but nomather what i do i get an error in prime.. not small fft but blendQuote:
Originally Posted by BuGjAE
Ok.. this is either a nice troll vector or awezum humor. I refuse to believe that one of us is ignorant.Quote:
Originally Posted by NoGuru
Now back to the point: Has anyone tried the Thermalright HR-02 in a USB3P? Does it fit well, in all orientations, without crashing into anything nearby... chipset sinks, memory..etc ?
:)
XmX
it fits the ud3p so i would think yesQuote:
Originally Posted by XmikeX
http://www.xtremesystems.org/forums/...&postcount=437
Yeah, I also did a search and found that odd peculiar post...Quote:
Originally Posted by radaja
Why is this post odd or peculiar?Quote:
Originally Posted by Sparda
Simple. It's from 11-21-2008. Dude probably meant the HR-01, and typo'ed HR-02 (??) ... The "real" Thermalright HR-02 that I am aware of is (C) 2010, as noted elsewhere and here -> http://www.madshrimps.be/vbulletin/f...spotted-72748/ "9th June 2010 .. During Computex the company showed several new creations and among these we found Thermalright HR-02"
XmX
Does ga-ep45-ud3p have some kind of mosfet load protection or something like that. I actively cool them and they are not even warm but I'm having hard time to make 20 LinX passes with q9650@4500MHz(9x500) because my processor needs over 1.4V and when I start running LinX, in a few minutes the system shuts down (fans not spinning) and restarts. If I raise vcore the system shuts down and restarts in few seconds so the more vcore I set the less LinX passes I get. Cpu core temperatures reach about 85C and Cpu Thermal Monitor is disabled.
EDIT:
It turns out that the cpu needs lower temperatures. It was strange for me because with my previous board heat issues just made LinX to issue wrong residual and this board has its own way of saying: "Hey you need to chill this CPU" :).
http://img163.imageshack.us/img163/8117/4500linx.th.jpg
hi what is the best revision cause i may get an ud3p rev 1.0 for like 40 euros...
1.0 i found to the best.
1.1's have quirks with certain straps and ratio's
havent tried a 1.6 though
ok then il buy it and sell my P45 T2RS+ :) may get the same amount as i buy the UD3P For haha :P
I need 1.46 vNB to get 500 fsb run prime but I don't hv much time to test long run ,So 1.46 vNB is it save for 24/7 usable I use stock cooler UD3R board.?
Thanks for advice.:clap:
This can be said about some of the 1.0s also, mine in particular has problems with high mch voltage when using 2.40B.Quote:
Originally Posted by radaja
You should be ok with 1.46, if you can get a fan on the nb that would be good but its not required.Quote:
Originally Posted by BuGjAE
yea this is true,i have had different quirks with all my ud3p's like mch voltage using the 2.40B with one 1.0 and 2 1.1 boards.on 2 of my 1.1 boards i had the cant boot using 2.40B with strap set to 333,but on auto it boots.Quote:
Originally Posted by Hoss331
last month i went throug five 1.0 boards and four 1.1 boards and 2 ud3r 1.0's and 1 1.1 ud3r's and i have to say they are each there own boards.i tested them down to two good ones and sold the rest.but still the 1.0 were the most solid ones.
yesterday i sold one of the good ones and should have my last one sold soon.
they are fun fun fun:D
AGREE with this statementQuote:
Originally Posted by andressergio
my q9550 4 GH need 1.216 volt, but max temp only 60 C
anyone have a total NB failure on this board?
Today I'm browsing the internet after about 200 days without shutting down i BSOD. Then complete boot failure; pull out a stick of ram. Good to go. Put in another, down again. So I figure I lost 1 channel. Not so lucky. Using one stick I get halfway into windows boot and lock up. At this point i can't even get into bios.
Who still makes a good 775 board? I can't afford a new rig today and looks like the UD3R has been discontinued.
:(
Quote:
Originally Posted by Revv23
200 days... I've had this happen (maybe?) on three separate instances where I've run hardware almost non-stop for years, and then offlined said hardware for 1-3 days. Boards affected - two MSI-9105s, one ABIT VH6T (this one ran great for 3 years straight with very little downtime, until I turned it off for 1 day.), and maybe one SOYO-6YBB (not sure on this one). All these boards were made, IIRC, during the taiwanese-capacitor-disease era. I blamed dried/crappy caps in those cases, but who knows !? I was hoping such nonsense would vanish in this mostly-solid cap era. But who knows..!? I had a solid cap blow-out already in 2010. :)
XmX
Latest BIOS to Fix SMART error with Sandforce SSD
GA-EP45-UD3P Rev 1.6 - FFb
GA-EP45-UD3P Rev 1.6 - FFb (Fix SMART/Sandforce Error)
Woo hoo.. my first USB3 flash drive test + USB3P.
http://starbase.globalpc.net/~xmx/Fl...mX_Oct2010.PNG
F2D beta firmware in control, as original firmware was... USELESS!
Also, hdtune might not be the most appropriate software for this. Suggestions welcome.
XmX
Did a little SPI benching on the 9550 tonight, no dice runs yet just ambient temp water.
9550 @ 4.71 9.625 1M
http://i131.photobucket.com/albums/p...81/25Image.png
Dang hoss, thats a nice one you got there
I've been trying to get a fine tuned 4.0GHz but have run into a few problems. I'll start off by listing my setup:
RAM Info:Code:Intel Core 2 Duo E8500 Wolfdale 3.16GHz
Gigabyte GA-EP45-UD3P LGA 775
EVGA GeForce GTX 280 1GB
G.Skill PI Black 4GB (2x2GB) 240-Pin DDR2 800
Xigmatek HDT-S1283 120mm HSF w/Retention Bracket
Corsair CMPSU-750TX 750W
Default Timings: 4-4-4-12 @ 1.9V or 5-5-5-15 @ 1.8V
DDR2 800
Note: VTT = CPU Termination
I began my OC by starting with my RAM. I was able to successfully achieve 500MHz (1000MHz) with 5-5-5-15 timings and at 1.98V.
From there I began to adjust the other settings in the bios in order to hit 4.0GHz. Here are the settings I ended up having trouble with below:
VTT Problems BeginCode:E8500 500 X 8 4000MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ 0.0 ]
CPU Frequency 4.0GHz...........................[ 500 x 8.0 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Standard]
Extreme Memory Profile (XMP)....................[ Disabled ]
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 1000 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.400 ]
CPU Termination [ 1.20 ]...................[ Auto ]
CPU PLL [ 1.50 ]...................[ 1.50 ]
CPU Reference [ 0.760 ]...................[ Normal ]
MCH Core [1.1 ]...................[ 1.400 ]
MCH Reference [0.760 ]...................[ Auto ]
MCH/DRAM Refernce [0.900 ]...................[ 0.990 ]
ICH I/O [1.500 ]...................[ 1.500 ]
ICH Core [1.100 ]...................[ 1.100 ]
DRAM Voltage [1.800 ]...................[ 1.980 ]
DRAM Termination [0.900 ]...................[ 0.990 ]
Channel A Ref [0.900 ]...................[ Auto ]
Channel B Ref [0.900 ]...................[ Auto ]
When I attempted to change the VTT nothing worked. The system wouldn't boot with VTT values between 1.2-1.3V. I ran EasyTune6 to see what the VTT was running at and it turned out to be 1.6V! 1.2-1.3V are the recommended settings and from what I read you shouldn't go higher than that. This problem stems from my RAM so I set all of my BIOS settings back to default in an attempt to find a solution to the problem. Here is the updated BIOS below:
Attempting to find a solutionCode:E8500 333 X 9.5 F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ 0.5 ]
CPU Frequency 4.0GHz...........................[ 333 x 9.5 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Disabled ]
CPU Host Frequency (Mhz)........................[ 333 ]
PCI Express Frequency (Mhz).....................[ Auto ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Standard]
Extreme Memory Profile (XMP)....................[ Disabled ]
(G) MCH Frequency Latch.........................[ 333MHz ]
System Memory Multipler.........................[ 2.60B ]
Memory Frequency 800...........................[ 1066 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ Auto ]
CPU Termination [ 1.20 ]...................[ 1.30 ]
CPU PLL [ 1.50 ]...................[ Auto ]
CPU Reference [ 0.760 ]...................[ Auto ]
MCH Core [1.1 ]...................[ Auto ]
MCH Reference [0.760 ]...................[ Auto ]
MCH/DRAM Refernce [0.900 ]...................[ Auto ]
ICH I/O [1.500 ]...................[ Auto ]
ICH Core [1.100 ]...................[ Auto ]
DRAM Voltage [1.800 ]...................[ 2.000 ]
DRAM Termination [0.900 ]...................[ Auto ]
Channel A Ref [0.900 ]...................[ Auto ]
Channel B Ref [0.900 ]...................[ Auto ]
I immediately attempted to OC my RAM to 533MHz with the VTT limited to 1.30. I started with the DRAM at 2V and the system wouldn't boot. I upped the voltage to 2.1V and the system booted to the windows welcome screen but then it would just reset itself. This happened at 2.2V as well as 2.6V.
Basically, it seems in order to enable my RAM to run at 500FSB my RAM voltage has to be turned up extremely high. I didn't feel it was safe to attempt any more than 2.26V since 1.8-1.9V are the stock values. I wasn't able to achieve a 533MHz OC.
Other Notes
I do not have the funds to purchase a new set of RAM.
I tried similar settings with all of the above numbers with the 333 latch.
Questions
How do I lower the VTT but still have the RAM run at 500FSB?
Is it safe to run the VTT at 1.6V?
Do you guys/gals have any recommendation on getting a successful boot with 533MHz?
pmacdonald,here i made some changes for you to try at 8x500
this should work for 533 fsb with your ram at 1066 too.just a matter of
finding stable vcore and vdimm
Code:E8400 500 X 8 4000MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ 0.0 ]
CPU Frequency 4.0GHz...........................[ 500 x 8.0 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Turbo]
Extreme Memory Profile (XMP)....................[ Disabled ]
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 1000 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.400 ] try from 1.34v to 1.40v
CPU Termination [ 1.20 ]...................[ 1.28v ]
CPU PLL [ 1.50 ]...................[ 1.57 ]
CPU Reference [ 0.760 ]...................[ Normal ]
MCH Core [1.1 ]...................[ 1.380 ]
MCH Reference [0.760 ]...................[ 0.750 ]
MCH/DRAM Refernce [0.900 ]...................[ Normal ]
ICH I/O [1.500 ]...................[ Normal]
ICH Core [1.100 ]...................[ Normal ]
DRAM Voltage [1.800 ]...................[ 1.980 ] whatever your kit needs for 1000MHz
DRAM Termination [0.900 ]...................[ Normal]
Channel A Ref [0.900 ]...................[ Normal ]
Channel B Ref [0.900 ]...................[ Normal ]
New BIOS:
GA-EP45-UD3P - F11d
GA-EP45T-UD3P - F8l
-Fix SMART Command Fail for OCZ Sandforce FW 1.11
-28.Oct 10
GA-EP45T-UD3R - F9a
-12.Oct 10
Thanks for the suggestion radaja.
I'll start this post off by saying that I'm overclocking an E8500 and not an E8400. I copied the code templates and must've forgot to change that at the top.
I tried the template you listed (radaja) and the system failed to boot up. Once I put the VTT to auto the system would start to boot up and then restart itself. The only way the system would fully boot up is if I put the MCH reference setting on auto. It seems that with the settings above or my previous settings the MCH reference and VTT are untouchable or else my system won't boot.
In EasyTune6 with the above my VTT is still shown at a whopping 1.6 which isn't right. I know this is due to my RAM but I'm not sure why. My MCH reference shows around 0.67 in EasyTune with those settings.
One thing I'd like to note is that when I turn XMP to disable my stock timings listed for the RAM change from 4-4-4-12 to 5-5-5-15.
After all this testing I was pretty confident to assume that my problems all reside between the RAM, the high FSB, the VTT, and the MCH reference.
I decided to change my multiplier to 9.5x and to lower the FSB to 422 (4GHz). I used the settings below:
With the above settings the computer booted up and didn't seem sluggish at all. I immediately went into EasyTune and saw that the VTT was at the default 1.2V and the MCH reference was at 0.760. I decided to limit the both the MCH reference and VTT to those settings in the BIOS to see if the computer would boot and it did.Code:E8500 422 X 9.5 4000MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9 ]
Fine CPU Clock Ratio............................[ 0.5 ]
CPU Frequency 4.0GHz...........................[ 422 x 9.5 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 422 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Turbo]
Extreme Memory Profile (XMP)....................[ Auto ]
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 844 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time 4................................[ 5 ]
tRCD 4............................................[ 5 ]
tRP 4.............................................[ 5 ]
tRAS 12............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.400 ]
CPU Termination [ 1.20 ]...................[ Auto ]
CPU PLL [ 1.50 ]...................[ 1.57 ]
CPU Reference [ 0.760 ]...................[ Normal ]
MCH Core [1.1 ]...................[ 1.380 ]
MCH Reference [0.760 ]...................[ Auto ]
MCH/DRAM Refernce [0.900 ]...................[ Normal ]
ICH I/O [1.500 ]...................[ Normal]
ICH Core [1.100 ]...................[ Normal ]
DRAM Voltage [1.800 ]...................[ 1.90 ] whatever your kit needs for 1000MHz
DRAM Termination [0.900 ]...................[ Normal]
Channel A Ref [0.900 ]...................[ Normal ]
Channel B Ref [0.900 ]...................[ Normal ]
So the high FSB and overclocked RAM is what is causing my system to shoot the VTT up to 1.6V. I want to push this system to the max and only be limited by my temps but the high VTT is standing in the way.
How do I keep the VTT down but still increase my RAM speed? The minimum I need my RAM running at is 1000MHz for a 500FSB. I'm sure a new set of DDR3 RAM would solve the problem but frankly I want to figure out why my current set is causing such a high VTT.
dont use auto when OCing.i dont think vtt is your problem.
it really has nothing to do with ram.its voltage for higher fsb(fsb term voltage)
with the voltages i gave mch ref should be showing up as 0.70 in ET6.but maybe
your board dont like mch ref at 0.70v so set my voltages again but set mch ref
one notch lower so it reads 0.730 with vtt at 1.28v.
also you might not be giving your ram enough vdimm for 1000MHz.these boards undervolt
so 1.98v is actually 1.96v
Code:E8500 500x8@ 4000MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ 0 ]
CPU Frequency 4.0GHz...........................[ 500 x 8 ]@4000
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Turbo]
Extreme Memory Profile (XMP)....................[ disable ] disable this before you try setting stuff,otherwise it wil reset things
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 1000 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time 4................................[ 6 ]
tRCD 4............................................[ 6 ]
tRP 4.............................................[ 6 ]
tRAS 12............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.400 ]
CPU Termination [ 1.20 ]...................[ 1.28v ]
CPU PLL [ 1.50 ]...................[ 1.57 ]
CPU Reference [ 0.760 ]...................[ Normal ]
MCH Core [1.1 ]...................[ 1.380 ]
MCH Reference [0.760 ]...................[ 0.73v]
MCH/DRAM Refernce [0.900 ]...................[ Normal ]
ICH I/O [1.500 ]...................[ Normal]
ICH Core [1.100 ]...................[ Normal ]
DRAM Voltage [1.800 ]...................[ 2.00v] try 1.98v to 2.00v for 1000MHz
DRAM Termination [0.900 ]...................[ Normal]
Channel A Ref [0.900 ]...................[ Normal ]
Channel B Ref [0.900 ]...................[ Normal ]
Thanks a ton radaja. I've found out why my previous settings weren't working.
I loaded up your settings exactly as you had them and my system booted fine. I then started to set the values back to the one's I originally had one by one to find out where I went wrong. Each of the settings worked at my previous values until I got down to the final two that were left to change.
The last two I was testing was the CPU term and the MCH reference. The problem I was having is because of the approach I tried to take. I set everything on auto and adjusted each of the settings one by one.
This is where I realized what had went wrong. I set the CPU term to 1.28 and the MCH ref to 0.75. I then set the CPU term to auto and the MCH ref immediately changed to 0.953 which coincidently is where the MCH ref is when the CPU term is at 1.6 which is what EasyTune was originally showing me.
The problem I had when I tried to set the MCH ref to 0.750V and leave the CPU term on auto is that the CPU term would want to shoot itself up to 1.6V but the MCH ref would be stuck at 0.750V so the system wouldn't boot.
Now I just need to optimize the system by running it through Prime95 for awhile and then I'll attempt to lower my voltages. Then I'll try to overclock my system to its limits.
great to hear.keep us posted and if you need any help were here:D
ive used this template for all my 10+ UD3P's ans many e8400 and e8500's
and it always seems to work.except one board that had issues and i RMA'ed
it and the new one worked great.
so like you said now start working the voltages down.
Well I'm back already... The 4.0GHz was stable for 3 hours so I attempted to bump the multiplier up 0.5x to 8.5x500 / 4.25GHz. I've had no luck so far.
Here's the log that I kept: (hopefully you guys can follow it)
0.4 = FATAL ERROR: Rounding was 0.49609375, expected less than 0.4
0.5 = FATAL ERROR: Rounding was 0.5, expected less than 0.4.
Worker two fails every single time immediately.Code:Changed MCH Core to 1.4 and got the BSOD
Changed above back to 1.38 and PLL to 1.5 and got another BSOD
Changed PLL to 1.57 and all the refs back to normal. BSOD
DRAM Voltage to 2V, VTT 1.3, MCH ref 0.743 booted up
Prime95 Results: Worker 2 failed immediately - Rounding was 0.49609375, expected less than 0.4
Restarted with above settings and got BSOD
Standard, 6-6-6-15, VCore 1.4
Prime95 Results: Worker 2 failed immediately - Rounding was 0.5
MCH ref 0.763
Prime95 Results: Same
MCH core 1.4, DRAM V 2.020V
Prime95 Results: Same
PCI E 101, MCH Ref 0.783V
Prime95 Results: Same
MCH Ref 0.803 - BSOD
2V DRAM MCH Ref 0.723V
Prime95 Results: Worker 2 failed immediately - Rounding was 0.49609375
MCH Ref 0.703V
Prime95 Results: Worker 2 failed 0.5
MCH Ref 0.743V PLL 1.50
Prime95 Results: Same
CPU Term 1.26 MCH Core 1.3 MCH Ref 0.758
Prime95 Results: Same
1.28/1.3/0.750
Same
1.24/1.3/0.745
Same
1.28/1.28/0.750
0.4
1.28/1.26/0.750
0.5
1.28/1.34/0.750
0.5
1.28/1.4/0.750 - Ch A&B 1.060V, DRAM Term 1V, MCH/DRAM 1.060V
0.5
1.30/1.4/0.743 - VCore 1.42500V
0.5
1.4/1.4/0.806
0.5
1.5/1.4/0.870
0.5
I'm not sure what settings I need to change. Any help would be appreciated.
Note: The original template used was the one posted above by radaja.
well if the first template at 8x500 worked for 3hrs then its just a matter of vcore for 8.5x500@4250,you will just need to increase until its stable.it might be more than your willing to do or temps might get out of control.but by upping the multi its just vcore you need to worry aboutQuote:
Originally Posted by pmacdonald
That's what I thought at first. I went up to 1.425v and thought that at 4.25GHz that should be plenty. http://www.xtremesystems.org/forums/...05132&page=119 pangingIII hit 8.5x500 with only 1.375v here...hmm
EDIT: I just raised the VCore to 1.45v and still got the same error almost immediately. I'm not sure what to make of this since like you said, simply increasing the VCore should be enough.
every cpu is different.they all have different stock vcore(vid) you can see what yours is by running coretemp
Below is what I'm currently running in BIOS and it's been stable thus far (Prime95 blend for one hour). I'm working on optimizing some settings and am looking for some advice.
When I try to put the vcore at 1.35 the system starts up and it even lets me into windows but I get an error in prime95 after about 2min. (rounding error)
Is there a way to adjust my CPU term and MCH core so that I can lower my vcore? I've seen people in the e8400/e8500 thread run their chips at 4GHz with a vcore of 1.27v.
Something tells me that my CPU term and MCH core aren't optimally set because when I just bump up the multiplier 0.5x my system isn't stable even with an increase in vcore to 1.425v. That seems excessive for 4.25GHz.
Code:E8500 500 X 8 4000MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 8 ]
Fine CPU Clock Ratio............................[ 0.0 ]
CPU Frequency 4.0GHz...........................[ 500 x 8.0 ]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 500 ]
PCI Express Frequency (Mhz).....................[ 100 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Standard]
Extreme Memory Profile (XMP)....................[ Disabled ]
(G) MCH Frequency Latch.........................[ 400MHz ]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 1000 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.35625 ] 1.33 actual
CPU Termination [ 1.20 ]...................[ 1.28 ]
CPU PLL [ 1.50 ]...................[ 1.57 ]
CPU Reference [ 0.760 ]...................[ Normal ]
MCH Core [1.1 ]...................[ 1.380 ]
MCH Reference [0.760 ]...................[ 0.750 ] 0.70 in ET6
MCH/DRAM Refernce [0.900 ]...................[ Normal ]
ICH I/O [1.500 ]...................[ 1.500 ]
ICH Core [1.100 ]...................[ 1.100 ]
DRAM Voltage [1.800 ]...................[ 2.040 ] 2.02-2.03 actual
DRAM Termination [0.900 ]...................[ Normal ]
Channel A Ref [0.900 ]...................[ Normal ]
Channel B Ref [0.900 ]...................[ Normal ]
run coretemp and tell us what the vid is.sometime cpu ref can help with a slight drop in vcore
but like i said i have one E8400 that does 4.5GHz w/1.29v load and then one that needed 1.46v for 4.5GHz
each cpu is made differently and have different vids.1.33v load is about what all average vid E8400/E8500's
need.also when running lower multi's more vcore is required than running the stock vcore.
example my E8400 only needs 1.20v for 4.0GHz at 9x445@4005 but it needed 1.22v for 8x500@4000
you can try this to see what it takes for 4.0GHz using the 9.5x422@4009
Code:E8500 9.5x422 4009MHz F10 BIOS
Robust Graphics Booster.........................[ Auto ]
CPU Clock Ratio.................................[ 9]
Fine CPU Clock Ratio............................[ 0.5]
CPU Frequency 4.0GHz...........................[ 422x9.5]
******Clock Chip Control******
CPU Host Clock Control..........................[ Enabled ]
CPU Host Frequency (Mhz)........................[ 422 ]
PCI Express Frequency (Mhz).....................[ 101 ]
C.I.A 2 ..................................................[Disabled]
******DRAM Performance Control******
Performance Enhance .............................[Standard]
Extreme Memory Profile (XMP)....................[ Disabled ]
(G) MCH Frequency Latch.........................[ 400]
System Memory Multipler.........................[ 2.00D ]
Memory Frequency 800...........................[ 844 ]
DRAM Timing Selectable..........................[ Manual ]
CAS Latency Time................................[ 5 ]
tRCD............................................[ 5 ]
tRP.............................................[ 5 ]
tRAS............................................[ 15 ]
******Motherboard Voltage Control******
Load-Line Calibration [Enabled]
CPU Vcore [ 1.25 ]...................[ 1.350v ] try 1.350v and then try lowering it
CPU Termination [ 1.20 ]...................[ Normal ]
CPU PLL [ 1.50 ]...................[ Normal]
CPU Reference [ 0.760 ]...................[ Normal]
MCH Core [1.1 ]...................[ Normal ]
MCH Reference [0.760 ]...................[ Normal ]
MCH/DRAM Refernce [0.900 ]...................[ Normal ]
ICH I/O [1.500 ]...................[ Normal]
ICH Core [1.100 ]...................[ Normal]
DRAM Voltage [1.800 ]...................[ 2.040 ] 2.02-2.03 actual
DRAM Termination [0.900 ]...................[ Normal ]
Channel A Ref [0.900 ]...................[ Normal ]
Channel B Ref [0.900 ]...................[ Normal ]
Thanks, I'll give that template a try tomorrow.
My VID in coretemp is 1.25v.
I bumped up my MCH core to 1.42v to see if it would give me a stable oc at 1.35v. It was prime95 blend stable for 45min then I stopped the test.
I decided that 1.42v was too high at this speed so I set the MCH core back to 1.38v and adjusted my MCH ref to 0.770 in bios / 0.720 ET6. I'm running prime95 right now and it's past where it had failed previously. I'll give an update once it hits 45min (if it gets that far).
After this test I'm going to keep adjusting the MCH ref, MCH core, and VTT in an attempt to lower the vcore.
radaja, can you PM me some of your stable 8x500 templates so I can compare numbers?
EDIT: prime95 blend stable for 53min.
i can send you some templates for sure.
yea thats a high vid chip so 4250 might need more vcore?
what i recommend trying is 7x500@3500 with vcore set to 1.35v
in bios to rule out vcore from causing any problems.and just focus
on making sure 500fsb is stable.meaning you ref's and ram and Nb
are stable.because i just start with vtt at 1.28v and mch at 1.38v
when i get a new cpu or board.but after finding what my new cpu
likes i then start dropping vtt and mch.with 2x2GB ram i usually get
away with 1.24v vtt and 1.32v to 1.34v mch voltage.
with 2x1GB kits i only need 1.26v to 1.30v mch voltage at 500fsb
Is 1.25v really that high of a VID?
I'm finally starting to see some greater potential from this chip. After the above settings worked out I decided to change my MCH core to 1.36 (from 1.38) and MCH reference to 0.750/0.70 in ET6 (from 0.770/0.720 in ET6). I just finished running prime95 on blend for one hour and 3min with no errors. My vcore is still at 1.35v but under HWMonitor it showed only 1.31v which is a greater drop than it has been showing. I'm about to lower the vcore and run prime95 for around 45min. I still feel that I can lower both the VTT and MCH as long as I find the right ratio of MCH to MCH ref. I'll post my updated results tomorrow.
yea the good E8400/8500's with low vids are like 1.12v to 1.20v
but even my good E8400 had a vid of 1.23v so its not a rule but more a guidline
as to how high they will go on acceptable volts.but ive had a 1.25v vid E8500
that did 4.5GHz w/1.44v
Update:
I lowered my vcore to 1.325v in bios (1.30v actual) and wasn't able to get my system stable. Here is some of what I tried:
VTT: 1.24v / 1.26v / 1.24v / 1.26v / 1.26v / 1.28v
MCH: 1.32v / 1.32v / 1.34v / 1.34v / 1.36v / 1.38v
I tried the first 4 combinations with every reasonable MCH reference setting. It seems like this chip won't do 8x500 at 1.3v.
love the 775's keep on rocking! :surf:
radaja, I set my multiplier down to 7x500 to find my lowest mch / vtt setting possible like you suggested but my results don't seem right.
I ran MCH 1.30v with VTT 1.24v and MCH ref at 0.70 (ET6) for 12hrs stable in prime95 (blend).
I kept lowering the settings but everything seemed stable so I decided to turn each setting down to where I thought it would fail immediately and work my way up.
When I set my MCH to 1.10v the system set its resolution to the lowest which I was able to change back but it appeared stable.
I then set the VTT to 1.20 and the only noticeable change was that my Aero transparency settings were no longer able to be activated but it still appears stable.
I'm running Prime95 right now and I'll update later with the results but what is allowing me to have such a low VTT and MCH core?
Also, is the VTT / MCH affected only by the FSB and not the multiplier?
I'm pretty confused with these recent results as I was expecting the MCH to be able to go no lower than 1.32v and VTT 1.24v.
EDIT:
So I got these questions answered myself. I decided to go back up to 8x500 and try to optimize my vcore. The above references worked there too but when I tried to lower the vcore the system would fail after 10min. The higher vcore was just compensating for too low of a VTT and MCH value. 1.325vcore (1.3 actual) at 8x500 is not achievable with my chip. I'm still working on getting 1.33750v (1.31v actual) stable at 8x500 which I know is possible. After that I'm going to shoot for a stable OC at 9x445 to see how much the lower FSB affects my vcore. I should be able to get this done within the next two days. When I get that finished I'll try to get a stable OC at 4.25GHz and go from there.
Well I wasn't able to get 8x500 stable at 1.33750v (1.31v actual). I tried a lot of combinations of MCH/VTT to no prevail.
The most success I had was with the VTT at 1.28, MCH at 1.26, and MCH ref at 0.70v which was stable for 2 hours and 10min.
Changing the MCH ref didn't help and raising the MCH didn't help.
Bumping up the Vcore to 1.34375v (still 1.31v actual) seemed to do the trick at 1.28v VTT and 1.36v MCH with the MCH ref at 0.70v. I'm gonna wait until tonight to run a longer prime95 test on it.
It seems I don't have a golden egg here but I still feel it's safe to run this chip at 4GHz 24/7. Now it's time to push up the vcore and get this baby to 4.25GHz!
guys make sure when adjusting MCH Ref or cpu ref to do it in bios and make sure you set vtt to default 1.2 before adjusting any ref voltage. when change has been made then bring vtt back to where you had it set.
