04-21-2006, 11:52 PM
Waus-mod

Rol-co,

Great to see my cpu gets a higher fsb in a other board.. so it aint the cpu that is holding down. (there is a prom waiting on youre desk to get used :p:)
04-21-2006, 11:53 PM
Waus-mod

@ gamer,

use the large system cache for better 32m times ;)
04-22-2006, 12:03 AM
hipro5

I was informed - by PM - that there was another mobo went down by hicookie's Vchip (Northbridge) Mod......This mobo was down before mine......The guy propably thought it was his mistake.......:(

hicookie you should be ashamed of posting things like that in a VERY "readable" and crowdie forum without even testing it by yourself......:nono:
04-22-2006, 12:05 AM
central

Quote:

Originally Posted by hipro5

As for the "cold boot start" just place the Jumper that Waus-mod had posted a question about, in the middle (pins 2 an 3).........This jumper will help the cold boot problem coz when you firsty power up the AOpen, it feeds the CPU with only 1.00Volt and during post it feeds it with the VCore you have chosen via Bios........By placing the jumpers at 2,3 pins, when power up mobo, feeds the CPU with 1.4Volts and afterwords with the VCore you have selected via Bios.......;)

Thanks hipro, this solved my coldboot problems completly. ;)
04-22-2006, 12:17 AM
stummerwinter

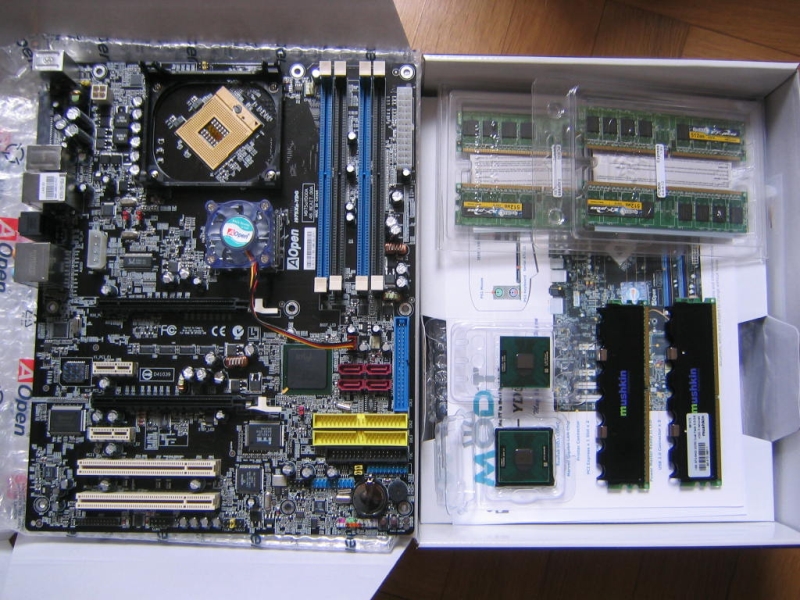

Ready to rumble...:D

http://oc-x.de/PICS/AOpenstuff.jpg

Hope to get system running soon!
04-22-2006, 12:23 AM
Rol-Co

Quote:

Originally Posted by kiwi

Somehow I don't wanna agree that it is 100% cpu related. We have only one board to test it on. And remember Dothans 7x0 hit at least 250-260+ easily.

First i was thinking that too, but 2 cpu's here and so different, when i come too 244 fsb with mine i get the "not exact in round" @ step 10-17 or so,

with the cpu of waus-mod i get a instant lock up @239,5-240, nothing about error message or something else.

so when i can get 244 fsb with the cpu of mine , why can't it be cpu then? the board is not the problem i think.
Maybe it is possible too gain higher fsb on another board, but our japanese friend's here use the same board and gain a massive 280+ fsb.

@waus-mod
Sorry too tell you but i'm thinking it's cpu related :stick: , only thing is that becouse of the ihs on it it was a 10 degrees hotter as the cpu i'm using without.
so maybe that was not a good id too do before the ln2 run.
04-22-2006, 12:29 AM
Waus-mod

well w/o ihs i also had a 236.5 wall.... hmm can you hook up the prom?
04-22-2006, 12:58 AM
hipro5

I strongly believe that the problem with the fsb is a CPU > Northbidge > PLL generator chip related........IF AOpen whould be so kind to provide us a FULLY UNLOCKED bios with ALL features(deviders-multies-etc.), I think that we could solve a LOT of our problems......;) :)
04-22-2006, 12:59 AM
hipro5

Quote:

Originally Posted by central

Thanks hipro, this solved my coldboot problems completly. ;)

You're welcome.......:)
04-22-2006, 01:07 AM
overcrash86

Quote:

Originally Posted by hipro5

I strongly believe that the problem with the fsb is a CPU > Northbidge > PLL generator chip related........IF AOpen whould be so kind to provide us a FULLY UNLOCKED bios with ALL features(deviders-multies-etc.), I think that we could solve a LOT of our problems......;) :)

Yes, agree with you, but any BIOSmodder can do this :confused:

My T2400ES have a wall at 237Mhz it's too bad :(
04-22-2006, 01:10 AM
hipro5

Quote:

Originally Posted by overcrash86

Yes, agree with you, but any BIOSmodder can do this :confused:

My T2400ES have a wall at 237Mhz it's too bad :(

Biosmodders aren't here anymore coz........there aren't any proggies out there to support newest bios files.......If we had a NEW Modbin proggie, I think that we whould be OK.......;)
04-22-2006, 01:12 AM
lawrywild

Quote:

Originally Posted by overcrash86

Yes, agree with you, but any BIOSmodder can do this :confused:

My T2400ES have a wall at 237Mhz it's too bad :(

:confused: a bios modder can't just add options to the bios, they can only lock/unlock options that are already coded into the bios
04-22-2006, 01:14 AM
Waus-mod

I can ask my contact for bios.. hope they will do it like you said hipro.
04-22-2006, 01:21 AM
El Snorro

Quote:

Originally Posted by hipro5

Biosmodders aren't here anymore coz........there aren't any proggies out there to support newest bios files.......If we had a NEW Modbin proggie, I think that we whould be OK.......;)

PM tony for that?
04-22-2006, 01:22 AM
jmax_oc

Quote:

Originally Posted by Rol-Co

becouse its cpu related :(

i can reach 243,5 fsb with mine till now, with better cooling it's gona be higher i think.:D

100% agree with you.
I freeze at double prime when :
low multi x 229MHz cpu@22°C full
low multi x 225MHz cpu@44°C full
low multi x 220MHz cpu@62°C full

Quote:

Originally Posted by Rol-Co

so when i can get 244 fsb with the cpu of mine , why can't it be cpu then? the board is not the problem i think.
Maybe it is possible too gain higher fsb on another board, but our japanese friend's here use the same board and gain a massive 280+ fsb.

@waus-mod
Sorry too tell you but i'm thinking it's cpu related :stick: , only thing is that becouse of the ihs on it it was a 10 degrees hotter as the cpu i'm using without.
so maybe that was not a good id too do before the ln2 run.

I'm quite sute that 80-100% of the problem is related to cpu. Maybe we can improve it by raising the voltage of the fsb.
04-22-2006, 01:38 AM
Rol-Co

Quote:

Originally Posted by Waus-mod

well w/o ihs i also had a 236.5 wall.... hmm can you hook up the prom?

yep......i know, but under ln2 you gaint 4 mhz fsb more if i remember ok.

so maybe its cooler here @ air so i got the 4 mhz too......

i try the prometeia , but i think its not helping on you're cpu.

results later this weekend,.......bit busy atm
04-22-2006, 01:49 AM
s7e9h3n

Quote:

Originally Posted by albertwesker

he has to set the yellow jumper in the middle, then the coldbug is gone.

Ummm...I don't have any problem with booting into windows. I have a problem RUNNING the cpu IN windows...As evap temps get colder, the cpu becomes more FSB limited....
04-22-2006, 07:05 AM
Chri$ch

my new mem arrived today :)

http://people.freenet.de/chris070719.../SuperPi-2.jpg
04-22-2006, 07:27 AM
Kjaks

NICE cpu! Is that on air?
04-22-2006, 07:30 AM
Chri$ch

cpu is watercooled ;)
04-22-2006, 07:53 AM
Kjaks

Okay, nice anyway :)

Has anybody tried to "burn-in" a Core Duo to see if it enables the cpu to run at higher FSB? I think it's kind of interesting because everybody hits a FSB wall..
04-22-2006, 07:59 AM
Chri$ch

i need more vcore :D

cpu can boot with 262FSB (3.4Ghz), but pi stable is only 258FSB :(
04-22-2006, 08:21 AM
Waus-mod

its still a sick chip.. it screams for ln2 / cascade!
04-22-2006, 08:46 AM
jmax_oc

Quote:

Originally Posted by s7e9h3n

Ummm...I don't have any problem with booting into windows. I have a problem RUNNING the cpu IN windows...As evap temps get colder, the cpu becomes more FSB limited....

Can you tell us FSB's limit related to cpu's temperature ?
04-22-2006, 09:48 AM
runmc

Looking good Chri$ch :slobber: - keep pushing and don't leave out any details.:)
