only have three at the moment.the two UD3R's and the UD3P(RMA)this last week i found the two UD3P's and just waiting for them to get here:D.Quote:
Originally Posted by kpo6969
I have a UD3R rev 1.0 I'm looking to sell so I can fund the purchase of a Q9550 or Q9650.
someone tested the F11c in UD3P ?
aircooler, MEGAHALEM on BIOS 1.3625vQuote:
Originally Posted by gugle
F11.C, hmmm let me try laterQuote:
Originally Posted by kpo6969
The latest official one, in my opinion.Quote:
Originally Posted by Gaul
8x500Mhz FSB with relative ease & rock stable.
If I try to go up 500FSB, my GPU drivers don't load properly and can't be reinstalled on that frequencies (tested over W7 32 bits professional)
here, still use F10Quote:
Originally Posted by ACK
q9550 @ 4.4 GH with 1.328v
Prime95 about 2 hours on Small fft
http://img715.imageshack.us/img715/4796/442h.jpg
Hello, you tell me any shop which sell the UD3P? and if it can be sent to Spain.
A greeting.
dont think shops carry them anymore.you have to buy used.
i will be selling a couple UD3P's soon.
Does anybody have 550+ stable fsb with quad?
many of us benched at 554x9 and more but in my case just for SPI, got it stbale at 500x9 or 500x9,5 for gammingQuote:
Originally Posted by Doublek
cheers
Sergio
Thanks, but I am interested if this board is capable running 550+ fsb. May be 550*8 or something like this. To get max fsb but not max cpu.Quote:
Originally Posted by andressergio
could some one who has successfully done 560fsb+ using a c2d
post the settings used.i can get 560fsb prime95 blend 2hrs stable
but anything above just wont prime for more than 30m.this is with
two UD3R's and one UD3P,they all seem to crap out at 560fsb.
so im wondering if there is some kind of setting im missing that needs
to be adjusted after 560fsb,thanks
:up:Nice work! Can't help ya there, but I would love to see your 560fsb settings. Hell, I'm having trouble getting my E8500 and EP45C-UD3R to even boot at 8x500fsb. Driving me crazy:mad: So I'm stuck at 9.5x400 for now.
heres the 560fsb setting,this works for all three boards using the same ram and cpu.
http://i55.tinypic.com/21lsnzn.jpg
7.5x560@4200 Template
Code:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster ...............: AUTO
CPU Clock Ratio ..........................: 7
Fine CPU Clock Ratio.....................: 0.5
CPU Frequency ...........................: 4.20GHz (560x7.5)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control.................: [Enabled]
CPU Host Frequency (Mhz) ...........: 560
PCI Express Frequency (Mhz) ........: [101]
C.I.A.2 ......................................: [Disabled]
Advanced Clock Control [Press Enter]
CPU Clock Drive..........................: 800mV
PCI Express Clock Drive................: 900mV
CPU Clock Skew (ps)...................: 0ps
MCH Clock Skew (ps)...................: 0ps
DRAM Performance Control
Performance Enhance..................: [TURBO]
Extreme Memory Profile (X.M.P.)....: [Disabled]
(G)MCH Frequency Latch..............: [400]
System Memory Multiplier .............: 2.00D
Memory Frequency (Mhz) .............: 1120
DRAM Timing Selectable ...............: [Manual]
Standard Timing Control
CAS Latency Time.......................: 5
tRCD ........................................: 5
tRP'..........................................: 5
tRAS.........................................: 15
Advanced Timing Control
tRRD....................................: 4 [AUTO]
tWTR...................................: 4 [AUTO]
tWR.....................................: 8 [AUTO]
tRFC....................................: 68 [56]
tRTP....................................: 4 [AUTO]
Command Rate (CMD) ............: 0 [AUTO]
Driving Strength Profiles
Driving Strength ............................[AUTO]
Channel A
Static tRead Value........................: 10 [AUTO]
tRD Phase0 Adjustment..................: 0 [AUTO]
tRD Phase1 Adjustment..................: 0 [AUTO]
tRD Phase2 Adjustment .................: 0 [AUTO]
tRD Phase3 Adjustment..................: 0 [AUTO]
Trd2rd(Different Rank)...................: 8 [AUTO]
Twr2wr(Different Rank)..................: 8 [AUTO]
Twr2rd(Different Rank)...................: 7 [AUTO]
Trd2wr(Same/Diff Rank).................: 9 [AUTO]
Dimm1 Clock Skew Control..............: [AUTO]
Dimm2 Clock Skew Control..............: [AUTO]
DDR Write Training........................: [AUTO]
Channel B
Static tRead Value........................: 10 [AUTO]
tRD Phase0 Adjustment..................: 0 [AUTO]
tRD Phase1 Adjustment..................: 0 [AUTO]
tRD Phase2 Adjustment .................: 0 [AUTO]
tRD Phase3 Adjustment..................: 0 [AUTO]
Trd2rd(Different Rank)...................: 8 [AUTO]
Twr2wr(Different Rank)..................: 8 [AUTO]
Twr2rd(Different Rank)...................: 7 [AUTO]
Trd2wr(Same/Diff Rank).................: 9 [AUTO]
Dimm1 Clock Skew Control..............: [AUTO]
Dimm2 Clock Skew Control..............: [AUTO]
DDR Write Training........................: [AUTO]
Motherboard Voltage Control
CPU
Load-Line Calibration................: [Enabled]
CPU Vcore..............................: 1.250v [1.38v]
CPU Termination......................: 1.200V [1.34v]
CPU PLL.................................: 1.500V [1.57v]
CPU Reference........................: 0.755V [Normal]
MCH/ICH
MCH Core...............................: 1.100V [1.40v]
MCH Reference........................: 0.760v [0.788v]shows up as 0.70v in ET6
MCH/DRAM Ref.........................: 0.900V [Normal]
ICH I/O..................................: 1.500V [1.50v]
ICH Core................................: 1.100V [1.20v]
DRAM
DRAM Voltage...........................: 1.9v [2.26v]
DRAM Termination ....................: 0.900V [Normal]
Channel A Reference..................: 0.900V [Normal]
Channel B Reference .................: 0.900V [Normal]
Advanced Settings
Limit CPUID Max. to 3......................: [Disabled]
No-Execute Memory Protect..............: [Enabled]
CPU Enhanced Halt (C1E).................: [Enabled]
C2/C2E State Support.....................: [Enabled]
x C4/C4E State Support...................: [Disabled]
CPU Thermal Monitor 2(TM2) ............: [Enabled]
CPU EIST Function..........................: [Enabled]
Virtualization Technology..................: [Disabled]
Have you tried to add some skew like 0, 50 or 50, 50?
not yet,but NoGuru told me the same thing at ocn,so today im going
to play with the cpu and mch skews and also the dimm skews.
still curious as to what vtt and v NB people needed for 600 fsb?
@radaja...Thanks!
thanks for the info, very nice...Quote:
Originally Posted by radaja
no problem:up:
managed 572fsb.this 1.0 board seems to be very nice.
apparently this board doesnt suffer the same problem
the other boards did.
this is without any tweaking yet.just the basic voltages.
maybe this will be 600fsb type of MB:D
settings are the same except for vtt is set to 1.36v
and vNB at 1.42v(also i had mch ref wrong in template)
should be 0.788v
also made a video of the actual bios and boot up for this run
its a little fuzzy but you can still see all the setting in it.
bios settings video
http://i56.tinypic.com/1o51de.jpg
http://i51.tinypic.com/30bi44l.jpg
Jeebus. That has got to be the most performance you can squeeze out of a C2D at 4.0Ghz for 24/7 stable :D Nice!
Thanks for posting those settings Radaja. I think once I move home and get my dedicated room sorted, I'll be tempted to try an E8500 on my USB3P. I got over 600 fsb with it on an MIIF (I think I hit something like 617) so it's not out of sight - just a shame mine needs lots of volts for anything above 4.1-4.2. Stability at 572 seems like a nice indicator that the same is possible on this board, hopefully the DDR3 will be up to the same. Skews definitely played a part on the MIIF so I'm sure you'll go further when you aim higher - well done. I can only hope for results like that!
Looking at buying a Q9650 with a VID of 1.200....will I need a water setup for 4 GHz (8x500fsb)?
some can make 4.0 without water , but with water a definite regardless the Vid . ..Quote:
Originally Posted by bluestang
ok, well Sergio helped me on some settings with my USB3P and this high VID Q6600..... but i thought i would post my info here and see if there is anyone with some good info to get this stable.
then i have it currently set to this...Quote:
Q6600 VID 1.325
Core Temps 19 21 19 16
445 x 9.0
CPU PLL 1.570 - 1.570
Term 1.280 - 1.520
CPU Ref 0.745 - 0.785
Vcore 1.7 - 1.7 ()
Dram Volt 1.8 - 1.9
Dram Term 0.750 - 0.750
Ch-A Data vRef 0.75 - 0.75
Ch-B Data vRef 0.75 - 0.75
Ch-A Address vRef 0.75 - 0.75
Ch-B Address vRef 0.75 - 0.75
MCH Core 1.46 - 1.40
MCH/DRAM Ref 0.75 - 0.75
MCH Ref 0.76 - 0.80
ICH I/O 1.570 - 1.570
ICH Core 1.20 - 1.20
Skews are
100ps
150ps
Memory DDR3 4GB
534.1
5:6
8-8-8-20 60 2T
i can boot into windows and open memset, cpuz, et6 and everything is fine. Prime fails and freezes solid in .5 seconds.
If i try SuperPi 1M it makes it to the 4th loop and freezes then reboots.
With these settings i am not seeing BSOD just freezes and reboots.
The goal with this........... 42xx.x
Oh and a strange thing.... with these exact settings XP won't even load, if i drop FSB to 442 i can get into XP and run Wprime and SuperPi 1M
In Vista it loads and can move around inside windows i just cant stress it because it freezes instantly.
Advanced Clock Controls are:Quote:
these are current settings at 444*9
PLL 1.57
Term 1.52
Ref 0.670
Vcore 1.760
Dram Volt 1.90
MCH core 1.52
MCH Ref 0.80
I/O 1.57
ICH Core 1.20
CPU 1000mv
PCI 1000mv
CPU 0ps
MCH 50ps
Enhance Standard
XMP Disabled
Latch 333
Multi 2.40B
i am running A-Data DDR3 2000 XPG G Series
CL9 9-9-24
any help would be grateful
q9550 @ 4.4 GH v1.328
with UD3P rev 1.1
Qspi 16 MB, passed !
http://img31.imageshack.us/img31/7851/44ghqspi16mb.jpg
one of templates
http://img684.imageshack.us/img684/3998/dsc00430co.jpg
http://img69.imageshack.us/img69/9228/44vantager.jpg
Well today my new toyz arrived so i will be off of P45 i will remember this thread forever :D
thank you very much my friends OC nub and l0ud_sil3nc3 for the kindness and patience on this days, i really appreciatte that very much guys :up:
sompe pics of my first X58 mobo and my first I7 920
http://img259.imageshack.us/img259/884/p10602271.jpg
http://img819.imageshack.us/img819/5668/p10602391.jpg
cheers all :toast:
Sergio
niceQuote:
Originally Posted by Gaul
but for daily use CPU Termination is not too high ?
Advanced Clock Controls which setting ?
thanks
here put 4.3ghz (506x8.5), ran in Standard mode LinX
but not anymore, I do not know whether it should be by high temperature :(
vcore 1.36250v
vfsb 1.36v
pll 1.57v
ref 0.886
VNB 1.46v
ref 0.901
ich 1.50v
ich c. 1.20v
yup, thats not 4 daily, just for bench :p:Quote:
Originally Posted by gugle
1000
1000
100
150
my daily setup 4.2 GH, i'll post stability SS and setting soon :cool:
Hey congrats Sergio going to be nice . . . love to see that I7 920 makes my mouth water . . . you know i couldnt be left behind so my X58 and 920 coming alsoQuote:
Well today my new toyz arrived so i will be off of P45 i will remember this thread forever
thank you very much my friends OC nub and l0ud_sil3nc3 for the kindness and patience on this days, i really appreciatte that very much guys
sompe pics of my first X58 mobo and my first I7 920

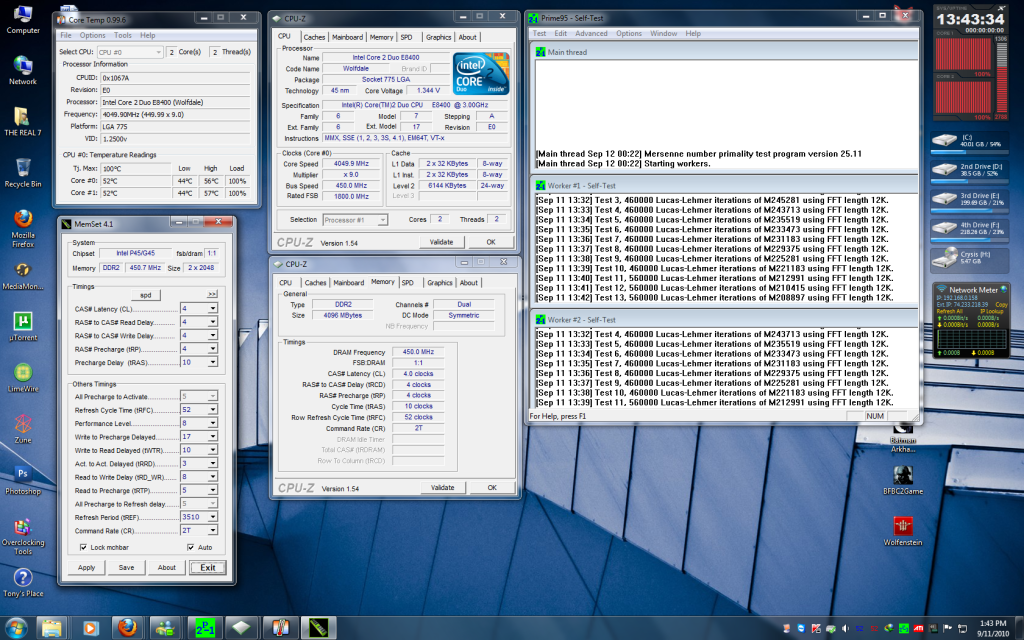

didn't want to leave the EP45-UD3P club here , after I sold mt Q9650 . . so i put a E8400 in her and she fun all over again . . but i did run in some bumps I thought with the settings of the Q9650 the E8400 Would PURRRRRR wrong crash crash crash on prime . . Radaja came thru with a template , now my lan system is kicking some prime ass again. Thanks Radaja :up:
http://i84.photobucket.com/albums/k7...8400at4050.png
For anyone that may be interested I updated my bios from the F9 to the F10 on a EP45-UD3P Rev.1.0 and started having that boot loop issue tried clearing the bios and loading optimized default setting still wouldn't post just keep looping so i took a shot and loaded the F11C Beta Bios That instantly solved the boot problem even seems to boot much quicker and load windows faster
Here's the link to the F11C bios I used
http://www.station-drivers.com/page/...-ep45-ud3p.htm
Quote:
Originally Posted by gugle
thanks mate :up:Quote:
Originally Posted by the_real_7
Congrats Sergio, hope you will enjoy.
thanks my friend for sure i will :up: waiting the twins lolQuote:
Originally Posted by OC Nub
Glad you finally got it buddy I am sure you will have a blast playing with it.
i'll be looking forward to your results in the x58A-UD3R thread and the linx 4.5GHz stable thread.:up:Quote:
Originally Posted by andressergio
OC nub and l0ud_sil3nc3,you two are awesome.always willing to go the extra mile to help a fellow XS's member:up:
Quote:
Originally Posted by l0ud_sil3nc3
thanks a bunch guys i love this toyzzzz :up:Quote:
Originally Posted by radaja
Bah Sergio I7 :p I7 is for pussies, too easy :)
Thanks radaja, glad to help my buddy out. I know he will enjoy.Quote:
Originally Posted by radaja
that is why you have 20 right ? :rofl:Quote:
Originally Posted by Leeghoofd
here 4.2 GH stability testQuote:
Originally Posted by Gaul
IBT v2.5, HIGH, 15xLopps - PASSED
http://img707.imageshack.us/img707/5...gh15xloops.jpg
Q spi 32 MB - PASSED
http://img838.imageshack.us/img838/6571/32mb42.jpg
niggro please , sergio knows what a i7 is and has pushed the 775 as far as it can go , more than you Leeghoofd Im sureQuote:
Originally Posted by Leeghoofd View Post
Bah Sergio I7 :p I7 is for pussies, too easy
very good, :clap:Quote:
Originally Posted by Gaul
which values in bios ?
Dont worry Sergio, you would only be a ":banana::banana::banana::banana::banana:" if you ran your i7 on LN2. I know you will find max oc using a 24/7 cooling solution.
You have done a lot for this thread along with quite a few others, and have always been there to help people when they needed it. This has been a great thread with a lot of good people posting that have been more than willing to help, something I havent seen in many other threads.
well said mate :up:Quote:
Originally Posted by OC Nub
Quote:
Originally Posted by OC Nub
this is without a doubt one of the best threads on xs:up:
Can someone post a Bios Temp-let for a Q8400 on a EP45-UD3P Rev.1.0 that could help get me at 4.0mhz I'm running 4 1gig sticks of Micron 555-12 rated at 667 Dram Volt 18000 Cooler Master hyper 212
+1 for that :up:Quote:
Originally Posted by l0ud_sil3nc3
Sergio is one of the biggest assets to this thread. You may be gone, but not forgotten. R.I.P. my friend.
thanx mate, hereQuote:
Originally Posted by gugle
1000
1000
50
100
everything auto, except :
vcpu = 1.2875
vtt = 1.34
vnb = 1.50
v pll = 1.50
PL = 9
nah our freind sergio wont rest till the job doneQuote:
Originally Posted by NoGuru
thanks my friend :up: but i will keep on helping ppl to get nice clockies :DQuote:
Originally Posted by NoGuru
i dont have a bios template mate but i can give you some tips...btw you know you have a killer mobo ? rev 1.0 can reach amazing clocksQuote:
Originally Posted by Marke
skews
900/900/0/50
set vtt to 1.2 and cpu ref to .785 and mch ref to .80 then up vtt to the value you want letting the other settings change
MCH volts if you are running 4GB set to 1,36
post your actual settings and i will help you better ok ?
cheers :toast:
Sergio
will never rest :up:Quote:
Originally Posted by the_real_7
Hi I have this set up, just purchased recently, curious about a few things, ill post specs first, then what i've noticed, then my question(s)... Thanks
E8400 E0 4.264 (533 Fsb x 8) Keeps my 1066 ram times. 1.350v (could go lower?) Runs stable in prime 1Hr, and everything works ok!
EP45-UD3R Motherboard
OCZ Reaper 2x2Gb 1066
OCZ Vertex 30Gb
XFX 5670 (512Mb Non Crossfire ability)
BFG 800+ Watt 4x12v 18A? Rails?
What I've noticed, at 3.6Ghz I could under-volt fine, and run SUPER PI pretty quick, at 4Ghz Even faster! (10-12 Seconds on 1m)
Now.. 4.264Ghz with 1066 ram, lowered timings even, benches higher, but!!!...
With 1Minute + on 1m test? That's getting stupid, how did I go down on PI calculations vs my 3.6Ghz? And such a LARGE variation as-well!
I can Photobucket my Bios screens ....
http://i998.photobucket.com/albums/a...r/IMAG0182.jpg
http://i998.photobucket.com/albums/a...r/IMAG0181.jpg
http://i998.photobucket.com/albums/a...r/IMAG0180.jpg
http://i998.photobucket.com/albums/a...r/IMAG0179.jpg
http://i998.photobucket.com/albums/a...r/IMAG0178.jpg
Thanks for your reply Here's my settings Time to play again anyone want to chime in with some recommended setting to see how far we can bump this up
MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster .............: Auto
CPU Clock Ratio .....................: 8x
Fine CPU Clock Ratio.................:
CPU Frequency .......................: 3.20GHz (400x9)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control...............: Enabled
CPU Host Frequency (Mhz) ............: 400
PCI Express Frequency (Mhz) .........: Auto
C.I.A.2..............................: Disabled
DRAM Performance Control
Performance Enhance..................: Turbo
Extreme Memory Profile (X.M.P.)......: Don't have this option in my bios Why ?
(G)MCH Frequency Latch...............: Auto
System Memory Multiplier ............: 2.00B
Memory Frequency (Mhz) .........: 677- 800
DRAM Timing Selectable ..............: Manual
Standard Timing Control
CAS Latency Time.....................: 5
tRCD ................................: 5
tRP..................................: 5
tRAS.................................: 15
Advanced Timing Control
tRRD.................................: Auto
tWTR.................................: Auto
tWR..................................: Auto
tRFC.................................: Auto
tRTP.................................: Auto
Command Rate (CMD) ..................: Auto
Channel A
Static tRead Value...................:
Channel B
Static tRead Value...................:
Motherboard Voltage Control
CPU
Load Line Calibration (LLC) .........: Enable
CPU Vcore ................... 1.28750V 1.29375v
CPU Termination.....1.200V*..........: Normal
CPU PLL.............1.500V*..........: Normal
CPU Referen.........0.760V*..........: Normal
MCH/ICH
MCH Core............1.100V...........: Normal
MCH Reference.......0.800V...........: Normal
MCH/DRAM Ref........0.900V...........: Normal
ICH I/O.............1.500V...........: Normal
ICH Core............1.100V...........: Normal
DRAM
DRAM Voltage .........1.800V.........: 1.9000v
DRAM Termination .....0.900V.........: Normal
Channel A Reference ..0.900V.........: Normal
Channel B Reference ..0.900V.........: Normal
Advanced BIOS Features
No-Execute memory Protect.......................: Disabled
CPU Enhance Halt (CIE)..........................: Disabled
C2/C2E State Support............................: Disabled
CPU Thermal Monitor.............................: Disabled
CPU EIST Function...............................: Disabled
Quote:
Originally Posted by andressergio
@Sergio...Congrats and thanks for all the knowledge :up:
OC nub and l0ud_sil3nc3...Some amazing giys you are there :clap:
I'm dying to go to an i7 860 on a GA-P55, but I'm just to damn lazy to have to reinstall all my programs I use.
I wish I knew if some has used Sysprep and switch from P45 to P55 with success on XP SP3.
your memory doesnt have programmed SPD's with XMP profilesQuote:
Originally Posted by Marke
i learnt all from this forum and met really good friends, glad to help mate :up:Quote:
Originally Posted by bluestang
hey mate to show us your template just put as i did selecting # (Wrap CODE...) from the message menu
u need to setup things as i told youCode:MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster .............: Auto
CPU Clock Ratio .....................: 8x
Fine CPU Clock Ratio.................:
CPU Frequency .......................: 3.20GHz (400x9)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control...............: Enabled
CPU Host Frequency (Mhz) ............: 400
PCI Express Frequency (Mhz) .........: Auto
C.I.A.2..............................: Disabled
DRAM Performance Control
Performance Enhance..................: Turbo
Extreme Memory Profile (X.M.P.)......: Don't have this option in my bios Why ?
(G)MCH Frequency Latch...............: Auto
System Memory Multiplier ............: 2.00B
Memory Frequency (Mhz) .........: 677- 800
DRAM Timing Selectable ..............: Manual
Standard Timing Control
CAS Latency Time.....................: 5
tRCD ................................: 5
tRP..................................: 5
tRAS.................................: 15
Advanced Timing Control
tRRD.................................: Auto
tWTR.................................: Auto
tWR..................................: Auto
tRFC.................................: Auto
tRTP.................................: Auto
Command Rate (CMD) ..................: Auto
Channel A
Static tRead Value...................:
Channel B
Static tRead Value...................:
Motherboard Voltage Control
CPU
Load Line Calibration (LLC) .........: Enable
CPU Vcore ................... 1.28750V 1.29375v
CPU Termination.....1.200V*..........: Normal
CPU PLL.............1.500V*..........: Normal
CPU Referen.........0.760V*..........: Normal
MCH/ICH
MCH Core............1.100V...........: Normal
MCH Reference.......0.800V...........: Normal
MCH/DRAM Ref........0.900V...........: Normal
ICH I/O.............1.500V...........: Normal
ICH Core............1.100V...........: Normal
DRAM
DRAM Voltage .........1.800V.........: 1.9000v
DRAM Termination .....0.900V.........: Normal
Channel A Reference ..0.900V.........: Normal
Channel B Reference ..0.900V.........: Normal
Advanced BIOS Features
No-Execute memory Protect.......................: Disabled
CPU Enhance Halt (CIE)..........................: Disabled
C2/C2E State Support............................: Disabled
CPU Thermal Monitor.............................: Disabled
CPU EIST Function...............................: Disabled
put 1,2VTT and .785 on CPU REF and .80 on MCH REF then UP VTT leaving the values change auto to 1,3VTT
Skews set 900/900/0/50
MCH set to 1,3+ at least
PLL 1,5
check that you have 400x8 not 400x9
also radaja is right you dont have memory with XMP (xtreme mem profile) just put that on AUTO or disable it
cheers :toast:
Sergio
I don't want to sound like a retarded noob but can someone clarify what those above setting mean exactly
VTT = CPU Termination ? yes ? coz theres is no VTT in the ud3p bios
Then your saying up VTT to 1.3 leaving the other values to change automatic ?
not really clear to me is that what your saying ? sorry
then MCH set to 1,3+ at least which MCH ? core ,reference , or dram ref ?
Skews set 900/900/0/50 what exactly are the Skews ?
Can someone straighten me out so i can try these setting please
quick guide to set cpu/mch references using 1.20v vtt in bios
http://i46.tinypic.com/2444b3c.jpg
heres an easy cheatsheet for the actual cpu/mch references
values in bios for different vtt values:helps when assisting
others who are new to the board by being able to give exact
reference values to set for most vtt voltages.
top row represents what easytune6 shows
highlighted green is vtt voltage
highlighted red is cpu reference
highlighted blue is mch reference
EXAMPLE:using vtt voltage of 1.32v
setting the cpu ref to 0.861v in bios(shown in red).
ET6 will show it as 0.785v(1 notch above normal)
setting the mch ref to 0.916v in bios(shown in blue).
ET6 will show it as 0.840v(2 notches above normal)
Code:E-T-6 0.730 / 0.745 / 0.760 \ 0.785 \ 0.800
vtt 1.20 0.730 / 0.745 / 0.760 \ 0.785 \ 0.800
vtt 1.22 0.742 / 0.757 / 0.772 \ 0.797 \ 0.812
vtt 1.24 0.755 / 0.770 / 0.785 \ 0.810 \ 0.825 CPU reference value in bios
vtt 1.26 0.768 / 0.783 / 0.798 \ 0.823 \ 0.838
vtt 1.28 0.780 / 0.795 / 0.810 \ 0.838 \ 0.850
vtt 1.30 0.793 / 0.808 / 0.823 \ 0.848 \ 0.863
vtt 1.32 0.806 / 0.821 / 0.836 \ 0.861 \ 0.876
vtt 1.34 0.818 / 0.833 / 0.848 \ 0.873 \ 0.888
vtt 1.36 0.831 / 0.846 / 0.861 \ 0.886 \ 0.901
vtt 1.38 0.844 / 0.859 / 0.874 \ 0.899 \ 0.914
vtt 1.40 0.856 / 0.871 / 0.886 \ 0.911 \ 0.926
vtt 1.42 0.869 / 0.884 / 0.899 \ 0.924 \ 0.939
vtt 1.44 0.882 / 0.897 / 0.912 \ 0.937 \ 0.952
vtt 1.20 0.720 / 0.740 / 0.760 \ 0.800 \ 0.840
vtt 1.22 0.732 / 0.752 / 0.772 \ 0.812 \ 0.852
vtt 1.24 0.745 / 0.765 / 0.785 \ 0.825 \ 0.865 MCH reference value in bios
vtt 1.26 0.758 / 0.778 / 0.798 \ 0.838 \ 0.878
vtt 1.28 0.770 / 0.790 / 0.810 \ 0.850 \ 0.890
vtt 1.30 0.783 / 0.803 / 0.823 \ 0.863 \ 0.903
vtt 1.32 0.796 / 0.816 / 0.836 \ 0.876 \ 0.916
vtt 1.34 0.808 / 0.828 / 0.848 \ 0.888 \ 0.928
vtt 1.36 0.821 / 0.841 / 0.861 \ 0.901 \ 0.941
vtt 1.38 0.834 / 0.854 / 0.874 \ 0.914 \ 0.954
vtt 1.40 0.846 / 0.866 / 0.886 \ 0.926 \ 0.966
vtt 1.42 0.859 / 0.879 / 0.899 \ 0.939 \ 0.979
vtt 1.44 0.872 / 0.892 / 0.912 \ 0.952 \ 0.992
In case anyone else is looking for a Q9550... MicroCenter has some in stock at the Fairfax, Twin Cities, and Detroit stores.
To bad I live in Ohio:(
just bought this board from radaja at OCN. I would like to prepare early :). Could anyone share their settings for q9650?
Will I need to get this ram? http://www.newegg.com/Product/Produc...82E16820231271
I currently use http://www.newegg.com/Product/Produc...82E16820146785
you have a lot of settings posted in this thread mate scroll and take your time you will have funQuote:
Originally Posted by mistargill
i like that mem, but i think better go por the PIS 1200
what you need bluestang ?Quote:
Originally Posted by bluestang
no need to put those bad attributes on you mate we where all noobs at the begginings...Quote:
Originally Posted by Marke
VTT = CPU Termination ? yes ? coz theres is no VTT in the ud3p bios
* VTT = CPU TERMINATION correct
Then your saying up VTT to 1.3 leaving the other values to change automatic ?
not really clear to me is that what your saying ? sorry
* you go to bios and set manually VTT to 1.2 and set CPU REF on 0.785 and MCH ref on 0.80 then you just move VTT to your desired value lets say 1.3 and you will see the values of REFS you put change auto...leave them
then MCH set to 1,3+ at least which MCH ? core ,reference , or dram ref ?
* MCH volts sorry yes to 1.3 and will need more till 1.42 depending on your amount of ram and tight timmings and FSB
Skews set 900/900/0/50 what exactly are the Skews ?
* you can find them on ADVANCED CLOCK CONTROL it will help a lot with OC
cheers
Sergio
a Q9550 for $150 :)Quote:
Originally Posted by andressergio
you can grab a 9650 instead i wouldQuote:
Originally Posted by bluestang
Did u mean u like the mushkin but do go for the g skill?Quote:
Originally Posted by andressergio
yes the g.skill pc9600 Pi's are better.there are lots of great templates in this thread you just need
to read through it.a lot of Q9650 users posted templates for new guys to get a handle on their new cpu's
WOW that is cheap! I live 20 minutes from the Detroit store.Quote:
Originally Posted by bluestang
Just in case this is still a problem for anyone, two guys at OCN found the fix for the missing CPU-Z info on the mainboard tab. Turn off quick boot in the BIOS and the info will then be displayed in CPU-Z.
If you want a q9650 for a good price PM me :up:, I kept the 3 I had been using in case I went back to s775 but doesnt look like I will be. Also have 2 kits of 9600 pi's.Quote:
Originally Posted by bluestang
Quote:
Originally Posted by NoGuru
Really, so would you want to run by there and pick me up a good one? :)
Whut.......... andressergio has left Q9xxx/p45 ?
NOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOooooooooooo
Gigabyteros, el P45 o la Tumba!!
Libertad o con gloria morir!
Es el Overclock que el alma pronuncia,
Y que heroicos sabremos cumplir!
XmX
PS: Gigabyte, srsly, officially update the USB3P BIOS before more people split, kthnx.
jaaaaaaaaaa just put a step away i will always be on this thread my favourite :up:Quote:
Originally Posted by XmikeX
Hello , ive been a long time reader and member at XS but never post :(
I havent updated the bios on my UD3P since i got it couple months back. What Bios version is everyone finding to be the best overclocker ?
Its hard to believe that this thread is still so active! It's a testament to how good this board is :)
I am still chugging along at 525x8 for almost 2 years of 24/7 use! I look at my first post in this thread right after the OP's back in Oct of 2008 and can't believe how time flies!
Anyway I can report good things about beta bios F11c. It's the first bios I have liked since F5a. My endless reboot issues when my external USB HD is connected is fixed, my OC is as stable as before.Quote:
I havent updated the bios on my UD3P since i got it couple months back. What Bios version is everyone finding to be the best overclocker ?
wow zodden,you haven't posted for quite some time.
its because of you i was able to get my first 500fsb stable OC
you were the first one to point out the mch ref setting in the
beginning of the thread,and for that i thank you:up:
i also like to point out,the 0.700vET6/0.750vbios MCH ref setting
has worked on all my 9-10 boards using dual core except for one:D
and my q9650's all loved 0.785/cpu ref and 0.800v/mch ref 100%
again thanks:D
Welcome! I remember that week. It was frustrating and I was benching almost 24/7 for that whole week I was off from work. I am glad I solved it though for myself and for everybody else. Somebody would have figured it out eventually :)Quote:
Originally Posted by radaja
I am thinking of looking for a used 9650 for a quick bang for your buck upgrade. I was also reading on HardOCP that x8 x8 for crossfire showed no testing difference then x16 x16 in a recent article. On this board if you run 2 vid cards it runs both in x8- So I might get a used 9650, a copy of windows 7 and when the 6 series comes out from ATI, some new vid cards for gaming. That seems like a pretty painless and less expensive upgrade path for now :)
Just had that setup runs great , sold my 9650 and my scored dropped 6000 points in 3dmark with my e8400 . .. so that upgrade will just kick ass. makes no difference like [H] about the 8 x 8 and 16 x 16Quote:
Originally Posted by zodden
(from another forum) -->
""Gigabyte kindly supplied me with new beta BIOS versions for X58A-UD7 and P55-UD6 for us to test...im passing this bios to you to test as a beta, no support at this time from GBT BUT it was tested by them to cure the SMART issue.
If this bios tests out OK GBT will add this fix to their whole range of boards...""
""the BIOS SMART command error is present with my Vertex 2 LE, Firmware 1.11 and GigaByte GA-EP45T-USB3P. SATA is set to AHCI mode""
Guess I'll have to check the beta-bios 2010 .de "site" way more often now : http://oldforum.gigabyte.de/forumdow...tabios2010.htm
XmX
EDIT: and here too - http://forums.tweaktown.com/gigabyte...test-bios.html
Zodden, can you share your bios config, we have the same ram and cpu...my ud3p's a v1.6/FE (bios)Quote:
Originally Posted by zodden
Quote:
Originally Posted by al-
you have a 1.6 but very workable , can we see your bios template , youlll get the answers here after that real quick
my new toys:D
9x500@4500 DDR2-1200 PL8 1hr 32m Prime95 Blend
http://i54.tinypic.com/zkrj48.jpg
It was prime95 stable @4.0 for months, but it crashed a few times when I tried to install XP Pro to triple boot with Win7/Linux Mint KDE-Quote:
Originally Posted by the_real_7
The problem was XP didn't like AHCI enabled-
Afterwards, I started getting dropped internet connections, corrupt backups, and computer freezes/lockups-
So, I decided to re-flash the bios and start over-
Here's what I have so far-
Thanks-
Code:CPU =E8400
Motherboard = UD3P
BIOS Version =FE
Ram = Corsair Dominator 8500/1066
MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster .............: Auto
CPU Clock Ratio .....................: 9x
Fine CPU Clock Ratio.................: 0.0
CPU Frequency .......................: 3.00GHz (333x9)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: Disabled
CPU Host Frequency (Mhz) ............: 333
PCI Express Frequency (Mhz) .........: 100
C.I.A.2........................................: DISABLED
DRAM Performance Control
Performance Enhance..................: Turbo
Extreme Memory Profile (X.M.P.)......: AUTO
(G)MCH Frequency Latch...............: AUTO
System Memory Multiplier ............: AUTO
Memory Frequency (Mhz) ..............: 1066
DRAM Timing Selectable ..............: AUTO
Standard Timing Control
CAS Latency Time.....................: 5
tRCD ................................: 5
tRP..................................: 5
tRAS.................................: 15
Motherboard Voltage Control
CPU
Load Line Calibration (LLC) .........: DISABLED
CPU Vcore............................: 1.31875
CPU Termination.....1.200V*..........: AUTO
CPU PLL.............1.500V*..........: AUTO
CPU Referen.........0.755V*..........: AUTO
MCH/ICH
MCH Core............1.100V...........: AUTO
MCH Reference.......0.800V...........: AUTO
MCH/DRAM Ref........0.900V...........: AUTO
ICH I/O.............1.500V...........: AUTO
ICH Core............1.100V...........: AUTO
DRAM
DRAM Voltage .........1.800V.........: 2.10
DRAM Termination .....0.900V.........: AUTO
Channel A Reference ..0.900V.........: AUTO
Channel B Reference ..0.900V.........: AUTO
If you search this thread (look for posts from late October 2008) you will find my bios config. Look on page 2 of this thread-midway down you will see all my settings.Quote:
Originally Posted by al-
I haven't changed it at all since then, except to flash to various other bios-none of which I liked till recently.
try this one :DQuote:
Originally Posted by al-
Code:CPU =E8400
Motherboard = UD3P
BIOS Version =FE
Ram = Corsair Dominator 8500/1066
MB Intelligent Tweaker(M.I.T.)
Robust Graphics Booster .............: Auto
CPU Clock Ratio .....................: 8x
Fine CPU Clock Ratio.................: 0.0
CPU Frequency .......................: 4.00GHz (500x8)
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: Disabled
CPU Host Frequency (Mhz) ............: 333
PCI Express Frequency (Mhz) .........: 100
C.I.A.2........................................: DISABLED
DRAM Performance Control
Performance Enhance..................: Turbo
Extreme Memory Profile (X.M.P.)......: DISABLED
(G)MCH Frequency Latch...............: 400
System Memory Multiplier ............: 2.00D
Memory Frequency (Mhz) ..............: 1000
DRAM Timing Selectable ..............: manual
Standard Timing Control
CAS Latency Time.....................: 5
tRCD ................................: 5
tRP..................................: 5
tRAS.................................: 15
Motherboard Voltage Control
CPU
Load Line Calibration (LLC) .........: enabled
CPU Vcore............................: 1.35v start at 1.35v,if it works lower it
CPU Termination.....1.200V*..........: 1.26v
CPU PLL.............1.500V*..........: 1.57
CPU Referen.........0.755V*..........: NORMAL-set it to normal
MCH/ICH
MCH Core............1.100V...........: 1.32v
MCH Reference.......0.800V...........: 0.738v
MCH/DRAM Ref........0.900V...........: NORMAL
ICH I/O.............1.500V...........: NORMAL
ICH Core............1.100V...........: NORMAL
DRAM
DRAM Voltage .........1.800V.........: 2.20v or whatever your ram needs for 100MHz
DRAM Termination .....0.900V.........: NORMAL
Channel A Reference ..0.900V.........: NORMAL
Channel B Reference ..0.900V.........: NORMAL
grats radaja !!!Quote:
Originally Posted by radaja
Nice can we see a super pi at 1m with that and maybe some latency test . . . good voltage dudeQuote:
Originally Posted by radaja
thanks andressergio and the real_7,heres super pi and everest
cachemem with slightly tighter timings,nothing special:D
http://i51.tinypic.com/qq5qix.jpg
radaja that is a very nice chip, whats the VID on that one?
Well guys time to teach the good things to my kiddo lol
i think 6 months its about time :D
http://img823.imageshack.us/img823/4072/p1060247b.jpg
cheers to all :toast:
Sergio
p.d. G you recognize that mobo ? :D Tom you dont see the chip as he grabbed it fast :D cauz someone screamed Assus
if thats a stable 24/7 very decent 50 latencyQuote:
Originally Posted by radaja
