Guys, amazing results indeed !!
Hope I can find my PC best stable path :D
Printable View
Guys, amazing results indeed !!
Hope I can find my PC best stable path :D
What's everyone using to cool all these impressive OCs?
SOme air, some water, some chilled water etc. I use both Air and water on mine

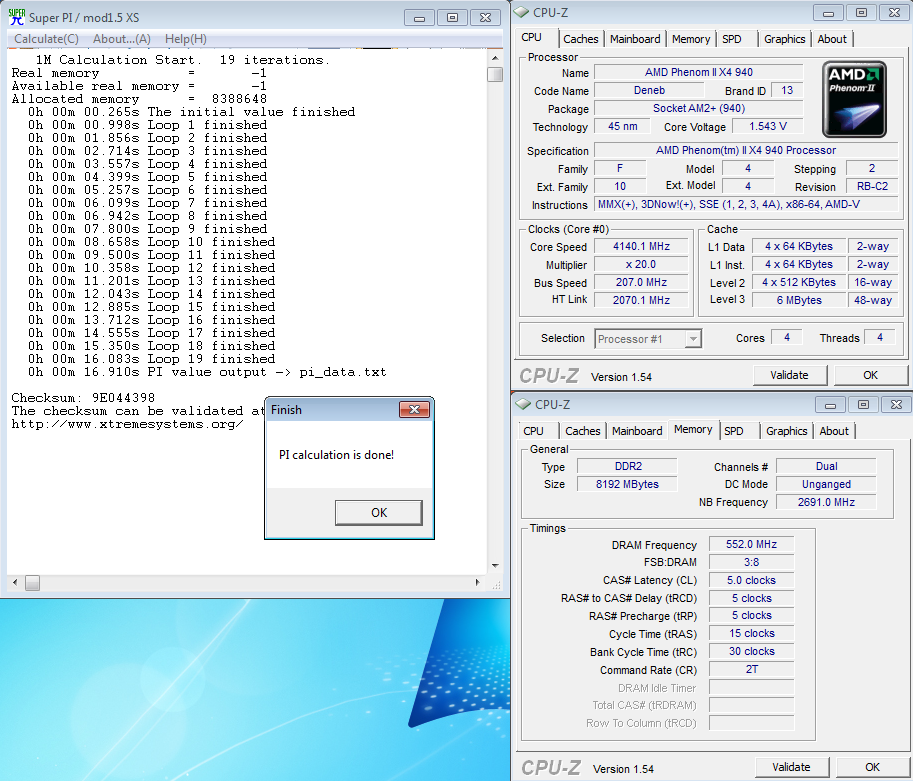

Here's my suicide run (i moved my whole case in the balcony while it was snowing outside...)
CPU Model Used : Phenom II X4 940BE
CPU Full Stepping : CACVC AC 0851EPMW
CPU Frequency : 4140
CPU Vcore : 1.550
NB Frequency : 2691
HT Link Frequency : 2070
Memory Frequency : DDR2-1104
Memory Configuration :4x2GB
Memory Ganged/Unganged : Unganged
Mainboard Model : ASUS M4A79 Deluxe
Cooling Type : Water
Windows Version and x86 or x64 : Windows 7 Ultimate x64
Username : felix_w
Model : 940BE
Stepping : CACVC AC 0851EPMW
CPU Frequency : 4140
CPU Core Voltage : 1.550
NB Frequency : 2691
Memory Configuration : 4x2GB @ DDR2-1104
Motherboard : ASUS M4A79
Cooling : Water
OS : Windows 7 Ultimate 64-bit
Post Number : 1728
http://i256.photobucket.com/albums/h...M16910s-th.png
QUESTION : How can i minimize the Vdrop ? For Bios Vcore=1.550 CPU-z shows 1.543/1.507 (Idle/Load) ? Should i play with CPU VDDA?
CPU Model Used: Phenom II X2 560BE [unlocked Phenom II x4 B60]
CPU Stepping: didn't look
CPU Frequency: 4000 MHz [16x250] [Linpack and Prime95 Stable]
CPU Vcore: 1.412 bios. Idle 1.064 Load 1.416~1.440
NB Frequency: 2500 MHz
HT Link Frequency: 2000 MHz
Memory Frequency: 500MHz (Effective 1000MHz)
Memory Configuration:2x2 GB G.Skill PC8000
Memory Ganged/Unganged: Unganged
Mainboard Model: MSI 785GTM-E45
Cooling Type: Thermalright SI-128
Windows Version and x86 or x64: Windows 7 x64 Ultimate
24/7 World Community Grid and the odd game stable.
CPU Model Used : Phenom II X6 1055T
CPU Full Stepping : Can't remember
CPU Frequency : 3900
CPU Vcore : 1.515
NB Frequency : 2700
HT Link Frequency : 2700
Memory Frequency : DDR3-1600
Memory Configuration :2x2GB
Memory Ganged/Unganged : Ganged
Mainboard Model : MSI 790FX-GD70
Cooling Type : TRUE Black with two Scythe Gentle Typhoon AP14 1450RPMs in push/pull
Windows Version and x86 or x64 : Windows 7 Ultimate x64
Username : [XC] Oj101
Model : 1055T
Stepping : Unsure
CPU Frequency : 3900
CPU Core Voltage : 1.515
NB Frequency : 2700
Memory Configuration : 2x2GB @ DDR3-1600
Mainboard Model : MSI 790FX-GD70
Cooling Type : TRUE Black with two Scythe Gentle Typhoon AP14 1450RPMs in push/pull
OS : Windows 7 Ultimate 64-bit
Post Number : 1730
32m prime is about as equivalent and booting into windows.Quote:
Originally Posted by slaveondope
i'm looking for 940 overclocks. i know ever chip and board is different but i'd like to see some recent OC's.
i finally got my phenom on water and i'm curious to what everyone else is getting OC wise. i had the H50 setup on it and wasn't too thrilled with the performance which is basically just a glorified air cooler and wasn't any better than my TRUE 120 i had on it.
I doubt you'll see many new 940 overclocks, it's been a long time since it was introduced on the market. I don't own mine anymore. Watercooling gave me about 100MHz more, compared to Xigmatek S1284C, if I remember right. It was running at 3.89GHz on water, but can't remember the voltage, maybe smth like 1.55V. Had a wall at 4GHz.
Well, I've been playing with my overclocks since I received my Asus M4A87TD EVO and 2x2gb Corsair DDR2000 mem last night (which is funny because even though the box says it supports DDR 2000 (OC), there's no option for it in bios). Man, I spent 2 hours trying to figure out why it kept bluescreening trying to install windows...just needed a bios update -_-
Anyway, so far I've managed this OC.
3 hours OCCT stable (stopped it after that). My board really doesn't seem to want to go above 200 in bus speed, which looking at others hitting 230+ it seems kind of weird, no idea what I'd be doing wrong. It fails OCCT after about 40 minutes at 1.382v sadly, but surprisingly it actually stays at 1.392v at idle and load, nice vdroop control with some bios options. I know there's still plenty more to tweak and I'm still working on getting that vcore down...3.9ghz takes way more voltage (1.45v or higher) so I think 3.8 is the sweet spot.
the DDR 2000mhz OC i think is only possible by OCing the cpu, my asus M4A88TD-V is the same way
for the bus speed, drop all things to stock, the NB, the HT link, and multi, then up it to 220 and give it 1.4v, its an extremely minor OC, but should prove if there really is an issue with the bus.
im thinking HT Link is set to auto as it is too, because I think anything higher made it crash. but yeah I'll give that a shot and update.
alright, it booted fine at 220 - i think it just needs a lot of volts pumped into it (i'm pretty sure I left it at stock)....now to see how high I can my bus and memory while keeping 7-8-7 ;P
volts set on the cpu would have most effect on the total cpu speed
there should be a voltage called CPU-NB which does help high bus speeds, but you shouldnt touch it very much if at all to get near 300mhz bus. play with this very carefully
the real limits are generally the NB or HT which gets too high due to bus overclocking. at 220 your HT is 2200mhz (might be its limit) or for NB which i saw at 2400, would end up around 2640mhz and thats very close to the limit for NB unless you add some volts or have a really nice motherboard (890 chips probably like it that high without any voltage change)
keep your HT around 2000, it dosnt need to be very high anyway
your NB should be around 2400-2600 for optimal perf of an ok overclock, but can easily go to 2800+ with some volts. although at that speed you would only gain a hair more memory bandwidth, but have more stability issues to worry about
since you have a BE chip, you can just leave the bus at 200, and keep your ram slower, and just tighten the timings to get out the extra performance. your ram does seem to be doing very well anyway. so honestly you can stick with your current settings and probably be just as happy.
wow thanks Manicdan, you've been a tremendous help. screenshot below is what i'm currently OCCT'ing :) 245ish seems to be my wall, even 1.4v would bluescreen at 250.
voltages set in bios:
CPU: 1.384375
CPU/NB: 1.15
DRAM: 1.65 (default)
HT: 1.25
NB: 1.15
*crosses fingers*
spoke way too soon on that one - failed within a few minutes. i lowered the NB freq, but is there anything else besides the HT you'd suggest changing? voltages?
if you have cooling on the VRMs, then you can increase the voltage more, but honestly after this point its going to be a massive drop in power efficiency to get more speed.
Yeah - I'd really prefer to keep it at the speed it's at and under 1.4v. I used to really not care about how high voltages were but I guess I like the "power efficiency".
By the way, dropped the NB to 2458mhz and it's been OCCT'ing away since my last post =)
Hmm...been priming for a while now @ 3.85ghz 1.39v with 240 bus speed and i'm hitting 60c...I think I need to reseat my TRUE 120 because I don't recall it ever getting that high on my last board.
edit: just as i figured. I took everything apart, put a penny in between the mounting bracket and my heatsink, and made my rear fan exhaust so it'd all go through the back, max temps i've seen in the last 30 minutes is 51c. hopefully it keeps up =)
*sigh* ok, after countless hours (5-6+ a day since monday), I think I've finally found the sweet spot for everything. Constant tweaking of memory timings, random tiny increments of voltages, HT and NB speeds, OCCT testing, the whole works. OCCT stable for 3 hours, this is fine. 3.9ghz was stable at 1.46v but really what's the point when I can run 3.8 at 1.39. anyway, I'm happy for now.
seems my bus speed wall is around 250 at any decent voltage, but I didn't want to raise my memory's voltage passed default so I'm leaving it alone. I'M DONE lol.
CPU Model Used : Phenom II X4 980BE
CPU Full Stepping : CACDC AC 1106GPA
CPU Frequency : 4013
CPU Vcore : 1.40
NB Frequency : 2809
HT Link Frequency : 2007
Memory Frequency : DDR2-1066
Memory Configuration :2x2GB
Memory Ganged/Unganged : Unganged
Mainboard Model : ASUS M4A79 Deluxe
Cooling Type : Water
Windows Version and x86 or x64 : Windows 7 Ultimate x64 SP1
Username : felix_w
Model : 980BE
Stepping : CACDC AC 1106GPA
CPU Frequency : 4013
CPU Core Voltage : 1.40
NB Frequency : 2809
Memory Configuration : 2x2GB @ DDR2-1066
Motherboard : ASUS M4A79
Cooling : Water
OS : Windows 7 Ultimate 64-bit SP1
Post Number : 1744

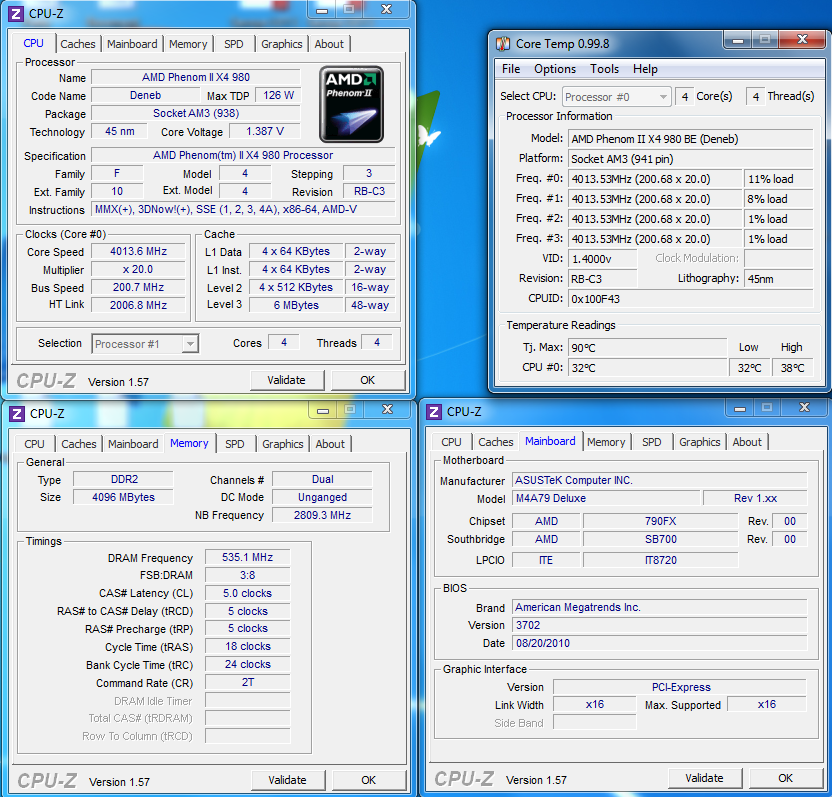

Untested, just 2nd boot :p:
VID is 1.35V and 2.8Ghz NB is with 1.2V CPU-NB (Default is 1.1V)
http://i256.photobucket.com/albums/h...ntested-th.png
....will update with prime stable and max clock...
i have one suiside shot but not for submission to this thread
just want to share
room temp 34-35C
normal water cooling
http://img59.imageshack.us/img59/1473/622166jpg.png
(ps000000 is my register name @ hwbot.org)
PII 965 @4,75GHz AIR(WR) cooling super pi 1mb
Attachment 118789
@~5GHz Air cooling
http://valid.canardpc.com/show_oc.php?id=1773198
room temp 22C
http://cdn.overclock.net/c/ce/ce799c...s3212166a.jpeg
Well his thread is ancient. Just adding my recent results on air. Looks like my memory speed is the difference between my sp1 and memel's
Ι had forgotten this thread....

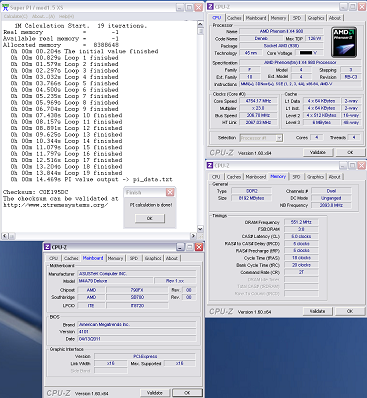

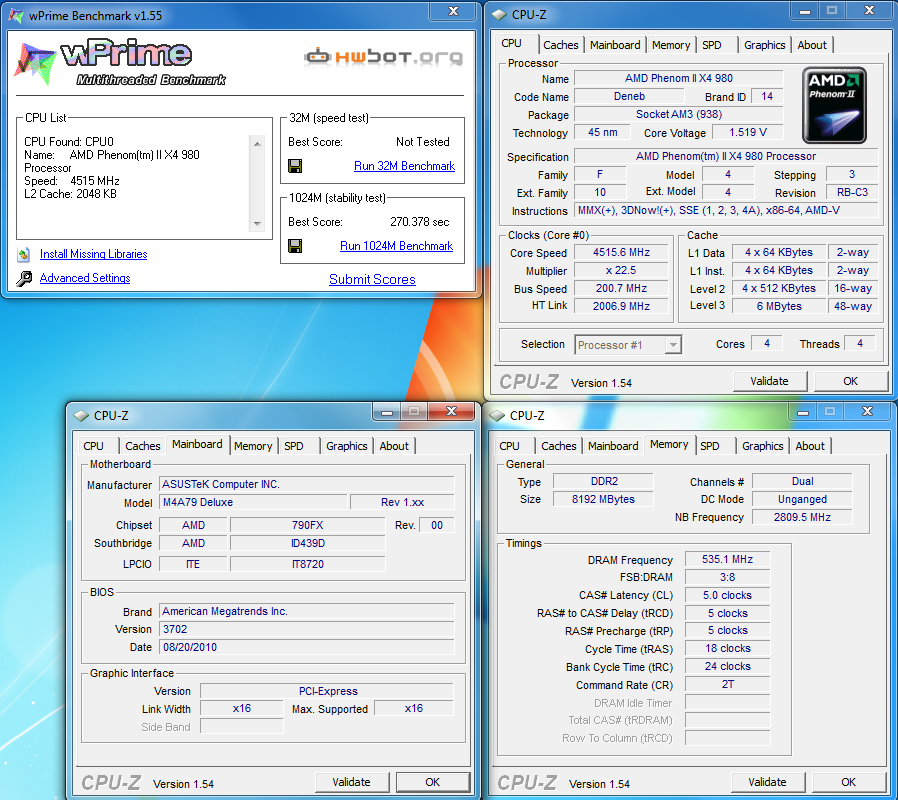

these are my results with the 980BE from post #1744
Spi1M voltage CPU-z is 1.6V and it is on my all-in-case watercooling with D-Tek Fuzion V2 and 17C ambients...
http://i256.photobucket.com/albums/h...-14469s-th.png
http://i256.photobucket.com/albums/h...GB-270378s.png
http://i256.photobucket.com/albums/h...8GB-541pts.png
Sad, i have this cpu in it's box...
