DDR Maximizer on it's way......More Volts on our Rams....

U P D A T E

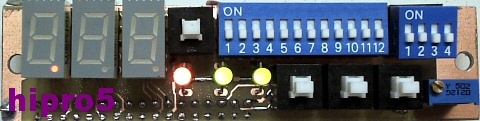

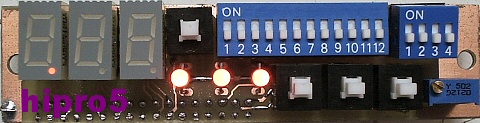

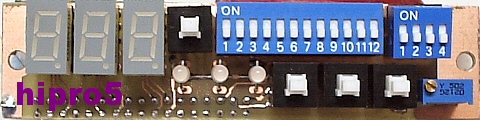

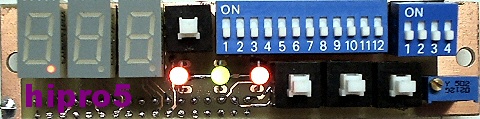

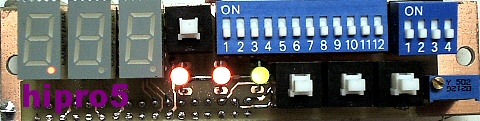

READY the Very-very first sample of Front Panel....... :D

http://www.thelab.gr/images/Hipro5/M...Image1_jpg.jpg

http://www.thelab.gr/images/Hipro5/M...Image2_jpg.jpg

http://www.thelab.gr/images/Hipro5/M...Image3_jpg.jpg

http://www.thelab.gr/images/Hipro5/M...Image4_jpg.jpg

http://www.thelab.gr/images/Hipro5/M...Image5_jpg.jpg

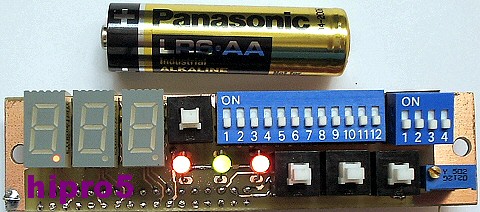

About it's size?....... :)

http://www.thelab.gr/images/Hipro5/M...Image6_jpg.jpg

Let's go now for........Main board........Soooooonnnnn........... :D


EDIT : I put ANOTHER switch ON-ON on it with VERY difficulty for the Display showing Vmem(Vdimm) , VTT (ON-ON)........ ;)

Quote:

---

Originally posted by P4rthen0n
Hipro5, don't forget to test hardly the DFI Lanparty mobos cos that OVP issue that ocurred with the ocz booster.

---

IF a mobo has an OVP (Over Power Protection) , there's nothing to be done about it with any external cirquits........As a matter of fact I was trying to mod it(OVP) on my ABIT IC7 - the OVP of the VAGP = 2 Volts sharp - and I blew it up.......Bye bye my good old mobo.....I will always love you... :(

Nice lookin' Hipro! :toast:

What... no half stuck on heatsinks? :lol:

(just kidding O.C.Z.) ;)

Quote:

---

Originally posted by Jeff
Nice lookin' Hipro! :toast:

What... no half stuck on heatsinks? :lol:

(just kidding O.C.Z.) ;)

---

Thanks Jeff....... :D

Here's a photo as a friend of mine "fix" it a bit....... :D

http://www.thelab.gr/attachment.php?s=&postid=79742

Keep up the good work buddy!! :slobber:

damn that looks awesome hipro5 :slobber:
Can't wait till you get it finished, i prolly gonna order a few lol

wow that looks so professional. well done. i cant wait for this. hey could u pussh the ddr1 button for ddr2 ram, that would be dangerous it could send 3xv through ur ddr2 and fry it.
hey p4renthernon you can just cut the leg of one of the vdimm mosfets and it will stop the ovp, theres a mod like that for the 8rda+ for high vcore. i dont no anything about the lanprty but you could google it

Thanks guys....... :toast:

There will be no problem with the switches coz in case that someone wants to change something via a switch , he has to put a tiny screw driver into a hole(tiny too) so as to puch them on or off......NOTHING off all these components are "outside" the front panel......Just be patient and you'll see...... ;)

Wow, I've only just joined this thread.

Good luck to you Hipro!

This is a brilliant idea, I'd be delighted to test it on SKT370 :D and a IC7MAX3 and P4C800ED.

BTW Hipro YGPM.

nice one hipro!

Cant wait to have one :)
BTW wat is the translation of that poll ?

Να το κατασκευάσω???
You do not have permission to vote on this poll.
Ναι φτιάξτο το ρημάδι να ησυχάσουμε....... 81 94.19%
Όχι ......Δεν ξέρω - Δεν απαντώ....... 5 5.81%
Total: 86 votes 100%

Great hipro5!
A realy geek greak. Much better than the ocz booster cus it's bh-5 optimized. Would you sent me a sample for the overclockers.at forum to test an recomend it to our austrian and german members?

Quote:

---

Originally posted by Cranox
Cant wait to have one :)
BTW wat is the translation of that poll ?

Να το κατασκευάσω???
You do not have permission to vote on this poll.
Ναι φτιάξτο το ρημάδι να ησυχάσουμε....... 81 94.19%
Όχι ......Δεν ξέρω - Δεν απαντώ....... 5 5.81%
Total: 86 votes 100%

---

Thanks .......It's a poll which asks : Should I manufacture it ?.... and answers : a. Manufacture the god d*mn thing to get on with it.....and b. Don't Know - Don't anwer... :)

Quote:

---

Originally posted by ~IVIaNuSI)eI~
Great hipro5!
A realy geek greak. Much better than the ocz booster cus it's bh-5 optimized. Would you sent me a sample for the overclockers.at forum to test an recomend it to our austrian and german members?

---

As soon as they are ready,I'll let you know guys.... ;)

wow that looks sweet! ...very handy LEDs

when will u have both done? (first samples).

Sorry to sound really stupid about this but what attatment needs to be done to the motherboard?

I gather there will ne a DIMM insert but will there need to be other soldering done??

Manufacture it definitely :)
In the mean time, sell it to the people on this forum while manufacturing process gets lined up :)
Unless price is cost prohibitive (which I doubt you will be charging too much on R&D cost... eheheh), I will definitely buy few from you :) BTW, was wondering if there is enough space to get 12v, 5v, 3v readings if that is all possible :) Considering the look and size of it, seems possible that simple jumper wiring and some switch to read different volt setup could help people reading voltages :). I should just hack the one of multimeter and put switch on it some time and leave it on front panel so I can check various voltages without having to open up the darned case :P

Quote:

---

Originally posted by jinu117
Manufacture it definitely :)
In the mean time, sell it to the people on this forum while manufacturing process gets lined up :)
Unless price is cost prohibitive (which I doubt you will be charging too much on R&D cost... eheheh), I will definitely buy few from you :) BTW, was wondering if there is enough space to get 12v, 5v, 3v readings if that is all possible :) Considering the look and size of it, seems possible that simple jumper wiring and some switch to read different volt setup could help people reading voltages :). I should just hack the one of multimeter and put switch on it some time and leave it on front panel so I can check various voltages without having to open up the darned case :P

---

This can be done BUT only for the 12 and 5 Volts lines not the 3.3V.......Coz we will then have to involve with too much cables , thing that we don't want to......I can change the switch for the Vmem(Vdimm) - VTT and put a button instead with an IC that could show us : 12V - 5V - Vdimm - VTT ...

Quote:

---

Originally posted by jb2cool
Sorry to sound really stupid about this but what attatment needs to be done to the motherboard?

I gather there will ne a DIMM insert but will there need to be other soldering done??

---

Wait and see it when done..... ;)

Quote:

---

Originally posted by hipro5
This can be done BUT only for the 12 and 5 Volts lines not the 3.3V.......Coz we will then have to involve with too much cables , thing that we don't want to......I can change the switch for the Vmem(Vdimm) - VTT and put a button instead with an IC that could show us : 12V - 5V - Vdimm - VTT ...

---

Yummy :)
One thing I was thinking was that old AT power connector lead jumper... nothing more than just a wire with flat pin to connect to orange line there for 3.3v :P Have molex connected to ground, 12, 5, 3.3v line to measure using multimeter outside case but it would be nice to utilize the panel since it is already there :) (not to mention cool factor ;))

Just awesome buddy! :slobber:

When I can help yout with this, I'm always available! ;)

If I use this thing with my IC7 an turn VTT on does it make my mobo track vtt correctly? I guess not?

Quote:

---

Originally posted by ant1
If I use this thing with my IC7 an turn VTT on does it make my mobo track vtt correctly? I guess not?

---

YES......It works well on IC7 mobo and the VTT is OK..........You see I've first tested it on MY IC7 mobo.... ;) :D

Just wait........ ;)

ok if it does track vtt without doing a vmod, sign me up for one. :)
