MSI Big Bang XPower - X58 mothetboard - w/ official support

Quote:

---

Originally Posted by OC Nub

@ Leeghoofd, where do I find the rev# on the board? the numbers I see are 01BA1608 and A916050547.

---

Sorry I don't have the board anymore (wasted mine with the latest beta bios a while back) Will ask Massman to take some pictures, there are added mosfets and co on the newer rev. But not sticking my hand into the fire if I tell something wrong...

Will come back with info...

Quote:

---

Originally Posted by OC Nub

@Leeghoofd, I read the review of high end x58 board at Mad Shrimps, nice review. I thought it was a very unbiased and fair review. :up::up: .

---

Thanks man, was a bit dissapointed when the engineers of Asus at the tech conference, said that Ocing is not warranted... The issues you and Zsams had should have been adressed via a mobo swap... Glad you like the Xpower; yours is running spot on :)

Quote:

---

Originally Posted by zsamz_

wanna lauph
i'm playin with an msi x58m
got her to 230blk:rofl:
not bad for a micro board lol
my xpower couldnt catch her:rofl::rofl:

---

Nice bclk, I need to try a micro board. Hard to imagine something that small clock so well.

Quote:

---

Originally Posted by OC Nub

Ive had the board about a month or so, dont think its a newer rev.

As far as being limited in any 24/7 oc I dont see any issues withthe board at all. It will clock as high as my e770 or UD7 24/7 and requires less voltage. If you are limited to 4.2ghz on your 930 it isnt because this board is not capable. I havent found any stability issues with it for 24/7 use.

I dont run raid, or use the sata6gb/s, or the USB3.0, or use a lot of other features people may want in a board. But for the things I do it has been very nice.

I think as of right now its my favorite x58 board of the ones Ive tried, it recovers from a failed oc better than other boards, and requires less voltage for my 24/7 oc.

---

Well I haven't actually used the i7 930 yet, so I don't know its clock limits... I just see 4.2GHz a lot and it seems like the best ratio between overclock amount and issues present.

Quote:

---

Originally Posted by OC Nub

Nice bclk, I need to try a micro board. Hard to imagine something that small clock so well.

---

its just my luck it has a great IOH
but they need to fix throtling issue:mad:

Quote:

---

where do I find the rev# on the board? the numbers I see are 01BA1608 and A916050547

---

The revision number should be just below the 2nd PCIe slot. Should say something like "MS-7666 VER: 1.1".
@OC_Nub: Great results there...

Quote:

---

Originally Posted by maxxx

The revision number should be just below the 2nd PCIe slot. Should say something like "MS-7666 VER: 1.1".
@OC_Nub: Great results there...

---

Thanks. "MSI-7666 VER:1.1" is what this board says also.

Whipped out a mod or 2 on this board related to VTT.

Now set 1.30 bios = measured 1.325 DOS based memtest.

Gonna fool around in memtest a tad more than installl 64 bit win 7 and see what she can do.

Edit.

Ok fine tuned mod, gonna chat with MSI see if I can "release" it.

Basically once fine tuned 1.32 set in bios = 1.32 load in windows all cores enabled running 32m.

Ive never tried to mod anything before. Looking forward to giving it a shot if you are able to release it.

Quote:

---

Originally Posted by OC Nub

Ive never tried to mod anything before. Looking forward to giving it a shot if you are able to release it.

---

I got permission.

Mind taking a high res shot above the 6 pin power adapter?

I need a shot in between the 6 pin power and the little mosfet sink.

Mine is all hot glued now so won't really show what i need.

Here's an example.

http://chew.ln2cooling.com/XS%20mods/vtt%20mod.jpg

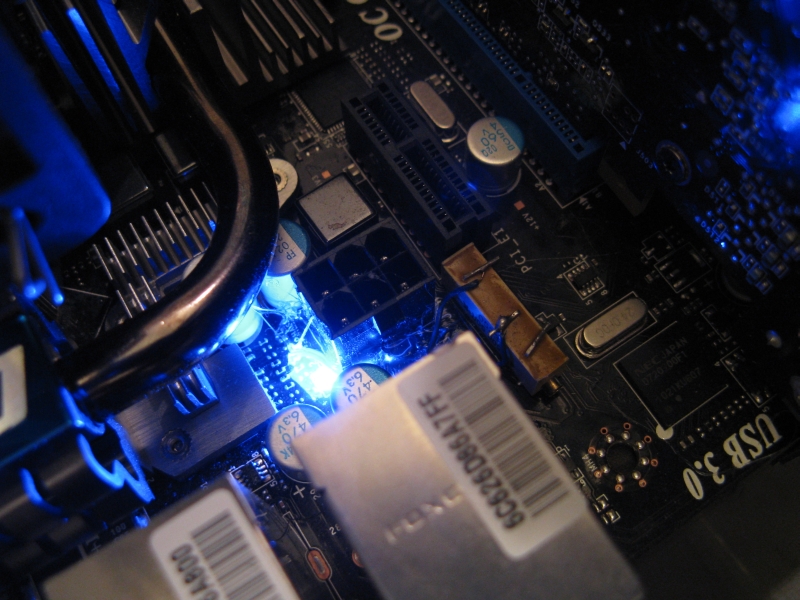

http://chew.ln2cooling.com/XS%20mods/vtt%20mod%202.jpg

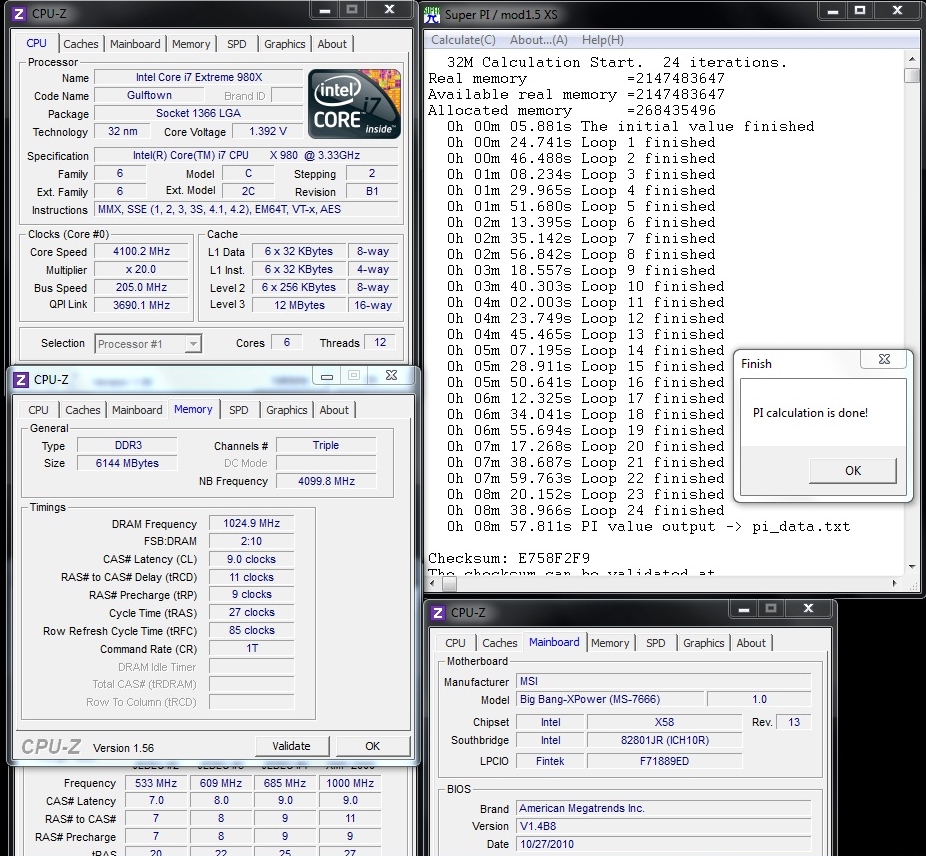

with mod, VR set to 40 ohm 1.35 set bios measures 1.35 real.

http://chew.ln2cooling.com/XS%20mods/vtt%20mod%203.jpg

damn thats a tight spot. did you remove that small resistor?

yes.

I've solder to smaller and in tighter......this is rather simple.

Preety satisfied with the way the mod is working out.

Should help 24/7 users greatly.

Little dissapointed in what i am seeing with uncore performance however.........could be due to the fact that it's bottlenecked by the crappy ram i'm using atm.

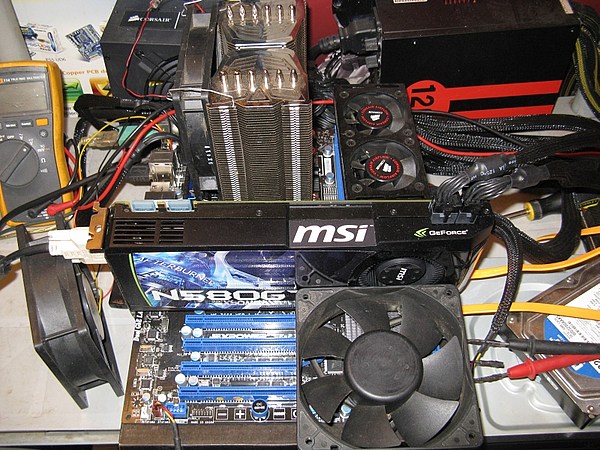

http://chew.ln2cooling.com/qdig-file...%20mod%206.jpg

http://chew.ln2cooling.com/X58%20Xpo...%20mod%204.jpg

Had to chop something out of this shot. Will add it "unchopped" at a later date ;).

As you can see the gains from a rather high uncore clock is dissapointing.

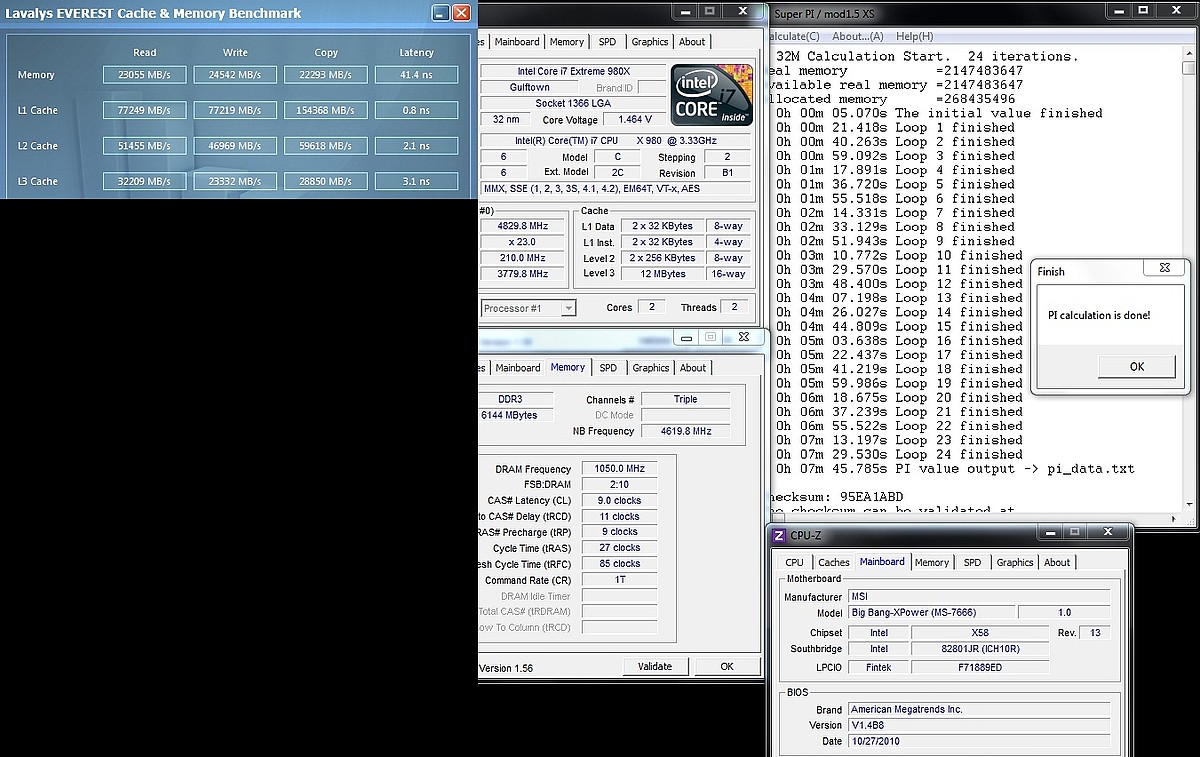

http://chew.ln2cooling.com/qdig-file...%20mod%205.jpg

Thanks for posting the mod. I think this is above my skill level though.

Nice Uncore!

is there an official bios that supports the 990x?

msi.com doesn't have it yet

Maybe you can find one here : http://forum-en.msi.com/index.php?topic=140522.80

@maxxx are you using 990x already ? :D

Quote:

---

@maxxx are you using 990x already ?

---

@bart: nope, not yet...

thanks i'll check it out tonight..

I have this board, got it with a i7 950, can do 4.2Ghz with 1.28V and the only problem is that my 6GB OCZ P 2000Mhz requires about 1.54/1.56V QIP on this board.

On the resent bios update V1.4, you can only set qip v up as far as 1.52V(qpi) which isnt enough for my Ram, for now the system i have it on standby. i may just sell it, dont want to buy more ram.

besides that, great board.
