Gigabyte X58A-UD3R/Extreme Discussion Thread

Printable View

Show 100 post(s) from this thread on one page

05-14-2010, 12:09 AM
l0ud_sil3nc3

Quote:

Originally Posted by systemviper;

Sweet, i am glad that you are happy and i can't wait to see it under water....:up:

i'm waiting to see some of that x3380 action

I have been busy with this

http://i40.tinypic.com/4g5tg.png

I got a great deal on this chip and it is a beast, however i am still stuck on the 20X uncore multiplier and I am on the latest beta bios. Any suggestions?
05-22-2010, 02:02 AM
pr@$r1g

there's a Rev.2 UD3r ,anyone having it ?

I ordered one last week ,lets see which rev. i will receive ........
05-22-2010, 04:44 AM
MacClipper

Well, the manual is already up over at GA Jpn site but the BIOS is still listed at FA.
- ギガバイト - 製品情報 - マザーボード - 概要
05-22-2010, 07:35 AM
St Devious

Quote:

Originally Posted by MacClipper

Well, the manual is already up over at GA Jpn site but the BIOS is still listed at FA.
- ギガバイト - 製品情報 - マザーボード - 概要

what does FA mean ?

did you spot any differences ?
05-22-2010, 07:46 AM
MacClipper

afaik, FA = not retail release yet.

Can't find a pic of the actual mobo online but the manual is there for downloading.
05-22-2010, 05:35 PM
Dahaka

No one with this mobo and Dry Ice session?

230+ BCLK yet? :(
05-22-2010, 06:11 PM
chew*

Quote:

Originally Posted by TOOL_CHILE

No one with this mobo and Dry Ice session?

230+ BCLK yet? :(

Which version chile? I have results somewhere at over 230 on UD3R 1.6
05-22-2010, 06:12 PM
stasio

Quote:

Originally Posted by MacClipper

afaik, FA = not retail release yet.

Can't find a pic of the actual mobo online but the manual is there for downloading.

BIOS FA is first official release.:D
UD5
http://www.giga-byte.com.my/FileList...5_v2.0_big.jpg
UD3R
http://www.giga-byte.com.my/FileList...r_v2.0_big.jpg
05-22-2010, 06:24 PM
chew*

UD5 looks preety sharp.
05-22-2010, 06:46 PM
MacClipper

thx stasio, didn't occur to check the .my website and Google didn't turn it up either. :D
05-22-2010, 06:50 PM
Dahaka

Quote:

Originally Posted by chew*

Which version chile? I have results somewhere at over 230 on UD3R 1.6

Hi chew*, is version 1.x, i don't know exactly, is available on a local storage, maybe i can ask son friend of my if he can go to ask and see the version.

Can you post tour results please :). I'm selling my Classi to test another board and this one is very interesting, price/overclockability.

Thanks in advance :)
05-22-2010, 07:02 PM
chew*

Quote:

Originally Posted by TOOL_CHILE

Hi chew*, is version 1.x, i don't know exactly, is available on a local storage, maybe i can ask son friend of my if he can go to ask and see the version.

Can you post tour results please :). I'm selling my Classi to test another board and this one is very interesting, price/overclockability.

Thanks in advance :)

Well tbh I never really beat it up at daily user stability. But here's some work I did on water and on DI and or Ln2 with it.

LN2

http://chew.ln2cooling.com/I7/vantage%202.jpg

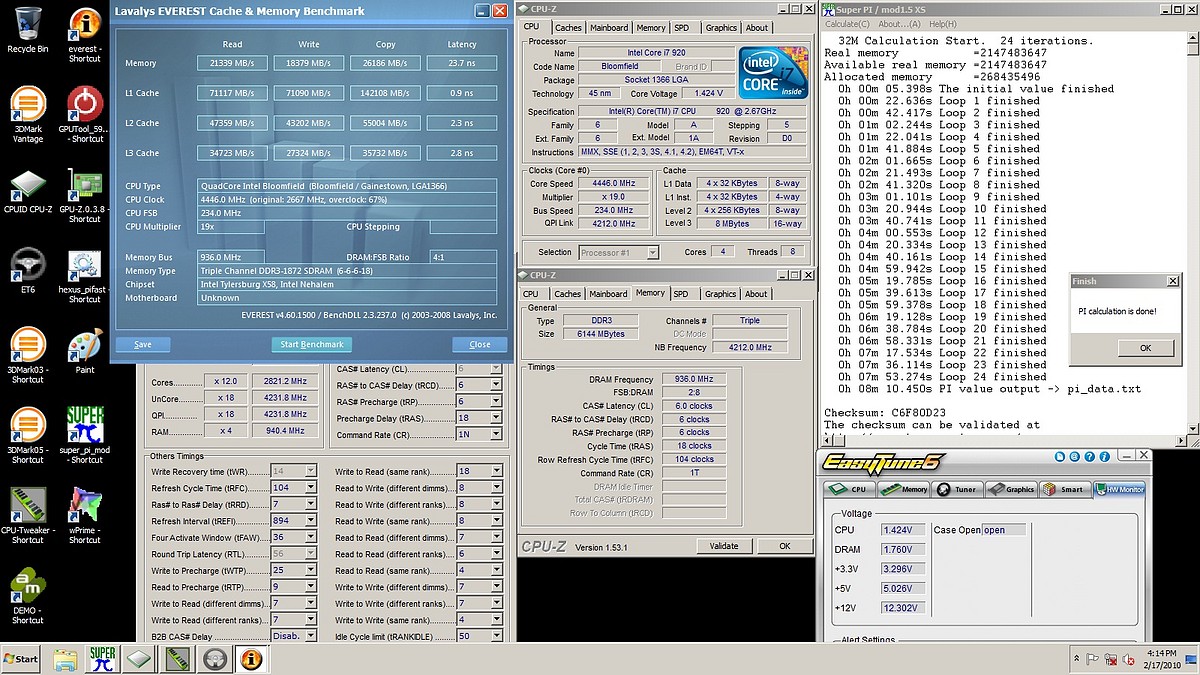

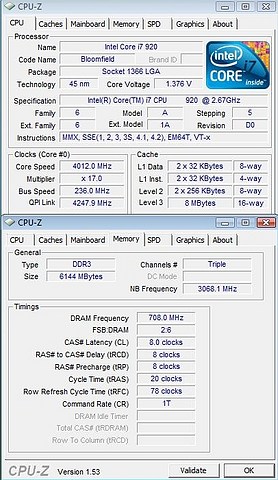

Water

http://chew.ln2cooling.com/qdig-file...7/med_bclk.jpg

http://chew.ln2cooling.com/qdig-file...ater/lrg_5.jpg

Got to dig around my ftp site for some more. I know i have more results on water somewhere.
05-22-2010, 08:04 PM
Dahaka

Quote:

Originally Posted by chew*

Well tbh I never really beat it up at daily user stability. But here's some work I did on water and on DI and or Ln2 with it.

LN2

http://chew.ln2cooling.com/I7/vantage%202.jpg

Water

http://chew.ln2cooling.com/qdig-file...7/med_bclk.jpg

http://chew.ln2cooling.com/qdig-file...ater/lrg_5.jpg

Got to dig around my ftp site for some more. I know i have more results on water somewhere.

EXCELENT!!!! thank you very much chew* :D.

I think this mobo will be my next shop ::yepp:.

On Classi i got 5ghz validation and superpi 1m run but i have CBB and CB so there is nothing more to do with that evga MB.

Dry ice will be the "highest" xtreme overclocking that i will get, no LN2 on Chile :shakes:

Regards from Chile
05-23-2010, 05:48 PM
wolf2009

Quote:

Originally Posted by stasio

BIOS FA is first official release.:D
UD5
http://www.giga-byte.com.my/FileList...5_v2.0_big.jpg
UD3R
http://www.giga-byte.com.my/FileList...r_v2.0_big.jpg

so anybody know the difference between the rev 1 and rev 2 UD3R?
05-23-2010, 06:00 PM
pr@$r1g

by looking at these i can tell

Rev.2 UD3R is having 12 phase ,where Rev.1 was having only 8

Rev.2 UD5 is having 24 phase ,where Rev.1 was having only 12
05-23-2010, 06:32 PM
wolf2009

Quote:

Originally Posted by pr@$r1g

by looking at these i can tell

Rev.2 UD3R is having 12 phase ,where Rev.1 was having only 8

Rev.2 UD5 is having 24 phase ,where Rev.1 was having only 12

nice. anything else ?

Also how to identify them on newegg? do they list rev 1 or 2 ?
05-24-2010, 12:25 AM
stasio

Rev.2 UD5 is having 16 phase only.
http://www.giga-byte.com.my/Products...me=GA-X58A-UD5
05-24-2010, 02:38 AM
pr@$r1g

oh got it :)........ with increased phase will UD3R OC better ?

Rev.1 UD3R scores better than UD7 ,bench's at bit-tech when OCed

http://www.bit-tech.net/hardware/mot...board-review/5
05-24-2010, 07:59 AM
PatRaceTin

only "A" UD3R & UD7 sell here
05-24-2010, 09:21 AM
Plan.B

For those without memory info in their sigs: what 3x2Gb kits do you run in your Gigabyte EX58A-UD3R? Thanks
05-24-2010, 12:19 PM
Dahaka

Hi chew* and all you guys, anyone have experience ocing this mobo with v1.0?.

Thanks again :)
05-24-2010, 12:28 PM
l0ud_sil3nc3

Quote:

Originally Posted by TOOL_CHILE

Hi chew* and all you guys, anyone have experience ocing this mobo with v1.0?.

Thanks again :)

i did this with my W3540 last night

http://i47.tinypic.com/2q3aonl.jpg

I can pass 20 passes of IBT at 4600 with HT off, but I really want to get 4.5 HT on and it is proving to be a :banana::banana::banana::banana::banana:.

The only gripe I have with this board is the stuck uncore multiplier issue for the 6 core Xeon chips.

Other than that this board is the :banana::banana::banana::banana: for $200.
05-24-2010, 06:16 PM
Dahaka

Thanks for the ss :), it will be nice see 225 bclk on air if you can do that :D
05-25-2010, 07:59 AM
In-Fluence

Had another little fiddle today, and almost got CPU stability at 4GHz (211x19) on 1.25vcore and 1.34vtt, even booted at 222x19 (4.2GHz) but with stock cooling, stress testing was a no-go. Backed off to 211x19 for 4GHz and after a couple more tweaks, I'm hoping to return to work with a 'closer to stable' machine tomorrow morning. The one thing I noticed when running ram bandwidth everest benches is that it scored very low - i.e ~6000MB/s on read/write/copy. A little unfamiliar with what could be happening, but I'm guessing uncore multi might be out - that possibly correct? HT is on btw.
I'll post some screenies up if all goes well tomorrow. It seems like I've got a good board & chip which is gagging to go under water!
05-25-2010, 05:29 PM
Dahaka

Quote:

Originally Posted by In-Fluence

Had another little fiddle today, and almost got CPU stability at 4GHz (211x19) on 1.25vcore and 1.34vtt, even booted at 222x19 (4.2GHz) but with stock cooling, stress testing was a no-go. Backed off to 211x19 for 4GHz and after a couple more tweaks, I'm hoping to return to work with a 'closer to stable' machine tomorrow morning. The one thing I noticed when running ram bandwidth everest benches is that it scored very low - i.e ~6000MB/s on read/write/copy. A little unfamiliar with what could be happening, but I'm guessing uncore multi might be out - that possibly correct? HT is on btw.
I'll post some screenies up if all goes well tomorrow. It seems like I've got a good board & chip which is gagging to go under water!

Wich revision do you have?...1.6 or later?
