OC Report - Cellshock DDR3 1866 BLUE D9JNL

you shouldnt need to adjust clock skew etc to be able to run at stock speed...
i dont want you to get any more frustrated or annoyed... just send it back and have them check it for you.
if the kit is fine they wil send it back riht away, and if its broken they will replace it for you.
your from italy right? just contact gennaro and im sure you dont even need to send it to germany for an rma, he can probably check the kit for you in italy and maybe he can give you some tips to get it stable. i still dont think there is anything wrong with the kit... it must be a bios or bios configuration thing...

so whos got the nerv to recomend this sticks at this moment?

Hello. I address on this forum for the first time and I hope to me will help with my problem.
My configuration:
E3110
X48-T3RS
2x1Gb Cellshock BLUE 1866GHz
XFX GTX260 XXX
Silverstone DA650
I CPU seems stable in OCCT in a current of 6-8 hours 450x9. My memory allows to be loaded in OS using a thong 400/1600 with pressure 1.93-1.95V... But is extremely not stable. Pressure increase leads BSOD or "the black screen" stiffens...
I used in BIOS:
CPU VID Control....................... 1.34
CPU VID Special Add Limit....... Enabled
CPU VID Special Add.................. Auto
DRAM Voltage Control.......... 1.93-1.95
SB Core/CPU PLL Voltage.......... 1.51
NB Core Voltage....................... 1.63
CPU VTT Voltage...................... 1.35
DRAM Speed......................... 400/1600
PCIE Clock.................................. 101
GTL REF Voltage Control........... Enable
CPU GTL 1/2 REF Volt................... 88
CPU GTL 0/3 REF Volt................... 62
North Bridge GTL REF Volt............. 62
Below CAS Latency Time (tCL)......... 7
RAS # to CAS # Delay (tRCD)............7
RAS # Precharge (tRP).....................7
Precharge Delay (tRAS).................. 21
Skew Model 1,3,5 - BSOD/2,4,6,7 - Crashed in a current of 2-3 seconds OCCT.
Common CMD to CS Timing............ 1N
I have left other values by default. Whether my options are correct? What should I change?
Thanks.
I am sorry for my bad English...

I will be grateful for any assistance with this forum...
Perhaps I should change your memory in the BIOS, but many settings DFI does not allow me to do it right quickly.
I spent a long time, but had not made good progress.
I would like to run 1800CL7 1T and 1977 1T 24\ 4 at 1.95-2.05 volts.
http://www.total-oc.com/forum/galler...7&image_id=173
http://www.total-oc.com/forum/galler...7&image_id=174
Today, I checked the memory of the default through Memtest of Windows - the result 0 errors...
http://www.total-oc.com/forum/galler...7&image_id=176

Quote:

---

Originally Posted by MrHydes

so whos got the nerv to recomend this sticks at this moment?

---

Mine run @ 1000 Mhz Dual Channel 8-8-8-16 @ 1.88 V on a P5E3 Premium

Quote:

---

Originally Posted by sauria

Mine run @ 1000 Mhz Dual Channel 8-8-8-16 @ 1.88 V on a P5E3 Premium

---

that's awsome... 1.8v at 8-8-8-16 :rolleyes:

but there are now CORSAIR PC3-16000 XMS3 DOMINATOR 2000 2 GB :D

cheers

Have you tried them?

Quote:

---

Originally Posted by sauria

Have you tried them?

---

no i'm still with x38 & DDR2, so not so soon, perhaps later this year

perhaps x58.

and my mems are in rma, transcend is not continuing producing PC9600

so they've send the money back... i'm wondering what sticks should i replace

my old ones? Gskill Pi 4GB PC8800, PC9200, PC9600? or corsair 2x2GB?

OcUK have these on special for half the price of the black 1800s at the moment. I may dip in at this price, they look as if they could be fun toys. Still love my black 'uns though, they've been rock solid since I got 'em when Saaya first announced them.

Quote:

---

Originally Posted by stone_cold_Jimi

OcUK have these on special for half the price of the black 1800s at the moment. I may dip in at this price, they look as if they could be fun toys. Still love my black 'uns though, they've been rock solid since I got 'em when Saaya first announced them.

---

Is this online? Where might I find them in London?:)

Quote:

---

Originally Posted by sauria

Is this online? Where might I find them in London?:)

---

Yep, online. They're in Stoke-on-Trent, about 170 miles up country. If you're from the US, I wouldn't bother tbh as your component prices are about 50% - 60% of ours. One of life's great mysteries.

Thanks, I'll be in London for a week -- I just love to see the beauties. I got mine from Ireland in TX. No Cellshock here it seems.

i was so used to DDR2 that at the begin i was finding it very hard to set cas 7
or even cas 8 at 2000MHz... :shakes:

holpefully guys like do awsome work for the community.
thanks a lot mikeguava :up:

i'm up to set 5GHz with E8600 at Cas 7 2000MHz 1T performance level 7
we'll see what results i can pull of with x48. i'k not very interested in stability at this point
later i'll do some prime but at lower frequencies.

keep with the lessons up. :ROTF:

Heh, ordered them at 3:51 yesterday afternoon, got 'em about 10:30 this morning, here we go (about 1.9v real). lol at the SPD. I should add that NB is at 1.4v:

Quote:

---

Originally Posted by aerie

i saw review that was screeming 1000 c7..... i cannot boot in anyway at that speed...

i saw that if i stay under 1600 memories can stay @ 2,0v but if i go near 1800 with 2,0v its totaly unstable and i must use 1,95v.
but with 1,95v mem dont boot at 1000 c7 but 1000 c8 yes...

i thought this memory for theyr cost 270 euro will be better... 270 euro.... i saw people with ocz 1600 tha out perform ,y 270 euro ram with 120 euro rams.... cant beleive that

---

try 1.75-1.85 vNB for 900-1000mhz cl7 1T strap 333 ;) and play with ddr skew control channel a and b
2.0v is too much for 1866 speed
my kit easily run 1866 8-8-8-16 1.71v 2T of course.

http://img26.imageshack.us/img26/477...4s9091mkk0.jpg

1200MHz 6-6-6-14 1T 150v~1.51v

with cpu at 4.2GHz (450*9) under 1.30v on rampage extreme x48 :up:

http://valid.canardpc.com/show_oc.php?id=505576

http://img689.imageshack.us/img689/4903/297402.png

with rampage II extreme this sticks really shine as you said mikeguava at the
time with P5E3 Deluxe i think. i have passed Rampage extreme X48, P6T deluxe,
P6T deluxe v2, Evga classified X58 E6759 limited editon EC, and nothing
even came close to this 2074MHz at 8-8-8-16 1T and 2105MHz 9-9-9-18 1T

from 1.9v to 2.09v theres no limits with this asus

i belive they can do even better and imagine i'm using 6 sticks no problem.

cheers mate

testing this sticks With 790FX

heh, good times, good times... :D

Quote:

---

Originally Posted by MrHydes

testing this sticks With 790FX

---

will be interesting :)

Quote:

---

Originally Posted by Tomasis

will be interesting :)

---

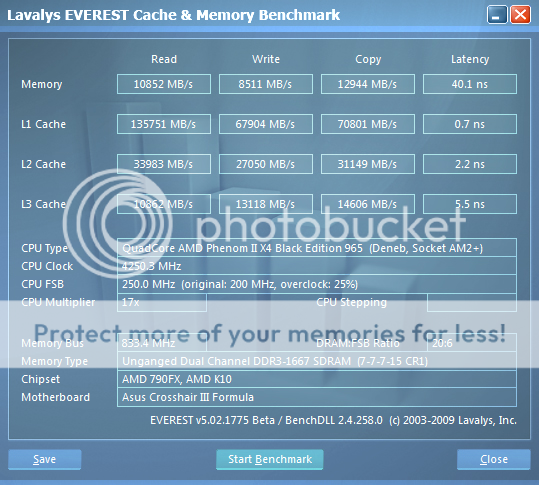

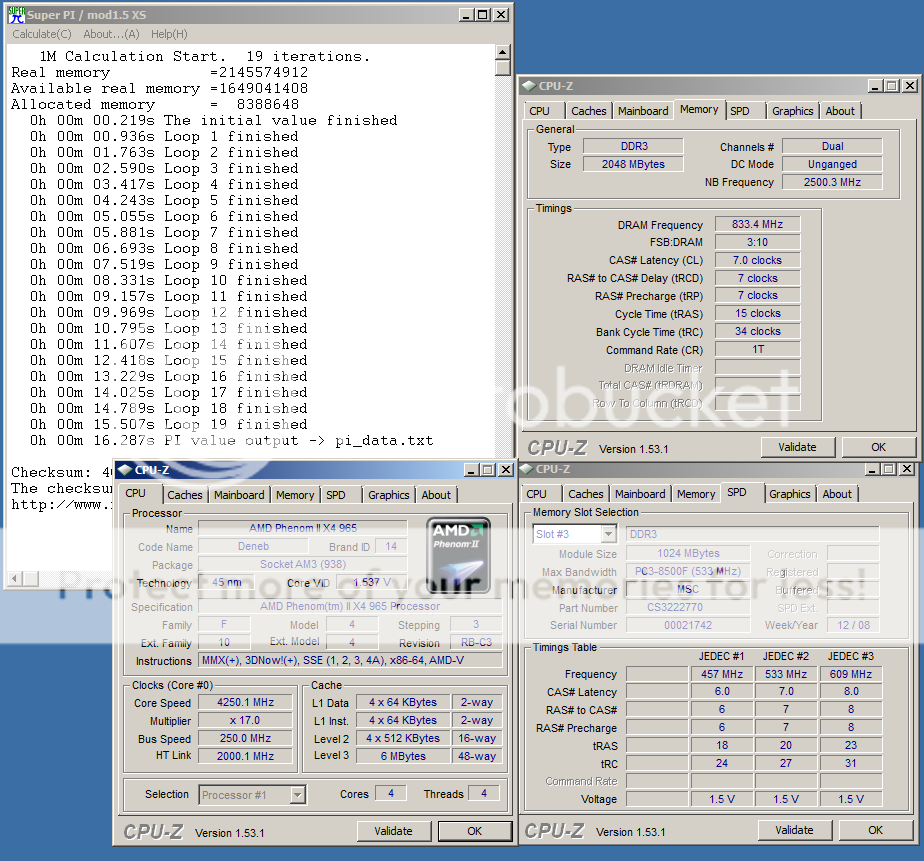

http://i401.photobucket.com/albums/p...shock1667M.png

http://i401.photobucket.com/albums/p...k1667MHzcp.png

validation

10K with PhenomII not so bad but i have some issues with asus Crosshair


http://img12.imageshack.us/img12/1849/cachemem21876.png

mutch better great match Rampage II extreme with D9JNL :up:

My Results:

Core 2 Duo E8600 Q820A7xx
Asus Rampage Extreme X48
2 x 1 GB Cellshock "Blue's" 1866 DDR3
XFX 4890
2 x PQI Intel MLC 64GB SSD
Thermalright Venomous X (Not the best sink for socket 775)

http://i304.photobucket.com/albums/n...oquin/lol2.jpg

http://i304.photobucket.com/albums/n...oquin/lol3.jpg

http://i304.photobucket.com/albums/n...oquin/lol4.jpg

woa, 600fsb fully stable on air, sweet! :D
and 4.5ghz... this rig will destroy any stock core i7 rig in gaming...

With X48 Rampage Extreme & Intel C2D E8600

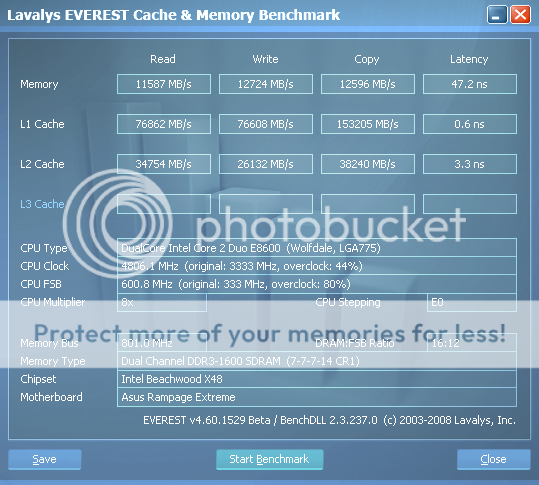

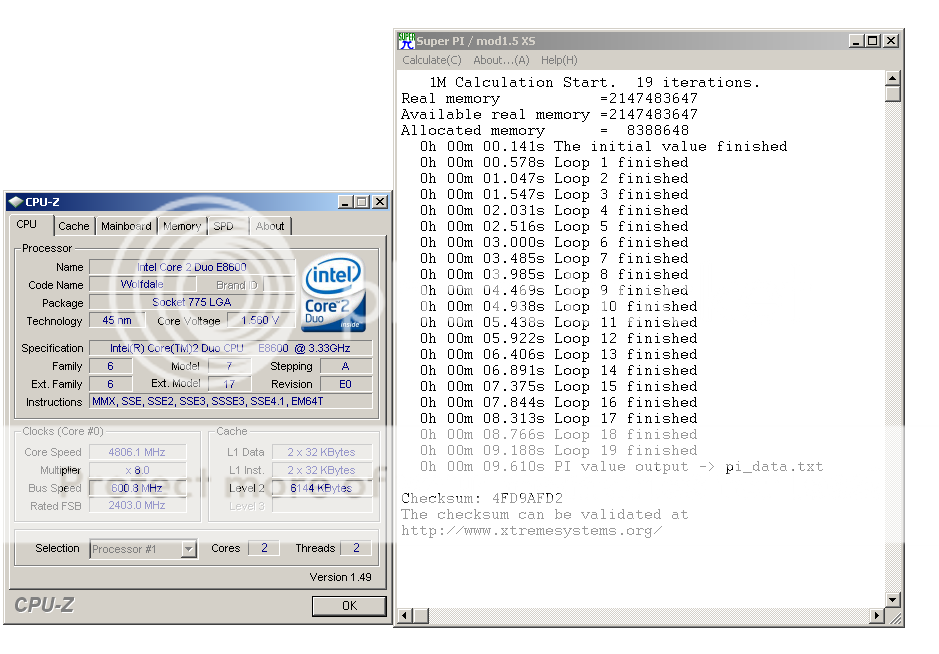

http://i401.photobucket.com/albums/p...48GHz600x8.png http://i401.photobucket.com/albums/p...86007-7-7-.png

11K - 1600MHz 7-7-7-14 1T 1.72v

With X58 Rampage Extreme II & Intel i7 920

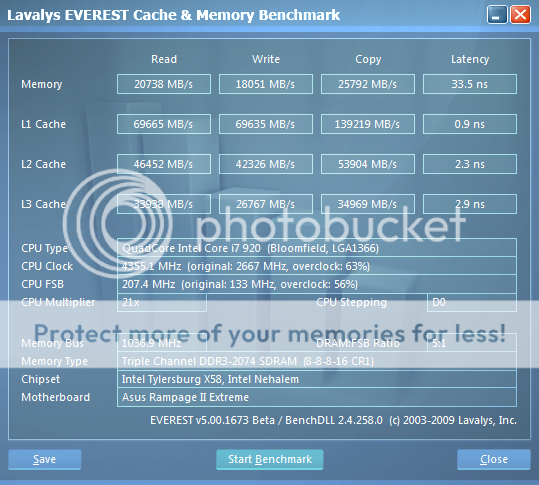

http://i401.photobucket.com/albums/p...g?t=1293661123

http://i401.photobucket.com/albums/p...g?t=1293661323

20k 2066MHz 8-8-8-16 1T 2.06v

with 3 pair of this sticks i've managed to Anchive 2175MHz at 9-9-9-18 1T 2.0v
and 2074MHz at 8-8-8-16 1T 2.06v

and 1200MHz 6-6-6-12 1T 1.5v


Of course (+2000MHz) the high frequencies only with REII X58
Going to give it a shot with Evga Classified X58 E760
With Rampage Extreme X48 my best was 2000MHz really

With Amd was a bit harder with the bios i was using at the moment
could not do better then than 1700MHz

For me besides the part that these are 1GB sticks and with 1.7v ~ 2.1v voltages
Cellshock blue are the best DDR3 ram i've ever tested

I haven't seen Cellshock for a long time. Why did they stop making new kits?
