No not heard of that one:)Quote:
no boot after idle for a few hours" ?
Edit:
Didn't find that there was actaully an increase on load(running large ffts inm prime) My crucial had been att 2.2v load rose to 2.24v idle was MUltimeter Measurments I'm running at 1000 at 2.175v as a consequence which is fine.(12hr stable)Quote:
i have to give my 4gb 2.125 to be stable, with droop its about 2.1, and 2.085 under heavy load
Add it to the growing list :/
Well in fairness my list has been shrinking:)
Edit:
Serves me right for saying that think one of my 4x80gb drives has died, building raid was juast copying image to raid5 matrix stripe.
But not all bad news:D Posted at 500 but no xp.(yet Muhahah)
luck:)
Does the Cpu Core Voltage Offset improve overclocking?
I sent an email to Abit EU again yesterday about the issues i've seen around all the usual forums. There seems to be a FSB wall for dualcores on this mobo @ around 491 fsb. Supershanks had it with a q6600 G0 and i have the same problem with a very good E6600 that did 515 fsb on a P5B of a friend.
Also i have problems getting the memory stable @ DDR1100 and above which should be possible with my OCZ Ti Alpa VX (PC8000@4-4-4-15 stock). I mentioned the problems people where having with quad core overclocking. All problems will be forwarded to Taiwan and he assured me they are very happy with good feedback and it will be used. Most of these problems can be solved by a "killer" bios !
I think there are memory controller issues in bios 11 and 12B02. He will send me a new beta and/or final when they finish it. Also he is going to send me mounting clips whenever they get them from Taiwan.........
Stay tuned for more news !
I wondered that b4 i got my board when i saw the 1st bios scree. Itt's the onlly extra bios option to the p35- pro. Sadly it doed rock all , just giving you extra vcore addition. egQuote:
Does the Cpu Core Voltage Offset improve overclocking?
cpu core voltage ....= 1.400v (max = 1.65v)
Finally.
I am ready to put this rig together. Been to busy lately, have time this week so let the fun begin :D.
Thanks Ace for the flash BIOS guide, was a piece of cake to follow.... prof is in the testing as they say ;) so will flash in a minute.
Just a quick question: Memetest, witch option should I select for a good test. I want to test each stick separately then put in all 4.
welcome, my friend!:)
@Ace-a-Rue : why you not pick up that board ACE ? I see you have many improfment with board like IP35Pro
XP and drivers are installed (Vista64 will be at a later date).
Now I need to find a good O/C guide.... only ever O/C AMD before. I want to do some reading before I get into it.
you know, i am just not convinced this is the board to buy...i really want to upgrade to DDR3 and i was disappointed that abit will not release a DDR3 board until the X48 comes out.Quote:
Originally Posted by Hazzan
Bingo13 told me this board is fast but it cannot be pushed hard before breaking down.
now, i am in a dilemma;)...i want to buy a new DDR3 board along with buying a QX9650, so i am thinking about giving gigabyte X38T board (DDR3) a try...i know, heresy!:D
My first results :D.
My pc booted with CPU volts at 1.21 (or there abouts) so when I bumped my CPU higer I couldn't boot. From reading many E2140 threads 1.3v's is fine, so I upped it to that.
When I tryed superPI I couldn't get it to run on the other core so i uped the vcore again to 1.3150 and that didnt work.
So I did a search on the error and found that it was due to trying to run the superPI twice from the same folder :D.... oops.
Copyed the folder and deleted all the data in superPI folder except superPI.exe and they both ran fine.
Pressed ok on one of the tests before I realised it gets rid of the time/section.
http://img156.imageshack.us/img156/1...4833fq5.th.jpg
http://img89.imageshack.us/img89/156...3575gi8.th.jpg
I did SuperPI just as a starting block and a quick test. I will see if 3.2GHz works at that voltage and the SuperPI it.
Hopefully it will pass and then I will move onto Othros (spelling?) and run that for 12hours or so (fingers crossed).
Then I will work on lowering the vCore.
Remember, its just a starting block and I was surfing while I was testing.
Question: Is one core faster tan the other; shouldn't they be almost equal in time?
I though that there was now going to be a DDR3 IX38 QuadGT as well?Quote:
Originally Posted by Ace-a-Rue
At any rate I can't see any advantage to me switching to the IX38 QuadGT either atm as I don't run Crossfire.
I picked up a set of Kingston PC2 9600 2GB. @ DDR1200 i get random reboots. Now im running them @ DDR1000 4-4-4-18 stable. Anyone an idea why they cant do DDR1200. Default voltage is 2.35v !???
@nordien : 600 5-5-5-15 vdim 2.35volt all set in bios.....maybe you can see with my setting in UGURU monitor :) :) :)
http://img134.imageshack.us/img134/8553/600yx6.jpg
To bad mine dont do that. They are week 33 2007 with new look heatspreaders. When i try to boot @ DDR600 @ 5-5-5-15 @ 2.35 Windows XP cannot boot completely. My OCZ Ti Alpha Cannot do more than DDR1050 @ 4-4-4-15/5-5-5-15 with this IX38 Quad. I think it is a bios issue (hope).Quote:
Originally Posted by Hazzan
I flashed back to Bios 11. No results. My settings are:
vdimm 2.3750
vcore 1.3875 with 0.5000 offset max 1.4375
vmch 1.60v
vchio 1.60v
DDR1000 @ 4.4.4.15 anything above DDR1000 will bsod even when the processor is @ stock speed !?!?!@@##
run test 5 mainly, for at least 4 hours. also test 3,7 are good to run in memtest86+Quote:
Originally Posted by DangeR!
there is a new version of memtest 3.6 out, which runs in windows. Using both is a good idea.
Thanks allot for the reply.Quote:
Originally Posted by strange|ife
ace your getting a qx9650?
:jealous:
Anybody using high binned DGKX on this board ?
My Kingston PC2 9600 wont do DDR600, no matter what vdimm/vmch
But they can do DDR550 @ 5-4-4-15 @ 2.45 or DDR500 @ 4-4-4-15 or DDR400 @ 3-3-3-6
The Kingtons are DDR600 @ 5-5-5-15 @ 2.35v
:down:

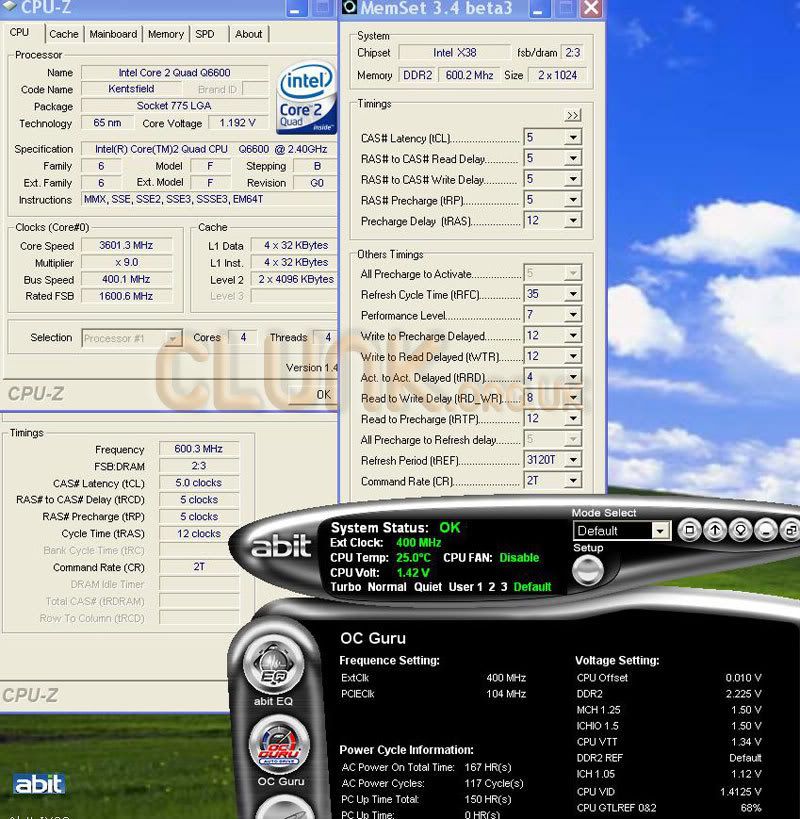

This is the highest ii've managed with memory not sure how stable it is yet
http://i218.photobucket.com/albums/c...s/1200Dram.jpg
Funny, I was gonna recommend 5, 6 & 8 :DQuote:
Originally Posted by strange|ife
Anyways, I'd just let it run through 1 complete pass and then move on to prime blend... cause memtest won't tell you whether your system is stable, but prime will.
eventually...waiting on the retail chips and for prices to slack off....trying to be patient and not just bust out there to get an OEM cpu....i still could get a bummer chip...you know, the luck of the draw.;)Quote:
Originally Posted by strange|ife
i think it is a rarity to attain the advertised spec for the memory.Quote:
Originally Posted by nordien
ok...bench it and show some results....i'm curious to see how this board stacks up performance wise.Quote:
Originally Posted by Supershanks
