all D9, cool!
Printable View
all D9, cool!
can u guys gimme a guide to oc my ram
using crucial ballistix tracer pc6400 800mHz
Beginners guide.......Quote:
Originally Posted by nuxezen
Loosen the timings.
Set the divider.
Increase the voltage.
Start clocking.
erm
im totally noob
im using asus m2ne
i heard that this mobo sucks...
CORSAIR| windwithme | CM2X1024-8888C4D| DDR2-1111, 4-5-5-12, 2.4v | Micron D9GMH | CPU-Z Validated! & SuperPi 32M Stable! @ DDR2-1309, 5-5-4-5, 2.46v
CPU:INTEL Core 2 Extreme QX6800
MB: FOXCONN MARS P35
DRAM:CORSAIR Dominator TWIN2X2048-8888C4D
VGA:ELSA 8800GT 512M
HD:Seagate 7200.10 320G
POWER:Corsair VX450W Power Supply
Cooler:Thermaltake V1
http://img57.imageshack.us/img57/7590/mars04li8.jpg
SuperPi 32M Stable
http://img57.imageshack.us/img57/884/mars1309pitk0.png
CPU-Z Validated!
windwithme, awesome setup. what in the world is that alittle bear?on your corair fan. haha that funny that cool. nice overclocking
Nobody with Kingston VR 667? :shakes: :shakes:

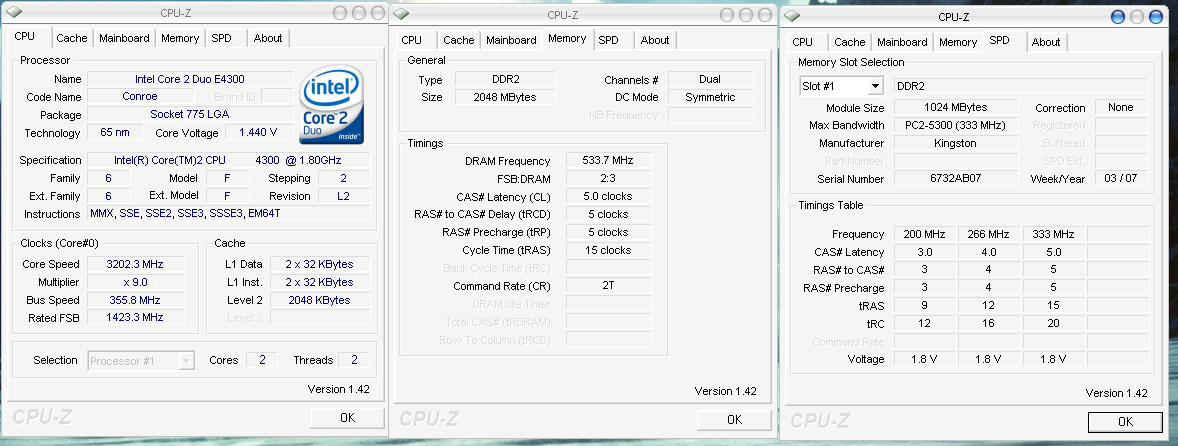

Kingston | Unrealer | KVR667D2N5K2/2G | DDR2-667, 5-5-5-15, 1.8v | Kingston | CPU-Z Validated! & SuperPi 32M Stable! @ DDR2-1066, 5-5-5-15, 2.1v
http://i20.photobucket.com/albums/b2.../Dibujo-36.png
Super PI 32 crashes :p: :p: :p:
Database Updated. :up:
If you do not see your result in the database, it means you did not submit it with the proper criteria. The most common thing I am seeing is submissions without enough stability tests ran. For example, if you have a quad-core CPU, you need to be running 4 instances of super-pi, not 1.
that's windwithme's signature, wherever you see the crystal cat expect a good review.Quote:
Originally Posted by Mastercyclone
http://farm3.static.flickr.com/2137/...979aaf2d_o.gif
http://valid.x86-secret.com/show_oc.php?id=292099
OCZ2FX11501G FlexXLC (nominally:DDR2-800 3-4-4-15)
RAM Size : 2048 MB (2x1024)
RAM Freq : 586.7 MHz
RAM Ratio : 3:4
RAM Timings : 5-4-4-15
CPU : Intel Core 2 Duo E4500
Freq : 3520.3 MHz (440.04 * 8)
Motherboard: ASUS Maximus Formula SE
OCZ | FlexXLC | OCZ2FX11501G | DDR2-800, 3-4-4-15, 2.4v | OCZ | CPU-Z Validated! & SuperPi 32M Stable! @ DDR2-1173.4, 5-4-4-15, 2.6v
I think I had these down to 3-3-3-9 @ 933, will try and repeat and see what it does for bandwidth!
Nice result! DB Updated. :)
YesQuote:
Originally Posted by leolei333
OCZ | initialised | FlexXLC OCZ2FX800C32GK | DDR2-800, 3-4-4-15, 2.1v | Micron D9GMH | CPU-Z Validated! & SuperPi 32M Stable! @ DDR2-1173, 5-4-4-15, 2.6v
This data may be incorrect. The part number you've listed is what I was sold and what is printed on the modules but what shows up on SPD-z and CPU-z is OCZ2FX11501G 9200 (DDR-1150) am I missing something here, are they all the same modules with different bins depending on achievable latency and speed? These are very flexible chips, 3-3-3-9 is achievable up to ~933MHz, 4-4-4-12 to 1066 and 5-5-5-15 to about 1200.
Here http://img143.imageshack.us/img143/2...mrgreenbv4.gifQuote:
Originally Posted by Unrealer
Kingston | Marcello | KVR667/2GB | DDR2-667 5-5-5-15, 1.8v | CPU-Z Validator | SuperPI 32M Stable | @ 1000 4-4-4-15, 2.2v | Elpida |
------------------
KVR 667 @ 1000
2.2 Vdimm
Gigabyte 965P-DS3 Rev. 3.3 Bios F7
DUAL PI 32M Stable!!
http://img151.imageshack.us/img151/4928/0002xo2.jpg
CPU-Z Validator
MAX. 1-1 (510x7)
http://img88.imageshack.us/img88/6976/001kg0vn7.th.jpg
http://img85.imageshack.us/img85/6572/helloqp9tp0.gif
4x2Gb G.Skill F2-8000CL5D-4GBPQ @ 1066MHz 2.1V on Asus M3A-MVP Deluxe
SPi 1.4 32M stable pic:
http://img233.imageshack.us/img233/6...copypx3.th.jpg
Was running Prime95 for hour, but system froze when AOD was starting :(
I can get my 1150 Flex XLC masquerading as 800 to run SuperPI 32M at 850MHz and 3-2-2-4 2T timings. Will repeat and post screen grabs etc...
You can't run X-2-2-X on P35/X38 chipsets, it's just a glitch.Quote:
Originally Posted by initialised
http://img217.imageshack.us/img217/7...reenla3.th.jpg @2.3V
I cant change RAS to CAS to 4 coz it make many errors in Memtest and its not stable. :confused: :shrug:
And I cannot go over 920Mhz on any voltage and timing... bad chips... :shakes: :shakes:
Do they run rated timings (including sub-timings) at their minimum rated voltage? Because if they don't, I'd most certainly RMA those.
Eh oops I was looking on some images and I posted bad picture. :D
Yes they run.Quote:
Do they run rated timings (including sub-timings) at their minimum rated voltage? Because if they don't, I'd most certainly RMA those.
Problem in Memset?Quote:
Originally Posted by EnJoY
I did see an improvement over 3-3-3-6 but this may have been due to also setting tRP=2 for the 3-2-2-4 run. Damn, going to have to start over.
A mate asked for Sandra memory bandwidth data, I think that could be a good addition to this thread.
Quote:
Originally Posted by initialised
LOL, a little late to start that now.
my ADATA Vitesta Ex. Ed. 4*2Gb tested @ 1066mhz 5-5-5-15 with 2,1V on P5K Premium Black Pearl.
http://www.pctunerup.com/up/results/...DATA533mhz.jpg
Great ram but I don't know what chip mount.
Tried @ 1200mhz 2,2V but unstable..
Core2Duo E6700 on DFI X38-T2R
SuperTalent T800UB1GC4 x2
2x1GB
800MHz 4-4-3-8 2.0v
1200MHz 5-5-4-11 2.18v- Memory Overclocked Speed, Timings and Voltage
http://valid.x86-secret.com/show_oc.php?id=314574
http://www.pctunerup.com/up/results/...4-11-perf5.JPG
JaD
You can't imagine how upset I was when my GMH sticks were replaced with (supposedly) suckier ProMOS...well, considering i wouldn't run high vDDR anymore (the old GMH i had to RMA died on 2.35v 24/7) those sticks are pretty nice :) 600 5-5-4-11 with good subs is definitely a good result imo.
Too bad loosening subs/raising voltage has no benefits, a bit more juice for bench runs would have been appreciated :P
Everest results (old build, lastest stable hangs up the system, nothing special anyway at just 400x9):
http://www.pctunerup.com/up/results/...9_cachemem.JPG
http://www.pctunerup.com/up/results/...01846_copy.JPGhttp://www.pctunerup.com/up/results/...45_latency.JPG
http://www.pctunerup.com/up/results/...02031_read.JPGhttp://www.pctunerup.com/up/results/...2101_write.JPG
What no Patriot Memory? I will add my results once I get my RMA 680i XFX back.
Patriot Extreme Performance 2x1gb 4.4.4.12 2.2v #PDC22G6400LLK
Tested and stable
400 4.4.4.12 2.1v
450 4.5.5.5.16 2.1v
485 4.5.5.5.18 2.2v
500 5.5.5.5.18 2.1v
530 5.5.5.5.18 2.1v
550 5.5.5.5.18 2.1v
550 was the last I went to while out side of the case with 1x120mm Rosewell 75+/- CMF on it. Everything was stock cooled. Mobo "--" Boot bugged on me. So its on its way to XFX. Didnt get to water it.
Tom's hardware quotes that the samples the 608
Overclocking 9 Value-Priced DDR2-800 Kits
Maximum Speed
I only hope mine can get close to that. Nothing a few 120mm fans, volts and some obscene words cant check.
