Whoa!? You really try to run QPI/DRAM @ 2V? :D:eek: Stock is 1.2, 1.35V should be enough in most cases.Quote:
Originally Posted by dazboots
Printable View
Whoa!? You really try to run QPI/DRAM @ 2V? :D:eek: Stock is 1.2, 1.35V should be enough in most cases.Quote:
Originally Posted by dazboots
As he said!! Stop pumping 2.0V right now! You'll blow the poor girl up :rofl:Quote:
Originally Posted by MKroenke
1.6V at the very most. 1.35V is Intel spec as "the maximum safe", but DRAM of 2GHz+ may require 1.6V~ but NEVER 2.0V.
LOL sorry about that i meant 1.23125v for my qpi/dramQuote:
Originally Posted by NathObeaN
1.6V? Then you have a pretty crappy IMC. My W3520 does 2GHz RAM CAS8 with an IMC voltage of 1.3375V :)Quote:
Originally Posted by NathObeaN
That's perfectly safe yes haha :up:Quote:
Originally Posted by dazboots
Quote:
Originally Posted by NathObeaN
thanx for that ill just make sure when pushing harder not to go over 1.35 ;)
Yes some people require up to 1.6V, even my XMP profile puts it to around 1.5V for 2GHz. On the Corsair forums they say it can take between 1.5-1.6V. I personally don't like taking it above 1.35V.Quote:
Originally Posted by MKroenke
Tbh QPI is such a tricky voltage as it is needed for both RAM and the CPU - such a pain! Overclocking was so much easier with the 775 socket :p:.
You can go over 1.35V as far as I know, that isn't the "dead end", it all depends on the speed/timings of your RAM and the speed of your CPU.Quote:
Originally Posted by dazboots
I switched from Socket AM2+ to S1366, so it wasn't such a huge difference :DQuote:
Originally Posted by NathObeaN
im getting wierd cpu temps from to different apps i got a 980x cpu and its set @ stock settings but rather high temps on pc probe very high to my likeing for idleing.I am watercooled i have remounted the cpu block twice cleaned off the thermal tim applied again still same temps.
core temps are different from cpu temps
I had the same problem - varied CPU temps accross aps.Quote:
Originally Posted by kullymontana
First off, I wouldn't use Real Temp. I have used CoreTemp, Everest and HWMonitor and then compared it to the BIOS temps/volts and they seem to be quite reliable applications.
CPU-Z and HWMonitor (by the same people) gives bad voltage readings, it seems to use some kind of average, and doesn't update often. Everest however seems to match the BIOS and updates every second.
For temperatues, Everest, CoreTemp and HWMonitor all give rougly the same temperatures. Real Temp on the other hand tends to give about 2-3C more than every other application.
And this of course.Quote:
Originally Posted by Hondacity
Glad to hear this but both 0402 and 0602 had the multi at 21 by default. Here is a screen shot of 0602 just minutes after flashing it and clearing cmos. CPUZ shows a 21 multi. Now, on 0702 it shows 22. All settings on both screenies are at Auto... So obviously turbo mode was not default on 0602, at least not on my board. Below is what 0602 defaulted to on my board. By the way, the beta bios 0702 was said to lower temps on the mobos chipset. THAT is why I tried it....Quote:
Originally Posted by NathObeaN
http://i86.photobucket.com/albums/k1...ockTemps-1.jpg
Here is 0702 just minutes after flashing it and clearing cmos. Clearly something has changed other than a typo fix. Maybe, on some boards Asus discovered Turbo Mode was not working haha, lol, hence why it now works on mine? idk
http://i86.photobucket.com/albums/k1...me/OCMulti.jpg
nice turbo mode...
By the way everyone, how reliable is Prime95?
I have been reading the Prime95 forums and it seems that Prime95 can get errors naturally... as the whole idea of it is to use a very complex maths to find the Mersenne primes.
I also wonder the same thing because I can run LinX for hours, which is supposed to be a better stress tester and not have any errors, yet with Prime95 I can get random errors...
Just makes me wonder because we all rely on programs such as Prime95, but couldn't an error occur simply because the application encounted a natural bug...?
lolQuote:
Originally Posted by hondacity
Anyone got any settings for me to try im dying to see what this 980x can get up to and some settings for my memory domminator gt 2000 just im new to this new m/b.I was on a striker extreme 2 before and all this on the i7 m/b is totally different.There use to be templates where u could try out some settings that people would post i cant seem to find any for this m/b.All help most welcome.
thx for that :rofl::ROTF:Quote:
Originally Posted by Ghostleader
crap!
http://img704.imageshack.us/img704/4773/recr3ed.jpg
Not that I wish to do a "told ya so", that is exactly why I don't jump into BETA BIOSs. Wait until you find out the release log and the source. For all you know it could be some 3rd party that gets a kick out of killing people's boards :down:.Quote:
Originally Posted by jacek
I hope you are able to recover it mate, good job this board has dual BIOS chips ;).
I also don't like using BETA BIOSs as they void your warranty buy hey!
oooh no!Quote:
Originally Posted by jacek
Hey I hope you can recover this easy, I wasn't going to install beta bios until I read success reports, sadly this is a fat negative!!
I have now managed to get my i7 920 D0 stable at 3.8ghz using settings simular to yours. Finding BIOS 0602 fine now Ive enabled 100% LLC.
All
I'm using 0702 with No issues since Saturday.
It EZ Flashed with No issues.
Just use EZ Flash from within the BIOS and have it read the file from a USB Thumb device.
I suggest to keep 602.
I successfully recovered the bios.
Seeing as people are actually using 0702 I would assume it is pretty safe. Let's not jump to conclusions just because one user had a bad flash :)
Glad to here that Jacek,Quote:
Originally Posted by jacek
Are you still operating at 3.8Ghz with your 920?
Thats exactly what I did with no issues also since last Saturday. The only difference I have seen so far is now my multi is 22 instead of the 21 it was with 0602, but those are Auto settings which none of us care about, lol. But other than that a very stable bios so far....Quote:
Originally Posted by Kensek
yes, you are right :) It can happen to anyone. It's always a risk.Quote:
Originally Posted by DuraN
the second attempt ............. :):ROTF:
http://img231.imageshack.us/img231/705/mainboardk.jpg
I have several profiles: from 3.8GHz - 4.3GHz
what ram are you using in your rig? i hope its not my ram stopping me from acheiving decent clocks.Quote:
Originally Posted by jacek
I try again in a few hours for a 4.2ghz stable.
currently I have G.skill trident 2000 cl9.
ofcourse sorry i didnt read your signature.Quote:
Originally Posted by jacek
Im using also G.Skill Trident, 9-9-9-24 @ 1.65v
care to share your 4.2ghz settings see if i can run stable?
Thank! :up:Quote:
Originally Posted by Ghostleader
I'll try all of that and report. It's not a trouble, I like experimenting. :D Sorry for not doing this quicker, but I was busy, I just got home.Quote:
Originally Posted by Jeff Flowerday
Hope this helps, 2nd report using DPC LatQuote:
Originally Posted by Jeff Flowerday
kortas
sure,
bclk=200, ram 2000, uncore= auto
Try increasing your QPI/VTT a little. You can try about 1.4-1.5V. Set timings manually to 9-9-9-24.
DRAM TIMING MOD=3N, the rest on auto.
DRAM VOLTAGE = 1.6
other voltages - auto.
btw
http://img580.imageshack.us/img580/9...tridentr3e.jpg
kullymontana: The sensors that Intel uses on their CPUs have never been very accurate at reporting idle temperatures and things are probably worse on the new 32nm Core i7-980X, especially when individual cores can go to sleep with little to no power being used for some cores. Accurate idle temperature monitoring is not what Intel designed these sensors for. They were only designed to control thermal throttling and thermal shutdown and for that purpose, they work great.
Comparing two different programs that read totally different sensors is pointless, especially when none of the sensors are calibrated. What's your water temperature near your CPU? The core sensor reading 28C in your picture might be close to the truth.
NathObeaN: I like your style. Your computer is not Prime stable so instead of fixing the problem, you decide it is easier to slag Prime95. Then you're bashing RealTemp and other programs that you know nothing about.
Core temperatures of Intel CPUs can change instantaneously. No two programs are going to be reading the sensors at the exact same time so when lightly loaded, you will see different programs report different temperatures. That doesn't prove anything or mean one program is bad and one is good. When lightly loaded, it usually doesn't mean anything.
The best way to compare the accuracy of core temperature monitoring programs is to run a consistent load like Prime 95 - Small FFTs on each thread and then give the CPU 5 or 10 minutes to stabilize and then you can post a screen shot to show us all these differences you are seeing.
On the newer Core i CPUs, TJMax is written into a register for each core and the temperature sensor data is written into another core. On these CPUs, RealTemp and Core Temp are reading the exact same registers and should be reporting the exact same thing.
Core Temp has also just started using the Intel recommended method to report the multiplier accurately just like RealTemp does. You can download his latest beta here for your comparison:
http://www.xtremesystems.org/forums/...&postcount=488
Some of the other programs you mentioned do not bother reading all 4 cores of a Core i7. One program sometimes only reads 2 of the 4 cores and pretends that it is reading all 4 cores. Maybe when you are testing you will be able to determine what program is doing that.
SkOrPn: CPU-Z has a problem with accurately reporting the multiplier when a Core i CPU is lightly loaded. You might want to try adjusting your C-States as well as the Minimum processor state in the Control Panel -> Power Options to see what's really going on. I know NathObeaN thinks RealTemp is a piece of crap but the multiplier it displays is extremely accurate at idle because it uses the method that Intel recommends in their November 2008 Turbo White Paper. Unlike NathObeanN, the programmer of Core Temp and I actually read junk like that. Don't be afraid to trust what it is telling you or what the latest beta version of CoreTemp is telling you.
What the hell?Quote:
Originally Posted by unclewebb
I was slagging Prime95?
Quote:
Originally Posted by NathObeaN
Exactly when do I slag Prime95? I simply asked if it is truly reliable as errors can occur with the application even if there isn't a hardware problem.
and... "bashing Real Temp", seriously, I merely pointed out that in comparison to 3 other applications, it is the ONLY one that reports temperatures differently and the ONLY one that doesn't seem to line up with BIOS temperatures - wow I am really bashing Real Temp - I'm just stating a fact, calm down. Not to mention the fact I never even said anything about idle/load temperatures. For idle temperatures none of them are "stable" as the readings are quite sporadic.
I don't know whether you have had a bad day or something but don't quote me and have a go at me for something that I never even did.
EDIT:
Funny how when I download the Real Temp 3.59 BETA the temps are perfectly in line with all the other applications. So the current 3.40 on TechPowerUp obviously needed updating :rolleyes:.
Here is an attempt with C1E disabled, CxE disabled, EIST disabled (just to be sure lower multi doesn't affect it) and ACPI 2.0 enabled/disabled (makes no difference)Quote:
Originally Posted by Jeff Flowerday
Do you guys know if increasing the qpi/dram voltage beyond 1.4v degrades these chips.. While on LN2 I could reach 6ghz and my settings for dram bus voltage were 1.80v and for the qpi/dram voltage I set to 1.55v.. Then I did another session and I'm getting bsod's and it seems like the chip is already worn down.. My max bclk so far is 250. Can anyone confirm that the qpi / dram voltage is bad beyond 1.4v? Thanks so much!! :)
Quote:
Originally Posted by NathObeaN
just so you know bios temps are not the same temps that realtemp sensors read/show.but the highlighed part does seem like your implying that realtemp isnt any good?Quote:
Originally Posted by NathObeaN
The only bit that implies anything is "I wouldn't use Real Temp". Am I not allowed to give my own personal opinion?Quote:
Originally Posted by radaja
I have also just downloaded the BETA 3.59 of Real Temp which is perfectly in line with Core Temp 0.99.6.3. The official version currently on TechPowerUp however, gave results of about 2-3C higher than Core Temp.
Obviously I am not delusional as the latest update seems to have rectified the "problem".
On another note though, I hardly see how saying "I wouldn't use Real Temp" is "bashing" it. A lot of people would say I wouldn't use Windows 7, doesn't mean they are "bashing it" they just might prefer OSX or Linux.
Can't seem to understand how to set my IOH voltage ...when I set it to auto, its at 1.16v? But I think its not enough. I have a HD 5850 and I'll have another one this week, I want to overclock both...
Here is my Extreme tweaker settings and tell me what I should change...( I get constant BSOD if I dont put timings mode at 3N)
everything is stable for 2 hours Linx stable...need to tweak a couple of Value...but the Metro 2033 Keep crashing when I play, and 3d mark Vantage also gives me some annoying vertical line before freezing like Metro 2033Code:Target CPU Frequency 4294MHz
Target DRAM Frequency 1636MHz
LN2 Mode [No]***
QPI Loadline Calibration [Yes]***
Sync Mode [Enabled]
AI Overclock Tuner [Manual]
OC From CPU level Up [Auto]
CPU Ratio Setting [21]
CPU Turbo Power Limit [Disabled]
>CPU Configuration----------------------------
CPU Ratio Setting [21]
C1E Support [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetcher [Enabled]
Intel(R) Virtualiyation Tech [Enabled]
CPU TM Function [Disabled]
Execute Disable Bit [Disabled]
Intel(R) HT Technology [Enabled]
Active Processor Cores [*ALL]
A20M [Disabled]
Intel(R) SpeedStep(TM) Tech [Disabled]
Intel(R) C-STATE Tech [Disabled]
C State package limit setting [Auto]
----------------------------------------------
BCLK Frequency [204]
PCIE Frequency [102]
DRAM Frequency [1636]
UCLK Frequency [3690]
QPI Link Data Rate [Auto]
Memory Configuration Protect [Disabled]
>DRAM Timing Control--------------------------
CAS# Latency [8]
RAS# to CAS# Delay [8]
RAS# PRE Time [8]
RAS# ACT Time [20]
RAS# to RAS# Delay [Auto]
REF Cycle Time [Auto]
WRITE Recovery Time [Auto]
READ to PRE Time [Auto]
FOUR ACT WIN Time [Auto]
Back-To-BackCAS# Delay [Auto]
Timing Mode [3N]
Round Trip Latency on CHA [Auto]
Round Trip Latency on CHB [Auto]
Round Trip Latency on CHC [Auto]
WRITE To READ Delay(DD) [Auto]
WRITE To READ Delay(DR) [Auto]
WRITE To READ Delay(SR) [Auto]
READ To WRITE Delay(DD) [Auto]
READ To WRITE Delay(DR) [Auto]
READ To WRITE Delay(SR) [Auto]
READ To READ Delay(DD) [Auto]
READ To READ Delay(DR) [Auto]
READ To READ Delay(SR) [Auto]
WRITE To WRITE Delay(DD) [Auto]
WRITE To WRITE Delay(DR) [Auto]
WRITE To WRITE Delay(SR) [Auto]
----------------------------------------------
CPU Differential Amplitude [Auto]
CPU Clock Skew [Auto]
IOH Clock Skew [Auto]
------------ Extreme Engine Digi+ ------------
Digi+ PWR Mode [T-Balanced]
PWR Volt. Control [Auto]
Load-Line Calibration [Auto]
CPU Voltege OCP [Enabled]
CPU PWM Frequency [Auto]
Extreme OV [Disabled]
Extreme OC [Disabled]
CPU Voltage [1.3375v]
CPU PLL Voltage [1.84175v]
QPI/DRAM Core Voltage [1.300v]
DRAM Bus Voltage [1.643v]
>DRAM REF Voltages----------------------------
DRAM DATA REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM DATA REF Voltage on CHB [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHC [Auto]
DRAM CTRL REF Voltage on CHC [Auto]
----------------------------------------------
IOH Voltage [1.19291v]
IOH PCIE Voltage [1.52431v]
ICH Voltage [1.12666v]
ICH PCIE Voltage [1.52431v]
---------- Spread Spectrum Control -----------
CPU Spread Spectrum [Disabled]
DRAM Spread Spectrum [Disabled]
***on-board jumper dependant
Thanks Guys
these chips require less voltage on coldQuote:
Originally Posted by Bodar
i try to keep below 1.5 for 24/7 but 1.6 dont scare me
I prefer to use Real Temp for trusted monitoring, but I also like Core Temp because it has a Desktop Gadget. Both seem to give me identical readings.
no big deal but the part i meant about implying something about realtemp was this part.Quote:
Originally Posted by NathObeaN
as if real temp isnt reliable compared to the others,thats sort of implying realtemp is some unreliable junk.and yet you made these statements(your opinion)and wasnt even running the latest release.you should always run the latest releases,especially if your having problems.Quote:
they seem to be quite reliable applications.
if you have overclocking problems reseat cpu
Thanks so much for the quick response.. I feel like this new ES 980x could do over 6ghz pretty easy.. I raised the api/dram voltage to 1.55v and the dram bus voltage to 1.85v and now I'm getting more bsod's.. I think it may be the chip.. Hope I did'nt f something up.. Thanks again!Quote:
Originally Posted by zsamz_

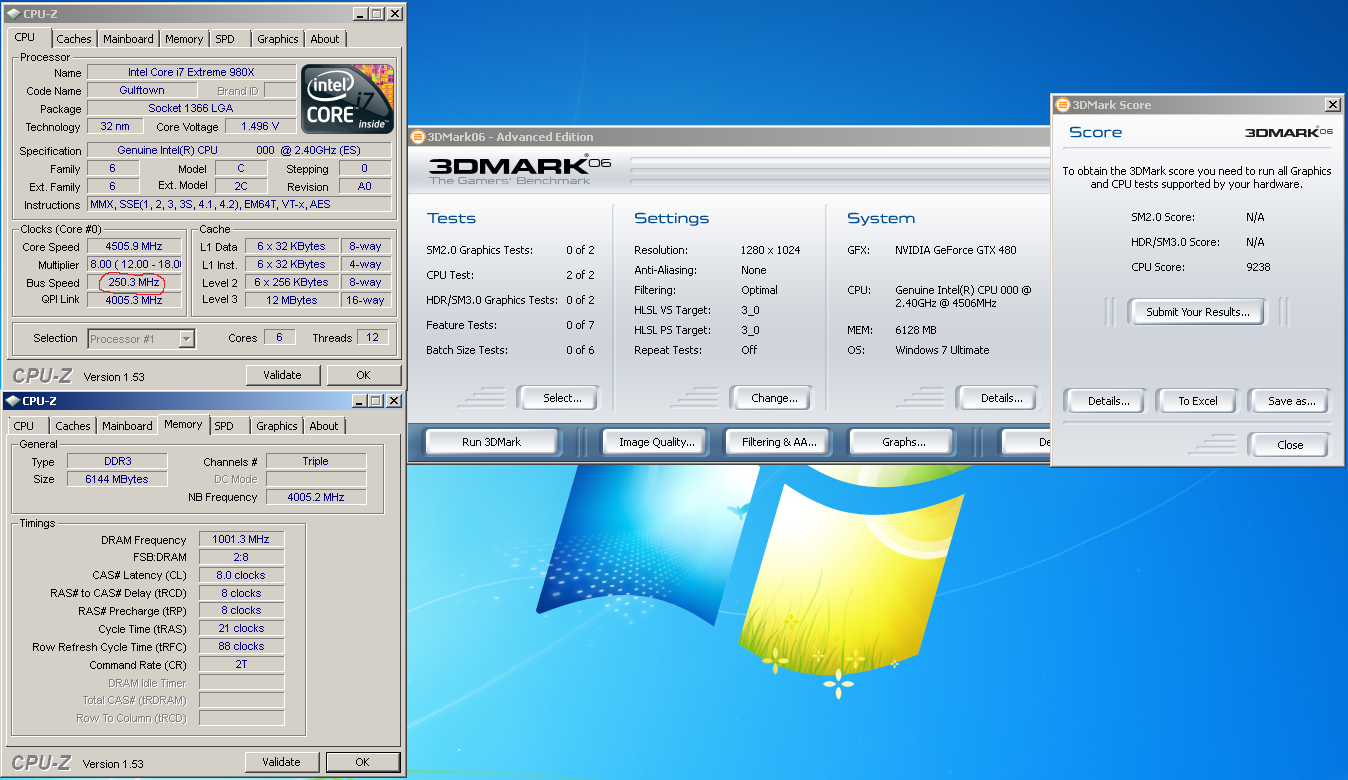

These are the settings I used to get around 6ghz.... Did I mess something up.. Cpu was -140c and no CB. Thanks!
Code:
LN2 Mode [yes]***
QPI Loadline Calibration [Yes]***
Sync Mode [disabled]
AI Overclock Tuner [Manual]
OC From CPU level Up [Auto]
CPU Ratio Setting [35]
CPU Turbo Power Limit [Disabled]
>CPU Configuration----------------------------
CPU Ratio Setting [35]
C1E Support [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetcher [Enabled]
Intel(R) Virtualiyation Tech [disabled]
CPU TM Function [Disabled]
Execute Disable Bit [Disabled]
Intel(R) HT Technology [Enabled]
Active Processor Cores [*ALL]
A20M [Disabled]
Intel(R) SpeedStep(TM) Tech [Disabled]
Intel(R) C-STATE Tech [Disabled]
C State package limit setting [Auto]
----------------------------------------------
PCIE Frequency [113]
Memory Configuration Protect [Disabled]
>DRAM Timing Control--------------------------
CAS# Latency [8]
RAS# to CAS# Delay [8]
RAS# PRE Time [8]
RAS# ACT Time [21]
RAS# to RAS# Delay [Auto]
REF Cycle Time [88]
WRITE Recovery Time [Auto]
READ to PRE Time [Auto]
FOUR ACT WIN Time [Auto]
Back-To-BackCAS# Delay [Auto]
Timing Mode [3N]
Round Trip Latency on CHA [Auto]
Round Trip Latency on CHB [Auto]
Round Trip Latency on CHC [Auto]
WRITE To READ Delay(DD) [Auto]
WRITE To READ Delay(DR) [Auto]
WRITE To READ Delay(SR) [Auto]
READ To WRITE Delay(DD) [Auto]
READ To WRITE Delay(DR) [Auto]
READ To WRITE Delay(SR) [Auto]
READ To READ Delay(DD) [Auto]
READ To READ Delay(DR) [Auto]
READ To READ Delay(SR) [Auto]
WRITE To WRITE Delay(DD) [Auto]
WRITE To WRITE Delay(DR) [Auto]
WRITE To WRITE Delay(SR) [Auto]
----------------------------------------------
CPU Differential Amplitude [1000mv]
CPU Clock Skew [Auto]
IOH Clock Skew [Auto]
------------ Extreme Engine Digi+ ------------
Digi+ PWR Mode [x-power]
PWR Volt. Control [10]
Load-Line Calibration [full]
CPU Voltege OCP [disabled]
CPU PWM Frequency [1000khz]
Extreme OV [enabled]
CPU Voltage [1.825v]
CPU PLL Voltage [1.90v]
QPI/DRAM Core Voltage [1.55v]
DRAM Bus Voltage [1.81v]
>DRAM REF Voltages----------------------------
DRAM DATA REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM DATA REF Voltage on CHB [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHC [Auto]
DRAM CTRL REF Voltage on CHC [Auto]
----------------------------------------------
IOH Voltage [1.35v]
IOH PCIE Voltage [1.58v]
ICH Voltage [1.15v]
ICH PCIE Voltage [1.55]
---------- Spread Spectrum Control -----------
CPU Spread Spectrum [Disabled]
DRAM Spread Spectrum [Disabled]
***on-board jumper dependant
be carefull with es 980x they tend to dieQuote:
Originally Posted by Bodar
and you got no warranty;)
Hi Guys, new to the forum, and I have enjoyed reading. I'm still waiting for my riiie to arrive but I would just like to ask then, what is the best 980x.Quote:
Originally Posted by zsamz_
Thanks,
Guys.
Welcome hodgy1971,by best 980x do you mean best batch?
if so this is what the database that zalbard has put together
looks like so far.
heres a link to his threadCode:Full Batch # | Frequency and # of cores + threads | vCore | Motherboard | Cooling type
LinX / Prime, Stability
# 3003A957 | Core i7 980X [6C 12T] @ 4600.4MHz | 1.472 | ASUS P6T Deluxe V2 | Water
# 3003A957 | Core i7 980X [6C 12T] @ 4231.9MHz | 1.344 | ASUS P6T | Water
# 3003B287 | Core i7 980X [6C 6T] @ 4800.3MHz | 1.520 | Gigabyte X58A-UD7 | Chilled Water
# 3003B287 | Core i7 980X [6C 12T] @ 4725.4MHz | 1.568 | Gigabyte X58A-UD7 | Water
# 3003B287 | Core i7 980X [6C 12T] @ 4608.7MHz | 1.458 | EVGA Classified e760 | Water
# 3003B288 | Core i7 980X [6C 6T] @ 4500.2MHz | 1.408V | ASUS P6X58D Premium | Water
# 3003B320 | Core i7 980X [6C 12T] @ 4713.7MHz | 1.494 | EVGA Classified e759 | Water
# 3003B396 | Core i7 980X [6C 12T] @ 4563.9MHz | 1.435 | EVGA Classified e760 | Water
# 3003B396 | Core i7 980X [6C 12T] @ 4521.5MHz | 1.424 | Gigabyte X58A-UD7 | Water
# 3003B396 | Core i7 980X [6C 12T] @ 4500.2MHz | 1.376 | Gigabyte X58-DS4 | Water
# 3003B475 | Core i7 980X [6C 12T] @ 4504.9MHz | 1.442 | ASUS Rampage II Extreme | Water
___________
LN2, Validations
# 3003B287 | Core i7 980X [6C 12T] @ 6612.4MHz | 1.872 | EVGA Classified e762
# 3003B287 | Core i7 980X [6C 12T] @ 6320.5MHz | 1.823 | EVGA Classified e762
___________
LN2, SPi 1M
# 3003A957 | Core i7 980X [6C 6T] @ 6188.8MHz | 1.929 | EVGA Classified e762
# 3003B242 | Core i7 980X [6C 12T] @ 6053.3MHz | 1.846 | EVGA Classified e762
# 3003B331 | Core i7 980X [2C 2T] @ 5869.0MHz | 1.904 | Gigabyte X58-UD4
# 3952A844 | Core i7 980X [6C 6T] @ 5906.2MHz | 1.888 | Gigabyte X58A-UD7
___________
LN2, 3DMark Vantage
# 3003A957 | Core i7 980X [6C 12T] @ 5859.7MHz | 1.846 | EVGA Classified e760
# 3003B178 | Core i7 980X [6C 12T] @ 5506.1MHz | 1.760 | Gigabyte X58A-UD7
# 3003B187 | Core i7 980X [6C 12T] @ 5713.9MHz | 1.729 | EVGA Classified e762
# 3003B331 | Core i7 980X [6C 12T] @ 5566.7MHz | 1.835 | EVGA Classified e760
# 3003B396 | Core i7 980X [6C 12T] @ 5821.5MHz | 1.824 | ASUS Rampage III Extreme
# 3952A844 | Core i7 980X [6C 12T] @ 5405.2MHz | 1.872 | ASUS Rampage II Extreme
___________
LN2, AquaMark 3
# 3003B320 | Core i7 980X [6C 6T] @ 6325.4MHz | 1.928 | ASUS P6T WS Pro
Official Intel Gulftown (Westmere) Overclocking and Batch Tracking Thread
so be sure to post your result in the thread to add to the database
Quote:
Originally Posted by radaja
Not a single F batch in the list??
Are they that new?
:yepp: they newQuote:
Originally Posted by turtletrax
best is whats provenQuote:
Originally Posted by hodgy1971
i know for sure A batches suk b batches are good still bad in em
my f batch needs 1.39 for 4.4ghz 4.5ghz 1.43 i'll try higher laterzzz
For crying out loud lol Yes, in comparison to 3 other applications it was unreliable, the latest BETA is now on par with them. Yeah you should download the latest version, but I didn't deserved to get flammed for using the latest official version. The BETA isn't even mentioned on the TechPowerUp page I had to hunt elsewhere for it.Quote:
Originally Posted by radaja
On another note, the main reason I got fed up was the fact he quoted me for being anti Prime95? I fail to see how I was remotely "anti" it by asking a simple question regarding the program.
As talking from experience one or two versions of Prime95 have been known to hold bugs. When Mutli-Core CPUs first emerged on the market there were a tone of problems with Prime95/Orthos compatibility. There still exists a few bugs with hyperthreading whilst using the application as well. That is why I asked if the program is reliable.
hye all...:)..i'm new here..:)..this is my first post..
i've seen in the first page from this thread that there is a note about i7 965 which is "1. FIX SATA 6G device may experience S3 resume failure when using Intel i7 965 CPU".
Since i'm using i7 965 with asus r3e, what are the problem i will be facing if i decide to flash my bios..??..currently, i'm using the stock version which is 0402..
u should consider this bro..
http://www.ekwaterblocks.com/shop/ca...820254&x=0&y=0
http://www.ekwaterblocks.com/shop/ca...820247&x=0&y=0
602 is worth the download anyway mate, the full specs of the BIOS update aren't listed there. It actually adds performance and overclocking capabilities for memory. Others have also reported better CPU overclocking with the newer BIOS.
thanks bro..:)..i will flash my bios to 0602..and see how it goes with my 4.00g's..Quote:
Originally Posted by NathObeaN
my nb and sb are quite hot when oc'ing, i just set the IOH and ICH voltage on 'auto', but then it increase up to 60-70+ for quite sometime. i' ve heard that, we can just blow the nb by putting a fan..is that enough to cool my nb..??
Thanks Radaja that's what I needed!Quote:
Originally Posted by radaja
@jacek
Bad luck on that bios flash, I don´t know how you did it, but here´s something for you
EZ Flash 2 – the best, the safest and the most convenient way to update BIOS
I have never failed a flash with EZ Flash 2
Nice recovery on that bad flash though :up:
For those who wonder, 0702 beta is no third party, it´s from Asus but it´s not ready for release yet.
i'm usin 702 good so farQuote:
Originally Posted by Ghostleader
Hi Kaka,Quote:
Originally Posted by kaka_89
I was dissapointed when I removed my stock heatpipe system to find.
A, Screw missing from Northbridge
B, Terrible yellow sticky thermal pads which were not applied right
C, Creased thermal pad on my mosfets
Needless to say after installing my EK full cover water block, my NB temp was reduced from 87oc idle to 29oc
after fixing the heatpipe installation myself with decent thermal paste i managed to reduce it to 68oc / 70oc idle.
[QUOTE=If your sound card is PCI-E then you can put it in any of the slots as PCI-E is backwards compatible. If however, it is PCI then you will either have to use the onboard sound for 2x PCI-E x16 graphics cards, or use your PCI sound card along with 2x PCI-E GFX cards with a x8/x16 combo (could be x8/x8 I'm not sure - either way you won't notice much difference tbh but it's up to you), maybe invest in a PCI-E sound card?.[/QUOTE]
Thanks heaps for the feedback Nath.
I do appreciate your help & confirming my thoughts.
Seeing as how I sold several organs to buy all this kit I may as well get myself a new PCI-e sound card too.
Thanks again Nath.
The max QPI Voltage is 1,35VQuote:
Originally Posted by Bodar
The max VDimm is 1,65V
<1,40v Is ok 24/7
Bodar I Usually use 1.45-1.5 for 6ghz benching ln2 and chip clocks the same still :)
yep never had a problem with EZ Flash 2Quote:
Originally Posted by Ghostleader
like i said no big deal.just saying i can see where uncleweb was coming from.Quote:
Originally Posted by NathObeaN
but the prime95 thing i agree with you,you did nothing wrong,just asking questions.
any differences to note sir zsamz?Quote:
Originally Posted by zsamz_
Does anyone have any adivce on how to break my BCLK barrier. I have encounted quite a few errors trying to get it past 212.
I can use 211 no trouble so far, however 212 seems to get random errors no matter what voltage, 213 the BIOS is laggy and 214 just won't even post.
Any ideas? I have tweaked with the PCI-E frequency, IOH/CPU clock skew (I got it to 215BCLK posting with that somehow), CPU differential applitude, PWM frequency and all the voltages.
I would just like a combination of settings to try as tweaking them individually is getting me no where. Surely I should be able to get past 212BCLK?
EDIT: This is with a i7 930 btw.
Have you Test the CPU on a other Board or only at the RIIIE ?
Can your CPU handle a higher bclk?
Could be the CPU yes. Do you have the opportunity to try it on another board?Quote:
Originally Posted by NathObeaN
vtt?Quote:
Originally Posted by NathObeaN
I can't test it on another board no, however when running in QPI Slow Mode the other week I somehow got it to 235 BCLK.Quote:
Originally Posted by Marvin82
As above.Quote:
Originally Posted by DuraN
I have tried up to 1.45V doesn't seem to make a difference.Quote:
Originally Posted by Hondacity
EDIT: I will point out though some voltage combinations seem to make the board unable to post. For instance it will post one minute but the second I put the IOH to 1.27V then it won't post.
I have tried some random tweaking after reading, tried the PCI-E at 110,111,112 and 113 - no difference.
HOWEVER, my computer wouldn't boot at 213, I checked the timings that the BIOS had determined to be "auto" as I left it at that for safe measure. Am I correct in assuming that the RTL values on channels A>C should all be different?
The timings get closer and closer together until when it hits 213 they become the same on channel B and C - doesn't post. Change the RTL timings slightly so they are different - it posts, but the BIOS is still laggy. I tried loosening the timings another 10, loosened nearly all the RAM timings in fact, but 213 is still laggy and 214 still won't post - annoyed! It has to be a timing issue as so far both RTL and clock skew seem to have an effect on the posting ability and the CPU can get to 235BCLK on QPI Slow Mode.
Thanks for the help guys :up:.
vtt is low...should be around 1.50v+
whats your uncore at? Im finding on water that my board doesnt like much over 4ghz maybe thats just gulfie though
Am I correct in thinking that vtt = qpi/dram voltage? Isn't that a little high for such a mild OC. Especially considering my qpi/dram is at 1.25V with a 211BCLK and its prime/linx stable.Quote:
Originally Posted by Hondacity
This is with keeping the memory multi at the lowest too. I don't think it is a voltage issue, as one minute it is prime/linx stable, a couple more MHz and it just dies.
Uncore is either 2x or 2x+1 on the RAM. Which I have put at the lowest multi also... so for a 214BCLK it would be either:Quote:
Originally Posted by Splave
1. 2568MHz
2. 2782MHz
:down: 1,5V VTT is too much for only high bclk around 212-222
With 2200mhz Ram ok
Quote:
Originally Posted by Hondacity
Ever thought your CPU needs more cold to get 235 stable, no idea why some even want more than 220Bclock if you have a multi of 21 and beyond for daily clocks...
I edited your template with settings I would try, so you can give it a shot if you want.Quote:
Originally Posted by KaRLiToS
No! That is too much! :shakes:Quote:
Originally Posted by Hondacity
Correct. :yepp: 1.5V VTT (QPI/DRAM) IS too much! Why don't you post your settings using BIOS template, so people could check it out?Quote:
Originally Posted by NathObeaN
+1 Flashed to 0702 last night and it's working fine. Folding 22 hrs now. No obvious faults as it works with settings as before. Didn't have a chance to test if it's better, requires less voltage for Vcore, VTT, etc.Quote:
Originally Posted by zsamz_
requires less qpi volts n memory clocking is betterQuote:
Originally Posted by Splave
since i had to reseat cpu i put in 920 to play with
980x goin back in soon to see
Thanks Splave and Marvin82! :) I'm trying a couple settings using SS right now. 250 BCLK with this ES but hav'nt tried to push it further...Does uncorrectable hardware bsod have to do with the cpu or memory? I get that sometimes while trying for 4.80ghz on ss and vantage. I've been testing for an 06 run.. Going to grab some LN2 tomorrow and see.. cheers!
http://i43.photobucket.com/albums/e3...axbclock06.png
What can be considered safe in the option PWM Volt Control? [auto] [6v] [7v] [8v] [9v] [10v] are the selectable options.
It's for a 4.4GHz overclock.
Also... some options in bios 0602 are different than the manual... is not it?
Like i can't find CPU Voltage Control [Absolute(VID)] [Relative (Dynamic)]
Or
QPI Loadline Calibration.
I did some testing with my 920D0 with a very small SS at -20C .
First boot at 246 BCLK .... and cpuz-validation at 250 .
It can run 246 BCLK spi32m with no problems . :D
Triple channel and RAM at 2000Mhz .
http://valid.canardpc.com/show_oc.php?id=1231871
Gonna play a bit more now ! :p:
^^
Very nice Stelios! :up:
is it dangerous for an i7 965 cpuV reaching 1.440v on 4.00g's..??..i just keep playing with the CPU/VTT and IOH voltage with other setting on auto...
bclk=180,
CPU Ratio Setting [Auto]
C1E Support [Enable]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetcher [Enabled]
Intel(R) Virtualiyation Tech [Enabled]
CPU TM Function [Enable]
Execute Disable Bit [Disabled]
Intel(R) HT Technology [Disabled]
Active Processor Cores [*ALL]
A20M [Disabled]
Intel(R) SpeedStep(TM) Tech [Disabled]
Intel(R) C-STATE Tech [Disabled]
C State package limit setting [Disabled]
Today I just received my new HD 5850, it has a different BIOS from my other HD 5850...they are both reference card (one from Biostar (only one I could find) and one sapphire) My Rig was full stable at 4.3 Ghz but now I get constant BSOD.... What do I need to know when putting two GPUs in crossfire
-Should I remake my whole overclock?
-Is there some settings I should play with? Adding which voltage.
Thank you
Thank you mate :thumb: I tried but doesnt work...it seems like I cant use 1N timing mode. not sure if its normal, I still have a lot to learn. About CPU PWN Frequency, what does this setting do?Quote:
Originally Posted by donmarkoni
Extreme Tweaker Settings for my 4.3 Ghz Stable (only one HD 5850)
PHP Code:Target CPU Frequency 4294MHz
Target DRAM Frequency 1636MHz
LN2 Mode [No]***
QPI Loadline Calibration [Yes]***
Sync Mode [Enabled]
AI Overclock Tuner [Manual]
OC From CPU level Up [Auto]
CPU Ratio Setting [21]
CPU Turbo Power Limit [Disabled]
>CPU Configuration----------------------------
CPU Ratio Setting [21]
C1E Support [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetcher [Enabled]
Intel(R) Virtualiyation Tech [Enabled]
CPU TM Function [Disabled]
Execute Disable Bit [Disabled]
Intel(R) HT Technology [Enabled]
Active Processor Cores [*ALL]
A20M [Disabled]
Intel(R) SpeedStep(TM) Tech [Disabled]
Intel(R) C-STATE Tech [Disabled]
C State package limit setting [Auto]
----------------------------------------------
BCLK Frequency [204]
PCIE Frequency [102]
DRAM Frequency [1636]
UCLK Frequency [3690]
QPI Link Data Rate [Auto]
Memory Configuration Protect [Disabled]
>DRAM Timing Control--------------------------
CAS# Latency [8]
RAS# to CAS# Delay [8]
RAS# PRE Time [8]
RAS# ACT Time [20]
RAS# to RAS# Delay [Auto]
REF Cycle Time [Auto]
WRITE Recovery Time [Auto]
READ to PRE Time [Auto]
FOUR ACT WIN Time [Auto]
Back-To-BackCAS# Delay [Auto]
Timing Mode [3N]
Round Trip Latency on CHA [Auto]
Round Trip Latency on CHB [Auto]
Round Trip Latency on CHC [Auto]
WRITE To READ Delay(DD) [Auto]
WRITE To READ Delay(DR) [Auto]
WRITE To READ Delay(SR) [Auto]
READ To WRITE Delay(DD) [Auto]
READ To WRITE Delay(DR) [Auto]
READ To WRITE Delay(SR) [Auto]
READ To READ Delay(DD) [Auto]
READ To READ Delay(DR) [Auto]
READ To READ Delay(SR) [Auto]
WRITE To WRITE Delay(DD) [Auto]
WRITE To WRITE Delay(DR) [Auto]
WRITE To WRITE Delay(SR) [Auto]
----------------------------------------------
CPU Differential Amplitude [Auto]
CPU Clock Skew [Auto]
IOH Clock Skew [Auto]
------------ Extreme Engine Digi+ ------------
Digi+ PWR Mode [T-Balanced]
PWR Volt. Control [Auto]
Load-Line Calibration [Auto]
CPU Voltege OCP [Enabled]
CPU PWM Frequency [Auto]
Extreme OV [Disabled]
Extreme OC [Disabled]
CPU Voltage [1.3375v]
CPU PLL Voltage [1.84175v]
QPI/DRAM Core Voltage [1.300v]
DRAM Bus Voltage [1.643v]
>DRAM REF Voltages----------------------------
DRAM DATA REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM DATA REF Voltage on CHB [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHC [Auto]
DRAM CTRL REF Voltage on CHC [Auto]
----------------------------------------------
IOH Voltage [1.19291v]
IOH PCIE Voltage [1.52431v]
ICH Voltage [1.12666v]
ICH PCIE Voltage [1.52431v]
---------- Spread Spectrum Control -----------
CPU Spread Spectrum [Disabled]
DRAM Spread Spectrum [Disabled]
very nice bclk stelios:up:Quote:
Originally Posted by Stelios
i cant help hearing this song while picturing you doing this OC:D
STELIO STELIO KONTOS.STELIO STELIO KONTOS
STELIO STELIO KONTOS STELIO STELIO KONTOS
Well, my R3E presented me with something new this evening....
http://img526.imageshack.us/img526/9...toothstack.jpg
Anytime I try to access the Bluetooth Manager I'm presented with this notification. So, just what to I need to do with the Bluetooth drivers? I Googled the message ad discovered a ton of other people with notebook issues. The last thing I want to do is booger up a good Win7 install by screwing with incorrect drivers!
wkakakaka...finally i got a friend here..same here too bro..!!..what is the problem..??Quote:
Originally Posted by vladimir
Well, I reinstalled the drivers from ASUS, (the re-install removed the installed drivers before re-installing), and no more message to obtain a license. Unfortunately, i now have to pair everything back up again. I certainly hope I don't have to re-install these things every 28-30 days!Quote:
Originally Posted by kaka_89
Quote:
Originally Posted by kortas;
Thanks guys I can live with these better numbers. I'm tired of fighting with my gigabyte.Quote:
Originally Posted by donmarkoni;
I did a CPU reseat and upgraded to 0702 and the OC issues seem to be gone.
Pretty glad too, didnt want much to do with a flaky board and the R3E really suits my needs.
Have just got my board but at the minute i have crap memory! Can anyone recomend me any fast memory tri channel with tight timing! My budget is £400 for memory!
Quote:
Originally Posted by bro20000
I am loving my Corsair Dom GT Cas 7 2000's. Havent really pushed them hard yet but 2050 Cas7 was easy. Waiting to get my new procs without crap IMCs to arrive. Should be this weekend or early next week.
Oh ya, thanks zsamz_ :up:
Will flash my BIOS tonight with 0702, having strange issues with mine again whilst overclocking.Quote:
Originally Posted by turtletrax
I can reach 3.8 totally stable with good voltage, however getting higher is proving impossible.
Quote:
Originally Posted by turtletrax
Thanx for feedback i will have a look at getting some corsair c7!
Absolute and relative VID are not present in BIOS 0602 and to enable QPI Loadline Calibration you have to move a jumper on the mobo.Quote:
Originally Posted by kpablo
Except on 980x where 1.5x is allowed.Quote:
Originally Posted by NathObeaN
I got the following PCIE cards that I like to use:
2x GTX 480 in SLI
1x Xfi-Titanium
1x Intel PRO/1000 PT NIC
Going by the R3E manual, am I correct that there's no way to run the GPUs in x16 mode when one of the other red PCIE slots is also occupied? In other words, when I stick the NIC in the last red PCIE the mobo will auto configure to x16 x8 x8 and there's no way to run them in x16 x16 x1 like on the R2E? Thanks.
Hi Mate ! Nice to see you around . :):)Quote:
Originally Posted by JoeBar
Thanks !
:D:D:DQuote:
Originally Posted by radaja
I watched some videos and i have to say that this guy is crazy ! :ROTF:
I tried 4 cpus and i have to say that the BCLK thing is first of all a matter of the CPU . Not all CPU's can achieve high BCLK .
Yes , 2000CL7 memories run very nice on REX3 .Quote:
Originally Posted by bro20000
Yesterday i did a run at 5GHz with CL6-7-6-18 and 1.72Vdimm .
Later i made a safe run at 2300Mhz CL8 just to check if they can run at high Mhz . Next i'll try CL7 .
I'll keep you updated .
@Bodar
i think your Problem is the QPI Link
But you use the Slow Mode and have a wall at 250
you can test it at 224 Bclk with normal QPI Link
Is the bosd the same than you have a wall
