11-06-2006, 05:52 PM
ssabripo

Quote:

Originally Posted by HeadShotWI

Ignore what microsoft wrote. Just download it. install, run an optimization and see the difference.

wtf? they took it off the microsoft website!:mad:

anyone got a link to the latest version?
11-06-2006, 05:58 PM
Psyire

Quote:

Originally Posted by Cappie

I'm using an audigy now but can't comment yet, haven't tested enough to make a full statement, tomorrow or the day after I will put back my clean ghost(one that hasn't got any audio drivers or soundcard installed), then I will install audigy again and test again. Cuz my tests now are inconclusive with my windows being polluted with this asus crappy software.

Please do, that would be awesome. It would be very interesting for you to run an HDTach test (before & after). I'm most curious if adding an Audigy would solve 3 main problems:

Slow Boot Time
HDD Performance Interruption
Crackling Sound

Thanks
11-06-2006, 06:00 PM
HeadShotWI

Quote:

Originally Posted by ssabripo

wtf? they took it off the microsoft website!:mad:

anyone got a link to the latest version?

I posted a link about a page back.
11-07-2006, 01:37 AM
Eurekabox

is 127C normal Northbridge temperature???

Hi, i have been doing some overclock and could only reach 360FSB (from 266) RAM 720 (from 667), 2.88Ghz from (2.13)... well i am not whining because this my first overlcok ..hehe.

The point is that i was only using CrystalCPUID, TAT, Orthos and CPUz to test my overclock. Once i could not push the FSB anymore, browsing i found Speedfan to watch voltages...

Well, there was an "AUX" temperature reading 127C in speedfan!!!!!!!!! Oh my god!! i went into the bios and set default and auto values, my overclock was gone for god's sake...but at least that AUX temperature should be much more less..... WRONG!!!!

It is still reading 127C as i am typing this!!! I did some research and found out that this AUX could be the Northbridge.

*****EDIT****
Just to clarify, this AUX temperature is not the SYSTEM temperature shown in AI Suite or PC Probe 2.

SYSTEM is at 34C and CPU at 41C.

The AI Suite, PC Probe 2 and Speedfan agree with CPU and SYSTEM temperature readings, BUT SPEEDFAN SHOWS an EXTRA "AUX" temperature reading of 127C!!!!

*****EDIT****

There is plenty of air circulating in my aluminum case, plus thermaltake Blue Orb 2 cooling all below it including northbridge heatsink.

So is this temperature normal? It is the same with or without overclock.

Could anyone of you please download speedfan and check what your AUX temperature is???

http://www.almico.com/sfdownload.php

Thank you!!!
11-07-2006, 03:48 AM
Cappie

that aux temp is normal man, mine is 119:) And Psyire I will have your answer later today!

@Psyire, just put back my clean ghost, installed audigy drivers, ran bootvis and my bootup now takes a max of 5 splash bars, sometimes 4,5, no more crackling sound, before I had access times of about 19-22.5ms, now I have 7.8ms. So after about 6 tests one can defenitely say that Asus and Soundmax still have alot of work to do(Soundmax wrote the buggy audio driver).
11-07-2006, 05:58 AM
china

Quote:

Originally Posted by sluzbenik

To folks with Corsair Twinx 6400 C5...

This is Corsair's reply:
Original Message »
Currently there are issues with the P5B motherboard and manual settings with CAS 5. Asus is in the process of a BIOS that will resolve this issue.

Well, they could at least give us some good manual settings, crimeney!

Well, what kind of problems have you experienced with your Corsair sticks? I have a 6400 C5 kit as well and at the moment they are running fine at around 800Mhz and 4-4-4-10. Maybe my problems with reaching higher than 400 FSB are related to memory issues after all...
11-07-2006, 06:31 AM
Eurekabox

Hi, thank you for your response.

But, is this a real reading? or is a non sense crazy invented reading taken from nowhere?

Is the northbridge?

Thanks
11-07-2006, 06:59 AM
Rubiconx3

I didnt notice where to change the multi in the BIOS, am i missing it?
11-07-2006, 07:15 AM
Viss

CPU tab, enable modify ratio support.
11-07-2006, 07:16 AM
Ace-a-Rue

it should be under "CPU configuration" under the "Advanced" tab...if you do not have ratio support available to adjust then update your bios.
11-07-2006, 07:22 AM
Viss

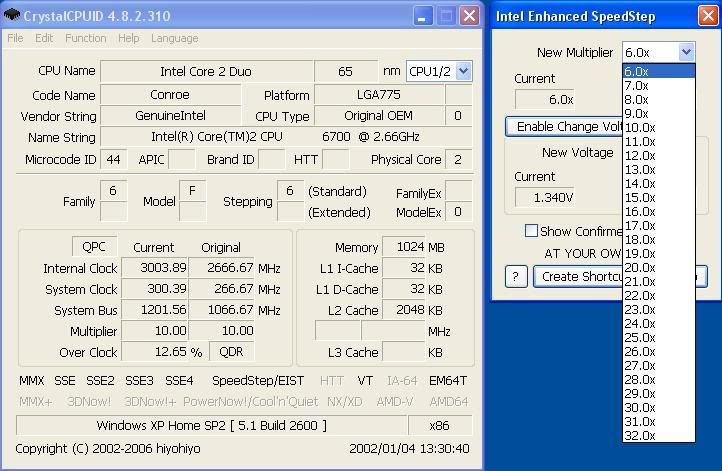

Or use cpuid to change it in windows.

http://img.photobucket.com/albums/v636/loc_oc/cpuid.jpg
11-07-2006, 07:26 AM
Rubiconx3

Oh in the BIOS enable that option then :D Thanks
11-07-2006, 07:30 AM
TI66ER

hello,i just thought i'd say hello to you p5b'ers,and say i will be joining you soon.i am getting my p5b deluxe tommorow and my chip(e6300) nxt week.

i will be using my nicely oc'able D930 for now,which in my p5wd2 i run at 4.2ghz with my fsb at 280 and ram at 933(using divider).i am hoping i can run my 930 at this speed in the deluxe until i get the new chip.
11-07-2006, 08:06 AM
Eurekabox

Hi loc.o i am just a newbie, but why you just did 12.65% overclock?
11-07-2006, 09:00 AM
Viss

Hi and welcome :toast:

Not a particulair reason tbh, it just ran at 3ghz when i made the screenshot :D
11-07-2006, 11:20 AM
Psyire

Quote:

Originally Posted by Cappie

@Psyire, just put back my clean ghost, installed audigy drivers, ran bootvis and my bootup now takes a max of 5 splash bars, sometimes 4,5, no more crackling sound, before I had access times of about 19-22.5ms, now I have 7.8ms. So after about 6 tests one can defenitely say that Asus and Soundmax still have alot of work to do(Soundmax wrote the buggy audio driver).

Wow, that is quite a difference. So long as no other 'new' problems occur, an Audigy might be the answer at the moment. (it would be nice to know if Asus was even working on getting new sound drivers)
11-07-2006, 08:51 PM
Eurekabox

Hi, for how long should be run Orthos to consider that the overclock is stable?

And How long have you run orthos guys?

Thanks!
11-07-2006, 08:54 PM
szukalski

Quote:

Originally Posted by Eurekabox

Hi, for how long should be run Orthos to consider that the overclock is stable?

And How long have you run orthos guys?

Thanks!

Anything above 8 hrs for me. I can't see myself using the pc for longer than 8hrs in one go..
11-08-2006, 04:10 AM
davexl

Quote:

Originally Posted by Eurekabox

Hi, for how long should be run Orthos to consider that the overclock is stable?

And How long have you run orthos guys?

Thanks!

4-8 hours = plenty stable for games, web, no important data you can't afford to lose on the system.

24 hours = very stable

48 hr+ stable = pretty much unbreakable for 24/7 use.

I have had failures at 38 hours :eek:
11-08-2006, 04:16 AM
funkflix

For me Prime is useless on Core 2 Duo.. 3807MHz 1,43V 5h stable(stopped), but random errors while gaming, sometimes after 5 minutes! For full stability at gaming i must use 1,48V!
11-08-2006, 05:13 AM
Andrew_A

I've a new problem - board clocks back to fsb 322!

i fixed everything in the bios to fsb 400 and it worked fine... but after some time the whole system just jumps back to fsb 322... This isn't just a measuring fault, superpi goes up too...

"My solution" is a windows clocking tool to drag back the fsb to 400... but this can't be the solution... i mean... wtf?

Thanks!
Andrew.
11-08-2006, 06:31 AM
HeadShotWI

Quote:

Originally Posted by Andrew_A

I've a new problem - board clocks back to fsb 322!

i fixed everything in the bios to fsb 400 and it worked fine... but after some time the whole system just jumps back to fsb 322... This isn't just a measuring fault, superpi goes up too...

"My solution" is a windows clocking tool to drag back the fsb to 400... but this can't be the solution... i mean... wtf?

Thanks!
Andrew.

Make sure C1E is disabled. That was my problem. Once I disabled this it went to 400.
11-08-2006, 06:42 AM
mascaras

Quote:

Originally Posted by happyboy6

No thoughts by anybody on this?

Its the conroe FSB WALL , all Conroe have FSB WALL , mine is at 467Mhz , my ram Run 567mhz superpi 32M however i cant boot 468x8 || 468x7 or 468x6 i only can run 467x8 || 467x7 and 467x6

it seams your CPU have the FSB wall even worse at 430 mhz :(

Quote:

Originally Posted by HeadShotWI

Ignore what microsoft wrote. Just download it. install, run an optimization and see the difference.

I install bootvis then >> TRACE >>> OPTIMIZE SYSTEM and i got 20 bars :(

regards
11-08-2006, 07:22 AM
HeadShotWI

Guys I have a question about temps.

I HAD a ds3 and was getting temps using coretemp around 40 idle 53 load @ 400x8 @ 1.425vcore

I now have a p5b and I am using the same 400x8 @ 1.425vcore but my idle temps are about 41-43c and my load temps climb to about 59/60c. First of all is high 50s safe?

Also I have tried removing my scythe ninja and remounting it taking great care and properly applying as5 per there instructions(thin line of gunk down the middle).

I have noticed that coretemp and the asus probe software report different temps. Coretemp and probe show the same temps for idle however under load coretemp never climbs higher than about 55c however asus probe hits 59/60c. Which one is more accurate?
11-08-2006, 07:24 AM
HeadShotWI

Quote:

Originally Posted by mascaras

Its the conroe FSB WALL , all Conroe have FSB WALL , mine is at 467Mhz , my ram Run 567mhz superpi 32M however i cant boot 468x8 || 468x7 or 468x6 i only can run 467x8 || 467x7 and 467x6

it seams your CPU have the FSB wall even worse at 430 mhz :(

I install bootvis then >> TRACE >>> OPTIMIZE SYSTEM and i got 20 bars :(

regards

wow that is terrible. You have a sound card or using on board sound?
