12-03-2006, 10:19 PM
fhpchris

Quote:

Originally Posted by Zucker2k

How are you guys determining the vfsb voltages you're running - readouts from the mods on the physical board itself? Thanks.

DMM- readout from physical board.
12-04-2006, 12:50 AM
Dr.No.pt

Quote:

Originally Posted by fhpchris

Well, found out that the AW9D isnt locking the PCIE bus, all my x1950s and my 8800gtx work fine!

I plug in a x800 vanilla, and it cant even run stock speeds @ 434 fsb, yet runs fine @ 266*9.

I would think that anyone that is using SATA on this board(or a crappy ide hdd), or VGA that is very sensitive to PCIE clock speed would have problems!

I run raid on the Southbridge with 4 drives, so it seems that ~435 fsb is possible with that setup ;)
I bet everyone that is ~445+ is really running only 1m or using a HDD that works well @ high pcie speeds

Soo, what's the catch ?
How did you figure it out regarding the PCIe lock ? :confused:
You sure ?
12-04-2006, 03:24 AM
NicoOCZ

In case it hasn't been posted yet, changelog of 13 B04:

Quote:

a. BIOS version 13.B04 has released for solving CMOS date lost all data back to "fail safe mode" issue.
b. Latest OC status: http://valid.x86-secret.com/show_oc?id=132570
12-04-2006, 08:19 AM
Hilfiger

Quote:

Originally Posted by MrDeeds

I'm basing my advice on air results and both boards were unmodded. The P5Bs vdroop is one of if not the worst i've personally experienced with a board. At 1.6v in the bios it droops to 1.56 in windows and that goes to like 1.53 under load.

It would be nice if everyone had a cpu that does well with low volts but i dont and that was one of my main issues with the board. Other than that you'll also have to understand i had it when it was cold-booting which they have now fixed. So at the time i didnt have such a great experience with the board and that was from my own experience not just from seeing how well others were doing with it. The board wouldnt boot higher than 387X9 for me and my highest boot on air with the AW9D-Max was 412X9, i wasnt stable at that fsb because of my cpus limitations but i guess i was sold at that point on the abit being the better board for 9x and up c2ds.

I dont see why your always putting down the board hilfiger, when i look at all the other 975X board we're all hovering around 450max fsb without mods and thats what the board gives. The dfi infinity board is the only one that seems to be pushing past the 450s consistently but look how long the boards been out. The only 680i boards better than 975X are the asus ones and they werent even available when the majority of us got this board. So i really dont know what your looking for here. fhpchris posts great air results with the board all the time and i dont believe his board is modded in any way other than a swiftech nb cooler. I dont have a problem with you liking the P5B-D over the AW9D-Max but what are you basing that stance on?

because i gived away my pb5 for this :D
12-04-2006, 08:51 AM
hipro5

Good news.........A birdie told about 1333 strap......;) :D
12-04-2006, 09:08 AM
shimmishim

Quote:

Originally Posted by hipro5

Good news.........A birdie told about 1333 strap......;) :D

:woot:

thanks hipro!

and i'm so glad i didn't get rid of this board (assuming this is true).
12-04-2006, 09:12 AM
Virtual

mh.. 1333 strap.. mhh :rocker: :D
12-04-2006, 09:42 AM
Hilfiger

Quote:

Originally Posted by hipro5

Good news.........A birdie told about 1333 strap......;) :D

they sayed this long time ago, just on release, any idea when bios for it?
12-04-2006, 02:00 PM
Dr.No.pt

That birdie deserves a reward ! :banana: :banana:

:clap:
12-04-2006, 07:00 PM
FragTek

WoW! If we get 1333 strap u can bet ur arse i'm gonna keep this board... Did the birdie happen to mention anything about a possible release date? ;)
12-04-2006, 07:32 PM
situman

if no bios gets released within this week, we get to bbq the birdie and then feed it to the worms
12-04-2006, 08:12 PM
shimmishim

got some new memory and a new chip...

figured i'd try some new hardware out to make sure it was the board causing the board to not be able to blend @ 400+

so i tried the mem and the cpu and still can't do blend.

so i've given up on it... for now.

it's still a fast board and i can now easily boot 420 with no tweaks where as before with my 6700, it'd take a while to get 420 to boot.
12-04-2006, 08:36 PM
LarsK

Quote:

Originally Posted by hipro5

Good news.........A birdie told about 1333 strap......;) :D

That's great news. Any news about whether it will have "proper" Kentsfield support?
12-04-2006, 11:27 PM
hipro5

You didn't get it!......That birdie not ONLY told me that newer bios with 1333 strap is going to be released!......He has already send me the bios too.....:D
Though it's a preleleased ALFA version for the time been.....
It HAS the 1333 strap but unfortunately not above 5:4 rams.....I mean by that, that the rams - for the time been - are underclocked so as firstly to test the 1333 strap and then see what will happen.......I'll test the bios today and I'll report back... :)

Quote:

Originally Posted by situman

if no bios gets released within this week, we get to bbq the birdie and then feed it to the worms

:D
12-04-2006, 11:59 PM
fhpchris

Quote:

Originally Posted by hipro5

You didn't get it!......That birdie not ONLY told me that newer bios with 1333 strap is going to be released!......He has already send me the bios too.....:D
Though it's a preleleased ALFA version for the time been.....
It HAS the 1333 strap but unfortunately not above 5:4 rams.....I mean by that, that the rams - for the time been - are underclocked so as firstly to test the 1333 strap and then see what will happen.......I'll test the bios today and I'll report back... :)

:D

Can you also test to see if the pcie bus is locking correctly?
12-05-2006, 02:52 AM
Bluebeard

i´m sure he will ;)
12-05-2006, 03:16 AM
FragTek

Quote:

Originally Posted by hipro5

You didn't get it!......That birdie not ONLY told me that newer bios with 1333 strap is going to be released!......He has already send me the bios too.....:D
Though it's a preleleased ALFA version for the time been.....
It HAS the 1333 strap but unfortunately not above 5:4 rams.....I mean by that, that the rams - for the time been - are underclocked so as firstly to test the 1333 strap and then see what will happen.......I'll test the bios today and I'll report back... :)

:D

I'm pretty sure the birdie just forgot to tell you, but I'm on that list to get that BIOS, mind forwarding it to me? :p
12-05-2006, 03:18 AM
hipro5

Quote:

Originally Posted by FragTek

I'm pretty sure the birdie just forgot to tell you, but I'm on that list to get that BIOS, mind forwarding it to me? :p

Sorry, I just can't for the time been.......:(

EDIT:

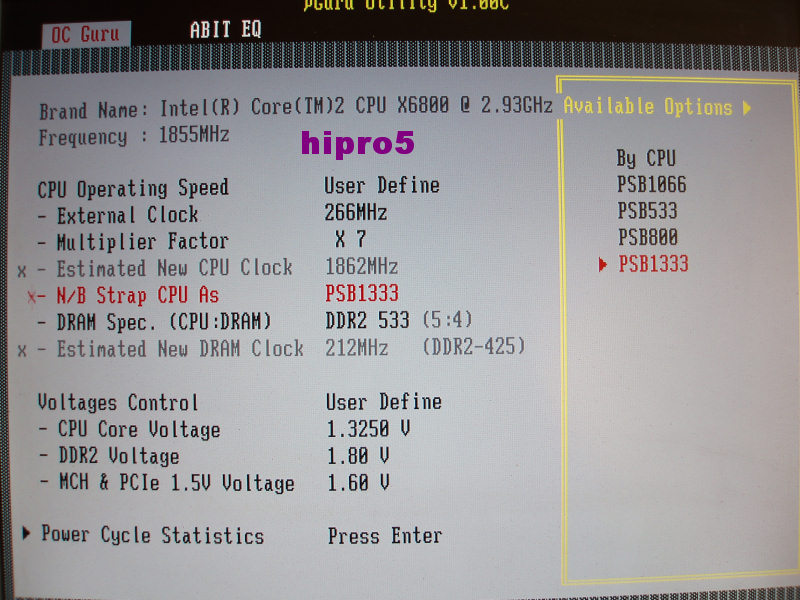

http://www.thelab.gr/images/Hipro5/T...1333_strap.jpg
12-05-2006, 04:27 AM
shimmishim

Quote:

Originally Posted by hipro5

Sorry, I just can't for the time been.......:(

EDIT:

http://www.thelab.gr/images/Hipro5/T...1333_strap.jpg

:woot: :woot: :woot: :woot: :woot: :woot: :woot:
12-05-2006, 05:34 AM
death metal

Please request to add support for FSB vTT adjustment up to 1.8v (currently 1.2v only). I'm too lazy to vMod a board nowadays, so I hope they will add that option to help Kentsfield with better FSB.
12-05-2006, 05:57 AM
situman

only Alpa?? So that means it will be AFTER the next bios release? We've had 3 beta bios already. Now we are back to Alpa, that's nice.
12-05-2006, 06:21 AM
shimmishim

Quote:

Originally Posted by situman

only Alpa?? So that means it will be AFTER the next bios release? We've had 3 beta bios already. Now we are back to Alpa, that's nice.

lol. for real.

just release official 13!!! :stick:

so we can say there is now an alpha 14 available :)
12-05-2006, 06:55 AM
Nitemare

Quote:

Originally Posted by hipro5

Sorry, I just can't for the time been.......:(

EDIT:

http://www.thelab.gr/images/Hipro5/T...1333_strap.jpg

...so whats up Hipro? May we test it too pleeeeaaaase ? :stick:

I´ve allready done your vfsb- and your mch-booster-mod but I´m still maxing out at 386FSB. I´ve tested lots of HQ-RAMs such as Cellshock, G.SKill, Geil, Team so I reeeeaaaaalllllyyyyy neeeeeeeeed that 1333 Strap. :banana: :banana:

Greetz!
12-05-2006, 07:35 AM
Zucker2k

333 strap

Quote:

Originally Posted by Zucker2k

Where's the 1333 strap? My patience is running thin.

To the powers that be, we've suffered a long time with this board. Help us get rid of some of the headache. And by this I don't only mean Hipro5 - we don't want Hipro5 taking the heat for any leaks. However, if there are any XS members who have access to the new 333 strap bios please do the community a favor and give us a hint on how to get it. I'd recommend that we all go hush hush on this one. We've spent too many hours on this one, trying to make it stable, give us the opportunity to try something else. In fact, I wouldn't mind at all if someone were to surprise me with a PM :D. Go team XS!
12-05-2006, 07:51 AM
MrDeeds

I could care less about getting it right now, i just want to know if its worth waiting on. You guys shouldnt try to pressure hipro or anybody else to make it available because once he does that the first thing some idiot is going to do is post it on rapidshare for the world.

I just want results. Please tell me the board is doing over 500fsb.
