Found pic with stock hsf and compared to X2. Stock HSF at dynamic, 60C = 65%. X2 at 100%. Stock volts and 700/800.

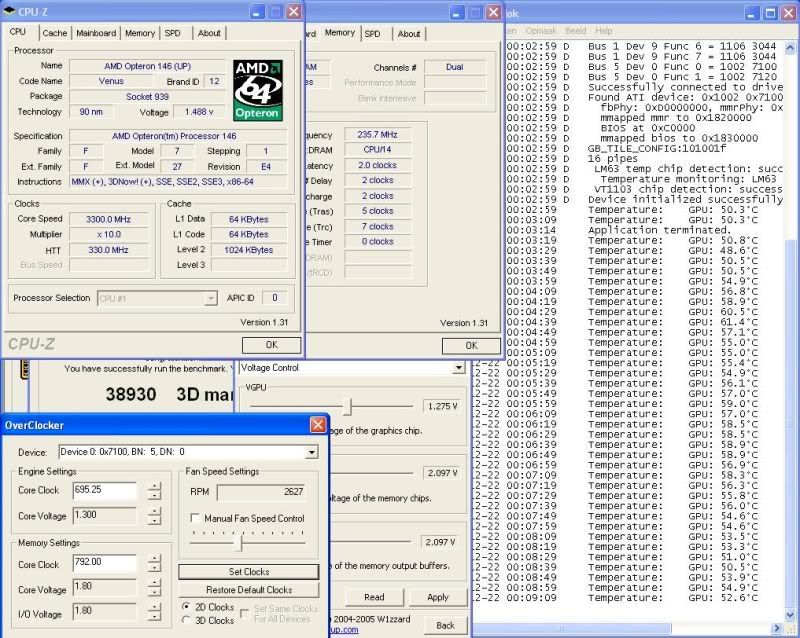

3D05 Stock
http://img.photobucket.com/albums/v6...hsf800-600.jpg

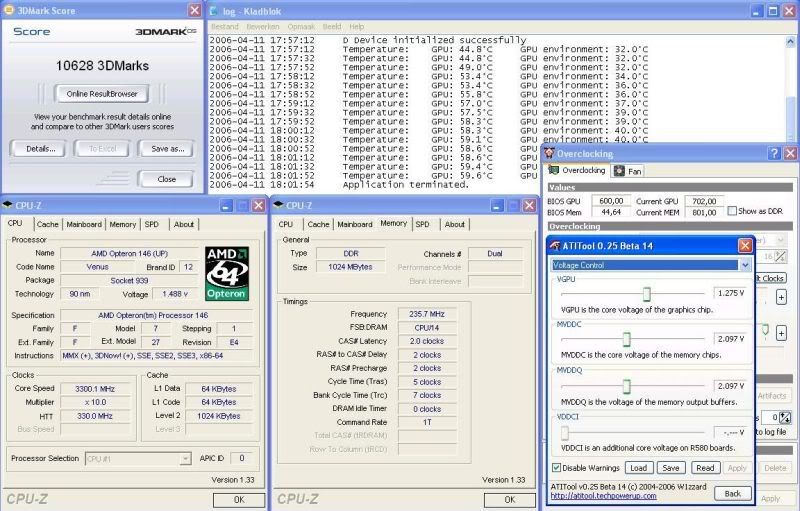

3D05 X2
http://img.photobucket.com/albums/v6...5X2700-800.jpg
3D01 Stock (nature-rest)
http://img.photobucket.com/albums/v6...hsf800-600.jpg

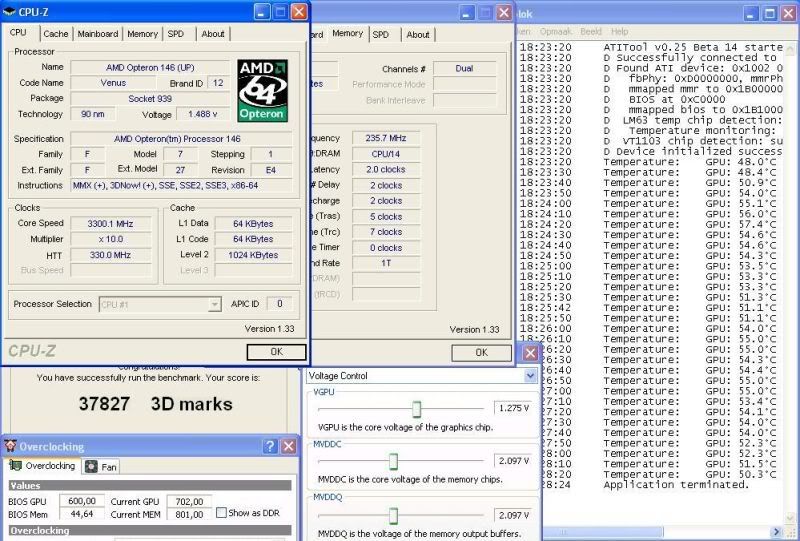

3D01 X2 (nature-rest)
http://img.photobucket.com/albums/v6...1X2700-800.jpg
Well, I Finally got a chance to check this again, and I was very pleased to see that the VF900 actually outperforms my fs-v7 by something like 12C, as opposed to my previous results of 10C or more worse, (I had to quit my 10 loops of 3dmark05 gt3 because I was getting too many artifacts and crazy temps)
Not only that, but bottom SLI card temps improved by about 2*C as well!
Overall, My initial impression of VF900 was wrong, and I'm glad I gave it another shot!
So is the recommendation that these are NOT for ATi cards, but okay for Nvidia?
Review: http://www.overclock3d.net/reviews.p...3&id=39&page=1
by me, I think they're well worth it for ATi and nVidia. You just need proper case venilation.
The VF900-Cu got my X1800XT rock solid stable at 700/800, in a small closed super lanboy.
I'm happy :D
Nick
I will mount a vf900 monday on my x1900xtx i will post my results after.
Pedro Rocha made a review on it, with a x1900xt, it's posted here in xs.
He said that it's a great cooler, the differences seems to be huge fot the stock cooler.
I guess vf900 is the best aircooled cooler that you can get for a vga right now
Just make sure you have good airflow, and you tighten it down HARD.
Nick
Agreed, I tightened it very very hard the 2nd time, and I wasn't too worried cuz it had balanced screw positions, and it made all the difference in the world, also since it's so nicely lapped, not a lot of TIM is necessary!Quote:
Originally Posted by NickS
I must have gotten a bad cooler. I checked because some people said there were some released that need to be lapped but vf900 was flat. My case is very well ventilated. I have a ufo cube and the ambient temp in the case stays below 27C. I remounted it a couple of times. The contact was great. I could read the ati writing in the thin layer of as5 that was on the base of the heatsink when I removed it. It is quite possible that I have a defective cooler. It has happened to me before with an xp-120. Nothing I did could get it to cool. I rma'd it found out there was defect in it. I guess I could rma the zalman and try another one.
well he ran atitool artifacter only for 2 minutes .. temps were still rising. My x1900xt @ xtx clocks idles at 33°C and loads at 77°C.. go figure. Still a good cooler though, does the job and it's inaudible.Quote:
Originally Posted by VoRtAn_MaDgE
why, whats the matter?Quote:
Originally Posted by ElAguila
Heatpipes *can* be faulty :S
Nick
I assume all the coolers are pretested..
I put mine on and it was 16 degrees hotter under load than the stock cooler was. I tried as5 and my trusted shin etsu paste and it didn't matter which one I used.Quote:
Originally Posted by biohead
Most manufacturing facilities don't pretest all of the products. They take representative samples from different batches and test them.Quote:
Originally Posted by biohead
I was putting VF900Cu(Full speed 2500RPM) on my X1900XT and got 75C at load before.Quote:
Originally Posted by biohead
Now, I'm using AcceleroX2 with full fan speed 2000RPM(unlock the fan speed control by riva tuner) and the load temp 65C, I added an additional Arctic Fan 9 on case exhaust and further lower down the temp by 2C to63C:) and the case temp also drop 3.5C too.
It depends on what class of VGA cards.Quote:
Originally Posted by BigDov
Since VF900Cu is a small profile cooler,
ATI, I would recommend it use on XL card
Nvidia, I would recommend it use on GT card
ATI 1900XT(X)/NVidia 7900GTX are too hot and it also reflected from their super huge size stock cooler.
I would suggest Thermal right V1 ultra and Accelero cooler for those high end cards.
I've got the same question on what to get for my X1900XT (that leafblower fan is ANNOYING!) and I've heard some say what you are saying, others who say that the VF900 on the X1900XT is fine if there is enough ventilation in the case (140mm fan in the rear enough?).Quote:
Originally Posted by hkcadcam
Trying to weigh which to get. I'm kind of a fan of zalman :rolleyes: I mean, nothing I've had from them has given me any trouble, but a friend who got an AC silencer for his A64 3000+ ran into overheating issues. Besides, zalmans look cooler :D but I'll take what cools the best without the noise
I would suggest you can try both VF900Cu and AcceleroX2 and compare their proformance like me:p: (if you have enough budget), and then you can choose one for yourself.Quote:
Originally Posted by SparkyJJO
Well, it is not easy to find the Thermal right Ultra V1 from the market(near to me), so I don't know the actual performance of this cooler. you can also try it.
Don't worry, there are a lot of Zalman and AC fans and you can sell it through ebay easily.
I was thinking it just the quality issue of of my VF900, so I RMA the VF900Cu before I read this thread and the OCforum's VF900 thread.
Finally, I just sold the new VF900Cu from Zalman directly last week.
I just ordered a VF900-Cu, I used to have a VF700 until i destroyed it lol Anyway, i hope it works okay with my 1800xl, since the ATI stock XT type cooler i bought is way too annoying, even at low rpms.
Also, just thought I'd mention that ewiz is selling the VF900-Cu for $38 if you go through this link:
http://froogle.google.com/froogle_cl...Search+Froogle
I think the link on the front page is broken. How much cooler is the vf900-cu compared to the vf700? thanks for the link Diverge.
~ 10 °CQuote:
Originally Posted by @_dud
good results.. I guess the Accelero X2 has more material to hold the heat.Quote:
Originally Posted by hkcadcam
I'm still wondering why results vary so much from person to person. Is it because of mounting, contact, thermal paste, base flatness, airflow, room/ambient temp, or maybe just the sensor?
the Thermalright V-1 Ultra seems nice but it is very heavy---310g!!!
I'm currently using the Zalman Fatal1ty FS-V7 and am getting idle temps in the low 40's and load temps in the upper 50's
Just fitted my VF900cu onto my X1900 @ XTX speeds (1.4v) and currently idling at 50c. Will play some heavy oblivion/COD2 and then assess whether it's staying or getting swapped for an X2... used a v. thin layer of AS5 and my case side is off (always is though). :)
Can someone who is getting bad temps with a vf900 try lying your case down on its side with the side panel off and see if you get much change in temps.
