EnzoTech SCW-1 CPU Waterbock

Quote:

---

Originally Posted by Thomas FJ

TinTin and nikhsub1, is it the revised blocks you are testing?

Sorry, if I have missed something, but I'm a bit confused of its the first or second vision :)
/Thomas

---

The test is not done by me, I just translated the review in English. (of course I gained permission from the originator) :D

But the one in test is the retail version as far as I know, as I got mine in some days ago.

My block is still in the box, coz I am in holiday in HK right now, no watercooling stuffs in my HK home. Will test it myself some days later after I back to my working place....:D
http://img218.imageshack.us/img218/2...925049apl3.jpg

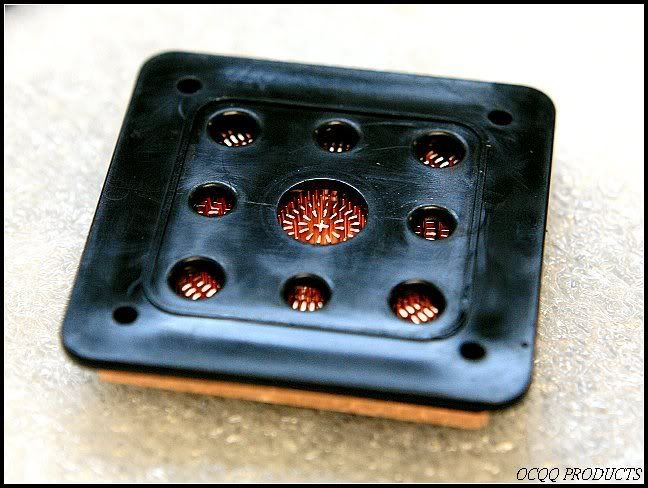

i wonder what performance gains could be gotten if someone was to mod there fuzion mid plate with more wholes like the enzo below

http://i187.photobucket.com/albums/x...01086/enzo.jpg

Quote:

---

Originally Posted by Thomas FJ

TinTin and nikhsub1, is it the revised blocks you are testing?

Sorry, if I have missed something, but I'm a bit confused of its the first or second vision :)
/Thomas

---

My testing in progress is the newly revised block.

Quote:

---

Originally Posted by louie101086

i wonder what performance gains could be gotten if someone was to mod there fuzion mid plate with more wholes like the enzo below

---

None. IIRC the fuzion still has less pressure drop than the enzo block.

Does it bother anyone else that the test shown only stresses the CPU for 10 min?

Also, aren't most block reviews normally done with just the block in question, and not a full loop?

Quote:

---

Originally Posted by Waterlogged

Does it bother anyone else that the test shown only stresses the CPU for 10 min?

Also, aren't most block reviews normally done with just the block in question, and not a full loop?

---

Yes 10min bothers me but WTF can I do? When I run a test of a block, I mount, let TAT run at load for 1 hour, then start recording the load for the 2nd hour. During that second hour I record ambient and water temps as well. I average all temps to get a deltaT. Then, I shutdown, remount the block and do it 4 more times...

Not sure I get your second question? I test with a 'loop'. Rad, pump etc but no GPU block.

Quote:

---

Originally Posted by Jedda

Do you work for Malico, Hectic?

---

Nope I dont work for Malico, I just had the opportunity to get my information direct and from the source in that email interview as I stated in my last post.

Quote:

---

Originally Posted by Think

You know, if swiftech would come out with the copper top as part of the package instead of the additional cost, they they would be untouchable. It doesn't have to be mado of copper but the enzo looks pretty.

I think that all these blocks are well designed and you can't loose with either one. I suppose it comes down to appearance preference rather than performance and I have to admit the swiftech with the brass is #1 but last for the cost.

---

The idea of including the copper top might not be feasible, and ofcourse I don't speak for swiftech, but that is my opinion that by adding the copper top into the basic product offer, the price is going to go up which might not end up being attractable to the end consumer.

But I will agree that the meere option or 2nd copper base + top combo block should be available which currently is NOT.

Quote:

---

Originally Posted by gabe

To set the record straight:
Your contact is either misinformed, or distorting the truth in an attempt to take away credit from Swiftech for designing the product.

First of foremost: Swiftech specified the form factor and design of the MC14, paid for and owns the tooling for it. The only choice Enzotech had to release a 14x14 product was to change the number of pins and cough up the tooling cost. Fair enough, but justifying the revision by a desire to improve upon performance is pure marketing propaganda.
Second and final: the Pin Fin is neither the manufacturer's design, not their intellectual property.

---

Your probably right, but it should be stated here that I was simply posting tid bits of the information I received from Mr. Chen in that interview. But you are probably right regarding the the form factor design of the MC14 when compared with the BMR-C1s.

I was extremely cautious in my post NOT to mix my words with that of what was said in the interview by Mr. Chen, hence I began the quote with "According to..." I just wanted to clarify that because I never really offered my opinion on the 2 sinks and so Ill take the opportunity to do that now.

I think the MC14 are great, but I also think the BMR-C1s are simply "greater" but in all reality both products will serve the same purpose just fine. And that ofcourse is in context to the most recent MC14s which I hear are now including better thermal tape to prevent the falling off annoyance as was reported in this forum along with many others.

So its really a matter of taste in the end as to which one the consumer likes better in terms of aesthetics and appearance you could say, be it the shiny and included extra pins of BMR-C1 or the MC14s which simply put, "get the job done."

nik, the test was done with a GPU and custom made NB and SB blocks in the loop.

You also bring up another valid point with multiple mounts, which was not done.

Quote:

---

Originally Posted by nikhsub1

My testing in progress is the newly revised block.


None. IIRC the fuzion still has less pressure drop than the enzo block.

---

Can you reveal which changes have been made from the first to the second version?

Well, the round pins seems to give the lower pressure drop?
But the FuZions middle plates outlets should be suffient enough, so an increase of outlets and their size shouldn't make much difference?
/Thomas

The thing about the fuzion pins is they line up vertically and horizontally so the water flow from center to the outlet holes has to bounce around through all the pins to run diagonally. The enzotech version adds pins, as it increases in diameter, but there are still some straight paths to the outlet.

It's also interesting to see how tall the enzotech pins are, that's taller than I would have expected..interesting.

Anyone know how the base is manufactured ? cast or forged?

Outstanding I can't wait to delve deeper.

Quote:

---

Originally Posted by eternaljammer

Outstanding I can't wait to delve deeper.

---

:shrug:

Quote:

---

Originally Posted by disruptfam

temp difference seem minimal....don't think i would change my fuzion for 2c-3c i'ma wait until the accelarator nozzles are out might outperform the enzotech block.....

What's the flow like on the enzotech block?

do u rekon you could start a new thread and do a more in depth review?

maybe with the d-tek fuzion the enzotech block and the swiftech gtx

i would like to see that block on a quad.....if possible

cheers

---

2-3c is gigantic with watercooling

Quote:

---

2-3c is gigantic with watercooling

---

gigantic hey.................

That test is not in line with my testing of the SCW-1.

I had a rev.1 block, but I don't see how much they could have changed based on those pictures... As already pointed out, 3C is not a huge improvement in air cooling, but people around here will upgrade their rad, pump, and CPU block to get a 3C reduction under load...

Quote:

---

Originally Posted by Linus@ncix

That test is not in line with my testing of the SCW-1.

I had a rev.1 block, but I don't see how much they could have changed based on those pictures... As already pointed out, 3C is not a huge improvement in air cooling, but people around here will upgrade their rad, pump, and CPU block to get a 3C reduction under load...

---

Yes this is XtremeSystems :) :up: :rofl: :ROTF:

Quote:

---

Originally Posted by Linus@ncix

That test is not in line with my testing of the SCW-1.

I had a rev.1 block, but I don't see how much they could have changed based on those pictures... As already pointed out, 3C is not a huge improvement in air cooling, but people around here will upgrade their rad, pump, and CPU block to get a 3C reduction under load...

---

Hell people are willing to do that for 1C.... like me.

Yeah, I would have to agree though on the multiple mount issue. With my limited testing, I was typically seeing a 1C variability depending on my remount.

Nice looking block though, always up for some competition to put the pressure on..:up:

so long as the pressure doesnt make them cut corners with regards to product performance...

hi!Tin Tin!

I had tested before,really two degrees lower than D-tek,

even with idle and full load,

better performance and good looking than D-tek!:up:

Quote:

---

Originally Posted by wongkt

hi!Tin Tin!

I had tested before,really two degrees lower than D-tek,

even with idle and full load,

better performance and good looking than D-tek!:up:

---

link to some data? I am not saying that its not possible... but on XS you need to backup your claims ;)

I'll be interested to see what happens when I receive a new revised block. From my communication with Enzotech, they felt that their original block was a top performer, but I found it to be not all that impressive. I guess they made some changes, but haven't gotten back to me with an updated one...

Quote:

---

Originally Posted by sergers

link to some data? I am not saying that its not possible... but on XS you need to backup your claims ;)

---

Hi!sergers!Here are my waterblocks,but I just sold out the D-Tek FuZion

and Apogee GTX after I test them ,so sorry sergers!

you don't need to believe me at this moment,

as I know their are several xtreme members will got the Enzotech,

Let's them show us!:)

So what's the latest on the availability of this thing? Any indication of price?

any nice graphs and charts yet?

Quote:

---

So what's the latest on the availability of this thing?

---

come on guys, someone must know something... should someone wait or go on and finish his built :p:
