E6320 E6420 oc results

Quote:

---

Originally Posted by Kunaak

seeing as how most boards wont hit 500 easy with a 4 meg cache, the 6420 seems like the best buy of the two, as 8 x 450 is pretty easy, and 450 isnt gonna be too hard for most boards.
so basically your best chance at a good OC is the 6420, if your on a budget.

---

Using P5B 1.04G with 1202 BIOS, using all auto voltages except 2.1V Vdram, I pused the FSB up to around 375 (my Corsair 6400 still well below its rated speed) before it started giving me problems. So, I upped the Vcore, the Vnb, Vfsb, all the settings up to 2nd highest. Got to 380, but thats about it. Wont go any higher.

I heard about some overclocking "hole" between 360 and 400, and that 1333 bootstrap takes effect >400, so took the big leap of fait and tried 401 and 410 to no avail.

Perhaps reached the limit of this little CPU? Tried all over with 6x multiplier, and got to about the same place, 380 fsb, no more.

Tried desperately randomly toggling settings like static read control, and TM... nothing.
Anything obvious you guys can think of that could be causing this?

well, been working a lot on this one, and it won't be my 24/7...
vcore and nb needed a HUGE bump for 3.4.

had to up vcore from 1.37 for 3.2 to 1.525 and NB 1.45 => 1.55...

here's the pic and the system :D

greetz... r0n1n

It might be cause you've got 4gb there. 2gb should be stable with lower volts but dont quote me on that :)

well, it's worth a shot, just for the heck of it :D
will try it out someday, thx for the tip ;)

Does anyone know anything about the L642G043 6420?

http://img527.imageshack.us/img527/7411/32ghzfu0.th.jpg

Volts : 1.3v (lower than stock)

3.2ghz fully stable with ram 1:1 400mhz 4-4-4 2.0v :D

You can see the orthos loaded temps in that pic^^.

Here's TAT temps:

Idle:
http://img521.imageshack.us/img521/6587/idleyi9.th.jpg

Load:
http://img521.imageshack.us/img521/4503/loadqo8.th.jpg

Very good cpu imo :D

dude that's freakin awesome! You got a sweet chip there.

What kind of cooling are you using? (i'm assuming water by your avatar)

What is the max you have gotten your chip to do on stock volts?

I wish it was a rule to have a sig in this forum. What are your system specs?

Quote:

---

Originally Posted by GripS

dude that's freakin awesome! You got a sweet chip there.

What kind of cooling are you using? (i'm assuming water by your avatar)

What is the max you have gotten your chip to do on stock volts?

I wish it was a rule to have a sig in this forum. What are your system specs?

---

Yeh, it's a damn good chip.

Aircooling :), Scythe Infinity :)

At stock volts of 1.35, it went upto 3.35-3.4ghz but i was busy testing 3.2ghz at 1.3v so didnt run orthos but gaming and everything else was stable at those speeds :)

I am using the infinity as well. I can't believe you are getting such low load temps. Must be real cool in the room or you have an air conditioner in your case:) . What about the mobo and RAM? What are you using?

Quote:

---

Originally Posted by GripS

I am using the infinity as well. I can't believe you are getting such low load temps. Must be real cool in the room or you have an air conditioner in your case:) . What about the mobo and RAM? What are you using?

---

No air condition, Just the room is very cool. When its hot, load temps reach 44-47deg(TAT).

Mobo - Asus P5B-Deluxe Wifi-AP
Ram - G.skill HZ 6400

:)

Hey guys, how hot is your NB on your P965 when running stock 266fsb, and when overclocking (ie 400+)?

Even at stock mine is certainly 60C+ (scorching to the touch)...

i have also an e6420, it's L652Bxxx, and it does 3200 @ 1.39v on bios, 1.36~1.37
idle on windows, and 1.35 load with orthos small ftt, reported by uguru.

i have an abit ab9 quadgt with some cheap 2gb ddr 800 modules left on auto,
vmem 2.125v and vmch 1.3v, all rest @ stock.
happy with it .

Got my E6420 today from EGG HEAD, bought this bad boy just so I could get sideways with it and rape the livin be jesus out of it and make it scream for mercy! Just a fill in in until price chops so I'm gonna get mid evil on this biatch!!!:slapass: :oscar:

Testing bios 17 official

AB9 Pro
e6320
2 x 1GB Team Value 667
6200tc 256mb
Stock board
Bios 17 official

Vcore : 1.43V
Vdimm : 2.3V
VMCH : 1.45V
VICH : 1.25V

FSB : 457MHz
Strap : 1033
Dram ration : 1:1
Timing : 4-4-4-8-18-36-2T

http://img.techpowerup.org/070616/ab94.jpg

http://img.techpowerup.org/070616/ab9-superpi1m.jpg


- temperature reach 70c rendering Playstation2 games... need better cooling than stock....

Quote:

---

Originally Posted by ***Deimos***

Hey guys, how hot is your NB on your P965 when running stock 266fsb, and when overclocking (ie 400+)?

Even at stock mine is certainly 60C+ (scorching to the touch)...

---

Thats pretty freakin hot. I show mid to high 30's at idle and mid to high 40's under load. I would suggest removing the heatsink and reapplying a good thermal compound.

edit: Those temps are with 1.3v going to the NB and FSB@400.

Fedex guy just dropped mine off, seems to be from a good batch, will post some results later with stock cooler, than Ninja.

Just got myself a E6420 batch code L649Hxx..pack date 05/09/07
Orthos blend test@410X8 = 3.28ghz , 7hours+ fully stable..
Vcore at 1.29v at bios...Bios set@ 1.325v..others at stock voltage..vdimm@2.0v

Quote:

---

Originally Posted by jinsean

My e6420 arrived today

L704 A885
pack date: 4/11/07

hope it's a good over clocker =D

too bad my system won't be up for another 2 week hehe

---

How did your chip do man? I just got this in for a clients pc, the mobo i'm sticking it in dosn't have crap for OC options so I won't really be able to tell what it'll do.... L704A882 .... Hahaha very close to yours.

If yours clocked well, i'll order my customer a diff one and keep this one :D

http://i58.photobucket.com/albums/g2...20Sales/14.jpg

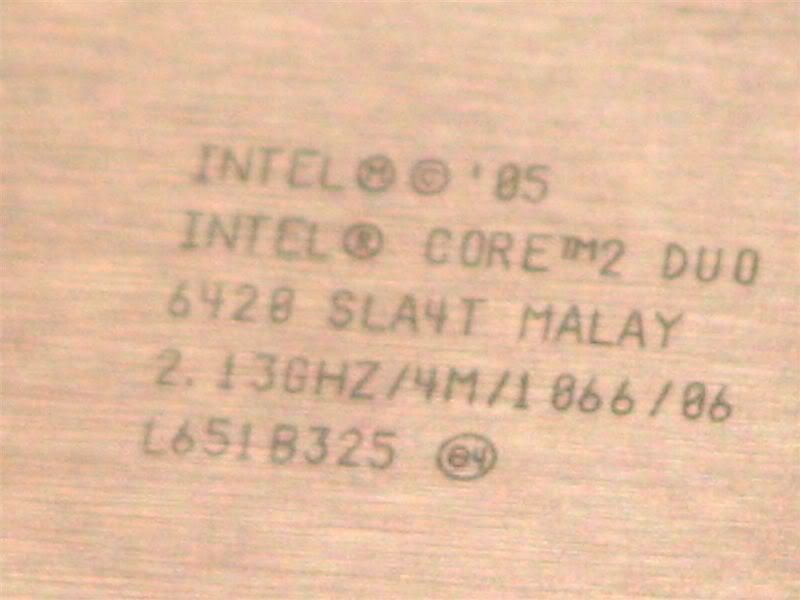

http://i58.photobucket.com/albums/g2...Picture001.jpg
.
.

evoic..wats ur actual voltage?

Quote:

---

Originally Posted by ***Deimos***

Hey guys, how hot is your NB on your P965 when running stock 266fsb, and when overclocking (ie 400+)?

Even at stock mine is certainly 60C+ (scorching to the touch)...

---

I've had 3 DS3's a P5B-E and P5B-deluxe and the best thing you can do - remove the NB sink, clean it apply AS5 or ceramique - reinstall and add a 50mm fan to the top. After that they just barely get warm and you wont need to pump the NB volts up either :)

One of my DS3s needed mad NB volts and was hot as hell, like 50 @ idle. I did the above and it was 35 idle and 40 load afterwards and went to 507 @ stock volts :) Now I dont even bother running stock, I immediately pull it, clean it and fan it.

Btw my L709 can run to about 3.4 @ 1.35 volts orthos stable :D, 3.712 is my max orthos right now, 3616 is my 24/7.

Quote:

---

Originally Posted by kerryking

evoic..wats ur actual voltage?

---

On the run in the screenshot, the actual voltage is 1.525v.
I have the worst vDroop in the history of computing.
Well......not quite......but pretty bad.

The upside: I can never feed too much voltage to the CPU. The BIOS tops at 1.6v and the most I can get from that is about 1.55v actual, which drops another 0.005v or 0.01v under load.

The downside: I may actually never know how high this E6420 will go.

The downside Part Deux: The NB max volts in the BIOS are limited to 1.4v, which also denies Max OC attempts.
The highest I've gotten into Windows on with this Mobo is 3580Mhz.

here is my result

E6420 _ week L709A515 @3783Mhz 1.65v


http://i163.photobucket.com/albums/t...untitled-4.jpg

@3200Mhz 1.38v _ 26hr+ orthos stable

http://i163.photobucket.com/albums/t...p/64203200.jpg

Nice clock. I doubt that CPU will last long with that much voltage going through it though. You must be using some serious cooling on that for a load temp of 37C.

Quote:

---

Originally Posted by 911us

here is my result

E6420 _ week L709A515 @3783Mhz 1.65v


http://i163.photobucket.com/albums/t...untitled-4.jpg

@3200Mhz 1.38v _ 26hr+ orthos stable

http://i163.photobucket.com/albums/t...p/64203200.jpg

---

I hate you!!!!!! Man mine only gets about 3270MHZ 3300 is a no go!
