I made a screenshot but I don't know how to upload it on to this forum.
Printable View
I made a screenshot but I don't know how to upload it on to this forum.
upload it to a another website such as photobucket.com then post the link here.Quote:
Originally Posted by An0nym0us88
Quote:
Originally Posted by menlatin
Oye, what happened to mine?
User Name: rpsgc
Stability: 9hours+ Orthos
CPU name: E6400
OC: 2996MHz
Stepping: 6 B2
Week: L624
Code: A727
Vcore: 1.38V
Cooling: Air
Cooler brand/model: Scythe Ninja (fanless)
Motherboard: Asus P5B Deluxe
Bios Version: 1101
Operating System: XP 32
RAM brand: G.Skill
RAM rated speed: PC6400
RAM actual speed: 856
Latency: 5-5-5-15
http://www.imagehosting.com/out.php/...t200706071.png
User Name: terminalmind
Stability: 12+hrs Small FFTs Orthos
CPU: E6600
OC: 3522
Stepping: 6 B2
Week: L629
Code: F221
Vcore: 1.43
Cooling: Air
Cooler brand/model: Thermalright Ultra 120 eXtreme
Motherboard: DFI Infinity P965-S Dark
Bios Version: 0326
Operating System: XP Pro 32
RAM brand: G.Skill F2-6400PHU2-2GBHZ
RAM rated speed: 6400
RAM actual speed: 978
Latency: 5-4-4-12
http://valid.x86-secret.com/show_oc.php?id=203046
http://i207.photobucket.com/albums/b...inalmind/3.jpg
Not sure if y'all are keeping this active still, but since my 3.5GHz overclock on a Rev 1 DS3 got removed, I'll do one better. :p:
User Name: Kougar
Stability: 8 hours & counting Orthos Blend stable
CPU name: E6300
OC: 3.737GHz
Stepping: 6, Rev B2
Week: L625
Code: A705
Vcore: 1.53v
Cooling: Water
Cooler brand/model: Swiftech Apogee GT + MCP655 & Koolance EHX-1050BK
Motherboard: Gigabyte P35-DQ6
Bios Version: F4 shipping BIOS
Operating System: XP Pro with SP2
RAM brand: Crucial Ballistix
RAM rated speed: PC2-8500
RAM actual speed: 534x2= 1,068MHz
Latency: 5-5-5-15
Image Link: http://i111.photobucket.com/albums/n...ur64/DQ6/3.jpg
Guess I need just a little more OCing to bump Donkers down a notch though and take first spot...
User Name: Anonymous
Stability: 8 hours+ Small CPU FTTS
CPU name: E6300
OC: 3.220 GHz
Stepping: B2 6?
Week: ?
Code: ?
Vcore: 1.3250
Cooling: Water
Cooler brand/model: Gigabyte
Motherboard: ASUS P5B Deluxe
Bios Version: 1011
Operating System: XP Home with SP2
RAM brand: Kingston HyperX
RAM rated speed: PC2-8500
RAM actual speed: 916Mhz
Latency: 4-4-3-4
http://i110.photobucket.com/albums/n...ourCPUTest.jpg
User Name: bug850-4300
Stability: 10h 57m Orthos CPU stress with GROMACs Core
CPU name: E6700
OC: 3600mhz
Stepping: 6 B2
Week: L631
Code: B013
Vcore: 1.625
Cooling: Air
Cooler brand/model: Arctic Cooling Freezer 7
Motherboard: Asus P5B Dlx WiFi
Bios Version: 1004
Operating System: Vista 32
RAM brand: OCZ
RAM rated speed: PC2-8500
RAM actual speed: 900mhz
Latency: 4-4-4-12
http://i197.photobucket.com/albums/a...hos10hours.jpg
Had to do a slight Vcore bump for 9+ hour stability, but tightened the RAM and also now have it running in "extreme" performance mode, whatever that means.
User Name: Kougar
Stability: 25 hours Orthos Blend stable
CPU name: E6300
OC: 3.738GHz
Stepping: 6, Rev B2
Week: L625
Code: A705
Vcore: 1.56v
Cooling: Water
Cooler brand/model: Swiftech Apogee GT + MCP655 & Koolance EHX-1050BK
Motherboard: Gigabyte P35-DQ6
Bios Version: F4 shipping BIOS
Operating System: XP Pro with SP2
RAM brand: Crucial Ballistix
RAM rated speed: PC2-8500
RAM actual speed: 534x2= 1,068MHz
Latency: 4-4-4-12
Image Link: http://i111.photobucket.com/albums/n.../DQ6/take3.jpg
Username: GunslingerOCS
Stability: 9+ Hours Orthos Blend stable
CPU Name: X6800
OC: 3.77
Stepping: 6 Rev B2
Week: L631
Code: A669
VCore: 1.55v
Cooling: Water
Cooling Brand: Swiftech Apogee GT, MCP655, MCR320
Motherboard: EVGA 680i A1 Rev. 2
BIOS: P28
OS: XP Pro 64bit + Vista Ultimate 64bit
RAM Brand: G.Skill
RAM rated speed: PC2-6400
RAM Actual speed: 860MHz
FSB: 1372
Latency: 5-5-5-15
Does this ever get updated? Its been a week
User Name: Tasteles
Stability: Orthos Blend 18hrs. (PIC),, 24hrs. (for my staisfaction)
CPU name: E6600
OC: 3420
Stepping: 6 B2
Week: L645
Code: G337
Vcore: 1.53 (bios) 1.50 (vdroop)
Cooling: Air
Cooler brand/model: Sunbeam Tuniq Tower 120
Motherboard: Asus P5N32-E SLI
Bios Version: 1002 (PIC) 1103 (Current)
Operating System: XP 32
RAM brand: OCZ
RAM rated speed: PC8500
RAM actual speed: 760
Latency: 5-4-4-11-1T
I'll have to work on the mem some. When I ran the stress, I had mem unlinked and was running 1:1 ratio. This ram should get 900mhz at 1T timmings with no problem. Since I took this pic, I have Lapped both the Tuniq and the CPU. I may try to go a little higher on the OC sometime latter.
http://i137.photobucket.com/albums/q.../OverClock.jpg
I thought that was the batch code, not stepping.Quote:
Originally Posted by Markmk
Stability: Large FTTs
CPU name: E6700
OC: 3754Mhz
Stepping: 6 B2
Week: L626
Code: B092
Vcore: 1.4 (bios) 1.37 (vdroop)
Cooling: Air
Cooler brand/model: Sunbeam Tuniq Tower 120
Motherboard: Intel Bad Axe 2 (of course)
Bios Version: 2747
Operating System: XP32 SP2
RAM brand: Team Xtreem
RAM rated speed: PC5300
RAM actual speed: 940
Latency: 4-4-4-5
User Name: MrCrusher
Stability: 11 hours+ Orthos Blend stable
CPU name: E6600
OC: 4050MHz
Stepping: 6 B2
Week: L709
Code: A442
Vcore: 1.65V (Bios) 1.58v (vdroop)
Cooling: Vapor Phase
Cooler brand/model: Vapochill LS
Motherboard: EVGA nForce680i SLI A1
Bios Version: P28
Operating System: XP 32
RAM brand: Corsair TWIN2X-6400C4
RAM rated speed: PC6400
RAM actual speed: 800
Latency: 4-4-4-12-2T
Vddrs= 2.1v
Nope, this never been updated for the past month or two.Quote:
Originally Posted by bug850-4300
User Name:silverphoenix
Stability: Example: 29hrs Prime95, orthos
CPU name : E6600
OC: 3600
Stepping: 6 B2)
Week: L709
Code: A442
Vcore: 1.4V
Cooling: Water
Cooler brand/model: Apogee GTX, heatercore, hydor seltz L35, 2x sanyo denki 120mm
Motherboard: Abit quad GT (abs no mods)
Bios Version: 13
Operating System: XP 32 SP2
RAM brand: Crucial)
RAM rated speed: PC6400
RAM actual speed: 900
Latency: 5-5-5-15 (haven't started finding limit of ram)
http://valid.x86-secret.com/show_oc?id=210454
http://img296.imageshack.us/img296/3...7013nw4.th.jpg
User Name: pasatoiutd
Stability: 50+ hours Orthos blend
CPU name: E6300
OC: 3605MHz
Stepping: 6 B2
Week: L632
Code: A669
Vcore: 1.49V
Cooling: Air
Cooler brand/model: Thermaltake Big Typhoon
Motherboard:Asus P5B Deluxe WiFi 1.03G
Bios Version: 1101
Operating System: XP 32 SP2
RAM brand: Mushkin
RAM rated speed: PC8500
RAM actual speed: 1030
Latency: 5-5-4-5
User Name: kiki
Stability: 12.33 hours Orthos blend
CPU name: E6300
OC: 3101 Mhz
Stepping: 6 B2
Week: L631
Code: A904
Vcore: 1.3125
Cooling: Water
Cooler brand/model: Swiftech Apogee GT
Motherboard: Asus P5K
Bios Version: 507
Operating System: Vista Ultimate x64
RAM brand: Crucial Ballistix
RAM rated speed: PC6400
RAM actual speed: 1062
Latency: 5.5.5.12
http://img125.imageshack.us/img125/9455/e6300ti7.th.jpg
User Name: bobbobson
Stability: 20 hours Orthos blend
CPU name: E6420
OC: 3500 Mhz
Stepping: ?
Week: ?
Code: ?
Vcore: 1.53 (1.48 real vdroop)
Cooling: Air
Cooler brand/model: Tuniq Tower
Motherboard: Asus P5b Deluxe
Bios Version: 0804
Operating System: XP Pro SP2
RAM brand: GSkill
RAM rated speed: PC6400
RAM actual speed: 500
Latency: 4.4.4.12
Got my self a Xeon 3060
batch: L630F126
3060 SL9zh
Is it any good:confused:
This is what I get too and can't go further, anyone who can help with the details? Northbridge and southbridge, fbs are not changed on, volts I mean.
Processor: E6600 "Conroe"
Stepping: 6
Orginal MHz: 2400
Clocked MHz: 3408
FSB: 426
Mutiplier: 8
Orginal Vcore: BIOS- 1.325, real- 1.280
Present Vcore: BIOS- 1.5720, real- 1.47
Cooler: Noctua NH-U12F
Temp (idle/full): 35/55
Motherboard: Gigabyte GA-P35-DS3R
Memory: Corsair TWIN2X 6400 DDR2, 2048MB CL5
Vmem: 2.0
Mem speed: 852
Timings: 5-5-5-12
Stabile: SuperPI och Orthos
SuperPI 1m resultat: 15.187
BIOS version : F4
Can I go any further? And How? What should I do? Change volts to the NB or SB, please help, wanna get under 14s in SPI. my goal is 3600Mhz with a acceptable temperature, by the way what is max temp for conroe e6600? I'm trying to stay under 60 Celsius.
Sorry about my spelling, I'm Swedish:)
I just got a week L714 E6600 from Newegg. Is that a new stepping? I'll post results later.
User Name: Monza1412
Stability: Orthos 12hours+
CPU name : E6600
OC: : 3500MHz
Stepping: : 6 B2
Week: : L629
Code: B374
Vcore: 1.3125 in bios/1.2725 real
Cooling: Air
Cooler brand/model: Thermaltake Big Typhoon
Motherboard: Asus P5WDH Deluxe
Bios Version: 2004
Operating System: XP 32,
RAM brand: Crucial
RAM rated speed: PC8000
RAM actual speed: 389
Latency: 4-4-4-12
http://img217.imageshack.us/img217/9...ts13125fw8.jpg
User Name: Yori1989
Stability: 4 hours+ Orthos
CPU name: Core 2 E6320
OC: 2870 Mhz
Stepping: 6 B2
Week: L652
Code: B340
Vcore: 1.4Vcore
Cooling: Air
Cooler brand/model: Scythe Infinity (/w stock fan)
Motherboard: Asus P5W DH Deluxe 975X
Bios Version: 2103
Operating System: XP PRO 32-bit/SP2
RAM brand: OCZ
RAM rated speed: PC7200
RAM actual speed: 820 (1:1 FSB 410fsb)
Latency: 5-5-5-15
http://i9.tinypic.com/4p0kyvp.jpg
EDIT:
Is 8 hours orthos a rule? I dont know if i've done this good. Its my first post here so :)
Its running now at 7x400(2800)
Username: Timbosan
Stability: Orthos 5+ hours, 50 Passes Memtest
CPU name: Core 2 Duo e6300
OC: 3400 Mhz
Stepping: 6 B2
Week: L627
Code: A838
Vcore: 1.384 Vcore (stable)
Cooling: Air
Cooler brand/model: Asus Silent Square + AS5
Motherboard: Asus P5B Vanilla Rev 1.03G | Vdimm & Vdroop modded|
Bios Version: 1405
Operating System: XP PRO SP1
RAM brand: Kingston Value
RAM rated speed: DDR2-533
RAM actual speed: 972 (1:1 FSB 486)
Latency: 5-5-5-15
CPU: E6850
OC: 3969
Stepping: G0
Week: L718
Code: A190
Vcore: 1.55 volts
Cooling: Water/Fuzion
Motherboard: GA P35 DQ6
Bios Version: F5H
Operating System: XP Pro 32 bit
RAM brand: G Skill HZ
RAM rated speed: PC6400
RAM actual speed: 441
Latency: 5-5-5-15
http://img386.imageshack.us/img386/5229/orthosup2.png
http://i135.photobucket.com/albums/q.../4005_OCCT.png
CPU: E6600
OC: 3600MHz
Stepping: 6 B2
Week: L637
Code: A853
vCore: 1.5
Cooling: Air
Cooler: Zalman 9500
Motherboard: EVGA 680i SLI
BIOS: P30
OS: Win XP Pro 32-bit
RAM: g.skill
Rated Speed: PC6400
Actual Speed: 800MHz
Latency: 5-5-5-15
http://img72.imageshack.us/img72/572/orthos36yw5.jpg
User Name: NLight95
Stability: Orthos 14+ hours Small FFT, priority 3
CPU name: C2D E6600
OC: 3510 MHz
Stepping: 6, Rev B2
Week: L629
Code: A437
Vcore: 1.504
Cooling: Air
Cooler brand/model: Sunbeam Tuniq Tower 120 (MX-1 thermal paste)
Motherboard: Asus Commando
Bios Version: 1404 (07-13-07)
Operating System: XP 32
RAM brand: Crucial Ballistix Tracer
RAM rated speed: PC8500 (1066)
RAM actual speed: 975
Latency: 5-5-5-15
http://i61.photobucket.com/albums/h5...lFFTXSpost.jpg
User Name: TheMysticWizard
Stability: Orthos 48 Hours
CPU name : E6600
OC: : 3440MHz
Stepping: : 6 B2
Week: : L646
Code: G508
Vcore: 1.55
Cooling: Water
Cooler brand/model: Zalman Waterblock, Swiftech Radiator
Motherboard: Asus P5B Deluxe
Bios Version: 1101
Operating System: XP 32, Vista 32
RAM brand: Corsair
RAM rated speed: DDR2-800
RAM actual speed: 860
Latency: 4-4-4-12
http://home.comcast.net/~themysticwi...es/3440mhz.jpg
why do i need only 1.34 vcore to be stable where others use more than 1.4
i am not posting yet for the first page's table :)
i will, when i finetune my memory
e6300
p5b dlx vdrop mod
ballistix 6400
Attachment 62344
When do we get added to the OCDB?
Username: max_87
Stability: Orthos 12+ hours, Large FFT test
CPU: Core 2 Duo E6850
OC: 3906MHz
Stepping: G0
Week: L720
Code: A745
Vcore: 1.45v
Cooling: Air
Cooler brand/model: Scythe Infinity + Dual 1200RPM fans
Motherboard: Abit IP35 Pro
Bios Version: 10
Operating System: Windows XP Pro SP2
RAM brand: G.Skill
RAM rated speed: DDR2-800
RAM actual speed: 868MHz
Latency: 5-5-5-15
:up: nice man
welcome back
Thanks :DQuote:
Originally Posted by billdavis
I always lurk around in XS forums, but didn't log in :)
User Name: r4st4m4n
Stability: Orthos Blend 8h 30min
CPU name E4300
OC: 3000 Ghz
Stepping: 2 L2
Week: Q649
Code: A224
Vcore: 1.38125V Bios - 1.328V real idle
Cooling: Air
Cooler brand/model: Thermaltake Big Typhoon VX
Motherboard: Gigabyte P35-DS3
Bios Version: F2
Operating System: XP 32
RAM brand: Kingston Value RAM
RAM rated speed: DDR2-667
RAM actual speed: DDR2-667
Latency: 5-5-5-15
User Name: Holwill
Stability: Orthos Small ffts 12hrs+
CPU name E6600
OC: 3604 Ghz
Stepping: 6
Week: L644
Code: G380
Vcore: 1.4875V Bios - 1.46-8 load measured with Everest Ultimate, with Vdroop Pencil mod
Cooling: Water
Water Block Swiftech Storm G4 Rev2
Motherboard: Asus P5W-DH
Bios Version: 2004
Operating System: XP 32
RAM brand: Corsair Xms2 Pc6400v1.2 Micron
RAM rated speed: DDR2-Pc6400
RAM actual speed: DDR2-800
Latency: 4-4-4-12-4
CpuZ http://valid.x86-secret.com/show_oc?id=199584
Room Temps were 28c when run,with a 8800gtx oc in the loop on a PA120.2!
http://www.r5jones.aquiss.com/Pictur...+%20Stable.jpg
nice oc you got there with the ram your using. have you tried 7x500?Quote:
Originally Posted by Timbosan
But you must have at least 8 hours of Orthos, (small FFTs or Blend) or Prime. I wouldn't worry about it though this hasn't been updated since april.
oh, just saw this thread.....I done it October, last year :rofl: .....:shrug:
Blend......12 hrs :yepp:
User Name: kenofstephen
Stability: Blend 12hrs+
CPU name E6600
OC: 3,710 Mhz
Stepping: 5
Week: ES
Code: ES
Vcore: 1.45v BIOS
Cooling: Air, Tower 120 with fan mod.
Motherboard: ABIT AW9D-MAX
BIOS Version: should be 1.0
Operating System: XP 32
RAM : Supertalent DDR2 800
RAM actual speed: DDR2-824
Latency: 4-4-3-8 @ 2.1v
E6400 @ 1.376V under load (BIOS 1.450V 'cuz of VDrop)
http://aycu38.webshots.com/image/227...6426239_rs.jpg
Kenofstephen, I hate to be the bearer of bad news, but the OC is not 3,710 Mhz. It's true that Orthos is reporting that number, but Orthos isn't taking into account that your multiplier is now set to 6 rather than 9. Your actual OC is what's reported by CPU-Z. In this case, it's 2,472(6 x 412) Mhz. What you have is a good FSB overclock, and it's definitely something to be proud of.Quote:
Originally Posted by kenofstephen
As for Core Temp Beta....that's just confusing. Probably why they referred to it as "Beta."
I think his 3,710 was correct. I'm a little new to this, but it looks to me like his computer is still set to shift to a lower multiplier to conserve energy when it's not required to run balls to the wall. His Ortho is idle and multiplier is at 6 reading 2.473. If you add another 50% (shifting the multiplier from 6 to 9 for a full load), then you end up at the 3,710 mark. I have not disabled that feature in BIOS yet either so I see it often.Quote:
Originally Posted by Seolfor
You know what? I think you're absolutely right! :D
Thanks for correcting me on that. I have that feature disabled in bios, so I've never seen that before. The reason that I thought the readings were off is because I have my FSB set to 1.6ghz and my multiplier is 8 instead of 9. So, CPU-Z will report 3.2ghz while Orthos is reporting 3.6ghz.
Kenofstephen, I apologize for misinterpreting your screenie, and I want to congratulate you on having an excellent overclock. Good job! :up:
User Name: Nazu
Stability: Orthos 13h small fft's
CPU name: E6600
OC: 3600MHz
Stepping: 6 B2
Week: L629
Code: A530
Vcore: 1.47v
Cooling: air
Cooler brand/model: Sunbeam Tuniq Tower
Motherboard: DFI P965-S Dark
Bios Version: 6.00PG
Operating System: XP 32
RAM brand: G-Skill
RAM rated speed: PC6400
RAM actual speed: 800MHz
Latency: 4-4-4-12
http://koti.mbnet.fi/nazu/Kone/orthos13h.jpg
Wow...someone said I was write (ok, I meant right, but that was how I originally typed it...i'm leaving it, that's just funny!) and it's in print even! Where's the screenshot button at?Quote:
Originally Posted by Seolfor
I have not turned off that feature yet, and I'm not sure I will. I usually leave my computer turned on so the power saver may be a good option. Besides a command or two when your computer is idle, or while fully active, how much of a difference does it really make? Does it improve performance enough to really make it worth running full speed 24/7? Either i'm not being as anal about every clock cycle as others are, or I'm missing something obvious?!?
Screw it...if all else fails, i'll just sit here staring at my avatar again. :shocked: That's always a good passtime.
User Name: NLight95
Stability: Orthos 17+ hours Small FFT, priority 3
CPU name: C2D E6600
OC: 3645 MHz
Stepping: 6, Rev B2
Week: L629
Code: A437
Vcore: 1.57v (@idle from uGuru)
Cooling: Air
Cooler brand/model: Tuniq Tower 120 (MX-1 thermal paste)
Motherboard: Abit IP35 Pro
Bios Version: m629b11 (07-09-07)
Operating System: XP 32
RAM brand: Crucial Ballistix Tracer
RAM rated speed: PC8500 (1066)
RAM actual speed: 1013
Latency: 4-4-4-12

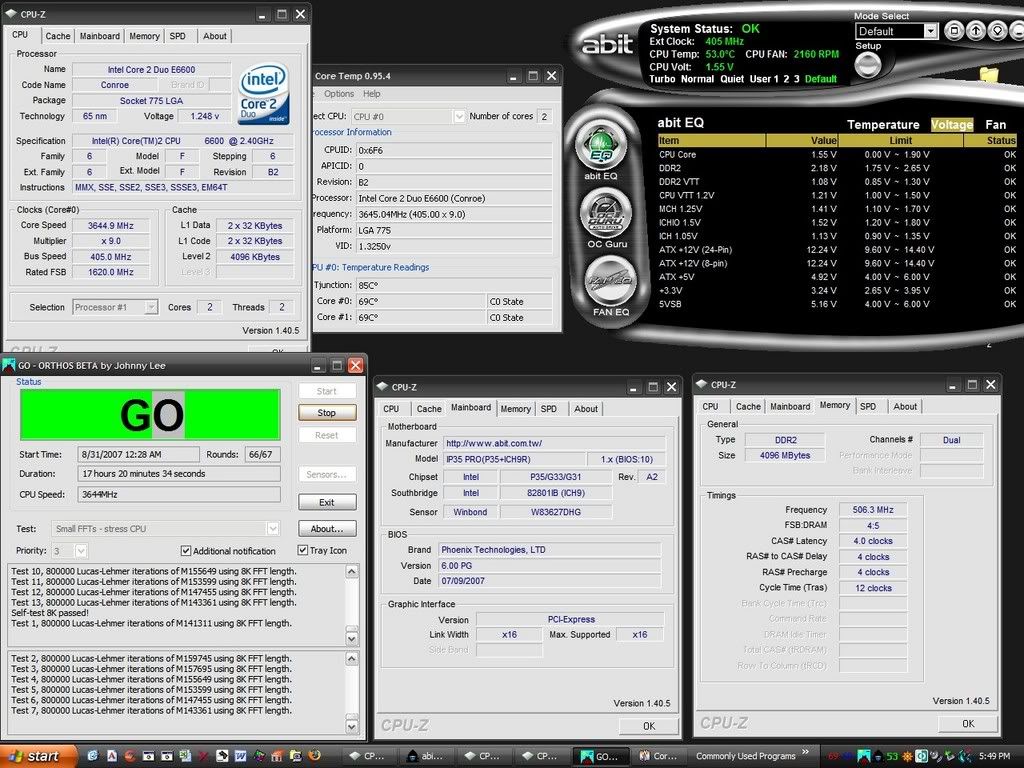

ORTHOS:
http://i61.photobucket.com/albums/h5...ystemtest1.jpg
OCCT 1 hour: http://i61.photobucket.com/albums/h5...ystemtest2.jpg
AquaMark3 200,030: http://i61.photobucket.com/albums/h5...Aquamark-1.jpg
User Name: PsYkHoTiK
Stability: Prime95 Small FFTs
CPU name: C2D E6850
OC: 3950 MHz
Stepping: G0
Week: L723
Code: A057
Vcore: 1.50v load no vdroop
Cooling: Water
Cooler brand/model: Dtek FuZion CPU
Motherboard: Asus P5K Premium
Bios Version: 0204
Operating System: Vista Ultimate 32bit
RAM brand: OCZ Reaper HTC
RAM rated speed: PC8500 (1066)
RAM actual speed: 1054
Latency: 5-5-5-15
http://valid.x86-secret.com/show_oc.php?id=227164
Prime95 28 hours (small FFTs):
http://taib.rojakpot.com/3950_24hour.jpg
Reapers died shortly after. Will try to push some more when I get em back from RMA.
Generally, people turn it off to make sure it doesn't make the system unstable. But if it is stable with it, better leave it ;)Quote:
Originally Posted by Taffer
I have the EIST on as it doesn't interfere with my OC'ing. Now 3.7GHz with EIST on and works like charm (atleast 1h 30m Orthos...) :)
I am at 3.6GHz (400FSB) with 1.5125v. What vCore are you using at 3.6GHz and at 3.7Ghz? My temps reach 65C with Orthos.Quote:
Originally Posted by Nazu
PCI: 101
vMEM: 2.05 G.Skill 6400 HZ (1:1) 4-4-4-12-25
vFSB: 1.40
vNB: 1.45
vSB: 1.50
vICH: Auto
3.7GHz was wishful thinking :( Error in Orthos after 3h or so, more voltage doesn't help either. At 3.6GHz and Orthos load the vcore is 1,48v.
User Name: KMEI
Stability #1: Orthos for 9 hours 7 minutes 29 seconds
Stability #2: memtest86 passes 29 times without errors (about 9h)
Stability #3: OCCT, not on screenshot, though.
CPU: Intel(R) Core 2 Duo E6600
OC: 3600 MHz
Stepping: 6 B2
Week: L639
Code: F028
vCore: 1.600V set in BIOS, 1.57V real (idle) 1.55-1.56V (load)
Cooling: Air
Cooler brand/model: Thermalright Ultra-120 eXtreme
Motherboard: Intel(R) Bad Axe 2 (Rev. 505)
Bios Version: 2770.2007.0613.1403
Operating System: XP Pro SP2 32bit
RAM brand: Corsair
RAM rated speed: PC6400
RAM actual speed: same as rated, 800.
Latency: 4-4-4-8
vDimm: 2.12V
http://img175.imageshack.us/img175/3351/namnlskk7.png
User Name: Chri$ch
Stability: 4 hours Primestable
CPU name : E6750
OC: 4000MHz
Stepping: G0
Week: L723
Code: A445
Vcore: 1.424v Load / 1.432v Idle (Bios set 1.45v)
Cooling: Water
Cooler brand/model: Zern PQ, Black Ice GTS 360 Radiator
Motherboard: Asus P5K-E
Bios Version: 0602
Operating System: XP 32
RAM brand: GSkill F2-8500 GBHK
RAM rated speed: DDR2-1066
RAM actual speed: DDR2-1000
Latency: 4-4-4-12
http://www.muenster.de/~e30pics/Bild...3/Prime-02.jpg
Finally I managed to achieve my goal:
User Name: Nazu
Stability: Orthos 14h small fft's
CPU name: E6600
OC: 3704MHz
Stepping: 6 B2
Week: L629
Code: A530
Vcore: 1.536v
Cooling: air
Cooler brand/model: Sunbeam Tuniq Tower
Motherboard: DFI P965-S Dark
Bios Version: 6.00PG
Operating System: XP 32
RAM brand: G-Skill
RAM rated speed: PC6400
RAM actual speed: 822MHz
Latency: 4-4-4-12
http://koti.mbnet.fi/nazu/Kone/orthos14h.jpg
I hope I can get 3.6+ on my L640A752 B2 chip....
i just got a e6600 L627B, we will see how it goes
User Name: maxwedge
Stability: Orthos
CPU name: E6600
OC: 3840 mhz
Stepping: 6 B2
Week: L630
Code: B016
Vcore: 1.5425v set in bios.
Cooling: Water chiller
Cooler brand/model: Home built
Motherboard: Abit IP35-Pro
Bios Version: beta 16 B01
Operating System: XP Pro
RAM brand: Crucial
RAM rated speed: PC8500 (1066)
RAM actual speed: ddr1152
Latency: 5 5 5 17
http://valid.x86-secret.com/show_oc.php?id=252411
http://i76.photobucket.com/albums/j7...er/ddr1152.jpg
Working on more:up:
e6600@3500mhz L627B 1.35v set in bios
http://img124.imageshack.us/img124/1...7992ki1.th.jpg
http://img135.imageshack.us/img135/2...5ghzfx4.th.jpg
Q6600 G0 @ 3,45GHz (383x9) v1,3675/1,37 real :cool:
:)
my best shoot with E6850
http://valid.x86-secret.com/show_oc.php?id=256002
cooling tuniq tower 120
E6750 L726A922
Maximus Formula
3.8G 1.38v cooled by U120EX
http://img220.imageshack.us/img220/5...thos55hip9.png
User Name:kitfit1
Stability:Orthos-Blend 9hrs and 52mins
CPU name:E6600
OC:4.104ghz
Stepping:6 B2
Week:L714
Code:A245
Vcore:1.6v
Cooling:Phasechange
Cooler brand/model:Modded Mach2 GT
Motherboard:Gigabyte GA-965P-DS3/S3
Bios Version:F10
Operating System:XP 32
RAM brand:Crucial
RAM rated speed:PC8500
RAM actual speed:912
Latency:4-4-4-12
http://ocidb.com/albums/userpics/100...mal_4100-0.JPG
so far i've orthosed a little over 4 and a half hours on my e6700 on stock cooling at 350x9 1.3v 266/667 strap no failures. went 333/667 strap and doing 1:1 orthosing right now. going to see if it passes at 8 hours (while im at work :D ) and if it does, im backing down the vcore to see if im still stable. load ~60C
passed over 10 hours of orthos @ 350x9 1.2875v 333/667 for 1:1.
It seems obvious to me that posting in this this thread anymore is a complete waste of time. It is'nt being updated and grimreaper is not replying to pm's to do so. So why is this still a sticky ?
I think there's no harm to share all the overclocking results since it's still the current family of Intel's CPU :)
Been out of touch lately but here are my results
User Name:bleachigo
Stability: 8 hours
CPU name :E6600
OC: 3703MHz
Stepping: 6 B2
Week: L630
Code: F103
Vcore: 1.5375
Cooling: Water
Cooler brand/model: Swiftech Apogee GT
Motherboard: Asus P5N32E SLI Plus
Bios Version: 0803
Operating System: XP 32
RAM brand: Crucial
RAM rated speed: PC8500
RAM actual speed: 1098
Latency: 5-5-5-15
http://valid.x86-secret.com/show_oc.php?id=282377[/URL]
hi all
sorry for this little off-topic but im a bug in my orthos or Sp2004
"Cpu Speed" show the speed in the BIOS and not the true Speed CPU (more hight) that I modified under OS by SetFSB or even Clockgen
Where is the Problem ??
MOBO Asus P35 P5KC
OS XP moded or Server 2003 moded
Regards
bruno
A lot of high clocks in the database
Very encouraging. I just got an E6300 for $40 to replace a Pentium D 935. Would like to see it hit 100% OC. Planning on running it at least 2.6 24/7 on air on the backup/family rig. A few final runs with the old D before it's retired and I'm all over it. :D
PS
My best run on the E6750 is in my sig. My RAM is holding me back:brick:
I don't know why but orthos keeps crashing,but D2OL is running with out any problem now for 6 days 24/7,why o why,is orthos so bad.
My E6600 is running at 4.0ghz (9x445) @ 1:1 @ 1.450v on water link,i think thats not that bad:p: .
CPU:E6550
OC: 3,5GHz
FPO: L724 A517
Stepping: G0
Vcore: 1.344
Cooling: Air
Cooler brand/model: Noctua NH-U12P
Motherboard: EVGA nforce 650i ultra T1
Bios Version: P04
Operating System: win xp 64bit
http://img214.imageshack.us/img214/6310/e6550ar3.jpg
Large ft's do not test the core nearly as hard and you won't be truely stable.:D
EVGA 780i
CPU: E6750 Lapped 8x475 59c prime 95 small ft's
OC: 3800 MHz
Stepping: Go
Week: no box
Code: no box
Vcore: Bios vcore 1.468
Cooling: AIR
Cooler brand/model: Xigmatek S1283
Motherboard: EVGA 780i
Bios Version: Newest revision about a month ago
Operating System: Vista x64
RAM brand: Gskill
RAM rated speed: PC 6400
RAM actual speed: 950 MHz
Latency: 4-4-4-12
Ambient during test: 65 F
Screen shot @6 hours was good past 8.
CPU e6400
OC: 3700 mhz
Week L628
Code: B191
Vcore: 1.450
Cooling:Water
Cooler brand/model: TDX
Motherboard: DFI P965-S
Bios Version: 12/12
Operating System: Win XP Pro
RAM brand: G.Skill 2GB HZ
RAM rated speed: PC6400
RAM actual speed: 1004
RAM voltage 2.1v
Latency: 4-4-4-12
http://i27.photobucket.com/albums/c171/wangerin/37.jpg
CPU: E2140
Stepping: M0
Week: 29
Code: Q729A021
Vcore: 1.418 Bios (1.45 windows)
Cooling: Water
Cooler brand/model: Bigwater745
Motherboard: DFI LP LT X48-T2R
Bios Version: 03/20
Operating System: Vista Ultimate x86
http://www.flow-tek.net/E2140%403.4.jpg
27c ambient
http://valid.x86-secret.com/show_oc.php?id=354839
T
asap
this thread is made of awesome. i've always been hesitant to take my e6600 past 3.4ghz, but seeing some of these results, i should shoot for 3.6 and see how it goes.
User Name: Killerbee0704
CPU name : E6600
OC: : 3500MHz
Stepping: : 6 B2
Week: : L626
Code: A228
Vcore: 1.424
Cooling: Air
Cooler brand/model: Thermalright Ultra 120
Motherboard: GA-965P-DQ6
Bios Version: F12K
Operating System: XP 32 SP3,
RAM brand: ADATA
RAM rated speed: PC6400
RAM actual speed: 1000
Latency: 5-5-5-15
http://valid.x86-secret.com/show_oc.php?id=382281
http://i285.photobucket.com/albums/l...0704/500x7.jpg
Edit
Sorry Wrong Section
CPU: E2140
Stepping: L2
Week: 33
Code: Q733B
Vcore: 1.4v
Cooling: Air
Cooler brand/model: Bigtyp VX
Motherboard: ABIT IP35-E
Bios Version: 18
Operating System: Win XP x86
RAM brand: Kingston Value
RAM rated speed: PC5300
RAM actual speed: 1008
Latency: 5-5-5-15
http://valid.x86-secret.com/cache/screenshot/358049.png
http://valid.x86-secret.com/show_oc.php?id=358049
CPU: E6600
Stepping: B2
Week: 30
Code: L630A
Vcore: 1.4v
Cooling: Air
Cooler brand/model: Bigtyp VX
Motherboard: ABIT IP35-E
Bios Version: 18
Operating System: Win XP x86
RAM brand: GSkill+ Kingston Value
RAM rated speed: PC5300
RAM actual speed: 800
Latency: 5-5-5-15
http://valid.x86-secret.com/cache/screenshot/386223.png
http://valid.x86-secret.com/show_oc.php?id=386223
User : RCG_Bex (AKA Elemental_Dragon )
CPU: E6750
Stepping: B G0
Week: (to be confirmed)
Code: (to be confirmed)
Vcore: 1.5875v (1.564v real)
Cooling: Water
Cooler brand/model: Swiftech Apogee GT
Motherboard: Asus Maximus Formula SE
Bios Version: 0903
Operating System: Win Vista 32bit
RAM brand: Adata Extreme
RAM rated speed: 1200mhz
RAM actual speed: 1050/1250 (to be confirmed as my RAM runs on "Auto")
Latency: 5-5-5-18
Screenshot after 4hrs gaming (I will get a screen shot of prime when I can leave my PC on overnight)
http://img99.imageshack.us/img99/3506/4ghzww4.jpg
http://valid.x86-secret.com/show_oc.php?id=393834
~Bex
I thought..I would drop in and see how the E6750 class is doin..On the Oc'ing:up:
Screenshot's pretty much say it all.
Zalman CPNS9700 Cooling, vcore set to 1.4120v
http://valid.x86-secret.com/show_oc.php?id=415245
Well she got as far as 4.2GHz before she gave up. By then it was too hot etc.
~Bex
User Name: rydberg666
Stability: 12 hours Orthos blend
CPU: E6750
OC: 3880Mhz
Stepping: B, Rev G0
Week:
Code:
Vcore: 1.634 bios
Cooling: Air
Cooler brand/model: Tuniq Tower + AS5
Motherboard: Foxconn BlackOps
Bios Version: G30
Operating System: XP Pro SP2
RAM brand: Corsair XMS3
RAM rated speed: PC10600
RAM actual speed: 971
Latency: 9-9-9-24 2T
vdimm 1.7
http://img521.imageshack.us/img521/4...3880fa8.th.jpg
Ill look into weeks and stuff the next time i change cpu, no box. :)
Regards
Johan
bios 1.634v load 1.552v? :shocked: such a big drop...Quote:
Originally Posted by rydberg666
Good chip:). Fsb wall ?Quote:
Originally Posted by Chri$ch
