Thanks for the confirmation.Quote:
Originally Posted by Cwelle
Cheers.
Printable View
Thanks for the confirmation.Quote:
Originally Posted by Cwelle
Cheers.
really well it's been going strong for over a year and i've had other 'enthuiast' mobos die much earlier than that.Quote:
Originally Posted by Cwelle
and this mobo has been running 24/7 @100% all 4 cores
bland comments like that sir: :shakes:
i'm glad it's lasted this long
It's true for 45nm quads. This MB cannot achieve very high FSBs on 45nm quads.
Dual Channel Issue
Hi guys, the my P5K-E does not detect DUal Channel even though I placed the mems on slots A1 and A2 (Yellow and Black as per manual, a dual channel setup)
- Bios 1202
- Corsair CMX2048-8500CD 2x 2048 MB DDR2 1066Mhz
Also,
PCI-Ex 16x @ 1x
PCI-Ex is set @ Auto.. but it goes down to 1x.. I was able to go to 16x when I was at 440mhz FSB.. but then I went down to 435 and bootstrapped at 333, it went to 1x..
Any ideas how to fix these?
Try different slots.
What's your NB voltage?
Flash your bios to the latest one (1305) it may solve the PCI bug. As for the RAMs to function in dual channel they must be both on the same color slots.Quote:
Originally Posted by Thakkerson
Share your opinion, if as you said it lasted that long working 24/7, it was very good.Quote:
Originally Posted by Gen
My only complaint so far in this board, it’s the temperature sensors, sometimes they went crazy given me unreal temps. Hope to solve that whith the new 1305 BIOS :shrug:
Yeah its fixed. 1.55vQuote:
Originally Posted by Cwelle
Yes thank you.. the manual really is confusing. It should be on a1,b1 or a2,b2 for a dual channel setup.Quote:
Originally Posted by Fly33
The PCI-Ex has been resolved also.
Now I have a new question..
why is the ram latency and bandwidth too slow? Im running the mems @ 1056Mhz 5-5-5-18 and Im getting 7500MB/s-ish memory bandwidth and 76ns on the latency in sandra.. When I was in my 780i, on the same oc, it was 10,000MB/s bandwidth and 45ns latency... Sorry, I came from nvidia mobos and really am a noob on intel chipsets.. :shrug:
You should lower that NB voltage.
Is it stable?
If I were you I would try dram timing control enable. The rest seems fine :) you have almost everything at the minimum voltage which is very good :up:
With FSB Strap to North Bridge at 400 what option do you have for the RAM Freq.?
That was an old shoots.....now using less 400x9 on easy :P
So does anybody know if 76ns for latency is normal? Was getting 46ns on a 780i before on same mem settings..
At 500*8 (RAM@1000 5-5-5-15) I have around 55ns.
I see.. so 1:1 is the best for the P35s... ok. Must be the dividers. Thanks man!Quote:
Originally Posted by Cwelle
Only gripe is that my degraded E6850 is only stable @ 3.9Ghz 1.51v.. but my rams can reach 1066 @ cas5.. looks like no choice but to run it in 490*8 and tighten the mems.. but I also wanted that high mem bandwidth. :|
Cwelle, are you running whit the specs in your signature? Can you please share your voltage settings on BIOS, you have a good OC on RAM, especially whit 4 slot occupied.
Yes, I'm running this setup 24/7.
Here are the settings:
http://img62.imageshack.us/img62/739...5resize.th.jpg http://img62.imageshack.us/img62/354...6resize.th.jpg http://img233.imageshack.us/img233/2...7resize.th.jpg
I've been playing with my new E8400 I got over the weekend. Managed to get it to 4.25GHz (8.5x500) with Linpack stability. I thought I'd share my settings.
Code:Ai Overclock Tuner Manual
CPU Ratio Setting 8.5
FSB Strap to North Bridge 333MHz
FSB Frequency 500
PCIE Frequency 100
DRAM Frequency DDR2-1002MHz
DRAM Command Rate 2N
DRAM Timing Control Manual
CAS# Latency 5 DRAM Clocks
RAS# to CAS# Delay 5 DRAM Clocks
RAS# PRE Time 5 DRAM Clocks
RAS# ACT Time 15 DRAM Clocks
RAS# to RAS# Delay Auto
REF Cycle Time Auto
WRITE Recovery Time Auto
Write to READ Delay Auto
READ to PRE Time Auto
DRAM Static Read Control Enabled
Transaction Booster Disabled
Relax Level 0
CPU Voltage 1.3875V
CPU PLL Voltage 1.60V
FSB Termination Voltage 1.30V
DRAM Voltage 2.15V
NB Voltage 1.55V
SB Voltage 1.05V
Clock Over-Charging Voltage 0.90V
Load-Line Calibration Enabled
CPU GTL Voltage Reference 0.63x
NB GTL Voltage Reference 0.61x
CPU Spread Spectrum Disabled
PCIE Spread Spectrum Disabled
CPU Clock Skew Normal
NB Clock Skew Normal
Any of you have settings for a 4ghz Q9550 ?
A cpuz verification and a burn test stable and all screenie proof..
Im planning on getting a Q9550 for this workhorse..
Thanks!

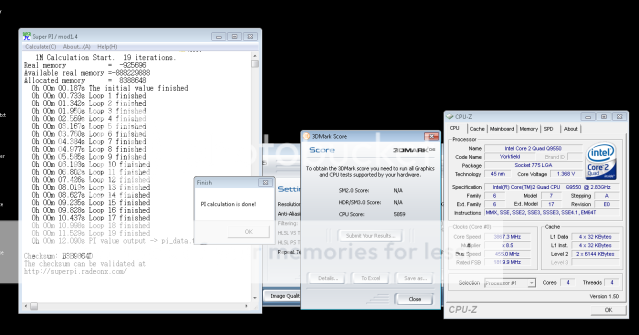

http://i392.photobucket.com/albums/p...erson/quad.png
Probly the best I can do with the aging P35 :(
Danged thing wont reach OS on 3.9ghz lol.
btw, Is 1.368v high for the clock?
I had that combo a while ago.. You will be chipset limited around 450- 455 fsb.. If you got a sweet low vid chip, maybe is time to change your motherboard.Quote:
Originally Posted by Thakkerson
:p: Yes you are very correct. 455 was my tops (and would require 1.55 :mad: the nb volt which makes the pci-ex run @ 1x forcing me to lower the oc back to where 1.4v nb oc area :mad:)Quote:
Originally Posted by monza1412
Frackin board and its 45nm quad handling. Time to get me one of them p45 (that DFI p45 jr is going for 150 dollars here and I got this Q9550 2nd hand which only costs 180 dollars. Pretty much cheaper than going to a bnew i5 and ddr3)
is FSB the Vtt voltage?
:yepp:Quote:
Originally Posted by Thakkerson
1.4v max in this board for 45nm if I remember correctly
I'm going from a E8400 C0 to a E8500 E0, so i have to update my BIOS version to at least 1102. Which is de best bios for me to use (so it has to be compatible with de E0 revision)?
Also, I'm running a RAID 0 array. Can I update my BIOS without any problems of the RAID array (loss of data/not recognizing anymore)?
And what is the best way to flash a new BIOS?
