tictac, could you please post a link to this modded bios, so we all can try it? :)Quote:
Originally Posted by tictac
Printable View
tictac, could you please post a link to this modded bios, so we all can try it? :)Quote:
Originally Posted by tictac
Some preview.... :fact:
ABIT Bios
http://img.techpowerup.org/060126/untitled%201.jpg
Modded Bios
http://img.techpowerup.org/060126/untitled%202485.jpg
not sure if it is up to the pace yet.. but going to the right direction... :woot:
2sec faster in super pi 2m
10 sec faster in super pi 16M :banana: :banana: :banana:
LMK when its ready.
tictac: so you can set tref directly in bios with your new modded version?
Nice result !!!
Huh?Quote:
Originally Posted by Hazzan
It's you who have tested it? -> http://hyem.org/unordinary/huc/index.php?topic=572.0
................. noticed that to...Patting self on back is 1337.
Be neat to get a better bios that worked well. :)
Jared
266mhz ram vs. 296mhz ram..Quote:
Originally Posted by tictac
what is now particularly to it? i dont understand..
The fact that he can actually be stable and pass with ram at 290+ i think is what the point is.....Abit's current bios is good for about 250-260 max memory stable......
here my best result with abit an8ultra bios 18
http://mitglied.lycos.de/meinnamegeh...CZ/302pi1m.JPG
pi1m stable.. :D
sorry a bit late... here is the bios :toast:
http://forum.abit-usa.com/attachment...chmentid=16391
Sweet, thanks!Quote:
Originally Posted by tictac
BTW could we get a feature/change list by any chance?
here the new official bios (20):
ftp://ftp.abit.com.tw/pub/download/bios/an8/
BIOS release 2.0 for AN8, AN8-V,AN8-3rd Eye, AN8 Ultra, AN8 SLI, Fatal1ty AN8, Fatal1ty AN8 SLI
Release information:
[ENGLISH]
1. Support FX-60
2. Enhanced compatibility with certain USB devices
3. Enhanced compatibility with certain memories.
4. BIOS compiled date: 1/19/2006
Well I read that it appears there was no change between beta and release of BIOS 20. Seems the compile dates are the same, so all that was changed is most likely the showing of bios 20 instead of 00 do not distribute or whatever. Tictac's bios is much better since it has more divider options and a few others. I'm liking it so far :banana:
the beta bios 20 finally got my system stable! now i gotta try the modded bios, looks good so far
Hey tictac, what is this hasan2.bin ISA module inside your image ?
btw, loved your fullscreen bitmap ! ;)
Yes !! this Bios for me and national competion overclocking in my country !!
Ok 2more bios for ABIT AN8/AN8 ultra/AN8 SLI/AN8 Fatal1ty/AN8 Fatal1ty SLI
Both bios have DDR300 & DD366 divider enable
1) AN8_20-78us
- with tref @ 200MHz 7.8us
Download LInk: http://forum.abit-usa.com/attachment...chmentid=16398
2) AN8_20-156us
- with tref @ 200MHz 15.6us
Download Link:
http://forum.abit-usa.com/attachment...chmentid=16399
You can enable and disable the patch via bios menu... :toast:
As recomended by bigtoe... hope this tref gain you more bandwith :woot:
I wonder which one I should run. I am unfamiliar with what tref exactly is. Also, what is with the whole patch thing you mention? What does it have to do with the onboard LAN controller? Any assistance would be appreciated. Thank you for the BIOS revisions!Quote:
Originally Posted by tictac
Thanks,
Jared
try the 15,6usQuote:
Originally Posted by MaStA
that should work nice with 2x1GB UCCC stick
you have to enable lan controller to let the patch work
if you disable lan controller the patch wont work
make sure you also set in bios menu memory timing
max async latency to 10us
read preamble at 7.5us
drive strength weak
max by pass 7x
that should work best with your ram :woot:

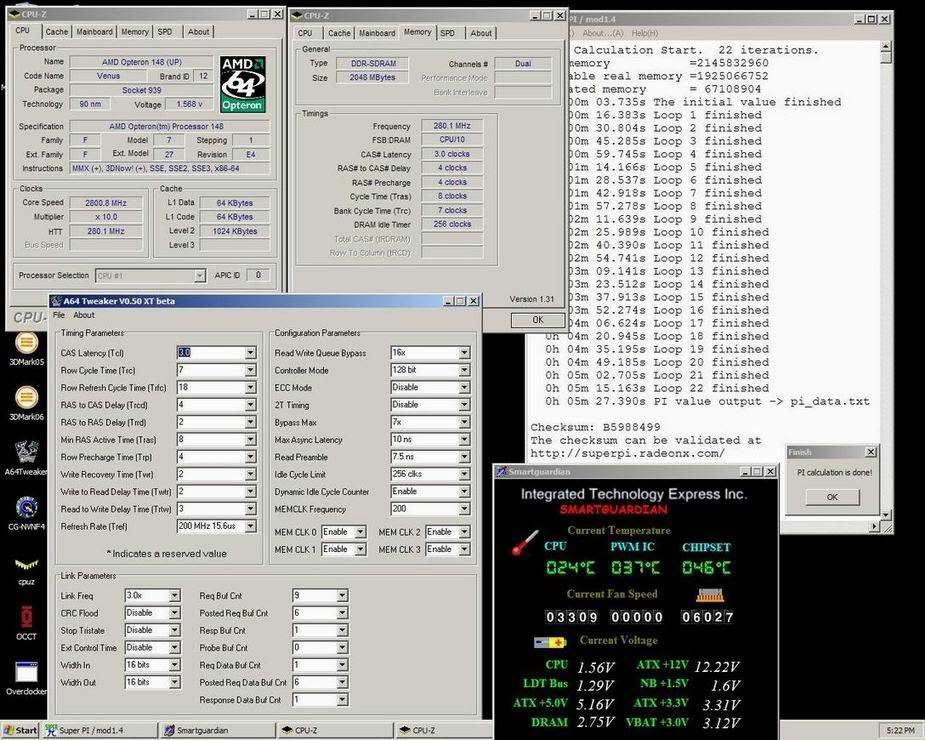

here is the rest of timing for your 2x1gb Samsung UCCC memory
with tref at 15.6us
should be able to run up to 280MHz 1T :banana: :woot:
http://img.photobucket.com/albums/v6...ccc280pi8m.jpg
Nice. I will give it a shot tomorrow. Time to go to sleep now lol. Thanks for your help!Quote:
Originally Posted by tictac
BTW what is the best way to test if memory is stable? Memtest? SuperPI?
Jared
i would also test lower MAL and RP as they will hurt your performance
i can run them at 7/5 with a few different sticks of RAM at 280MHz HTT so try 7/5, 8/5, 8/6, 9/6..........really don't think you'd need to go past that.......
What is MAL and RP?Quote:
Originally Posted by dinos22
