Thank you guys........ :D
Only with tests I will be sure.......As far as I consider , MY cirquit will follow ALL of the mobo's VTT out there as for DDR.....For DDR2 now : We have to test that before the final PCB shows off coz as I said DDR Maximizer WILL WORK with DDR2 Rams too......NO EXTRA money for other revision......ONLY a few money for the DDR2 PCB.......That's all..... ;)Quote:
Originally posted by enduracell
Vref follows on ÍF7 too unlike VTT (aka vbt), does this mean that maximizer will be able to give the correct vtt on this mobo too, and all others that Vref follows?
you should change the name of this thread to:
"beta tester begging thread!"
When will the sale of these fine overclocking devices begin? I just killed my OCZ DDR Booster while tyring to mod it to fit my a64 mobo, so I'm eager to look into yours. ;)
At the end of this week , first "complete" sample will be ready........After that , I'll make another 5 to 10 pieces of them for testers.......Small changes will take place though before the final release......The final release of it depents from testing and small changes...We'll see.....Quote:
Originally posted by EnJoY
When will the sale of these fine overclocking devices begin? I just killed my OCZ DDR Booster while tyring to mod it to fit my a64 mobo, so I'm eager to look into yours. ;)
Late today I'll post photos of the Front Panel PCB ready to work........ ;)
Added on it : 1. a microswitch for DDR/DDR2 configuration....... 2. a microswitch for ON-OFF VTT for mobos which can support VTT(OFF) and for mobos which can't(ON)...... ;)
Beautiful :slobber:Quote:
Originally posted by hipro5
At the end of this week , first "complete" sample will be ready........After that , I'll make another 5 to 10 pieces of them for testers.......Small changes will take place though before the final release......The final release of it depents from testing and small changes...We'll see.....
Late today I'll post photos of the Front Panel PCB ready to work........ ;)
Added on it : 1. a microswitch for DDR/DDR2 configuration....... 2. a microswitch for ON-OFF VTT for mobos which can support VTT(OFF) and for mobos which can't(ON)...... ;)
I can't wait :D
When they are ready to go maybe we can gather up a bunch of orders to save everyone in US on shipping. More $ for you and our bills. :) Keep us posted..., sounds like something I'll want.
And who were saying that it was some copie?:D. That is just too much different, and have much more benefits over the DDR booster... Of course, if it works as said;), but I have no doubt about it.
hipro hope you patented this :D
I'm looking forward to it Hipro. ;)
I'm amazed. Period.
Superb work, Hipro :D
:thumbsup:Quote:
Originally posted by skate2snow
And who were saying that it was some copie?:D. That is just too much different, and have much more benefits over the DDR booster... Of course, if it works as said;), but I have no doubt about it.
same :up:Quote:
Originally posted by Nohto
Hipro, you got PM
i can do some testing/reviewing.
I've looked at the DIMM pinout, and I can only see one pin which carries Vtt. Will this pin be capable of carrying enough current without causing damage to the RAM slot/motherboard? I guess that the fact that only one pin is put on the DIMM slot could indicate that the pin is not required to carry a high current. Looks good btw.
welcome to the forums :D :toast:
You may have measured the VRef pin......Not the VTT........No pins for VTT ON Ram chips....... ;)Quote:
Originally posted by persivore
I've looked at the DIMM pinout, and I can only see one pin which carries Vtt. Will this pin be capable of carrying enough current without causing damage to the RAM slot/motherboard? I guess that the fact that only one pin is put on the DIMM slot could indicate that the pin is not required to carry a high current. Looks good btw.
P.S. Welcome to Xtreme....... :toast:
Hipro, can I beta test as an A64 users? :D I promise I'm smart.
removed to clear the legal positions.
thread is back now, but please keep it clean and on topic :)
Thread is back on in another section but anyway......We'll continue....... :D
I'll update later on....... ;)

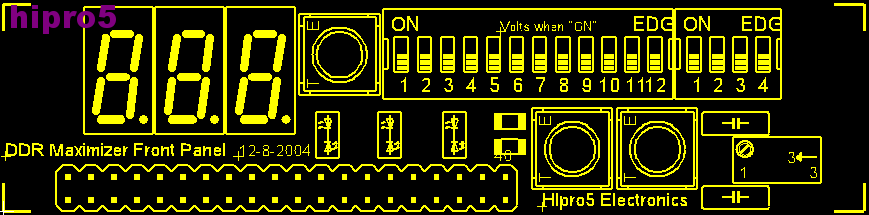

NOW.........This is the "final release" of the front panel.......Some changes where done so as to "cover" everyone......
http://www.thelab.gr/images/Hipro5/T..._final_png.png
As you can see there have been placed THREE more swiches ON-ON and three DUAL leds..... :D
The switch between the Led Displays and the dipswitches is for : PUSH ON = DDR2 support - PUSH OFF("on" in real) = DDR support..... ;)
The dual led below it will show the configuration of it......PUSH ON = Red , PUSH OFF = green.......
The other switch below the dipswitches(left one) , is for VTT ON and OFF......For mobos which can track the VTT , should be OFF and for mobos which can't support VTT(ex. ABIT IC7) should be ON......You can leave it to ON with no harm at all even for mobos which can track the VTT.......
The middle dual led is RED when we have PUSHED ON the VTT switch and green when this switch is in OFF......
The right switch (next to trimmer) is for : When ON = dip swiches working - When OFF = Trimmer working.....
Another dual led is placed for indicating that.....When ON = green for dip swiches (aka = safe :) ) and when OFF = red (aka = danger :) )......
Voltaged via dip switches for DDR are :
2.85 - 2.90 - 2.95 - 3.00 - 3.05 - 3.10 - 3.15 - 3.20 - 3.25 - 3.30 - 3.35 - 3.40 - 3.45 - 3.50 - 3.55 - 3.60
Voltaged via dip switches for DDR2 are :
2.25 - 2.30 - 2.35 - 2.40 - 2.45 - 2.50 - 2.55 - 2.60 - 2.65 - 2.70 - 2.75 - 2.80 - 2.85 - 2.90 - 2.95 - 3.00
Voltaged via trimmer for DDR are maxed out at 4.1Vmem(Vdimm)
Voltaged via trimmer for DDR2 are maxed out at 3.5Vmem(Vdimm)
How it looks???........DON'T ask me to add anything else on it coz it's just "full".......no spare place on the PCB anymore...... :D
i think i will get this :D
Looking forward to pricing and availability info
A64 abuser :D
One step from final release now ehh ?!? :D
Post some photoes George and let us admire it,till we buy it :slobber: :toast: :slobber:
Thanks guys...... :D
One thing I have forgoten though.......Another switch ON-ON for picking either led displays to show Vmem or VTT........I'll fix it ...... :D
Shi(f)t Samael....Your flag is a lot biger than mine on your avatar....... :D :toast:Quote:
Originally posted by Samael
One step from final release now ehh ?!? :D
Post some photoes George and let us admire it,till we buy it :slobber: :toast: :slobber:
