08-25-2006, 03:14 PM
Tallman

Looks like air to me.

CPU: 6700 Retail B2
MB: Asus P5W DH
Vcore: 1.66V (in BIOS)
MCH: 1.65V
Memory Voltage: 2.4V
Ratio: 1:1
Scythe Mine
08-25-2006, 07:28 PM
VoRtAn_MaDgE

http://img205.imageshack.us/img205/1891/p8240403ra0.jpg

http://img219.imageshack.us/img219/6660/3630jz9.jpg

All Stock, even mem timmings, just passed from auto to manual to prevent possible lockup during post...

Mod's, prommy soon ;)
08-26-2006, 06:30 AM
Eastcoasthandle

^^^type of team extreme ram?
08-26-2006, 02:23 PM
sixfootduo

Running 3.5GHz on my E6700, 24/7 prime stable etc

3.6GHz is very stable for games / apps and general windows usage but fails a few of the tests.

I can get into 3.7GHz and game / apps etc but fails all stress testing.
08-26-2006, 02:43 PM
Absolute_0

Well since FHPchris posted, the cat is out of the bag with my new E6700 so let me share some goodies

3.46 Ghz with 1.38v
3.56 Ghz stable with 1.45v
3.6 Ghz stable with 1.48v
3.65 Ghz stable with 1.525v
Prime tops out around 3.75 Ghz 1.6v

dual 32M at 3.866 Ghz 1.6v
http://img84.imageshack.us/img84/8710/dual32mih1.jpg

Pi 1M at 4 Ghz
http://img.photobucket.com/albums/v7...nroe-4-Ghz.jpg

All watercooled, ambient temps 21-25c today for all these tests.
08-26-2006, 03:01 PM
Mykou

Absolute_0 ;) wish I reach 4ghz one day too lol

Could you boot at that speed or did you set fsb with systools?
08-26-2006, 03:03 PM
Absolute_0

Had to use systools. My board can't boot past 30%, so i have to clockgen up from 3.46 Ghz everytime.
08-26-2006, 07:32 PM
Hazzan

I want to see bench with 3dmark01 03 05 06 with aircooling or water cooling. any body else !!! please
08-26-2006, 08:07 PM
Eastcoasthandle

Quote:

Originally Posted by Hazzan

I want to see bench with 3dmark01 03 05 06 with aircooling or water cooling. any body else !!! please

http://service.futuremark.com/compare?3dm06=415820
08-26-2006, 09:00 PM
Hazzan

Quote:

Originally Posted by Eastcoasthandle

http://service.futuremark.com/compare?3dm06=415820

Good Jobs !! thanks:toast: :toast: :toast: :toast:
08-26-2006, 09:19 PM
DeToNaToR.cl

anyone know why E6700 are overclocking soo bad?
08-26-2006, 10:01 PM
cupra

Quote:

Originally Posted by DeToNaToR.cl

anyone know why E6700 are overclocking soo bad?

3.7 ~ 3.9 on air and 4.4-4.7ghz on ss...

thats not bad...
08-27-2006, 12:23 AM
OBR

Quote:

Originally Posted by cupra

3.7 ~ 3.9 on air and 4.4-4.7ghz on ss...

thats not bad...

NO, usual OC of E6700 is 3.5 - 3.7 with AIR! I have this CPUs Prime stable:

E6300ES @ 3.1GHz
E6600 Ret @3.5GHz
E6700 Ret @3.6GHz
E6700 Ret @3.7GHz - i think it is maximum for B2 with AIR, booted in BIOS, NOT clocked from Windows ...
08-27-2006, 03:10 AM
VoRtAn_MaDgE

Quote:

Originally Posted by Eastcoasthandle

^^^type of team extreme ram?

8000
08-27-2006, 11:33 AM
Mykou

Quote:

Originally Posted by OBR

NO, usual OC of E6700 is 3.5 - 3.7 with AIR! I have this CPUs Prime stable:

E6300ES @ 3.1GHz
E6600 Ret @3.5GHz
E6700 Ret @3.6GHz
E6700 Ret @3.7GHz - i think it is maximum for B2 with AIR, booted in BIOS, NOT clocked from Windows ...

yes , i have the same feeling too ( prime stable I mean )

I know I could push further my chip but 1.48 vcore is ok for me 24/7 ;)
08-27-2006, 11:36 AM
Absolute_0

Finally decided to finish modding up my 7900GT, gave it a few more volts and set it to 715 core

Set the 6700 to 3.76 Ghz to be safe, except on Aquamark 3 i brought it up to 3.86 Ghz

And the resulting benchmarks

3dmark05 12,365
http://service.futuremark.com/compare?3dm05=2181318

3dmark06 7,109
http://service.futuremark.com/compare?3dm06=457397

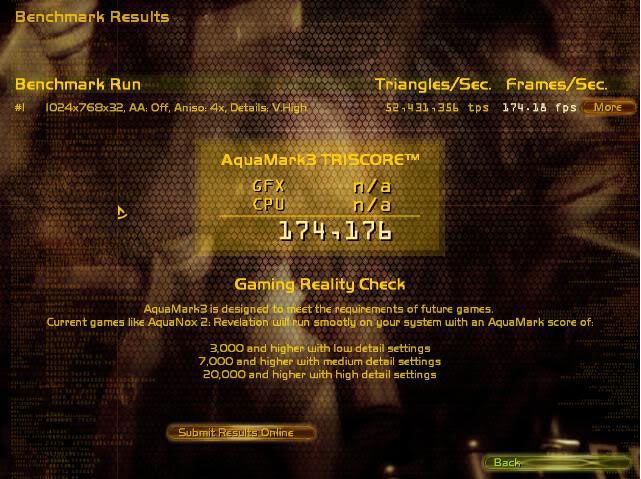

Aquamark3 174,176
http://img.photobucket.com/albums/v7...l/0297383c.jpg
08-27-2006, 02:01 PM
fhpchris

Quote:

Originally Posted by Absolute_0

Well since FHPchris posted, the cat is out of the bag with my new E6700 so let me share some goodies

3.46 Ghz with 1.38v
3.56 Ghz stable with 1.45v
3.6 Ghz stable with 1.48v
3.65 Ghz stable with 1.525v
Prime tops out around 3.75 Ghz 1.6v

dual 32M at 3.866 Ghz 1.6v

Pi 1M at 4 Ghz

All watercooled, ambient temps 21-25c today for all these tests.

I am sorry if you didnt want me to let everything out of the bag, but your E6700 owns my E6600.
08-27-2006, 02:13 PM
Absolute_0

lol, it's alright, i was going delay the posting of results as a surprise, but i realize there's no reason to hold back good results. I was talking a lot to AFI on aim so i showed him the results, we were talking as 3.866 Ghz ran, i thought it was going to crash since my room temp was heating up so much.

For the record i clockgenned on to 3.893 Ghz and tried to run the dual 32M again and it restarted after 7 minutes :doh:

Now i just *WISH* my board would let me boot higher, clockgenning up from 3.46 is annoying.
08-27-2006, 03:04 PM
Viss

E6700 retail
P5W DH 1101
7950
stock air

vdimm: 2.1
vcore 1.575
fsb: 1.5
mchc: 1.6
ich: auto

Max with both x9 and x10 around 3.6 with these settings. No orthos/dual 32M though, needs better cooling.

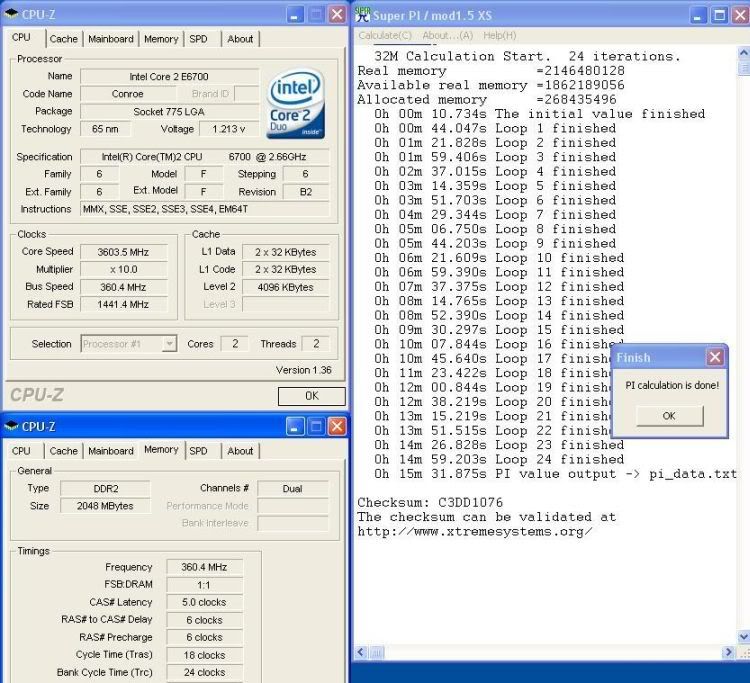

http://img.photobucket.com/albums/v6.../32M3600_1.jpg

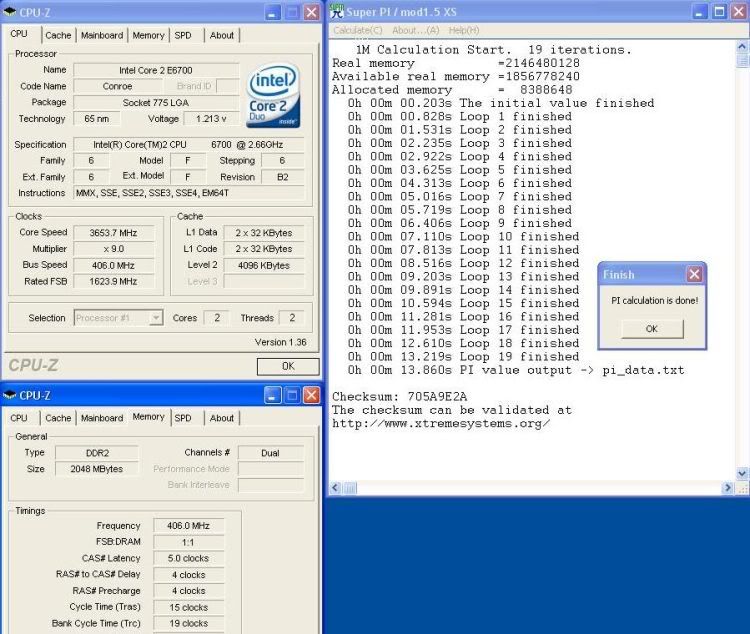

http://img.photobucket.com/albums/v6...55406fsb_1.jpg

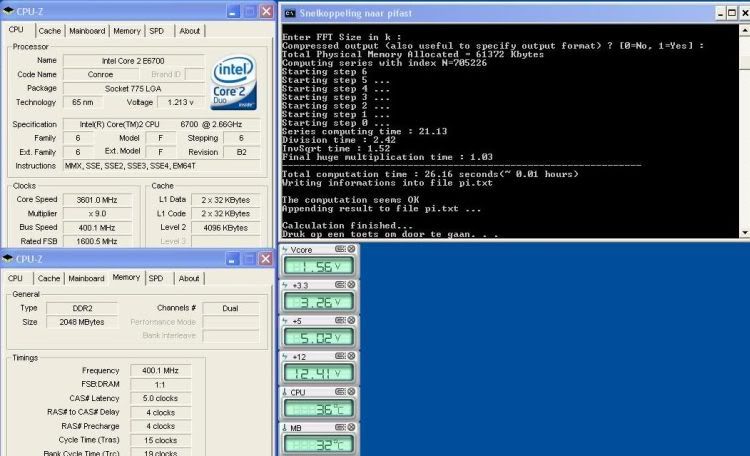

http://img.photobucket.com/albums/v6...pifast26_1.jpg

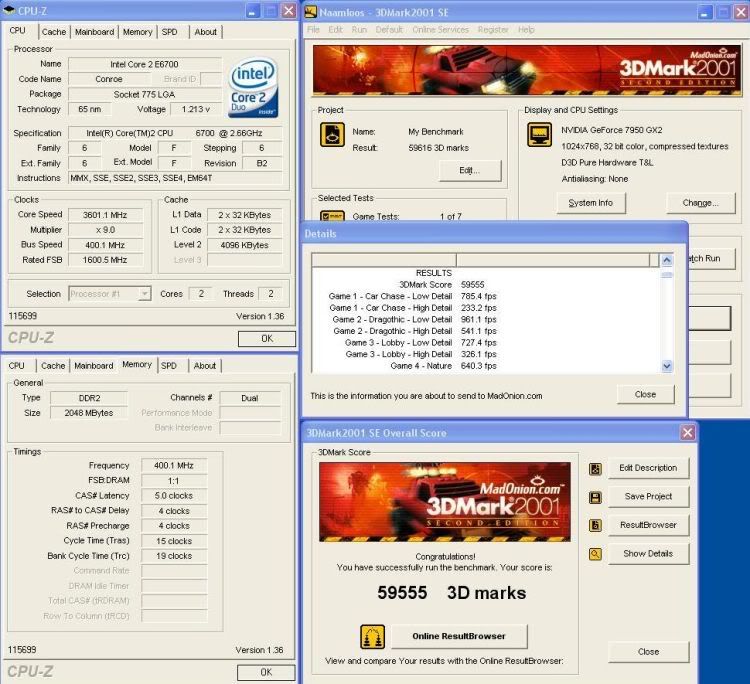

http://img.photobucket.com/albums/v6...oc/59555_1.jpg

http://img.photobucket.com/albums/v6...3650riva_1.jpg
08-27-2006, 03:05 PM
dragonhunter

Try to meet the 4ghz stable goal, a little more would be good.

http://img237.imageshack.us/img237/3237/395ghzmk0.jpg
08-30-2006, 01:21 PM
^don.k's^

Hi, this is phase cooled, i need to set timmings by SPD to get 443 of FSB, dont look time, look the mhz and test, it wasnt tweaked. :) Voltage was ~1,65

E6700 B2 Step6 (1stage phase-change)
Asus P5W DH vdroop modded
Crucial ballistix 2x1gb pc5300
Vcore = 1.675V (BIOS)
Vmch = 1.65V
Vddr = 2.4V

http://img107.imageshack.us/img107/6...vapour6.th.jpg

http://img110.imageshack.us/img110/4...4200hx9.th.jpg

Regards! :toast:
08-30-2006, 01:29 PM
Viss

very nice what week is that ?
08-31-2006, 03:46 AM
^don.k's^

24 :)
09-02-2006, 12:36 PM
fhpchris

Quote:

Originally Posted by Absolute_0

lol, it's alright, i was going delay the posting of results as a surprise, but i realize there's no reason to hold back good results. I was talking a lot to AFI on aim so i showed him the results, we were talking as 3.866 Ghz ran, i thought it was going to crash since my room temp was heating up so much.

For the record i clockgenned on to 3.893 Ghz and tried to run the dual 32M again and it restarted after 7 minutes :doh:

Now i just *WISH* my board would let me boot higher, clockgenning up from 3.46 is annoying.

Get a WS Pro or the AW9D MAX
09-02-2006, 12:43 PM
zbogorgon

@Absolute_0
could you tell me is your 6700 ES or retail, if retail, could you tell us which week ?
