I got the board and there is no cold boot :)Quote:
Originally Posted by dragonhunter
Printable View
I got the board and there is no cold boot :)Quote:
Originally Posted by dragonhunter
After you update de bios, the first time you go to bios and save, theres a coldboot, but only after update the bios. Then you can go any time you want and no more cold boot.Quote:
Originally Posted by ken
warm reboots are an issue so far and with my ES B1 stepping CPU I can't lower the multiplier down to six it's stuck at seven....taken from his link post on forums.
I ordered this board and its right here ready to be opened and installed :stick:
Can you spread out some light what you mean by that ? :toast:
“Coldboot” only when update the bios, or reset, this only happens a time after having done some thing of these.
4 but it appears to be rock solidQuote:
Originally Posted by LazyBum
I'm not having cold booting issues... Tictoc asked me if the board can cold boot with 440 set in the BIOS and the answer is yes... no problems with cold booting!Quote:
Originally Posted by dragonhunter
Those of you hitting 440 FSB from bios can you post your bios settings & configuration. I'm not having success booting over 420FSB from bios with 9 multiplier. I can boot 435 FSB with 8 multiplier but is won't pass any tests. Must be something I'm missing. I know it not the cpu because this chip can hit 4 ghz and is 32mb Pi Stable @ 3.9ghz 440FSB X 9. Is the provided sound card any good?
have you got ram speed set to spd or manually, check the latencies...
I managed to boot at 443. Vdimm and vcore needs to be a little higher than some other boards to get the mobo to boot at high fsb. Unfortunatley I'm now using P5WDG2 Pro, so I can't give you bios screenshots. Also make sure chipset coltage is around 1.9v or more initially and has a fan blowing over it to keep it cool (helps stability). You can remove the 'MAX' plate from the chipset heatsink, so that a fan blows down into the fins, otherwise the plate blocks the air flow...
regards
Raja
I had set my ram manually @ 4-4-4-12, & 1066 strap. I think I even set the chipset to 2.0v @ one point. Temps all @ or below 40'c. Since this board won't set voltage below 1.35v and won't display anything lower, I have to find a new max default volts overclock. My chipset seems weak or requires more volts at higher FSB's than the P5W. For example 367FSB & all vcore setings at auto was my stock Overclock. This board requires 1.60v mch to be set or it fails orthos in seconds. Currently running 2.0vdmm 1.60v mch & 1.35vcore for 3.4ghz so far orthos stable. I love the way the boarld looks inside my case. The blue LEDS go well with the NZXT Lexa blue case fans & blue razor mouse. I'm just not sure of the audio. Looks as though this will be a solid game platform if the audio holds up.Quote:
Originally Posted by raju
http://img.techpowerup.org/060924/42...hmark Abit.jpg
I am finding on my retail board that a setting of 2.0V for the MCH is actually around 1.89V real when measuring it. ;)Quote:
Originally Posted by The Nemesis
V MCH mod...Quote:
Originally Posted by bingo13
http://www.forumdeluxx.de/forum/show...postcount=1118
UPDATE: Okay now I seemed to have gotten rid of the "CPU isn't workable, or has changed message" even though I didn't even intend that what I did would solve it. I was getting annoyed with the blinking LED's so I rebooted, went into BIOS and set LED to "ALL ON" instead of "Mode 1" which it was previously on, saved settings, and voila message is gone. Rebooted again to make sure I wasn't seeing things, and yep the message is gone. Strange board this is. As far as messing with ram timings, I'm not going to mess around anymore since I'm tired, and pretty light headed (seeing that message about my cpu the first time almost made me faint).
Edit: First message given was "CMOS checksum error, loading defaults" and then "CPU isn't workable, or has changed" every other boot after the first. Now updated to the Beta 12 Bios, and the "CMOS checksum error, loading defaults" came up again, haven't rebooted yet so not sure if the second message shows up. Also ram is still at 667.
Luckily my board isn't DOA, but it gives me a message "CPU isn't workable, or has changed" or something like that, but it still boots into Windows after I press F1, and core temp is reading 34C on both cores... my ram has been slowed down to 667 though, its G.Skill DDR2-800 2Gb dual channel PK series. Also I didn't do a fresh install of XP, just booted it up as if it was still installed when I had the Badaxe in the rig. Lastly I didn't update the BIOS to that Beta 12 yet... but wtf is up with that CPU not workable message?
Another thing, theres a red LED lit up next to the IDE port, also took some pics of the message but can't find the damn usb cable... but the code it also gave was "7F" if that gives more clues... computer seems fine, hopefully theres no issue, just trying to get XP activated though it was already... I :banana::banana::banana::banana:en hate Msft.
My board - retail with beta bios not have problem with 415x9 - 1.75 vmch. I used E6600 & Crucial Ballistix 667MHz, anything is ok. Testing in 3D :)
@TicTac - this beta bios posted on delux change problem with 4:5 on 400MHz FSB ?
Update : 420x9 still 1.75vmch
Thanks, but you know I cannot mod my board, well, not the blue one anyway. ;)Quote:
Originally Posted by tictac
well, i am using mushkin etreme performance 667 and I can't get past 390fsb. AFIK these are Elpida chips. Anyone esle using these and getting over 400 fsb? I want to know before i blow some more cash on my rig for new memory:)
This is the result whit conroe 6800 b2 and ln cooling. The motherboard is whithout mod.
http://www.pctuner.info/test/results..._abit10047.JPG
The mainboard is very good but the problem is the multiplier look at 11 only.
roro:doesen't cpu-z krystal allow you higher multi settings?
So Abit says the board delivers 2.0v on the mch and it's actually 1.85v real?
Hmmm.
Yeah the boards nice an all but it certainly doesn't clock better the p5w dh. On the other hand I lost 3 mhz on my max 3DMark stable/Gaming overclock using the board so it's not really a big deal. I'm gonna stick with it as far as my gamer goes. It looks nice in the case. Unfortunately I'm gonna loose 300 mhz on my everyday overclock because the board won't due 3.6ghz orthos stable @ the same settings the P5W DH will & it runs alot warmer trying.Quote:
Originally Posted by malficar
wow... 5GHz on unmodded board... :woot:Quote:
Originally Posted by roro
ya... hope they will come bios with upper multi unlock... :fact:
Congrats.. :banana: :clap:
I didnt know anything about $:% problem... sorry... :nono:Quote:
Originally Posted by DEVIL K-ce
:hehe:... BLUE board you got...Quote:
Originally Posted by bingo13
don't you want 1.95V stabalize on the MCH? :hehe:
whats a warm boot?Quote:
Originally Posted by Tacops
Disappointing. I was wanting to try an E6600 in one of these and I guess I'll fall back on my old P5W DH D or just drop it in this P5B.Quote:
Originally Posted by The Nemesis
my board is drooping very bad anybody else have problems? i set it to 1.7vcore and drops to 1.5-17
I would not purchase this board over a P5W DH with 1.85v mch. The Asus consistently overclocks better under different users, the layout is much better and allows you to use your own sound card, and the board is packed with many more overall features.Quote:
Originally Posted by malficar
The AW9D-Max overclocks well, but not consistently hitting 440-460mhz among different users as we were lead to believe it would. It's limited to provided sound card when using dual GPU configurations. With Black PCB & Blue LEDS, it looks nice. Best overall feature in my opinion is the uGuru Utility which allows you to set overclock presets in windows for some quick benching. Solid board to build a 400-420 FSB system although 420 FSB requires me to set 1.95v mch in bios.
Did you turn off eist/speedstep. My board was doing the same till i figured out that the option was in cpu feature in the advanced bios menu. After that i found the droop to be very minimal. I then switched my old psu for the silencer 750 and now my board seems to overvolt.Quote:
Originally Posted by johnsally
Quote:
Originally Posted by MrDeeds
hehe yea i didnt turn it off when i reset my cmos, was wondering why it was that bad.
well been testing all day everything over 430 fsb the board freezes instantly in orthos.2vmch 1.7vcore 2.55vdimm still will not go any higher.
Yea its kind of hidden. I went with this board primarily because of how solid the vcore is and the bonus of not having the board power down my psu and hard drives every time it reboots like the asus boards. The p5b deluxe was drooping damn near .7 volts while under load. Definately not acceptable.Quote:
Originally Posted by johnsally
do you have the latest bios? That helped me some. I was able to get as high as 433fsb before my phase ran into some other issues and i couldnt go any further. Have you also tried loosening up your ram timings a bit?Quote:
Originally Posted by johnsally
lastest bios, and relax timings dont make a difference for me. computer runs fine and once i open orthos it freezes rite away.
So im running a XE 965 with OCZ 2gb plat xtc pc6400 and I am getting 30 Sec 1M super PI?
Whats wrong?
Okay I added two fans to north bridge from this. Now I'm getting somewhere.
http://img.techpowerup.org/060925/1 mb pi 440 fsb.jpg
Nice :toast:Quote:
Originally Posted by roro
what voltage was this on?
Damn I can't get this board to save any BIOS settings, I have to power it off just to boot again :nono:
Quote:
Originally Posted by G H Z
Try to "save and exit" ONLY EACH "page" of the bios for start....Not too much pages together - for start - .....;)
I was having that problem.Quote:
Originally Posted by G H Z
Check that the CMOS jumper isn't loose, if it is swap it for one of the other USB jumper pins.
Also, try to change all the settings to what you want at stock speeds then save an exit, re-enter BIOS and overclock from there as it should revert to the last stable boot if the OC fails. I think..........
that's wierd, with p4 netbust, the mulitplier works with 18x↑Quote:
Originally Posted by roro
but, only max 11x with C2D:(
http://img.oc.com.tw/b60799/20069251...4660716500.gif
Haha CMOS jumper was missing right out of the box, it's working fine now :D
nice... add another 2... make it 4 :banana: :banana:Quote:
Originally Posted by The Nemesis
They are about to release a newer bios which unlockes the multi upwards as well.....PLUS some more Ram timmings....;)Quote:
Originally Posted by hicookie

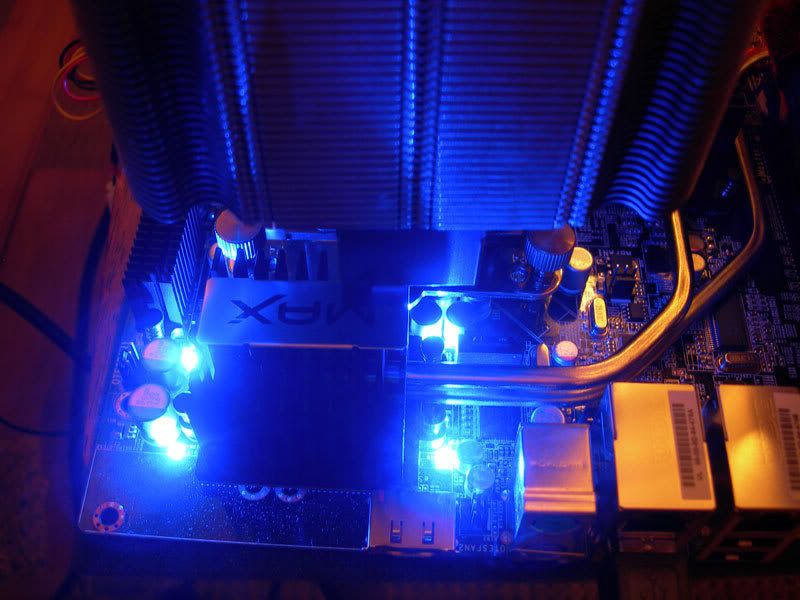

I need sunglasses working with this setup.
http://img.photobucket.com/albums/v31/canny/blight.jpg
heh,almost like Las Vegas skyline;)
I am getting 1.97V on the MCH now with the RED board. ;) The blue board has to remain stock for another week. :D :toast:Quote:
Originally Posted by tictac
I've tried it, but it doesn't work.Quote:
Originally Posted by mykeos
The vcore ed the vmch setted to the max and a tornado 92mm on the chipset...:)
Do you guys replace the TIM with AS5 for NB? Any improvements?
Thanks
Quote:
Originally Posted by G H Z
Damn man what heatsink is that. Is it keeping it cool enough? LOL...
Did anybody else running phase have an issue with the upper left mosfet heatsink. I had to squeeze the evap clamshell onto the socket in such a way that the mosfet heatsink no longer sits totally flat.
Im considering removing the whole multiple heat pipe/heatsink setup.
http://img152.imageshack.us/img152/5168/1000565xz6.jpg
So adding a fan to the northbridge helped a bit huh? IIRC someone else gained like 10Mhz fsb just by using as5 on it. I wonder how water would wake up the chipset... REALLLLLY considering this board for a 6600 MAYBE 6700 setup, nice and watercooled.
Nemesis I missed it before, thats a nice overclock on the 6600 :cool:
i have this board coming in on Friday so i need to prepare. Can someone give me a quick rundown on the best bios to start with? Any little tricks in the bios i need to know before i start cranking away at my E6600? Im using the DFI Infinity board for the time being but am pretty disappointed in not being able to reach 400+ FSB. Im crossing my fingers that my first Abit board wont disappoint.
As asked earlier, has anyone put some AS5 on the northbridge? Replacing the stock goop on my DFI with AS5 netted a 22C drop in temps so i suggest someone give it a try.
start with this bios. It's the 1.2 bios, the link is direct to abit ftp so it may be a bit slow. Set your timings manually under chipset settings. Under the guru section turn off all the cpu options like speed step etc. Your mch voltage will need to be set higher than with the P5W DH for anything above 350 FSB. Personally you probably should set bios to stock or moderate overclock and use gURU in windows to test overclocking. Thats what I like best about the board, I can play around with differnt overclocks without going into the bios and making changes each time. Good luck:)Quote:
Originally Posted by Budwise
hi !
well my AW9D MAX is arrived !! french abit lovers can order them at e-soph, the single way to have these boards for the moment in france
i just want my X6800 between 3.8 or 4.0 ghz....maybe i dream ithink...won't over 3.6 stable with p5bdlx..
anybody want good rams: buy gskill 6400 GA , my kit work at 1138 and i think maybe more with more volt and cooling, but very expensive..
Looks like a solid board allright.
Anybody knows where to get one in Canada?
Tankguys is in the states, but ships to Canada. They are located near Ann Arbor I think.Quote:
Originally Posted by neptunes
yeah you will need to change it with AS5 on northbridge... abit use thermal tape... that is not as good as AS5 conducting heat... keep the NB cool :toast:Quote:
Originally Posted by Budwise
AW9D-MAX @ 1,75MVmch / Kentsfield @ stock core, silent aircooling (coolscraper,120mm, 800rpm)
http://home.arcor.de/alonso_rudolfo/Kentsfield.JPG
Bios first shows funny things but then switches back to 4 CPUs ;)
http://home.arcor.de/alonso_rudolfo/9cpus.JPG
No multipliers above x10 in the bios for Kentsfield?
thats the situation here, yes...
abit didn't publish new bios to slove the question yet?:stick:Quote:
Originally Posted by Alonso
x6800 max 11x
KFD max 10x?:(
switched to P5WDH (Bios1305) right now - 20x available
imho still whola a lot to fix... ;)
alo
i have installed the board yesterday and there is a problem that i cant solve.
if i enable "raid" by the four satas ICRH7, save bios and the reboot if whe go again to bios and try to enter in Uguru menu the systems freezes completly,
the other problem is that if i dont go to bios after the reboot and simply try to configure the raid it gives me error and dont let enter the ICHR7 raid bios by pressing ther normal control+I
anyone have the same problema?
the solution was installing windows in single disk.
thanks
Dumb question,
My psu has two lines; one that says cpu1 and one that says cpu2 that are both 4pin, would it be proper to plug them into the 8 pin connector up top?
http://img169.imageshack.us/img169/2226/connabitsq8.jpg
is that the max FSB for Kentsfield you got from this board? :cool:Quote:
Originally Posted by Alonso
Tictac !!
Come on...a new bios for us !!!:D :D
^yeah.....:)
...Can you do anything with this one TicTac?
:D
Quote:
Originally Posted by G H Z
Nah, the ati connector is different.
install the latest bios, that wil fix that issueQuote:
Originally Posted by jpcastro
I just ordered this board along with some Gskill HZ and an E6600.
if the board turns out to be a dud i'll cry... the reviews reported none of these issues... worried I won't hit 400mhz 1:1 now.
it work work out OK Richdog - probably .....
This board does not support SLI :rolleyes:Quote:
Originally Posted by Revv23
officially - although it does ship with an SLI bridge for use with hacked drivers. ;)Quote:
Originally Posted by G H Z
The board supports CF, there is one RED interlink sent with the board. Now unless this has the exact same pin configuration of an SLI bridge I think it's safe to say it's a CF interlink only.
It's advertised as: http://www.overclockers.co.uk/acatal..._Abit_176.htmlQuote:
Originally Posted by G H Z
Supports ATI CrossFire,Supports Nvidia dual Graphics.
it's the same one that ships with the AW8D & the SLI boards...Quote:
Originally Posted by G H Z
It's red for the same reason that the AudioMAX sound card is red - the Fatal1ty boards.
I've never seen an ATi card that uses that type of interlink, always an external cable or cableless via PCI-E.
Quote:
Originally Posted by G H Z
It's an SLI bridge, like i said, many run sli on 975 and abit just was kind enough to ship the connector so people dont have to search for them. The ATI CF connector is very different, it is much wider and flatter, also it is by directional. Meaning cards can send and recieve data at once. I don't have any pictures of the ati connector right now as all of the DFI RD600 pictures were taken down, and AFAIK, thats the only place its been spotted.
Notice how it doesnt say crossfire on that bridge at all. Thats because it isnt for crossfire. Also, they cant say SLi on it because the support is not official.
Just in case you missed this in a previous post, the bridge is for unoffical sli support. Here's my previous screen shot of my highest 3DMark 06 stable overclock.Quote:
Originally Posted by G H Z
http://img.techpowerup.org/060924/42...hmark Abit.jpg
Would you guys get this board over the P5W DH Deluxe? I'm having a hard time deciding!
Yep. Abit scores by including the bridge before support becomes official.Quote:
Originally Posted by Revv23
http://img208.imageshack.us/img208/7...adaptergo3.jpg
BTW - One of the negatives for me on this board was the fact that getting a PCI sounds card in the mix with two video cards isn't going to happen. Abit is using the same onboard sound as Asus uses in its 975 mobos. Here's what Anandtech had to say about Realtek ALC882M when reviewing the Asus P5WD2-E Premium:
In the on-board audio area, this board has an excellent implementation of the Realtek ALC882M High Definition Audio Codec. The software provided has Jack-Sensing, S/PDIF Out support, interrupt capability, and Dolby Master Studio support. The ALC882M will encode digital audio contents to real-time Dolby Digital streams for pass through via the S/PDIF ports to an AC-3 decoder for playback. The audio output of this codec in the music, video, and gaming areas is very good while performance in certain games has improved tremendously with the R1.29 driver release. If you plan on playing on-line action type titles, we highly suggest a dedicated sound card at this time, but the onboard capabilities of the ALC882M will satisfy the majority of users.
Anyone else care to comment about the sound on this mobo? Does the Abit version enjoy any advantage becuase their sound chip is on the PCI-E bus vs. Asus which is right on the mobo? None right?
Well it's red and if you ask me that's for ATI only :D
I'm currently limited to the provided sound card with my configuration. I have an aging set of logitech Z680 speakers which has 2 digital inputs for use with its built in digital decoder. The sound card is decent for movies though I have yet to play any dvd that doesn't have DTS audio. Music was okay, but my biggest complaint is the noticable difference in games like quake. Fear sounded much better than quake during expolsions etc., but still lacking compared to the audigy 2 platnium I'd been using. I also purchased the guru panel. Its just under $25 shipped from newegg & I feel it should have been included with this board when the price was more than the $219 I paid. Its a sweet looking board, gonna replace the thermal paste tonight & add some fans to try to get 450Mhz out of this board. With all this rambling I forgot to just plain say, I don't like the onboard sound.Quote:
Originally Posted by gundamit
what's the best ram to get with this board?
will it boot ram @ 1.9v or 2v?
first result with the board
Abit AWD9 max - E6600 week 29 - TG micron 3-3-3-8
3700ghz 9x412 1.47v in bios
ram - 1\1 strap 1066 3-3-3-8 2.30v in bios
http://img245.imageshack.us/img245/7...gspily6.th.jpg
the does overvoltage right? probably the 1,47v is 1.50v real
today i will try some more but for now im happy with the board :p:
Quote:
Originally Posted by G H Z
:toast:
Teeeheeee
Quote:
Originally Posted by gundamit
I've used the 882 on my ATI RD580 ES board and on my Saphhire RD480 board.
It is terrific for music listening, and good enough for gaming. The X-fi is only better for music when ASIO playback is used. However, if good sound in games is important to you, there is a noticable difference between the X-fi and the 882.
I found both setups to be good enough for my ears, though when i hook up my high end audio i really start to lean hard on the audigy.
One thing I found just the other day that might be very useful to AW9D owners is this:
http://www.newegg.com/Product/Produc...82E16816105001
If you can fit it in your case it may solve all of our problems! :)
It's listed as a "SLI bridge" on abit's parts store :stick:Quote:
Originally Posted by G H Z
http://www.abit-usa.com/abitparts/miscellaneous.php
GHZ.... yeah .... it is the SLI bridge... :DQuote:
Originally Posted by Heidfirst
The Nemesis... yeah it need thermal paste replacement... AS5 would be nice
Question>> Does this board do the full shutdown after BIOS settings are saved and/or if it is restarted, as the ASUS P5W DH does?
Corsair TWIN2X2048-6400-C3 with EPP, is it worth the 500.00 dollar investment?
This is a little off topic for this thread, and someone can correct me if I am wrong but This memory will give the corsair 6400c3 a run for the money right? Ok back on point. I got my AW9D-MAX the other day and had a failed bios flash right after I got it all set up. Just got a new bios chip today. Any suggestions for the flash. Is it safer to flash in windows? My board died because it restarted in the middle of the flash :confused: I am going to hotflash my old bios chip so I have a backup. Hoping to get it all up and running this weekend!Quote:
Originally Posted by palese
Mine doesn't. It has here and there but I think it because my oveclocks fail. One thing to keep in mind for you phase users is the guru utility allows you to change everything but the mulitiplier in windows. No need for restarts to test different settings in bios. I've been testing different settings in windows. After they are successful I set & save the bios.Quote:
Originally Posted by Sparx
i highly recommand aw9d-max, stable cpu votage, u not have to mod,and powerful "guru" oc tool,like u said , u don't need to restart,:DQuote:
Originally Posted by The Nemesis
Barrier of 3Ghz broken
CPU Core -> default.
DDR Voltage -> 2.0v.
MCH Voltage -> 1.55.
http://img225.imageshack.us/img225/3...aultlu4.th.jpg
We go to see until where default goes with vcore. :)
Well I went and ordered one of these, hope it likes G.skill 6400 HZ. :D
sparx
This is my result with this fantastic board
http://www.atris.it/Forum/attachment...7&d=1159553537
wow.. nice < 11 sec pi time. wewt.
Nice,
ive just bought the Asus P5W64, did i make the wrong choice :p:
well its sat here on my desk, il be installin tomorrow so its too late..
The asus looked a lot better of late so i went with it, the result above seems way better then most of the recent abit results so :confused:
I just got an Abit AW9D-Max and all I have to say is Abit is back. I like this board a lot. Reminds me of my old IC7-G Max II except it looks more sexy.
http://img372.imageshack.us/img372/6170/e660039qr3.jpg
http://valid.x86-secret.com/show_oc?id=125747
http://img528.imageshack.us/img528/9...rpi1m39fu4.jpg
