10-20-2006, 12:27 PM
china

Well, if the heatsink isn't even warm, it just might have bad contact with the processor.

Yes, I have a mild overclock, currently running my E6400 at 3,0GHz. Close to the stock voltage though.
10-20-2006, 12:28 PM
ssabripo

so how many of you are using EIST?

i'm a little perplexed about it: to enable it, I had to disable the manual multi in BIOS, and then enable the Intel EIST thingy into Automatic.....and then once in windows I put the Power setting in "Minimal Power conservation" mode.

I see perhaps a 1-2C decrease when it idles and it goes down to 2.8 (x6 multi) from 3.3... But my question is, the Vcore is still set as hard coded 1.35volts.

I ran orthos and all seems well and stable (immediately jumps back to x7 and runs fine) and same with SuperPi.......but I just dont get how people are getting 4C lower when idle if Vcore is constant. :confused:

any EIST gurus out there?
10-20-2006, 12:32 PM
GrimReaper

Quote:

Originally Posted by china

Well, if the heatsink isn't even warm, it just might have bad contact with the processor.

Yes, I have a mild overclock, currently running my E6400 at 3,0GHz. Close to the stock voltage though.

anyway I can fix it ? Intel wont rma this cpu until its dead :slapass: ,, could it be a bad motherboard sensor?
10-20-2006, 12:47 PM
Revv23

Quote:

Originally Posted by GrimReaper

anyway I can fix it ? Intel wont rma this cpu until its dead :slapass: ,, could it be a bad motherboard sensor?

Remount your cooler, lap your IHS.

405 fsb why would you rma?
10-20-2006, 01:05 PM
metalazzo

well, in my case, I'll RMA my P5B D
after some tries with Tyrou on sunday with nvidia card :D
but, I won't change my gc so Asus MUST do something about my little peg problem :mad:
my last Asus mb :rolleyes:
10-20-2006, 01:25 PM
Revv23

Quote:

Originally Posted by metalazzo

well, in my case, I'll RMA my P5B D
after some tries with Tyrou on sunday with nvidia card :D
but, I won't change my gc so Asus MUST do something about my little peg problem :mad:
my last Asus mb :rolleyes:

Hmm its a pretty easy fix, just reset cmos, or what i do is pull plug on PSU for about 30seconds, the board will do the double reset and be back at 16x without losing bios settings. Dont think you needed to rma.
10-20-2006, 01:52 PM
swiftex

Quote:

Originally Posted by metalazzo

well, in my case, I'll RMA my P5B D
after some tries with Tyrou on sunday with nvidia card :D
but, I won't change my gc so Asus MUST do something about my little peg problem :mad:
my last Asus mb :rolleyes:

I've gotta agree with Revv23 on this one............................

why? why? why? what does one ask the most? why....ditto..........
10-20-2006, 02:56 PM
Viss

Max fsb cpu or board :D. Same settings/hsf only change is cpu.

1st one does 3800 dual 32m but max fsb is 7x512 1M (6x is same) and 7x510 dual 32M:
http://img.photobucket.com/albums/v6...10dualdone.jpg

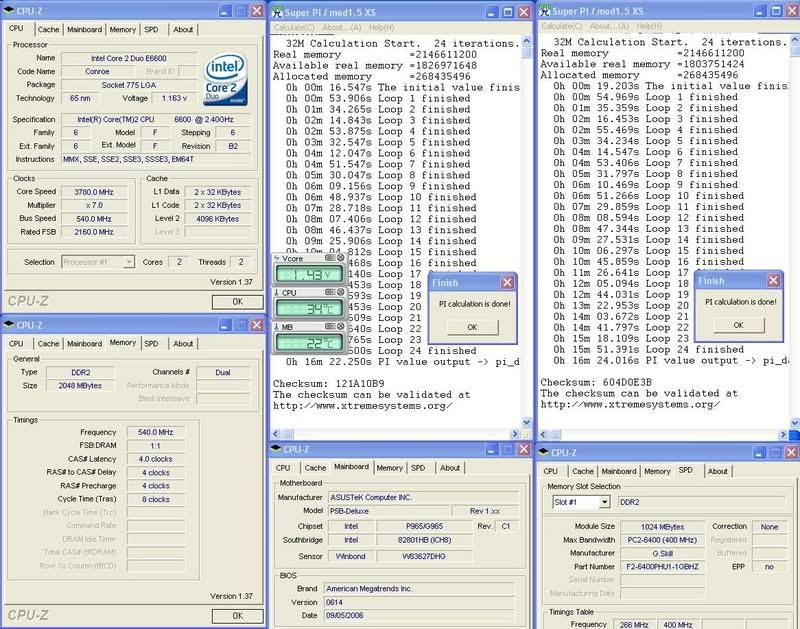

2nd E6600 does 6 and 7x550 1M max and at least 540 dual 32M:
http://img.photobucket.com/albums/v6...40dualdone.jpg
10-20-2006, 03:03 PM
metalazzo

Quote:

Originally Posted by Revv23

Hmm its a pretty easy fix, just reset cmos, or what i do is pull plug on PSU for about 30seconds, the board will do the double reset and be back at 16x without losing bios settings. Dont think you needed to rma.

don't you think i even tried that ? :stick:
10-20-2006, 07:21 PM
mele

To Reset The P5B Bios.....

For those of you with the no POST problem try this.....

Turn off the PSU then unplug the PSU.

Remove PSU Connectors from MB, remove CMOS battery, move CLRT jumper from pins 1-2 to 2-3.

LEAVE IT THIS WAY ABOUT 1 HOUR. This will give the caps plenty of time to drain.

Place CLRT jumper back to pins 1-2, replace battery, replace PSU connectors to MB, plug PSU back up, turn on.

I've had several problems lately with 711 and 801 not POSTing after certain BIOS settings and it took this to get the CMOS cleared.

Mel
10-20-2006, 09:02 PM
NO1B4ME

Quote:

Originally Posted by ShapeGSX

The one and only. This is my other expensive hobby. :) Actually, I work for Intel, so at least the processor came cheap. :) The rest took quite the bite out of my wallet. More than my Evo III 16G. ;)

Man i knew it was you. I sent you a pm.
10-20-2006, 09:55 PM
Dax5

EIST defeats the pupose of overclocking - because it underclocks whatever clock speed you have, so instead of enabling eist, just leave all your settings to stock, thatway you dont stress your system that much
10-20-2006, 10:30 PM
GrimReaper

ok will try and remount the heatsink, but its a F:banana: :banana: :banana: ing pain to remove and fix it back..

another problem when I shutdown the I get a loud beep :eek: just before it shutsdown and then its goes off :confused:

using the 711 now is the 801 any better?
10-20-2006, 10:47 PM
buckshot

Can someone please provide a link or PM for the 0801 bios please? Thanks
10-20-2006, 11:04 PM
Psyire

Thanks everyone for the info on installing my SATA Burner.

I do have one JMicron question though... are people using the drivers off the Asus CD or the Asus FTP to make their 'F6' Disk?
10-20-2006, 11:23 PM
kwalker

Quote:

Originally Posted by buckshot

Can someone please provide a link or PM for the 0801 bios please? Thanks

http://users.skynet.be/pt1t/P5BDLX/P...eluxe-0801.rar
10-20-2006, 11:27 PM
buckshot

Thanks a bunch! kwalker :toast:
10-20-2006, 11:37 PM
kwalker

Any time
:cool:
I didnt like the Vcore drop in windows and reflashed 0711
10-20-2006, 11:39 PM
buckshot

I already have crazy vdrop with the 0711. Hopefully 0801 wont be any worse.
10-20-2006, 11:51 PM
GrimReaper

Quote:

Originally Posted by kwalker

http://users.skynet.be/pt1t/P5BDLX/P...eluxe-0801.rar

Wifi/AP edition?
10-21-2006, 01:18 AM
Kakulukia

Quote:

Originally Posted by Psyire

Thanks everyone for the info on installing my SATA Burner.

I do have one JMicron question though... are people using the drivers off the Asus CD or the Asus FTP to make their 'F6' Disk?

The F6 disk for Jmicron is only necessary when you run Raid ON UR JMICRON.

I have a Sata dvd burner.

I have installed the raid tool (u can download it from asus), but i think it isnt necessary.

-Why are u people trying 0801, it isnt officialy released? You can't even download it from asus itself.

Anyway, i have also EIST problem.

I'll quote it from other thread.

PLZ TEST THIS

Quote:

Originally Posted by Kakulukia

Guys,
I am having problems with the multiplier.

When i run, Orthos or Prime95, superpi (any other stress programme), the multiplier lowers to 6x (E6300 = 7x).

Therefore, i get a score of 19sec @1M.

I have turned EIST of. Even if i set the ratio maunally to 7x it still lowers to 6x .

I am sure that there are more ppl who havent discovered this.

I am having also this problem:
Try this out byurselve,
open cpuz and crystal cpuid.
Select cpu1/2, see multipliers at both, they must be the same, refresh (f5)the screen (of crystal), then I (you) see that the multiplier drops.
Now select core 2/2. REfresh (f5), now i see that the multiplier keeps 7x.

Weird:slobber: ,
thus, core1 is @idle mode 6x and core 2 7x?

Now do this again with orthos (or any other stress), then u shall see that multiplier drops (to 6x) .

edit:
I suppose we all turned EISt off,
i have too, but i still see in CPUID that it is active ( check with everest or crystal).

Quote:

Originally Posted by Kakulukia

These are my voltage settings

VNB=1.45V
VFSB=1.30V
Vcore= 1.500 (1.45 in windows), TEST THIS OUT!! You mag require less volt
Vsb=1.6V
Vich= 1.057V
Vdimm=2.15

I hope this is a bit usefull.

Notice, when i start orthos (or other stress prog) the multiplier drops,
EIST is working the opposite way
10-21-2006, 03:18 AM
GrimReaper

disabled speedstep?
10-21-2006, 04:43 AM
Kakulukia

lol,

that is the problem, according to this, bios does NOT disable it.
10-21-2006, 06:03 AM
GrimReaper

Quote:

Originally Posted by Kakulukia

lol,

that is the problem, according to this, bios does NOT disable it.

what version are you using ? update to the 711.. even the first bios that came with my motherboard showed this option :confused:
10-21-2006, 06:22 AM
ShapeGSX

I found the issue. It was not KB920872.

It was KB890859. If you search for "KB890859 bsod" you get a ton of results.

http://support.microsoft.com/kb/898114/

Microsoft says:
"This Stop error is more likely to occur in the following types of computers:
• On a computer that is stressed
• On a computer that uses multiple processors or hyper-threading
• On a computer that mounts volumes frequently on removable media devices"

Now, the web page says that the issue is for Windows 2000 based systems. I don't think that includes XP in MS's eyes.

Anyone else ever have an issue with this one?
