I hate your chip, ABSOLUTE_0 :D
Just wait until i get better cooling. This thing is so temp limited.Quote:
Originally Posted by TEDY
OCCT failed at 3012 repeatedly. Temps went down < 1C and then it finally made it through. If temps go down like half a degree, i notice OCCT lasts about 5minutes longer. LOL.
More stuff
Lowered temp a degree and OCCT went at 3020
http://img.photobucket.com/albums/v7...E/746f86b7.gif
http://img.photobucket.com/albums/v7...E/241f3a51.gif
Not really. ;)Quote:
Originally Posted by Absolute_0

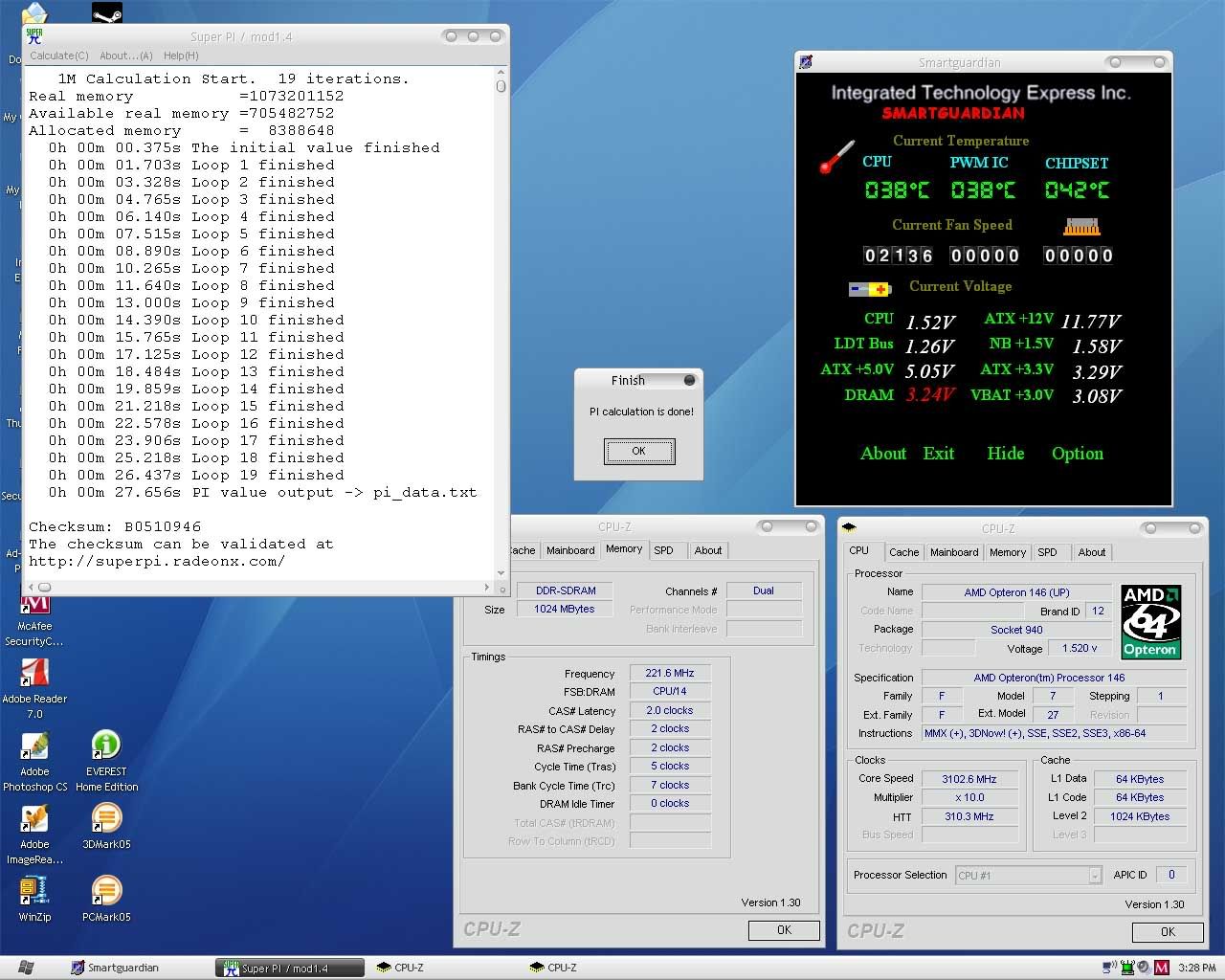

http://i15.photobucket.com/albums/a3...uperPi1M22.jpg
Did up to 3110 with 1.525V before it started to crap out. :)
But for some reason, even with the 166 Divider @ 3110 I couldnt get a better time than my 2nd attempt (3042). I think I might have loosened Async a bit too much...
well that's a horse of a different color ;), you should have posted that one.
thats terrific.
i guess the single core opterons aren't as popular anymore!
http://www.johnshim.com/forums/xtrem...148testing.jpg
still testing
voltage set to auto / auto in bios.
not too bad.
i was expecting bad results since someone else reported not so hot results with this stepping.
this is with watercooling.
Push the volts shim!
that's awesome shim, the funny part is that you're exactly at the point where my chip is 24/7 stable. I need 1.525V +20mV to stay stable though ;)
Who says burn in doesn't work? CPU tops out at 2.92 for prime on day 1, i burn it for several days, now 2.94.
CABQE 0547GPMW 0246 batch
2.94 Ghz 1.360 volts stock heatsink 50C load
http://img.photobucket.com/albums/v7...E/df88c35e.jpg
Very nice Whit... But get rid of those things already and get that nice 148 on phase!
Absolute: What happens when you feed that 146 more volts? I'm curious about how fast you hit a wall with that one on air, I seemed to hit a wall pretty quickly on my 148 after I moved off of stock volts.
It seems like some of these chips love volts and some don't.
I get 55C load and it starts to fail. Runs great until it heats up. I have done OCCT at 3020 on 1.45 so far. Lemme put my ACFreezer64 Pro on it...
I think I hit the wall with my 148, I can't get much past ~266 x11 without going to 1.625+. My temps are fine, even at 1.675V I don't peak at anything higher than 49C but I can't break 3.0ghz and stay even 1M stable for the life of me.
... just 9mhz more HT please! :stick:
I get the same problems.. temps on opterons are a big problem, after i go over the 50C loaded mark, more volts just does nothing
Buddies you have to keep your Loadtemps under 38°C then the Chip will work excellent. Thats the only secret of good Ocing.
Nicest Loadtemps are under 36°C at any Opteron or other CPUs.
My chips won't do temps that low even with stock volts on my AC Freezer. With watercooling it wouldn't be that low, i would need watercooling *and* IHS removed, which is asking a lot.Quote:
Originally Posted by Rufus7
36-38C load is pretty much where I don't get any more benefit bumping the volts up. I hit a sweet spot at 264x11 w/ 1.525V +20mV and ~32-36C load temps (depending on ambient).Quote:
Originally Posted by Rufus7
I'm on air cooling so my options are restricted. I've already upgraded to a higher cfm fan on my big typhoon, cut a hole in the side of my case over the cpu and ducted the opening directly to the BT. It's somewhat hoopty, but it dropped my load temps from ~44-48C to ~32-36C (usually ~33 or so).
So I guess I'm running out of ideas, I could go to water cooling but I don't have spare cash to buy the parts. I did find a guy selling an old Swiftech extreme duty kit for $250, it includes a storm waterblock, but I'm hesitant to spend money until I've saved more.
@ Absolute_0: have you tried turning on C'n'Q ? It made a _huge_ difference in my temps, instead of idling at ~32C I idle at ~20C. That cuts the heat load inside the case considerably, it also lowers the heat dump from the PWM circuitry. I didn't think it would do as much as it does, I'm impressed. For budget OC on air it's a winner. edit: I just noticed, we have the same core/week/stepping, 2.9ghz is as far as I can get it to go on air, ihs is off and makes a nice keychain.
Oh you are Aircooler Buddie. That´s quiet different und more difficult thän with Water to get an Chip cool.
I have also been cooling an 0530APMW with Air but thats too hot for the DIE.
Water is better and easier to get an chip colder.
Without having an Coldbug.
And for now thats an DC 170 0550VPMW under DualPrime Custom FFTs in place at 2x3000Mhz and 1,424Vcore.
Ridicoulos Loadtemps. Never saw under water such high Temps at any CHip on my Board.
Heres the Screen DualPrime is still runnig.Ambient Roomtemp is around 19°C.
http://www.bilder-hosting.de/tbnl/HS9SE.jpg
http://www.bilder-hosting.de/tbnl/HSBJM.jpg
Same CPU i've been testing
Now on AC Freezer Pro
3065 Mhz 1.45 volts 42.5C load
http://img.photobucket.com/albums/v7...E/811bb293.gif
http://img.photobucket.com/albums/v7...E/d4d9cd4f.gif
Absolute do you have sure the 1288864 Wafercharge like my Opteron 146 CABNE0530APMW!
Great Chip.
nope
I am testing out the 0246er
# is 137xxxx etc
http://img.photobucket.com/albums/v7...E/94c3bc3a.jpg
Playing with my 146 0530APMW...2100Mhz 1V
http://img321.imageshack.us/img321/4...eroc0vz.th.jpg
Oh i have an 148Opti CAB2E0547GPMW Pretested on Air with 1,5Vc an 3Gig.
this is the best CPU i've owned
12 Hour Prime Stable at 3.1GHz
low-mid 20C ambient temps
Opteron 146 with 11x multi
CABYE 0540FPBW
http://img137.imageshack.us/img137/2...12hours4hu.jpg
You got a good one, that's for sure. I had a 148 with the same stepping/week and it was the second best cpu I've owned.Quote:
Originally Posted by dinos22
Take care of that one.:D
same CPU i've been using
3.1 Ghz, 1.55 volts, ACFreezer Pro, 51C load
http://img.photobucket.com/albums/v7...E/f9ad084f.gif
http://img.photobucket.com/albums/v7...E/df00ec37.gif
Primes for a few minutes but then gets to around 53C and fails ><
If it maintained 51c like OCCT i think it would go forever.
How did you use an 11X multiplier on the Opteron 146???!!!
A bios flash??
here is my full thread about 11x multiplier on Opteron 146 :toast: :fact:Quote:
Originally Posted by turbox997
http://www.xtremesystems.org/forums/...ad.php?t=88876
I have install my opteron 150
CACJE 0551 TPW8 ( lucky revision?)
http://img301.imageshack.us/img301/9385/280x115di.jpg
I have do stability test at 3100 and 3112mhz (283 x 11,1.45V).. OCCT pass, super PI too (27.248 PI 1M, no tweaks on DDR,2.5-4-4-8 1T can do certainly 2.5-3-3-7)..
My ask.. i will try go for 3.2ghz then, what is the max Vcore don't shoot on the Opty for stability? if it don't keep at 1.5V, 1.55V.. 1.6V is a lot for this type of opteron?.. i got it since some hour only don't want burn it first day..
Need say the Opteron have really impressive me.. really easy to set with OCZ4800, incredible like it go stable fine with stock voltage on start...
Quote:
Originally Posted by dinos22
That is awesome!!! Friggin sweet!!! Haha, I wish I had that.
I'm running mine 24/7 with 1.58 Vcore on air, load temps are under 44C at all times. I think up to 1.60V is OK, if it took 1.625 to make it stable at 3.2ghz then I'd think that was OK too :DQuote:
Originally Posted by Lane-k
jeeze you run 1.58 volts and it only loads at 44c? I load at 46c with 1.45 volts. Lapped ACFreezer64 pro and lapped IHS.
Hello guys, could you give me an help to understand my cpu ?
I bought an Opteron 150 stepping CABGE 0532MPMW ... i was thinking that it is a very good step but i cant make run it more of 2805mhz stable after a superPI 32MB
i not expert but i tryied to give more voltage from the bios...i also tryied 250x12 with 1.550v + 104% :shrug: :help:
am i so unlucky to have bought a not good cpu? :(
i post an image about my config so you can see better the syterm configuration...:confused:
http://img102.imageshack.us/img102/8...1550v0i.th.jpg
Probably need a little more voltage than that. Try 1.5Quote:
Originally Posted by [ITA]SEREUPIN80
hello, i wrote wrong value... i wanted to say that i tryied 1.550v + 104% :(Quote:
Originally Posted by MaStA
Well on air I wouldn't go over 1.5-1.55. So that just might be your cpu's limit. Are you sure your ram is not limiting it? Might want to try a higher divider.Quote:
Originally Posted by [ITA]SEREUPIN80
Jared
Quote:
Originally Posted by MaStA
i dont think that are the ram because i tryied with them at 133mhz 2.5-3-3-8 do they were under 200mhz while i tryied... :(
i really hope that this isnt the cpu limit ...i was hoping to have bought a good cpu :(
Overclocks are never guarenteed though. :stick:Quote:
Originally Posted by [ITA]SEREUPIN80
Try using the x10 multi, some CPU's prefer running x10 :)Quote:
Originally Posted by [ITA]SEREUPIN80
really i don't know.. pehraps have you no luck.. but it's strange you can't go higher.. I can use any multiplicator for OC all work.. 308-310x10, 285x11,265x12..etc.. but yes.. sometimes some CPU like more one or another multi..
all work if i have Prime or OCCT instable ( 3 minute after the end of test).. i up the voltage a little bit no problem..Are you sure of your settings for your DDR?
Is your prob can come from the temp?
Very Very TrueQuote:
Originally Posted by MaStA
That's a good chip Absolute, every time you post a pic it's always good news, haha.
I'll have a screen shot soon, but the other day I decided to play around with my chip some more(I was running 2.81@1.37v primed for 9 hours)... well long story short, after I played I couldn't prime it without the volts changing on me.
SO, I'm running at 2.80@1.32v now.. undervolted it. Primed for 20min then I stopped it before I went to bed.
It is a 148 and the screens a bit old but still running it today.
http://img124.imageshack.us/img124/1...20045du.th.jpg
http://img124.imageshack.us/img124/8...144v5fk.th.jpg
@Absolute, get your h2o fixed?
is image shack down? it hasn't been working for me.
It just took me a long time to load ^.
So is it true your hard drives begin to corrupt if you run over 315 for a long period of time?
Thanks,
Jared
first time i hear about this myself....i'd say it's an isolated problem with a system that wasn't stable in first place......with drive corruption i'd say it was a memory issueQuote:
Originally Posted by MaStA
I have not experienced it. Chew is actually who told me this and I am pretty sure you two communicate, so maybe you can talk with him about it.Quote:
Originally Posted by dinos22
Jared
chew has a funny choice of motherboard and is a hard core ocer...........I would say that's the reason why he'd see the corruptions.....but it isn't that widely known...........i happened to be running most of my systems at those HTTs and above for the past year and i never had an issue like that nor heard of anyone other than you mention itQuote:
Originally Posted by MaStA
i have heard of plenty of guys mess up their hard drives with over eager OCs and pushing RAM too much but not high HTT levels :)
So with my setup I am fine to go over 315 you would say? :cool:Quote:
Originally Posted by dinos22
I've been thinking about going with watercooling, but figured if going over 315 would corrupt my hard drive it wouldn't be worth the money to me. I may still go with it then.
Jared
yes just make sure your RAM is stable.... i.e. memtest and multiple superpi runs :)
Will do. May just use a divider to run it at stock lol. If I go water cooling I will go for more. Thanks.Quote:
Originally Posted by dinos22
Jared
I had to redo mine one time. Doing the 1m Spi ratio thread. 2400mhz was the best ratio and I was using CGen at 343x7. I tried to reboot and start from 342x7 and corrupted it. Just make sure you have a clone or copy that you can just "paste" back in after you format. BEFORE you try for corruption.
**edit** I think using CGen is safe, just don't try to boot like that.
32M with 146 0540 FPBW under watercooling
http://users.skynet.be/pt1t/146/32M_3201mhz.PNG
Nicely done!!
hmm ive seemed to hitt a wall on my opteron 146 cab2e fpaw
what do u guys think is better to use the 9 multiplyer or the 10 because on the 10 which im currently priming at (10 x 274) for 3 hours and as soon as a go to 275 it can only prime for 2 minutes... any suggestions
i have a dfi lanparty ut ultra d and x800 gto2 and 1 gig generic compusmart ram i think this might be holding me back
3dmark 05 6548
148 at 3ghz and still tweaking.
http://img70.imageshack.us/img70/989...rime8ft.th.jpg
Nice nice! :clap:Quote:
Originally Posted by Pt1t
How high can reach on air? thx
Are you running memory on 1:1?Quote:
Originally Posted by Rott3n
Quote:
Originally Posted by bobov
Dont know , i have only the radbox ... but prime stable @ 3ghz 1.39v in air ,screen @ 3.4ghz and 3ghz @ 1.38V in wc, screen @ 3.45ghz. Prime is also stable @ 3.2ghz and all 3D benchies :D HIS still on :rolleyes: . in Few weeks , i m going to waterchill it :p
I wish lol. 5.4 right now. I can't get these g.skills to run faster than rated.Quote:
Originally Posted by bobov
I'm in similar situation here with a 148 opty and my G.Skill HZ. I popped the IHS off the opty and got it up to 3030 P95 stable with a divider, but my HZ sticks are hitting a wall at 270, so I'm capped at 11x270 1:1 until/unless I can tweak this config to get the HZ to catch up.
Quote:
Originally Posted by Pt1t
Nice, what idle/load temps were you seeing?
I found my gskill HZ kit didn't like 5/6 divider.Quote:
Originally Posted by Rott3n
DFI LANPARTY UT nF4 SLI-DR Expert (12-7-05)
AMD OPTERON 175
Patriot Dual Channel XBL 2x512MB PDC1G3200+XBLK (tccd)
EVGA 7800GTX 256MB, PCI-E
Western Digital Raptors 2 * 75gigs
Western Digital Raptors WD740GD 74GB 10,000 RPM
LITE-ON LTR-24102B
PLEXTOR DVDR PX-708A
SONY DVD-ROM DDU1621
PC Power & Cooling 510 SLI-PFC ATX12V 510W Power Supply 90 - 264V UL/ ULC/ TUV/ CE-Retail
==========
Genie BIOS Settings:
FSB Bus Frequency - 275
LDT/FSB Frequency Ratio - 3
CPU/FSB Frequency Ratio - 10
PCI eXpress Frequency - 100Mhz
CPU VID StartUp Value - STARTUP
CPU VID Control - 1.550v
CPU VID Special Control - Above VID * 102.4%
LDT Voltage Control - 1.40v
Chip Set Voltage Control - 1.68v
DRAM Voltage Control - 2.84
DRAM Configuration Settings:
DRAM Frequency Set - 166=RAM/FSB:5/6
Command Per Clock (CPC) - Enable
CAS Latency Control (Tcl) - 2.0
RAS# to CAS# delay (Trcd) - 03 Bus Clocks
Min RAS# active time (Tras) - 06 Bus Clocks
Row precharge time (Trp) - 03 Bus Clocks
Row Cycle time (Trc) - 10 Bus Clocks
Row refresh cyc time (Trfc) - 13 Bus Clocks
Row to Row delay (Trrd) - 02 Bus Clocks
Write recovery time (Twr) - 02 Bus Clocks
Write to Read delay (Twtr) - 02 Bus Clocks
Read to Write delay (Trwt) - 02 Bus Clocks
Refresh Period (Tref) - 3120 Cycles
Write CAS Latency (Twcl) - Auto
DRAM Bank Interleave - Enabled
DQS Skew Control - Auto
DQS Skew Value - 0
DRAM Drive Strength - Level 11
DRAM Data Drive Strength - Level 1(Reduce 50%)
Max Async Latency - Auto
DRAM Response Time - Fast
Read Preamble Time - Auto
IdleCycle Limit - 256 Cycles
Dynamic Counter - Disable
R/W Queue Bypass - 16 x
Bypass Max - 07 x
32 Byte Granularity - Disable(4 Bursts)
==========
Prime95 + 3dMark2001SE + CPU-Z 1.32 + Everest 2.50 Ultimate Edition 2006:
http://joek71ny.tripod.com/images/finaltest.jpg
http://joek71ny.tripod.com/images/finaltest_1.jpg
http://joek71ny.tripod.com/images/finaltest_2.jpg
http://joek71ny.tripod.com/images/cpu-z.jpg
http://joek71ny.tripod.com/images/mem_settings.jpg
http://joek71ny.tripod.com/images/memslot.jpg
http://joek71ny.tripod.com/images/memslot1.jpg
http://joek71ny.tripod.com/images/setting1.jpg
http://joek71ny.tripod.com/images/prime95_14hours.jpg
3dMark2003:
http://joek71ny.tripod.com/images/3dmark.jpg
EVEREST 2006:
http://joek71ny.tripod.com/images/everest_latency.jpg
http://joek71ny.tripod.com/images/everest_read.jpg
http://joek71ny.tripod.com/images/everest_write.jpg
==========
short description:
275*10 @ 2750Mhz, 5/6, 1.550v + 102%
2.0-3-6-3 @ 2.84v vdimm
I decided to play some more with my opt 146 until my dual core chip comes in.
3027@1.42volts PI calculations.
<a href="http://img137.imageshack.us/my.php?image=30279im.jpg" target="_blank"><img src="http://img137.imageshack.us/img137/9713/30279im.th.jpg" border="0" alt="Free Image Hosting at www.ImageShack.us" /></a>
You can always use a divider.Quote:
Originally Posted by scottk
BTW, CACJE 0601 GPAW seems to be a very weak series. Mine can't get past 2880 even with 1.7v... It's going back to my reseller this afternoon, I can get my money back if I return it in less than 7 days :D
@Mursaat
Have bought CACJE 0601 GPAW 146 this weekend.
Works at 2950MHz with Air cooling with 1,5V (primestable). 3000Mhz works
but not primestable. Isn't that impressive compared to some PMWs but "good
enough" for me. ;)
BUGGI
Well I've tried even with memory 120 divider. What I forgot is to relax MAL and RP, will try later, but don't think the Opteron is not able to manage MAL8 at ~200Mhz... What memory do you use? can you post all your config? Thanks :)
@Mursaat
Using an MSI Neo 4-F with 2x512MB "old" Samsung DRAM.
Config as always:
HT Multi = 3
Core @ 1,5V (look at the picture)
NF4 = 1,55V (normal settings, don't do aggressive)
Bus = 295MHz
DRAM Clock = 133MHz -> runs then at 197MHz with 1T and CL3
Cooling is air (Artic Freezer 64 with FAN @ 5V -> look at the picture)
Thanks a lot BUGGI!
Anyway I've sent the chip to my reseller right now. I have the right to send it back in less than 7 days, I get the money back (in the shop, but it's my favourite shop :D)
Not even 2850 with 1.4-1.7v :( I will stay with my 165@2600 with 1.375v for a while
Is that a CACJE 0551 TPMW? I can't find any info on CACJE 0551 TPW8, so maybe that was a typo? Thanks! :)Quote:
Originally Posted by halo112358
//EDIT Sorry for the double post. I did second quoting from the page 184, an hour and 4 minutes later, and I thought there should've been posted again :D
Alright this is my 2nd best, the 0154 batch CPU on my stupid air cooling with frigging terrible temps.
http://img.photobucket.com/albums/v7...E/a6fad857.jpg
http://img.photobucket.com/albums/v7...E/5d554aa3.jpg
I don't think too many Opterons can prime at 3.1 with 1.56v and 48c load ;)
"I don't think too many Opterons can prime at 3.1 with 1.56v and 48c load"
You have a point there. Get your h2o going.
Yeah yeah the block is coming in soon.
Hey you know that CABYE i got from you - that thing is HOT! I put it on air and gave it 1.6 volts and started SP2004 - jumped to 60c instantly!
And on the phase change, well it just about overloads the single stage. It does what i say in the sig, but when i give it 1.63 volts, loads at +14c!
It's a good chip to be sure, but man it's hot, it needs a better single stage to run on and it would fly.
It is tempermental, but it will get up there, clockwise. It was hard for me to control though with DI and not having any temp monitoring device. See the SD thread please.
I dont remember exactly the full temp , but it was arround 47-48°
146 0540 FPBW under watercooling
3.1ghz 1.48v
http://users.skynet.be/pt1t/146/Prim...0mhz_1,48v.PNG
3.2ghz 1.63v
http://users.skynet.be/pt1t/146/prime_3200mhz.PNG
What a chip! :DQuote:
Originally Posted by Pt1t
Here is my opteron... 0540FPBW 3504Mhz @ 1.72Vbios
http://www2.shrani.si/pics/img1293ivtp39_thumb.jpg
cab2e 0546 fpaw
290 x 10 @ 1.45
284 x 10 @ 1.4
primed stable
cab2e 0604 ?dtaw? (i'll check later)
301 x 10
1.392
super pi stable (priming)
cab2e 0604 ?dtaw? (i'll check later)
298 x 10
1.392
super pi stable (prime later)
:toast:
Quote:
Originally Posted by LitleDevil
Did you try max suicide cpuz screenshot ?
wow nice CPU you got thereQuote:
Originally Posted by LitleDevil
I'm testing this CAB2E 0546GPAW; not bad... 3288MHz@1.57V with CPU at 6°C. I've seen a 3309MHz screen and thought the validation was done but it wasn't...
http://valid.x86-secret.com/show_oc?id=73776
http://www.beforeoverclock.com/images/cpu-3288.jpg
Not bad... more to come :D The waterpump really suxx actually :slapass:
3001MHz@1.42V
http://www.beforeoverclock.com/image...6-VoltCore.jpg
http://www.beforeoverclock.com/image...6-CPUGraph.jpg
2902MHz@1.37V
http://www.beforeoverclock.com/image...7-VoltCore.jpg
http://www.beforeoverclock.com/image...7-CPUGraph.jpg
@ Before :
only one word : AMAZING :slobber: :eek:
Thx mate! :D I'll work for higher clocks... :p:
CABYE 0540APMW
Notice temp drops without IHS and 0.05V less @ 3Ghz :toast:
http://www.xtremesystems.org/forums/...1&d=1140650150
http://www.xtremesystems.org/forums/...1&d=1140650150
My little contribution:
opty 146 0546 GPAW @ 3042 vcore 1.58v
Aircooled SI 120
Temp < 42°C FULL:banana:
http://img51.imageshack.us/img51/6487/30421580zs.th.jpg
I've not resist to the temptation of passing over 3.3GHz; yesterday I was at 3288MHz@1.57V :D
CPU Max Screen @1.65V = 3356MHz chilled C2H5OH CPU@6°C | http://valid.x86-secret.com/show_oc?id=73996
http://www.beforeoverclock.com/image...AWCPUZ3356.jpg
Anyone has results of the CACJE 0601 GPAW on air? the only one to post something was AndreYang but I think he's on water right? 24c idle, 31c on spi32m load with 1.408v seems water to me :)
Check here
Some very results for this stepping... :D
Thanks! I always forget that magnificient database. Well, didn't know it was so up to date :)
Did you see this? --> - OPT 146 | CACJE 0601GPAW | 3150 mhz | 1.568V | Ad aria | Link (simoneco) :clap:
Yeah but no temps in the screenshot and only a CPUZ 1st page. I wonder which memory, divider, cooler he's using
"Ad aria "; it was air cooling... may be with opened windows :D
This rocks that AMD is actually getting BETTER cores out over time. Looks like almost all of these latest chips do 3ghz+ without the need for prometias and stuff.
just recieved a cab2e 0546 fpdw from the egg today. was wondering how this steping was? going to install it later tonight.
Looks nice,Quote:
Originally Posted by LitleDevil
now did anyone tell you about the *print-screen* button :)
Photo is beter for stability ^^Quote:
Originally Posted by Big.Wayne
http://img52.imageshack.us/img52/2457/klock6cp.th.jpg
Check that out, 3000MHz on 1.39v
It does 2960MHz on stock voltage. More to come, my mem stops me. So first of I will have to check out settings for my mems before I try more than this. Cooling is a Thermaltake Big Typhoon @ 1300 rpm. idle/load 29/38
