Quote:
Originally Posted by Overklokk
Try to measure the R1454 resistor.......It should show 500Ohms.......IF NOT, then replace it with a 470Ohms SMD as I did coz these tiny resistors are TOO DELICATE.......BE CAREFULL.........
Printable View
Quote:
Originally Posted by Overklokk
Try to measure the R1454 resistor.......It should show 500Ohms.......IF NOT, then replace it with a 470Ohms SMD as I did coz these tiny resistors are TOO DELICATE.......BE CAREFULL.........
Quote:
Originally Posted by persivore
VERY true about the soldering heat......It happened to me too, coz I solder it as is(with the VGA on the mobo) and not with much care........but if you take a look at photo 1 and 2, I've replace it with a 470Ohms SMD......:(
Thanks M8........:)
ok guys, here are the 2 pics ;)
http://www.xtremesystems.org/forums/...9&d=1142521570
http://www.xtremesystems.org/forums/...0&d=1142521570
:) :toast: NICE photo...........
http://www.thelab.gr/images/Hipro5/D..._Mod_2_jpg.jpg
Hipro how the heck can you solder a tiny SMD back onto the card with it IN the mobo?! LOL, thats some soldering skills for sure.
words like 'hipro' 'how the heck' and 'solder' in the same sentence appear so often :D lolQuote:
Originally Posted by bigval
Overklokk and MickeyMouse, any chance of repairing it yet?.......
Yes, that was worse that solderind about 13 - 15 missing pinlegs on esdee's FX57 CPU ........:)Quote:
Originally Posted by bigval
I tryed but it dident work. but i godt it RMA and the new card is coldbugged.Quote:
Originally Posted by hipro5
Did the vmod and its on 1,78v it but i dot did the vcore mod..... it can boot on -60c evap but cant run over 900/900 :(
Is it some other place that the vcore mod can be done?
Dam my old card booted fine on -110c :(
Bad news.......:(Quote:
Originally Posted by Overklokk
I have also killed a cold bugless one within an hour (WR).......:(
I haven't figured another place as for the VCore Mod.......I have to search it a bit.....
Dam i realy vant too modd the vcore but i dont wana try ..... i am so afraid for that i wil kill this card ....Quote:
Originally Posted by hipro5
Me and Kinc is going for som CF runs this weekend an i think we realy need more volt too the gpu's,,,,,
hope thate not to many card die from the vmod :( .
Respect Hipro5! :toast:Quote:
Originally Posted by hipro5

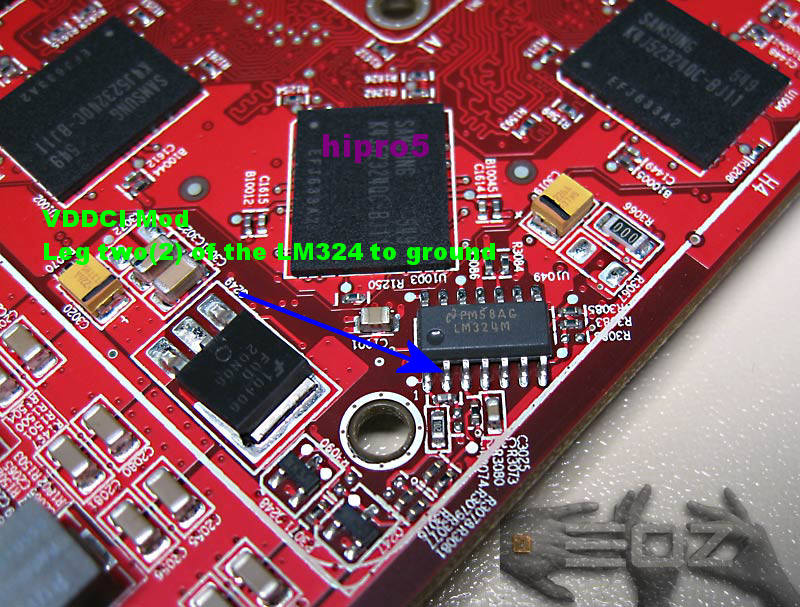

Maybe this Hi-res VDDCi pic help's. 8]
BTW, my R1454 SMD restor resistance is ~602 Ohm'z.
my results on water with hardmod
Asus X1900XTX@Water (Black Ice ExtremeTriple+Single-Radi) only VGA
1.575V: 770mhz
hardmod boot 1.375V , 1.525V Overclocker: 796 mhz 3-4 minutes ATT test; 789,75mhz <20min
75°C :)
amesome that results
woot i like those clocks software vs hardmod seems that it helps very nicely:D .
can some pepeol post here if the mod had workt plz , im waiting if there are some that the mod has workt ( 3 death vs 2 workt ) . post ure url to ^^
UPDATE.......
I couldn't resist so I moded the Ram's Voltage as well........Now I'm 1017MHz core and 1003.5MHz Rams benchable.......The mod for the Rams is quite difficult though.....From 2.5Volts to 2.65Volts, I gained about 30MHz more on rams.......2k1 benchable is 1017MHz core and 1003.5MHz Rams and 2k5 is 999MHz core and 999MHz rams.......:D
Can you please post the pics for it please hipro?
Thanks
love to have thate wanne to , jort reed this ^^ hope u will do it for me :D
IF someone could post a picture WITHOUT the heatsink of the Mos-Fets (of the VDDCI side), I would be delightfull to do so.....There is no way to take off the heatsink again of this VGA......TOO dangerus......:)

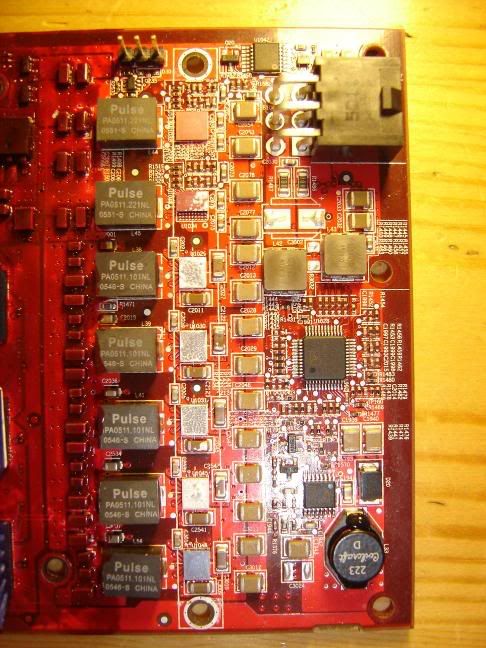

here you go, i hope its a good one. Jort has taken the pic and his going to do the mod too :)
http://i3.photobucket.com/albums/y90...ripper/mod.jpg
here is a bigger one;)
http://www.belgium-coolingsolutions....X/X1900XTX.jpg

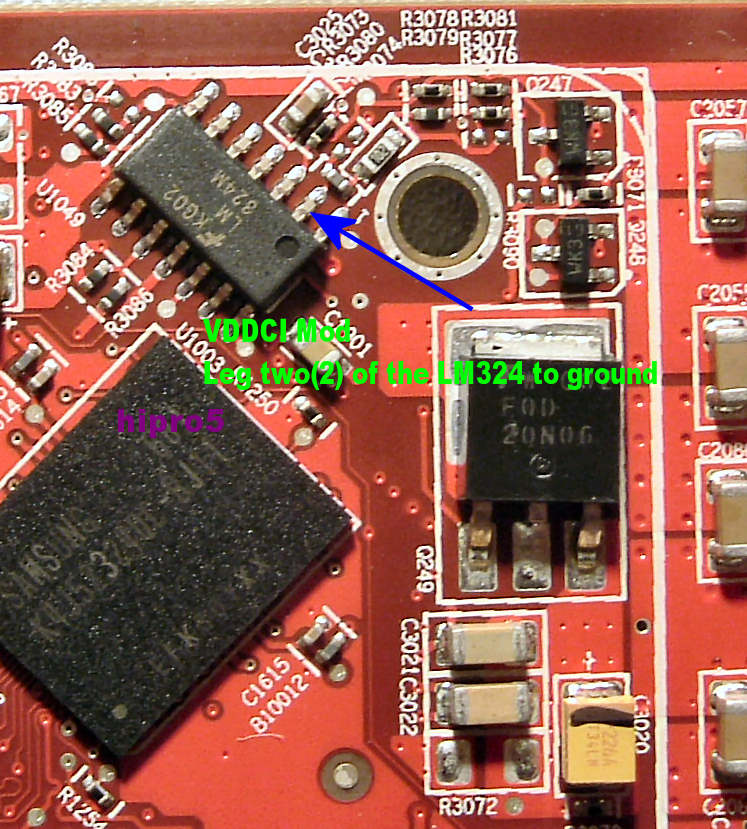

There you go.........:)
http://www.thelab.gr/images/Hipro5/D..._1_Mod_jpg.jpg
BE VERY CAREFULL..........VERY delicate components........:)
