cka3o4nuk - G does not indicate "ground" it indicates "gate" as in drain, source, gate (terminals of FET) you will have to use a multimeter to find a suitable ground. As for the other pin just make sure it is attached to pin 15 of the controller chip.
Johnny Bravo thank you very much for answer one more question
can i just add constant resistor 650 om or not ?
oke so we have Vdroop mod , vcore mod and vdimm mod , now we still need cpu PLL mod :D
looks like I'm going to buy this mobo also I like the results you guy's get on it :)
lol, maybe the vcore mod is working for meQuote:
Originally Posted by Johnny Bravo

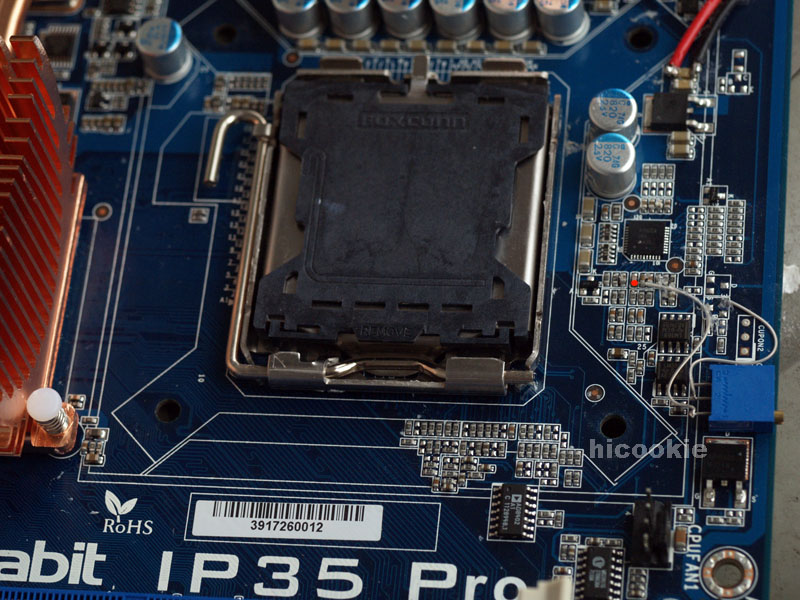

works above 2.0v without problem, the red line u can measure the vcore
http://pic.xfastest.com/hicookie/Abi...o/P9212836.JPG
PLL u need to cut off the smd,it's around fsb, and putin 3.3v line u will get what u want.Quote:
Originally Posted by blind_ripper
No worries hicookie, seems it was because he soldered to the IC not to a component, and damaged it - as you can see we have very similar mods anyway ;)Quote:
Originally Posted by GTX
http://www.itsjohnnybravo.com/Overcl...0&%20vcore.jpg
The vdroop mod doesn't work on IP35 Pro v1.1 . I set 1.4v BIOS, windows = 1.3v after modded. no effected after modded
thats not vDROOP, that is what has been coined around the forums as "vDROP". vDROOP is the difference in vCORE between idle and load, not BIOS selected and idle.Quote:
Originally Posted by yeahoo
yeah, 1.3v is full loaded. 1.4v bios = 1.3v full load ..Quote:
Originally Posted by 3oh6
and I bet its 1.3 when its idle as well, if it is, THEN THE MOD WORKEDQuote:
Originally Posted by yeahoo
fyi vDroop is NOT the diffrence between BIOS and SYSTEM (idle, load, w/e) BUT the diffrence in voltages between Idle(not in use) and Load(in use)
it drops only when full load. 1.4v bios, idle = 1.4, full load = 1.3 so the mod doesn't work on IP35 Pro v1.1 OR i didn't do it right but i believe i did it right, it's not that hard.Quote:
Originally Posted by Vienna
hmmm have you used a variable resistor or a fixed resistor?
i use 1kohm fixed resistor. are they huge different? i couldn't find 1kohm resistor in Radio shack.Quote:
Originally Posted by Johnny Bravo
1Kohm won't be any use, you need to be either around 650ohm or using a variable VR that's 1K/5K maybe even 10K (though you'll have to be very gentle with adjustments as the change in lower resistance will be quite big)
so,
does we have a working vpll for ip35-pro?
Any pic?
Thanks
I think I borked mine:shrug:, but one question. The red dot at the rt in the pic, is that referenced to ground? Because that is what I get at that point with my fluke, .3 ohm to the case. I was having a hard time getting the wire to stick on that point and finially gave up but now I get post code 8.7.and it won't continue past that:( I didn't get any solder across the contacts.Quote:
Originally Posted by Johnny Bravo
The red dot to t he right is ground - have you checked everything is still soldered together? Excessive heat can be dangerous but I recommend a good blanking of the BIOS. Have you checked to see if there is a vcore present even with the error?
No vcore, bummer. I'll try a all day cmos clear while I'm at work today.
I pulled the mod out when it wouldn't run.
I lost contact to the mb at that ground point and having a tough time getting the solder to flow to the board. I guess I'll try and wire that resistor to ground, LOL. This is what happens when your eyes are going out, magnifing glass and all.:rofl:
pic doesnt workQuote:
Originally Posted by suffocatio
Me?
None because I cant see the picture you posted ;)
i saw in a other thread the vpll mod for the IP35 but not the pro .
the only thing i found out so far is the vpll read out , if now someone can find the mod it self for the pro it will be great :D .
http://i3.photobucket.com/albums/y90...llreadout1.jpg
http://i3.photobucket.com/albums/y90...pllreadout.jpg
its the little red dot on the little chip on the side of the chipset , i have a stock off 1.536vpll . lol and my E6850 can so 565fsb on air so far :D
IP35 Pro Vpll mod.
u should beter use a 2k or 5k VR 1k = 1.88vpll and stock is 1.536vpll ;) , but the mod works so im happy :p:
