I tried different settings and when Trp is set to 3, memtest passes at stockspeeds. So 200Mhz at 2-2-3-8 @ 3.2V is memtest stable.
210 with same settings is also stable, but 220 fails. I cannot get 220 stable now, even with more volts.
Btw where is the vdimm measuring point on this board? I think the bios is incorrectly reporting the vdimm.
Sorry to hear bro... I think you have an RMA coming up.
1) I would test the modules individually first
2) The vDimm testing point is on that big mosfet with 5 pints all on the one side... and big tab on the other side. Take the reading from the big tab.
You'll find the mosfet at the top right corner of the board, when it is installed in a case. For me that point is usually bout 0.3v-0.5v overvolted... but my rails are higher than stock.
I decided to give up on memtest and tried some 3dmark.
2k1 is stable at 10x265 2-2-2-8 @ 3.5V so I don't care about memtest anymore :)
265 is Pifast and spi1M stable also.
ok ... here we go !!!
all test at Dual Channel
setup is
Winchester 3500+
DFI Ultra-D (0209 BIOS)
2x512 Twinmos UTT (DIMM #1 is 04514, DIMM#2 is 05044)
timmings
2-2-5-2-7-15-2-2-1-1
3.1V = 255
3.2V = 259
3.3V = 263
3.4V = 267
3.5V = 270
1 wonder DIMM does
3.2V = 263
3.3V = 267
(haven't tested under 3.4 and above since it was it's first run and i already burned a DIMM :( )
3.5V are sliiiiiiigtly unstable under XP, maybe they need HSP on them (and they will get them soon :D
3.6V will be tested with HSP on them
(waiting to test one more dimm in a couple of days!)
At least we know why people with Intel are not postings results.
Dual channel
3.1v 200 (error)
3.2v 200
3.3v 203
3.4v 203
3.5v errors
3.6v errors
Singel Chanel
3.1v didnt try
3.2v 220
3.3v 222
3.4v errors
3.5v errors
3.6vdidnt try
cant get 250 FSB no matter the timmings or volts :confused:
my Geil runs 2.5-4-4-7@250 @2.9v all day long..
P4C800-E
2.8 sl6z5 ( 260@1.80v )
RAID0 thro the ICH5R
OCZ powerstream 520w
Thank god i'm getting an amd64 sytem for gamming.
I'll try a amd syatem, a Gigabyte K8NS Ultra 939 going to vmod it.
and most likely a 3200+ cause i want 10x250 2-2-2-8.
edit...still testing i'll post if it gets better.
edit...man $250 for 2-2-2-8@202 DC@3.2v. I think kingston value ram is as good as thease. whats? going on here?
Peace Nugz
Once more is know bout Tref I will post a basic guide in the first post... credit will be given where it's due
Quote:
1552= 100mhz(?.?us)
2064= 133mhz(?.?us)
2592= 166mhz(?.?us)
3120= 200mhz(?.?us)(my sweat spot w/ Bh-6 at 250+mhz , your mileage may vary)
---------------------
3632= 100mhz(?.?us)
4128= 133mhz(?.?us)
4672= 166mhz(?.?us)
0064= 200mhz(?.?us)
---------------------
0776= 100mhz(?.?us)
1032= 133mhz(?.?us)
1296= 166mhz(?.?us)
1560= 200mhz(?.?us)
---------------------
1816= 100mhz(?.?us)
2064= 133mhz(?.?us)
2336= 166mhz(?.?us)
0032= 200mhz(?.?us)
---------------------
0388= 100mhz(15.6us)
0516= 133mhz(15.6us)
0648= 166mhz(15.6us)
0780= 200mhz(15.6us)
---------------------
0908= 100mhz(7.8us)
1032= 133mhz(7.8us)
1168= 166mhz(7.8us)
0016= 200mhz(7.8us)
---------------------
1536= 100mhz(3.9us)
2048= 133mhz(3.9us)
2560= 166mhz(3.9us)
3072= 200mhz(3.9us)
---------------------
3684= 100mhz(1.95us)
4196= 133mhz(1.95us)
4708= 166mhz(1.95us)
0128= 200mhz(1.95us)
Quote:
I only ran the settings that related to 200MHz (1:1) ratio... but here are my results with the settings I tried (CPU @ 10x256):
3120 : A close 2nd. Sandra bandwidth = 397x/397x , SuperPI 1MB = 33s-34s
0064 : No POST
1560 : 3rd best. Sandra bandwidth = 393x/393x , SuperPI 1MB = 34s
0032 : Horrendous Bandwidth!!! Sandra bandwidth = 500/500 , SuperPI 1MB = 1:02 m
0780 : 4th best. Sandra bandwidth = 381x/381x , SuperPI 1MB = 34s
0016 : No POST
3072 : Best for me. Sandra bandwidth = 397x/397x , SuperPI 1MB = 33s
0128 : Sandra bandwidth = 252x/252x , SuperPI 1MB = 35s
Quote:
Originally Posted by aCidbAbY
OMG :slobber: on NF3/NF4 ?Quote:
Originally Posted by esdee
DFI Ultra-D. NF4.
update>>> my final tref results
http://subculture101.com/forum/showt...?p=110#post110
biggy props aCid :toast: That looks real good... maybe I'll see 265 with 3.3v if I get the right combo :)Quote:
Originally Posted by aCidbAbY
i just noticed on the first post that the intel results look about the same as ours..
i thought these sticks werent good for intel?
you need to adjust a few settings on intel to have "good" results sometimes.
cos Hipro posted most of them... i think he couuld make a cell phone run 250 2-2-2 with enough spare time heheheheQuote:
i just noticed on the first post that the intel results look about the same as ours..
i thought these sticks werent good for intel?
:D :lol: , couldn't resistQuote:
Originally Posted by Rabbi_NZ
DFI NF4 Ultra-D is the boardQuote:
Originally Posted by TEDY
+ i have the impression that 3.3+ Volts are causing the system stability issues
hope ill have the chance to test one more time Hipro5's Maximizer with that board ;)
Are there any programs for nForce2 mainboards to set memory timings?
I am running Twinmos Speed Premiums in dual chanel at 245mhz cl2.0 2 2 11 on my Shuttle barebone at 3.17V. memtest test 5 45passes errorfree
But I cant set 1T anywhere in this bios ;/
My bad.
Peace, Nugz
Have you done the burning in? I have no problem with my 4 X 512MB TMSP/0503/44D on i865PE(Abit AS8) and i875(Asus P4C800 Dlx). This is a screenie for P4C800-D. I can get higher on i865PE because of the PAT thingy. Disable PAT on i875 won't help to get higher FSB. Anyway, I am happy with 250 FSB @ 3.5v with PAT enabled.Quote:
Originally Posted by kindnuguz
Im really getting the urge to buy some vx...lol.. all you tight timing people..
;)
Dont work on P4C800-E but did on my IC7...
only #'s i can see
20-227-204(460246)
0C1JES07000000H( the 0 might be a O, cant tell. )
OCZ4001024ELDCGVX-K
IC7
3.2e
2-2-2-8 @3.4v @ 250
Cant try to much higher this cpu is about maxed on this pelti setup. 26c idle
heres mine on an intel platform @ 3.6v...guess i got lucky.
:toast:
edit: when i first got them, they did about 205 2-2-2-5 or so at 3.2/3.3v. anyways, what i did was to burn them in at 3.3v 2.5-2-2-5 at whatever speed they would do with the least/no errors in the first 5 passes of test 5 for 8 hours. did this for about a week or so gradually increasing fsb and voltage. burning in worked for me. hope this helps.
sorry!Quote:
Originally Posted by my-whistler
peace Nugz
hold on to your horse dude :D i was editing my post.
cheers mate...
Quote:
Originally Posted by THunDA
well my everest got you beat by like 10bm/s
Where ? ;)Quote:
Originally Posted by aCidbAbY
Nugz, you could always sell those modules second hand... Im sure someone in a country where they are not sold would love those.
Anyway, I am 99% sure it's not your memory, its the board.
If you want help with your memory and timings how bout posting your COMPLETE timings... so people can compare them with their own.Quote:
Originally Posted by kindnuguz
Is there something an Intel equivalent of A64Tweaker for your rig?
You are on the i875 chipset right? Is there a tweaker for that?
Either way, post ALL your timings and we may be able to help.
For now, set Refresh to 7.8uS and CPC OFF
Update:
IC7 rocks, but will not post my 6800GT :(
i dont know how much more than 250 i can go cause my 3.2e in this comp about maxes out around 250 on this pelti setup and the volts and vtt is set to 3.4v and 1.7vtt so if i try to adjust it, i have to adjust both (pain in the but).
250 2-2-2-8 @ 3.4v
guess i'm happy now :toast:
Sorry if it sounded like i was an asshead<---lol
edit...3.2v 2-2-2-5 238 so far
3.4v 2-2-2-8 250
IC7
3.2e
TTGI 450 18A 12v rail LOL 3.3v rail mod.
DC VX DDR400
peace Nugz :toast: :toast: :toast:
Noone with VX and P4?? :(
Quote:
Originally Posted by THunDA
:toast: here>> http://subculture101.com/forum/showt...0&page=1&pp=10
im at 36.4s now
Quote:
Originally Posted by aCidbAbY
Oh yea the latency bench...I cant come near that with my tccd.. I thought you meant the BW bench..
:banana:
A good bench is a bench with cake sitting on it
Even better when you have Heineken to wash it down..heheQuote:
Originally Posted by Rabbi_NZ
:p:
LOL
good times
My VX isnt scaling worth a damn
259 at 3.2
261 at 3.3 2-2-2-6
cant even get 264 at 3.5volts
PSU is backordered :(
Might just post official results with the one im using now, even though the rails are BAD
261MHz is an accomplishment, especially with only 3.3VDIMM. ;)
lol everyone is getting spoiled with this ram!
VX has a tendency to raise people's expectations. With high hopes often comes big disappointments. I get my fair share of PMs regarding VX modules all of the time. ;)
conrad the suspense is killing me dude... when are you going to show the world where your VX is at on the new system?! heheheQuote:
Originally Posted by conrad.maranan
I was playing around with 10x271MHz and 9x277MHz before my DFI board died. I pulled a trifecta for the 6600 Non-GT on my first day with the board, but someone took me out in 03 and 05 two days ago.
My new board was shipped earlier today, so I'll be in the playing field again shortly. chilly1 is almost done with my coolers, my wife promised me an FX-55 next month, and I'm buying an X850 XT. Man. It's gonna be good times with my new system and a twelve pack of Heineken. :D
how about 263 with 3.3V :p:Quote:
Originally Posted by conrad.maranan
i just love that DFI board !!!
... if it doesn't die sure....
262 gives me 4 errors per pass in memtest #5 at 3.3 volts
Weirdly enough though, it doesnt matter how tight I make all the timings at 3.3 it wont give me any errors, and if i loosen some of the timings at 3.4 it wont give me any extra
I also get errors at 261 at 3.4volts which is really weird
I've got 2 fans blowing directly onto the ram
http://img93.exs.cx/img93/974/twinmos8ty.th.jpg
What do you think about this one? :D
that is one amazing stick! Good job!Quote:
Originally Posted by BeSaiD
Is this right out of the box or after a serious burn in?
Actually is a second hand memory, i don't know if it was burned or not, but is the first time i try with more than 3.05v... :D Previous owner, Situman (great guy :D) did 200 @ 2-2-2 with 3.2v or something like that in P4. I'm really amazed with this memory!!
I thought about buying some TCCD to check the difference and sell the "worst", but looking at this module, i think i'll earn to buy a PS... :D
Really nice stick of memory you got there BeSaid. Can you push the voltage anymore? Probuably use that memory to break a bandwidth record :p:
i've got a booster, but i really don't want to raise a lot the vdimm, because i think it can be dangerous without a proper cooling...
BTW, i've broken my personal bandwidth record with more than 4000 (i dunno how much exactly). If i achieve a better cooling solution, i would raise more the vdimm, because i'm expectant too :D
:slobber: :slobber:Quote:
Originally Posted by BeSaiD
What an amazimg stick. I think that it is 1T, no?
I am waiting for my TwinMOS SP with 44D. I hope that it will perform as yours BeSaiD :D :D
yes, 1T :DQuote:
Originally Posted by Lord_RTKK
At the beginning, i was thinking about buying a gig of these mem, i told donmoco to share shipping from germany, but i found these ones at better price... :D
Wish you luck with your modules, hope you'll have them for next monday or so.
I hope that for the next week more or less have my UTT...Quote:
Originally Posted by BeSaiD
I will wait you at Bandwith Competition :devil: :devil: :devil:
P.D.
Que raro se me hace hablar con un español en ingles... xDDD
Hello
Great thread and thanks Rabbi_NZ for making it :toast:
Currently testing my new system since friday and I just went to 240mhz and now 250mhz with 3.3 volts using info from this thread, its stable in memtest #5 so far but had some trouble with "memory read" errors in CS:S but i think i fixed that with a command line :cool:
http://www.xtremesystems.org/forums/...id=25007&stc=1
This Twinmos UTT "50D" chips is some freaky stuff.
Did volt scale testing, one stick, 8,2,2,2.0 on my NF7-S vmod'd dimm/dd/tt. Clearly the NForce2 hits a wall and it is a chipset issue.
3.2-3.35 yeilds 245Mhz 1T 8,2,2,2.0,
3.15V yeilds 240Mhz,
3.04V yeilds 225Mhz,
2.93V yeilds DEAD @ 2,2,2 so 8,3,3,2.5 @ 205Mhz max.
A sharp voltage curve that comes to an abrupt end when it hits the NForce2 wall, A64 reports show another 10-20Mhz in the ram that the AthlonXP cant get at.
Indicative of CH5ness in that low voltage and 5,2,2,2 timing not doable. Counter-indicative of CH5 is that 8,2,3,2.0 does NOT add any Mhz on NForce2. Making me think the improvements they made took away some of the 2,3,2.0 character of CH5.
Also, this ram is SERIOUSLY heat sensitive. If I turn the side fan off, and let the chips warm up they error-out 20Mhz lower per voltage setting.
The NF7-S wont do 250Mhz in memtest without erroring, while the DFI Infinity will. So the wall comes down a little sooner on the ABit than the DFI.
Nice thing is the 245Mhz is the fastest results I ever got on a NF7-S in single stick mode (thanks to 1T). Im using TicTac's D26MantaXT with CPC ON for testing. CPC OFF didnt do a thing for max FSB. Ill have to switch in the 2nd stick for dual channel test next.
i hit wall at 248 and 245 with 2nd stick....
Just updated first thread... cheers to everyone that contributed :toast:
esdee, you raised the average for EVERY voltage level you tested at! hehehe
uwackme, if you could post a nF2 Tweaker screeny (jus the Tweaker, no desktop) it would be great. I will use it on the first page as a reference.
Quote:
Originally Posted by Rabbi_NZ
and i will raise it more ... already gained 1 MHz in every voltage level (up to 3.5 , now 271Mhz is benchable)
:toast:
where are you memtest stable with 3.5v?Quote:
Originally Posted by esdee
still 270 under 3.5VQuote:
Originally Posted by Rabbi_NZ
I mail you a snap Rabbi.
3 more sets in today, all hit same max... 245Mhz DFI Prime/3D stable, 240Mhz NF7-S Prime/3D stable... 2x 512M 8,2,2,2,2.0 @ 3.3V. Higher volts gets either no change, or errors (from heat no doubt).
I have every confidence in A64 these sticks will do 250-260-270, it is NF2 that has a wall not the ram.
uwackme get me 2 sticks please :D
First post is undergoing more changes... putting up screen shots of nF2 Tweaker, A64 Tweaker and 865 Tweaker so members can use them as reference.
If you want to send $$ paypal, I'd be happy to grab you a pr Tedy.
here is the A64 screeny you asked for RAB* :toast:
the second one is my A64..:) TREF=1560
also i beat my superpi score with the new DFI UT bios in the first screen :D
uwackem you bought those at newegg for 140$, right ? and all 4 modules were UTT?
Yep, Newegg's the only place ive seen them.
rabbi_nz my winnie is a 3500+ :D
Fixed mate :DQuote:
Originally Posted by esdee
There are now tweaker screenies from uwackme, aCidbAbY, esdee and myself. :toast:
I've set my VX timings exactly like Tony (bigtoe) did in this post:
http://www.bleedinedge.com/forum/sho...39&postcount=2
Got a whopping 80 Mb/s increase at 261 htt in Memtest (it was 3107, went up to 3187) with them.
Quote:
Originally Posted by mrlobber
3187 :eek: is that with your current setup in your sig?
HSP on ...
3.6V @ 272 (maybe i can pull a 273, ill find out tommorow!) DC ofcourse!
Rabbi_NZ sorry :D i make you update the first post every day :)
http://www.xtremesystems.org/forums/...chmentid=25126
Yeah :D Too bad it's only "memtestable", Prime and Superpi stable only at 233 htt (seems to be a dodgy cpu, a CBBID 0451 DPMW).Quote:
Originally Posted by aCidbAbY
Cant run 20 tests stable... Not even at std. speeds.... - Not even with 3,2V - instead of stock 2,8v
With DFI nF4 Ultra-D
I think its a due of to warm mosfets ;) - Well... I dont mind, not an issue while playing - Played 3 days at lan :D
Esdee, is that on DFI nF4? My one cranks out errors as soon as I up Vdiim higher than 3.4v.
mrlobber, cheers for that... I'll check it out when I have time for sure
esdee, it's because of you I get no sleep! heheheheh
I'll update your results tonight :)
Sorry rabbi_NZ :DQuote:
Originally Posted by Rabbi_NZ
@mrlobber
Yes that on the DFI nF4 Ultra-D Bios 218, i just put some HSP on so i made it to get them stable while benching
http://www.xtremesystems.org/forums/...id=25130&stc=1
should be the lowest unpatched 29sec :D
Btw no problem here benching at 3.4V+
Try to connect that molex and that floppy cable on the board, if you haven't already
I have that motherboard and 2 stick of VX...Quote:
Originally Posted by esdee
I don't plugged the floppy connector because on the manual the +5 and the +12 are inverted from the floppy connector...
i plug that all tha same???
Quote:
Originally Posted by mrlobber
that is super low for a s939..
im getting 4088 with my s754..
That's MemTest bandwidth tho bro, in my PC I get bout 2100 at max stable clocks
Hi, i have some great troubles using my UTT on DFI ULtra-D
Whatever the timings i set, the 2x512 set do many errors while performing memtest as soon as i set something higher than 2.5-3-3-5 200MHz. I even tried to raise the voltage up to 3.5V but it doesn't help
Using them in single chanel helps a few but i aboslutely need dual
May i miss an important point on this board ?
EDIT : May i should raise Vcore to help the memory controller ? ( 9x300 Primeable Vcore stock / stock cooling )
Any help greatly appreciated
http://www.xtremesystems.org/forums/...chmentid=25070
posted by acidbaby, try setting your timings to something similar.
Hmmm...Anyone know how far the VX goes cl 2.5 with under 3.2v?
Perkam
Like they go with cas 2. Maybe 2-5 mhz more...Quote:
Originally Posted by perkam
BTW 240/255 @ 3.2, it depends...
Aww man, thats crap then. I mean on cl 2.5 at least. TCCD can go 255 at cas 2.5 at 2.8v 24/7 and 275 at less than 3v.Quote:
Like they go with cas 2. Maybe 2-5 mhz more...
BTW 240/255 @ 3.2, it depends...
i just thought that if it scaled to 240 2-2-2, with looser timings it would jump to like 280 2.5-x-x. I guess vx/utt is only good for high tight timings which for intel platforms isnt the best of news.
Perkam
Did you read the first post on this thread?Quote:
Originally Posted by Ebola
There are A64 Tweaker screenshots on nF2 DFI, nF3 DFI, nF4 DFI... check out esdee's screeny on first page ;)
aCId's is of he nF3 so it doesn't directly apply to you.
Did you ever use BH5?Quote:
Originally Posted by perkam
These are basically the same as BH5, except they need more vDimm to start running 2-2-2.
Also, CAS is not the most important timing.... just because TCCD can run 2.5-3-3 @ 280 does not mean it is quicker than 2-2-2 @ 255-260
Lastly: NO, I wouldn't recommend UTT/VX for Intel platforms
Cool. I can honestly say I didnt know that, was gonna get some sticks for my upcoming rig lol. Will prolly try TCCD then. Thx Rabbi NZ when u hit 1000 posts ask Saaya to change ur name to "UTT Masta" or something lol.Quote:
Lastly: NO, I wouldn't recommend UTT/VX for Intel platforms
Perkam
lol cheers dude :D
have you thought bout the new BH5 being sold by TwinMOS? maybe it will suit Intel better...
TwinMos is unavailable in Canada :( or else I'd buy in a heartbeat. That speed premium stuff is jaw dropping good. So I have to "settle" for TCCD, hopefully doesnt run out by the time I decide on which rig to get. But yeah there hasnt been any definitive good Intel ram since muskin's lvl II 3500 which OPB still uses as main bh-5 sticks and owns every time with them :DQuote:
have you thought bout the new BH5 being sold by TwinMOS? maybe it will suit Intel better...
But as I said, TCCD only option now with Intel and I personally dont like the varying results with them. Many run 2-2-2-5 on AMD and only 2-3-2-6 on Intel (pqi).
Perkam
Why not?Quote:
Originally Posted by Rabbi_NZ
Intel northbridges arent that great, they wont do 280+ MHz 1:1...
Well i would say youre better off with mem that runs 2-2-2-5 with lesser mhz.
2-2-2 yes... CH5 yes.... BH5 yes... UTT, seems to have major issues being reliable on IntelQuote:
Originally Posted by Jack
^really?
i havent seen this...Hipro seems to have done well enough
okay :) didnt know thatQuote:
Originally Posted by Rabbi_NZ
oh ok so ch-5 works well with Intel, thats good to know. Not to derail the thread on anything but what kind of yields can we expect from ch-5 for cass 2.5 ?? Same as UTT (only 5 mhz more than 2-2-2) or is it possible to have a high fsb at looser timings at lower voltages (3.2ish) ?Quote:
CH5 yes
Perkam
I'm not sure if i'm late, but well
I have 2x512MB Twinmos SP 100% stable at 245Mhz 2-2-2-5 (the settings you posted) (245 = 273 180:200) at 3.2V in bios but it 'oscilates' among 3.1V and 3.18V
mobo : DFI NF4 Ultra-D
if you want i can take a screen of memtest or something
cheers :toast:
perkam,
I'm not sure because I never had CH5... BUT, I have had BH5 and VX/UTT. I can tell you I have NEVER gained over 1MHz from looser timings... I wouldn't expect much, and even if you do get a few MHz it wont be enough to make up for the looser timings
steve-0,
thanks mate :toast:
would you mind doing the same test for 3.1v,3.2v,3.3v,3.4v.....etc ?
Is there any results out yet with the new BH-5 chips on UTT? I know we got a store in Sweden which have them in stock and another will have them very soon. My currently UTT is CH-5 which runs perfectly in 1.5-2-2-6 3.3v 250mhz. Just wonder if there is any gain to change to BH-5.
I can try at 3.1V but not higer 3.2V :( My DFI doesn't boot with the 4V jumper switched, i guess it's because of my Levicom 420w (20 pines conector)Quote:
Originally Posted by Rabbi_NZ
Hi, I'm new, and I'm italian. Here schools are very bad, so I can't speak english very well... I hope you can understand me. :) I'm going to have a new computer, and I thought about VX, I can buy 2x512 MB for 220 €uros. But I really don't want to give ever a lots of volts. Therefore I ask you: at 200 MHz, 2-2-2-5-1T, how many volts do the VX need? Sorry for my english. :(
about 3.0-3.2v...
Ok, thanks. Finally I decided. ;)

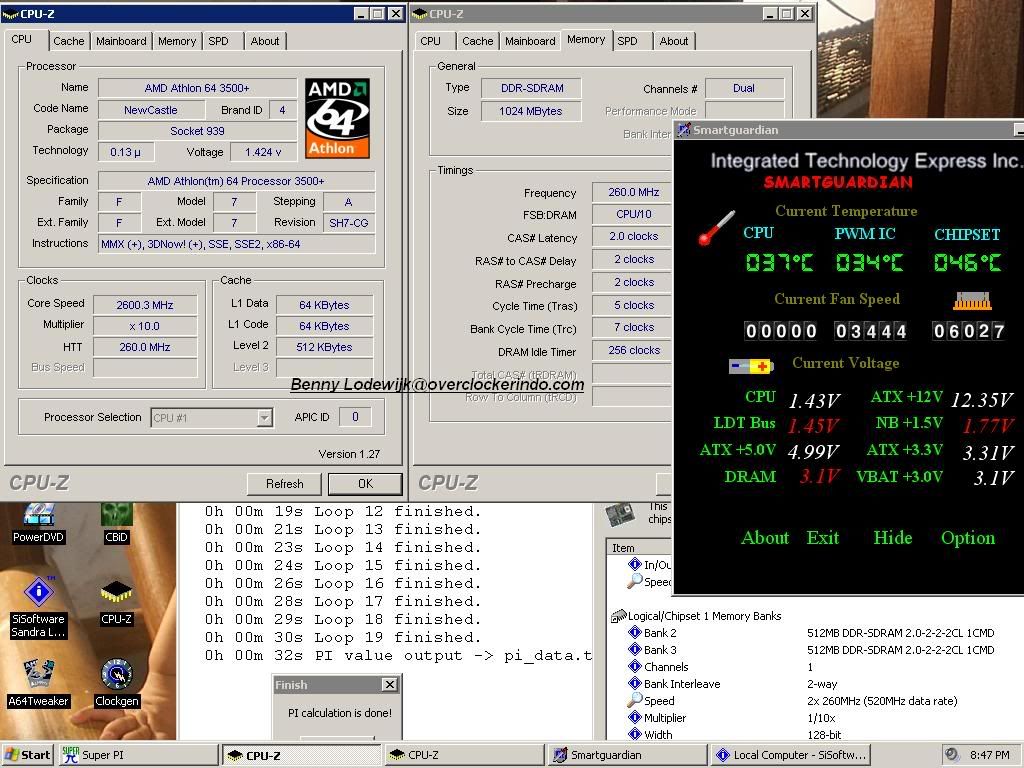

Mine with 3.1 volt vdimm
http://img.photobucket.com/albums/v6...25v_260Mhz.jpg
Quote:
Originally Posted by Benny Lodewijk
How stable is that? because SPi 1M....
