XS Yonah T2600ES competition !!!

Ok... now all boards are incoming :D

GL EVERYBODY!!!!!!!!!!!!!!!!!!!!!!

pictures are not working

@Waus: any detailed information about that?

cant wait to get a board

Quote:

---

Originally Posted by kiwi

I got qhjj but don't say it is not good :) Give it more volts, according to pic you haven't done vcore mod, only vdimm

---

no,i have done vcoremod,wait show ur pics,and could't get 3G?

Waus-mod>pinmod fsb266, i have not try that..

stepping 4 or 8 , u can see it at cpuz infomaiton.:)

i think qhjj is older than qkhk, and have some problem,stock at some fsb, even i using systool ,adjust mulitiper at 11, fsb stock the same with 12.

So what is the actual vcore then? I thought they would hit 3Ghz with say 1.6V or so

i happened with some presler,cedar mill.

i test some 631'661 es older version, could't reach fsb@300

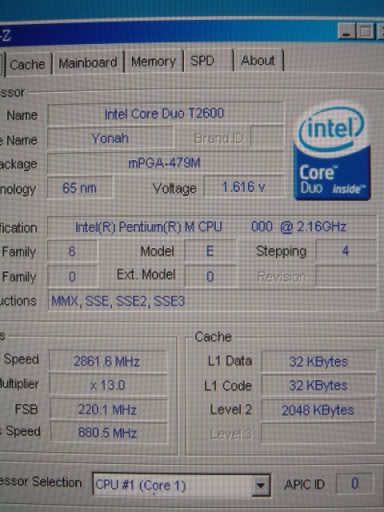

http://i22.photobucket.com/albums/b3...e/cf372591.jpg

no matter what vcoe i set it , alway stock@ 2966mhz.

Quote:

---

Originally Posted by Waus-mod

http://img125.imagevenue.com/aAfkjfp...807_NB_vol.jpg

http://img16.imagevenue.com/aAfkjfp0...1_fsb266_2.jpg

http://img42.imagevenue.com/aAfkjfp0...1_vcoremod.jpg

http://img136.imagevenue.com/aAfkjfp...0123_vdimm.jpg

http://img37.imagevenue.com/aAfkjfp0...pu_measure.jpg

http://img19.imagevenue.com/aAfkjfp0...r2_measure.jpg

THNX for ur knowlegde hicoockie! (i placed them all so its easy to look!)

---

Links don't work,:(

Looks like, they are really coming: Alternate within 3 - 5 days

Quote:

---

Originally Posted by hicookie

no matter what vcoe i set it , alway stock@ 2966mhz.

---

That is too bad :( Anyway cold can help :) And who knows maybe pin mod too

How did coolaler get 3.4ghz then?

Quote:

---

Originally Posted by NiCKE^

How did coolaler get 3.4ghz then?

---

compress -48C, QKHK stepping 8, bios+remote fsb @ 26X

and without any mod

hoping clockgen will work tomarrow with some help from franck.

damn.. those stepping problems arent fun.. coz allmost every one has a qhjj.

So your are limited to fsb now or what?

Quote:

---

Originally Posted by hicookie

no,i have done vcoremod,wait show ur pics,and could't get 3G?

Waus-mod>pinmod fsb266, i have not try that..

stepping 4 or 8 , u can see it at cpuz infomaiton.:)

i think qhjj is older than qkhk, and have some problem,stock at some fsb, even i using systool ,adjust mulitiper at 11, fsb stock the same with 12.

---

QHJJ is really old, week 30 of 2005

QKHK is only sorta old... week 42 of 2005 lol


I have a 602 T2300 also that i will be tested, but im guessing that is going to be very FSB limited.

i hope the 2300 isnt FSB limited.
I have 2 here. :(

coolaler test



http://www.coolaler.net/T2600CE/16.JPG

the yonah madness seems more and more less fun :(... what started as a enthousiast contest is now turning into a thing we all remember the bad way in some time....

- first the boards
- then conroe came by
- then the colboot/bug
- and now we have a stepping problem

whats next

Quote:

---

Originally Posted by Mats

You connect BSEL0, BSEL1 and BSEL2 to ground for 266 MHz, or BSEL0 and BSEL2 for 200 MHz. See my post here, your mobo corresponds both to the PD column and the CD column since it's a 975 chipset but uses slower CD CPU's. Since BSEL2 is already connected to ground when using a 166 MHz CPU you only have to bother about the other two pins.

Check out this datasheet for the CPU, BSEL configuration on page 25, and in table 5-1 on page 46 you'll find the actual pins on the second row.
Ask the Dothan people how you perform the mod, it's quite popular among laptop users. Here's a guide, since it's a PM they're using other pins for the mod but otherwise it should be the same.

The old corresponding mod for Athlon XP allowed higher clocks on nVidia mobos, I'd say it's worth a try. Just make sure you do it right.

---

Would it be possible to pin mod a core duo laptop and get this same result? Just curious :)

nice results.....but too bad its overshadowed by Conroe....too bad by the time Yonah actually hit retails shores fully, conroe will have debuted and yonah would be left for dead....until Merom debuts dat is...so far not much infos on Merom...

Quote:

---

Originally Posted by novagamer

Would it be possible to pin mod a core duo laptop and get this same result? Just curious :)

---

Absolutely :D You just need to unscrew your laptop to actually get to the socket :)
Besides you can not only change fsb but also vcore. That was with dothan though, still unknown for yonah but it should work the same way. BTW, hardware vcore pin mod also works for amd s754/939 cpus so I guess there is one idea for many cpus.

Quote:

---

Originally Posted by AndreYang

coolaler test

---

impressive results :toast: :D

Quote:

---

Originally Posted by Waus-mod

http://img125.imagevenue.com/aAfkjfp...807_NB_vol.jpg

http://img16.imagevenue.com/aAfkjfp0...1_fsb266_2.jpg

http://img42.imagevenue.com/aAfkjfp0...1_vcoremod.jpg

http://img136.imagevenue.com/aAfkjfp...0123_vdimm.jpg

http://img37.imagevenue.com/aAfkjfp0...pu_measure.jpg

http://img19.imagevenue.com/aAfkjfp0...r2_measure.jpg

THNX for ur knowlegde hicoockie! (i placed them all so its easy to look!)

---

Waus-mod:

Please repost pictures, ideally someone should move this to xtreme mods and sticky it :D

Quote:

---

Originally Posted by kiwi

Absolutely :D You just need to unscrew your laptop to actually get to the socket :)
Besides you can not only change fsb but also vcore. That was with dothan though, still unknown for yonah but it should work the same way. BTW, hardware vcore pin mod also works for amd s754/939 cpus so I guess there is one idea for many cpus.

---

Well I'm thinking of trying it out on a mac mini, heh. I'll probably wait and see if someone else gets it working with yonah on a laptop first, but it'll still be interesting to see. Thanks for responding:)
