qk4722 nice winni!
which ram`?
Printable View
qk4722 nice winni!
which ram`?
A-DATA 256MBx2 BH-5
Mmmm i think this isnt stable with 1.5V 2800 and box air?? u got great winchi maybe!!
I got 2700Mhz in 3500+ air XP90 1.6V and highest timmings thant u!
I can get 2.65GHz stable @ 1.5Vcore on air :)
Yes me too alec, but overpass the 2.7Mhz! i cant, also cpuz says the vdimm wrong. I have 1,56V but its 1.6V, the very nice result is the qk4722's one :eek:
3000+ 0449 MPM. Running Prime 95 now 2750MHZ 9x305 1.56v.Looking good so far on plain water.
My cpu-z always gets my vcore voltages wrong...

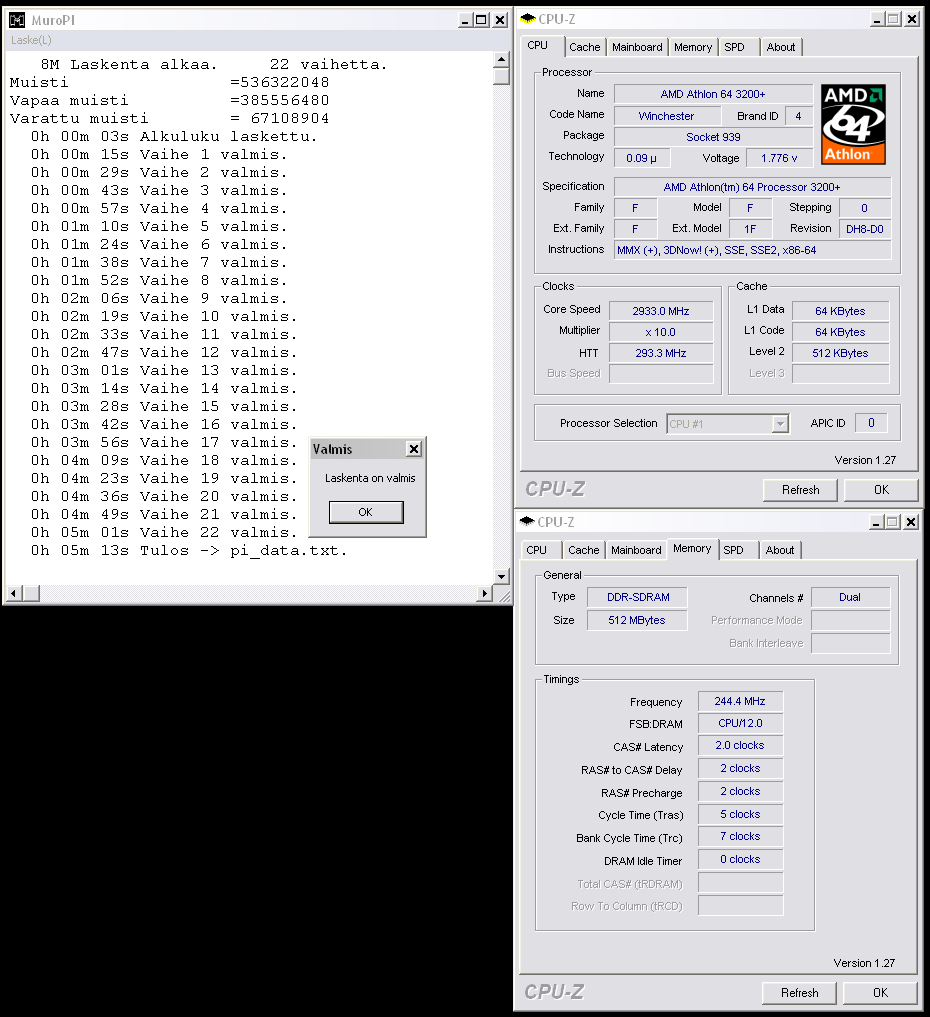

SuperPI 8M 5:13 2933 Mhz
And
SuperPI 1M 28 sec 2933 Mhz
Not too shabby rock, doing these at Vcore 1.77.
MSI K8N Neo2 Platinium (3.3/Vio-mod + Vcore mod)
2x256MB BH-5
Watercooled with a little help from Finnish winter ;)
CP :)
Just got my new chip through yesterday morning:
http://premium1.uploadit.org/Kameleon/3200stepping.jpg
It's a goodish week, but I don't know about the rest of the stepping - any clues?
Anyway, I paired it up with my Neo2 Platinum, 2x256 of Corsair 3500 BH-5, and an OCZ Booster, with an XP-90 and 92mm Tornado on top, and went for broke :D
http://premium1.uploadit.org/Kameleon/setup2.JPG
Minor tragedy befell my BH-5 when the booster's VR ripped off a couple of SMD resistors on the way in:
http://premium1.uploadit.org/Kameleon/broek.jpg
Thankfully they were above an empty space, which is why (I think) the stick still works fine :banana:
So I got clocking :D Started out with memtest86 before installing Windows, and it seems that I'm getting slightly worse clocks than I did on my LPB - 250MHz wouldnt pass at 3.3v on the booster, which it could do all day on the DFI board. Could this be a result of the resistors that have been knocked off? Anyway, I eventually got it to loop memtest flawlessly at...wait for it...270x10, 2-2-2-10, 4x LDT, 1:1. And 4v :slobber:
Someone wanna tell me what my chip's life expectancy is if I try that for anything more than a few minutes at a time?
Next up was Windows, which was a good deal more problematic - at the moment it won't even boot Windows at 10x250x4, with up to 4v through the RAM and 1.7v through the CPU. Took it back down to 200x10 and tried clocking in Windows, this was as far as I got (unpatched, multiprocessor tweak, CodeRed's BH-5 settings for A64 Tweaker):
http://premium1.uploadit.org/Kameleon//33sshrunk.jpg
At 260x10 I just got reboots, it wasn't stable at 250x10 either.
My problems seem to be CPU related, I'm burning in with two instances of Prime small FFTs at 200x10 1.65v at the moment, do you guys reckon this'll help or is there something I'm missing? The CPU just doesn't want to get itself into Windows, even though it'll post at ridiculous speeds. Any advice would be appreciated :)
1.536v stable 2800MHz sp2004Quote:
Originally Posted by xavicl
http://img183.exs.cx/img183/2332/28p954ut.th.jpg
Cant see nothing lol. Can you get 312x9? Im getting 295*9 but my chip sux more... i need too much vcore.Quote:
Originally Posted by qk4722
I can get 350x8 1:1 3-4-4-8 with TCCD :DQuote:
Originally Posted by xavicl
Waw even better 350x8 synchronous, nice memos and chip! :eek: only real 1.58Vcore
what stepping? how much vdimm?
waterchilled (liquid temp of 4°)
but seems waterflow increased ALOT, maybe 7.2m of tubes is to mutch:p:
thats why temps are that high, and because block needs cleaning :)
http://users.telenet.be/jortcollijn/...c%20weapon.JPG
http://users.telenet.be/jortcollijn/...ooling/rig.JPG
http://users.telenet.be/jortcollijn/...ng/2937ghz.JPG
what pump are you useing for that monster?
this one.
1200 l/H
http://www.henristudio.com/showcase/...s-pmp5_jpg.jpg
Hi there all of you, I'm kinda new here and this is my first post. I would like to congratulate all of you for doing such a great job here.
Here are my specs:
Abit AV8 3rd-Eye
Corsair 2X512 Mb 4400c25PT
Winnie 3200+ CBBID 0501 CPMW
Stable at 240x10 mhz FSB , 1T-2,5-3-3-6 2,6v& 1,45 vcore
multi 10
LDTx4
V-link 4x
AGP calibration off
fixed 66/33 mhz
Regarding your tips about AV8 they are not quite accurate, at least in my configuration. I use TCCD memories but they do work best in slots 1&2, not 3&4. If I install them there I get worse results. Trying to boot 266x9 doesn't work at all(strange), even if I put some juice to cpu,sb,nb,ht. It's not that bad
at all for a CBBID, but it's not good if you look at the mem I use(quite expensive). I'll just give it a try and change the cpu, hopefully.
I got sick of looking at my CBBID 0451 3500+ which I had Primed at 2.56ghz on air with 1.6v. I was planning on putting it under the Mach II this weekend but I'm pretty sure it won't do much more than 2.6ghz. On a whim I went down to the local PC Club store and took a look at their very limited selection. I picked up a 3000+ CBBHD 0444 and it looks good so far. The thing that really impressed me was it going all the way to 2.6ghz on the default 1.4v! It looks like a good match for my TCCD and the DFI NF4-DR.
I like the suction cups on it. :toast:Quote:
Originally Posted by chillingdude
tnx,
this is how he look irl
http://www.xtremesystems.org/forums/...id=25303&stc=1
nice result, how much vcore, on the cpu-z screen 1,4v and on the screen from msi core center 1,68v??????
yes it is 1.68, cpu-z gives wrong value.
i think because i adjust it with clockgen:)
:toast: Thats about what my CBBHD 0450 did at default. It went 2.7ghz with 1.45/1.5v and now 2.8/2.9ghz with 1.6v. Good luck with it. :thumbsup:Quote:
Originally Posted by gundamit
Yeah, my 0446 SPAW does 279*9 on 1.4 and then need 1,66 for 290*9
