Very nice!! :up:Quote:
Originally Posted by radaja
Printable View
Very nice!! :up:Quote:
Originally Posted by radaja
thanks grn,heres my latest.im almost at my goal of 8x500@4.0ghz.but i wanted to run my ram at 5:6,for ddr 1200 pl8 but so far only able to run 1:1.so im 1/2 the way there.not liking the high volts though,any suggestions? could really use some help here.thanks.also i am very impressed with this proccessor.i had no idea there would be so much improvement in all aspects of its duties(yes i said doodies).i mean installing vista was fast,and everything loads so fast its ridiculous.it almost scared me when i clicked the opera browser button how fast it was up on the screen in front of me,its likeBAM there it is.http://i42.tinypic.com/2079sm8.jpg
just flashed to Rampage formula seems prettier but no beter luck?? This setting has to be there I got it to boot into safe mode @ 3.93 but thats the end of my success thus far couldn't do that on the old bios so this must have helped in some way??? HELP 1.12 vid its gotta go!!!
:shrug:
i dont believe it I set everything to normal except vcore (1.27v) and it booted seemed slow to boot and got an ugly smear accross screen at password prom,t but its up for once thankyou RAMPAGE!!
Temps seem high 39 39 38 38 idle ?? gonna play a bit see what come of it any pointers still greatly appreciated
Asus probe reports
vcore 1.27
sb 1.09
sb2 1.55
fsbt 1.39
dram 2.13
nb 1.63
nice one mcoffey! well ive finally got it stable at 500x8 half of my goal met,now to get the ram running 5:6 ddr 1200.http://i43.tinypic.com/2a856s3.jpg
whats your vid on this 9650? real temp tells me min= 1.0375 max= 1.1625Quote:
Originally Posted by radaja
Ive currently got it at 1.28 and temps are somewhat high 39 39 40 41
had to over clock my NB to 1.73 just to get stable thus far i really need to get it down anyways any settings you might have would be appreciated i cant get over 4 ghz yet but i know its there just patience ....
Currently priming my new q9650 @ 3.9ghz at only 1.280v on air. :banana:(I'm using a maximus 2 formula)
This is definitely the best cpu I've ever owned.
viccan,my vid is 1.25 so it runs cooler than the lower vid chips, but i need more vcore.my temps are low also because i use an airconditioner.what are your ambient temps?cause if thier in the 65c-70c area, your cpu temps would be about right i think.im not familiar with your board so i cant really give you too much advice on settings.all my settings(main ones) are in the ss i posted. sorry i couldnt help much
My room temp is about 60' F heres a snap of the big pic..Quote:
Originally Posted by radaja
http://img156.imageshack.us/img156/6...reengn6.th.jpg
Radaja, your temps do look a little weird and I dont think thats vid related. Do you have the AC pointed directly at your cpu? EOD has your same vid, batch and under water his temps are showing the same as yours but with .1 less volts. :shrug: Either way good job so far on the 500. :up:
hoss331, read post 934 i state clearly that i use an airconditioner.i have a dryer vent hose that blows very cold air directly into the intake of my computer.
Unless your chip is at the limit which is doubtful with such a low VID, sounds like your board is at the limit. Why don't you and remove 2 sticks of ram and see how far you can clock on just 2 x 2GB?Quote:
Originally Posted by viccan
@Radaja - looking good so far. Ud3P is pretty good with quads, 500 FSB & 600 ram should be manageable on reasonable volts.
I saw that, thats way I asked if you had it pointing directly at your cpu. :up:Quote:
Originally Posted by radaja
I agree for you viccan, take 2 sticks of ram out and try some more :yepp:
also viccan, if you get some better cooling like a Tuniq Tower, or the TRUE.. you'll be better off with temps.
My Q9650 at 4.0 and at 4.2 Ghz gives Idle temps around 30-35 depending on room temps, in the mornings it idles around 29c. thats with a TRUE cooler. get a new cooler over that 9700
Temps rae actually low now.. 31 31 30 33Quote:
Originally Posted by xguntherc
so I cant complain I had to back it down to 3825 was just acting f;aky!!
Ill pull the sticks out tonight to see if that heps...
thanks for the directions
viccan:up:
I think I've found my 24/7 speed :up:
Stability tests:
http://img265.imageshack.us/img265/3539/ibtaiv5.th.jpg
http://img265.imageshack.us/img265/7505/occtaix8.th.jpg
http://img265.imageshack.us/img265/1...mpsaka7.th.png
3d stable:
http://img153.imageshack.us/img153/2096/06aas6.th.jpg
http://img89.imageshack.us/img89/144/am3awv6.th.jpg
I ran Intelburntest twice in a row and it passed both times, then I immediately ran occt 1hr and it passed. I also ran p95 for a little over an hour with no problems but stopped it because I don't like long stability tests. 3dmark06 and am3 were run twice as well.
Based on all this, it isn't necessary to run p95 for 24 straight hours right? My rig's in my bedroom and I wouldn't be able to sleep with the noise lol.
Ya, basically people say that OCCT for 1hr is like 10 hours of Prime95.
if you've passed OCCT, and IBT I think you're fine.. but common, you only have like 80mhz to go.. I KNOW you can get to 4.0 Ghz for your daily runs.
Thanks, I'll keep pushing :up:
For p95 I consider it stable with 8 hours on blend, 24 seems excessive to me.Quote:
Originally Posted by Celcius

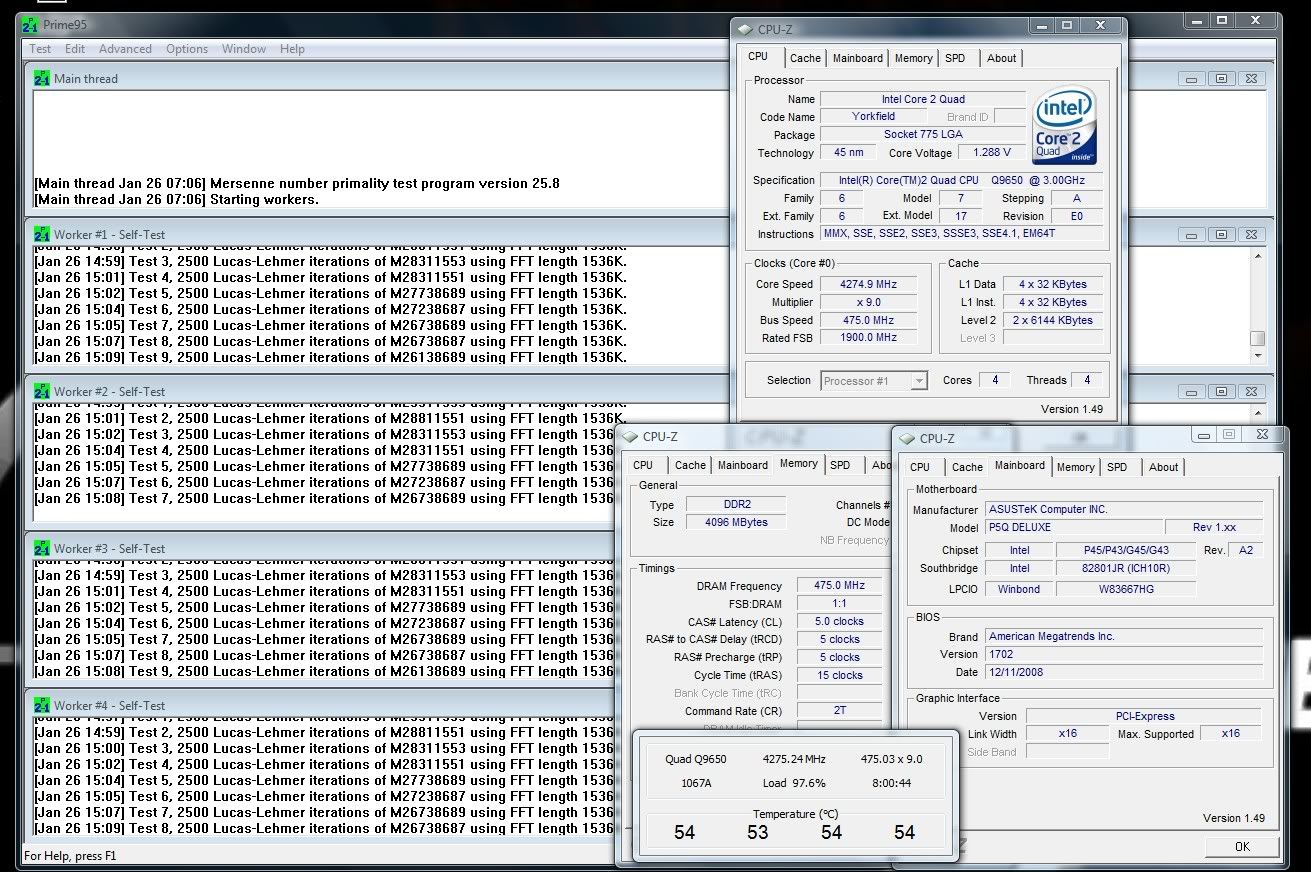

Getting closer to where I want to be, and it doent look like 4.4 will be much of a problem on air.
http://i131.photobucket.com/albums/p...mapImage3b.jpg
ok, ive hit a wall here with my9650.i can only get 500x8 with mem 1:1. when i try to get them running 5:6 no go.does any one have a solid,stable template for 500x8 for the 9650?some thing i can build upon.most of the OC's posted with the 9650 are all 8.5x500 or 9x500,just a little to high for me at this stage.i have had some success but also ive been through three installs(corrupt).dont get me wrong im not asking an easy OC,but it would be nice to be able to see some others that are simular to my goals,voltage wise.the one for 500x9 are just to different for what im trying.thanks
This is my setting for the E8400 (Stable)
I will be getting the Q9650 soon
I would like to know if I can use the same setting or where to modify
Extreme Tweaker
Ai Overclock Tuner : Manual
OC From CPU Level Up : AUTO
CPU Ratio Control : Manual
- Ratio CMOS Setting : 9
FSB Frequency : 450
CPU Clock Skew : Normal
North Bridge Clock Skew : Normal
FSB Strap to North Bridge : Auto
DRAM Frequency: DDR2-850 MHz
Dram Clock Skew CH1 A1 : Normal
DRAM Clock Skew CH1 A2 : Normal
Dram Clock Skew CH1 B1 : Normal
Dram Clock Skew CH1 B2 : Normal
DRAM Timing Control: Manual
CAS# Latency : 5
RAS# to CAS# Delay : 5
RAS# Precharge : 5
RAS# ActivateTime : 15
RAS# to RAS# Delay : 5
Row Refresh Cycle Time : 60
Write Recovery Time : 8
Read to Precharge Time : 5
Read to Write Delay (S/D) : Auto
Write to Read Delay (S) : Auto
Write to Read Delay (D) : Auto
Read to Read Delay (S) : Auto
Read to Read Delay (D) : Auto
Write to Write Delay (S) : Auto
Write to Write Delay (D) : Auto
Write to PRE Delay : Auto
Read to PRE Delay : Auto
PRE to PRE Delay : Auto
ALL PRE to ACT Delay : Auto
ALL PRE to REF Delay : Auto
DRAM Static Read Control: disabled
Dram Read Training : disabled
MEM OC Charger : disabled
Ai Clock Twister : Moderate
Transaction Booster : Manual
Common Performance Level: 10
Pull-In of CHA PH1 Disabled
Pull-In of CHA PH2 Disabled
Pull-In of CHA PH3 Disabled
Pull-In of CHA PH4 Disabled
Pull-In of CHA PH5 Disabled
Pull-In of CHB PH1 Disabled
Pull-In of CHB PH2 Disabled
Pull-In of CHB PH3 Disabled
Pull-In of CHB PH4 Disabled
Pull-In of CHB PH5 Disabled
PCIE Frequency : 100
CPU Voltage : 1.36250v
CPU PLL Voltage : 1.51325v
FSBT : 1.2v
DRAM Voltage : 2.1v
North Bridge Voltage : 1.32525v
South Bridge Voltage 1.5 : 1.5
South Bridge Voltage 1.1 : 1.1
CPU GTL Reference 0 : Auto
CPU GTL Reference 1 : Auto
CPU GTL Reference 2 : Auto
CPU GTL Reference 3 : Auto
North Bridge GTL Reference : AUTO
DDR2 Channel A REF Voltage : AUTO
DDR2 Channel B REF Voltage : AUTO
North Bridge DDR Reference : AUTO
Load Line Calabration : Enabled
CPU Sread Spectrum : Disabled
PCIE Spread Spectrum : Disabled
CPU Configuration:
Ratio CMOS Setting: 9
C1E Support: Disabled
Max CPUID Value Limit: Disabled
Intel Virtualization Tech: Enable
CPU TM Function: Disabled
Execute Disable Bit: Enabled
Load-Line Calibration: Enabled
CPU Spread Spectrum: Disabled
PCIE Spread Spectrum: Disabled
__________________
Rich Martin
Spec:
E8400 @ 4050 MHz @ 1.36v
Maximus II , P45 chipset
GeForce GTX 260
Corsair XMS2 DHX DDR2PC6400 (4 GB)
(2) Seagate 320 RAID 0, (2) 1TB SATA II
PS. Corsair VX550W
LIAN LI PC-60BPLUSII
Windows Vista Ultimate x64
Cooling: Swiftech H20-220 Apex Ultra
**update... took out 2 stick of ram and got it up to 3.92GHz but not occt stable primed for 2 hours no prob but quacks out after a min on occt?
Vcore 1.29v
NB 1.63v
DRAM 2.26v
SB 1.09v
FSBT 1.39
CPU PLL 1.632
All are auto except vcore need to keep at it but its almost 4ghz? I'll keep trying its bound to happen sooner or later I need a new heat sink anyone got a tuniq for sale, I've got 100% perfect ebay feedback and even baught products from members here but i need 100 posts to shop in the proper forum.. Bummer huh.. oh well thanks for all the help guys
