Guys, I would not use either the 7.21 or 7.22. Seems MSI is trying to pull a quick one on us by relaxing the memory timings. I've tested the 7.21 bios set at 4-4-3-8 and memset and cpu-z reads 4-5-6-8 and indeed thats what my board is running. Ran 3dmark at those settings then used memset to 4-4-3-8 and ran a much much faster.
Bottom line this board is only worth getting if you have a e6600 or higher. Dam a e6700 at 400x10 seems very tempting.
First post on these boards, so please forgive me for any faux pas.
I just got one of these boards, with the 7.0 stock bios, 2G of G.Skill 1GB memory, an E6600, and a Saphire x1900xtx. I've got an old IDE drive with Windows XPsp2 installed in it, just to have a boot drive (waiting for an SATA drive to arrive to do a fresh OS install).
I post just fine, but when windows starts, the system reboots as soon as windows starts to load (the ASCII progress bar happens, then the system resets). I've tried manually setting the memory to 4-4-4-12 @2.1 volts, since the board tries to under volt the memory.
Is there something obvious that I am just not doing correctly? I have a 450watt power supply, which (at least according to the manuals) should be enough juice for the system, but I'm at a loss. Would the fact that the old drive already has a windows installation (from an Athlon system) be a problem?
Any help would really be greatly appreciated.
Thanks,
RobD
#include <stdsig>
Probably your IDE mode is set wrong. You'll have all sorts of problems though with an install of windows that was based on a different system .. I won't recommend it.Quote:
Is there something obvious that I am just not doing correctly?
OK, if you have NOT re-installed windows (that's how I read it) then Windows will NOT start up!!! Windows is installed for an Athlon based mobo (i.e. Windows drivers are for Athlon)Quote:
Originally Posted by robd
Previously I've swapped mobo's with the same disk install but that was with the same chipset (i.e. both mobo's on Intel 915) and it took 10 minutes to update all the drivers on first run.
Athlon Vs Intel drivers are different. Reinstall Windows mate.
Thanks, guys. I was pretty sure it was something like this. I'll hold off on further tinkering with this system until the new drive gets here for a fresh install.
Again, thanks for the help.
Besides the relaxed memory timings, has anyone noticed anything different about the new 7.22 bios compared to all the others?
ES6700 here, no multies.... :rolleyes:
I am looking for some honest opinions here. I thought this would be the best thread to ask.
I am getting a free XE6800 from my work tomorrow and I am looking for a new board and ram to use with it.
I want to know if you guys using the MSI board recommend it. I am really looking for stability FIRST (no major set up problems, not booting issues, no BSODs) and slight over clocking (333 FSB).
I really like the price and features of this board, and from what it sounds like it is very fast clock for clock. But it seems like it has its problems (rebooting issues, memory problems, IDE problems). Do the problems show up at standard speeds or only with high FSB OC?
I just want to know from the guys dealing with it everyday if I should get one. Otherwise I am going to pick up a P5B Deluxe/wifi (more expensive, one IDE, no dual graphics).
Thanks in advance for you help!
Oh by the way I am going to be using the Patriot 2gb 667 44412 RAM that people have been getting good OC with for the price (Im not made of money) .
I haven't had a problem in terms of stability. Only thing that has been a problem is my ipod freezes the computer, but probably a software issue. Beyond that despite bios recognizing ram as 667 I haven't had the problems. Using 7.1 official. Although I'm sure if I tried to push my oc further it would be an issue. This OC is 24/7 stable though.
.. where to start .. by cursing your soul to eternal damnation .. (whips out spare chicken kept handy in case MSI PUP fails to boot) .. no .. (hangs head in shame .. big sigh)Quote:
I just want to know from the guys dealing with it everyday if I should get one. Otherwise I am going to pick up a P5B Deluxe/wifi (more expensive, one IDE, no dual graphics).
Thanks in advance for you help!
Oh by the way I am going to be using the Patriot 2gb 667 44412 RAM that people have been getting good OC with for the price (Im not made of money) .
Here is the deal:
1. If you already have good discrete sound, don't get this board. If you don't then the onboard sound is quite good and a large plus for it IMO.
2. If you need Wifi and dont already have a discrete card dont get this board. The WiFi on the Asus is a large plus for it IMO.
2. FSB 333 will be absolutely no problem on either board
3. Kiss goodbye to windows restart. If you think this is going to be a big issue for you .. don't get this board.
4. The IDE, SATA etc issues have been AFAIK mostly user errors .. if you plan on using RAID then research more carefully. If not, you should be fine with either.
5. You've already got a 6800 (whimpers) for free. So that part of your rig wont need to be upgraded for a while. The addition of Xfire would give you an option for upgrading your graphics at some point in the future but it would require you either owning or buying a X1900XT(256/512) now (or going hacked SLI drivers) .. can you afford this? How important is gaming to you?
6. One IDE may or may not be a problem .. your hard drive should be SATA .. c'mon they're cheap as skittles now .. so you only need IDE for your optical drives and unless you have a serious addiction to burning pirated movies 2 should be more than enough
What's the best price you can get on both boards? I get the Asus coming out about %20 more than the MSI .. remember that'll buy you a bit more grunt in your graphics budget which would make the biggest difference in gaming.
Thanks for the honest post (sometimes its hard to find them)!Quote:
Originally Posted by idioms
I am going to be using my x1800xt 256, SATA HD, 480w Truepower PSU and my X-FI Fatal1ty.
After alot of thinking (and reading your post) I have decided to get the p5b deluxe/wifi, seems like the best conroe board to get. I found it for 208 shipped so its onlye like 30 bucks more then the MSI, though I also have to buy an IDE to sata adapter for my back up hd. Again, thanks for you input it really helps. I will be posting in this forum ALOT in the future (probably the best group of forum goers around!)
no problem. I think you'll be very happy with your decision. Let us know how you go.
I have a MSI 975x Platinum new in box for sale. I'm not going to be able to afford the c2d I wanted, and I have SLI that I cannot part with. So I have a brand new mobo sitting around. The box has been opened and inspected for the version model of the mobo (it is the newest revision 2.1), and to see if any CPU pins were bent (they aren't, my first one came with the cap off and bent pins, so I RMA'd it to newegg and got a new one).
Its listed at $175 + $6 at newegg. I'll do $160 shipped.
Hey everyone, I posted this question a while back and I didn't get an answer, so I'll try again.
I just got my MSI board back from RMA, hooked everything up, and I get the same problem i had before: My WD Caviar SE HD is running in UDMA Mode 5 instead of SATA-II. I've tried many different things to get it to work but without any success. I've been in the "SATA Devices Configuration" section of the BIOS and have tried Enhanced Mode and SATA Only for "On-Ship Serial ATA", with neither fixing the problem. I tried IDE and AHCI for "SATA Mode" with neither helping (AHCI never let me boot into Windows). For Enhanced Mode I tried forcing GEN II but it didn't work. I can't think of anything else that can help me out here. The Serial ATA controller is installed but the HD still runs off IDE. I also tried unplugging the DVD Burner (which is IDE) and left the HD plugged in alone, but this didn't work.
Does anyone have any tips on how I can fix this problem? I'd be forever grateful. I've tried googling for help but never got any clear-cut information to help me out. Is there something in the BIOS that I'm missing? BTW, I'm using official 7.1 BIOS off the MSI website.
Thanks to anyone who can help me out, much appreciated.
My drive only runs at UDMA 5 too :(. AHCI wont let me boot and it seems i have the exact same sympthoms as you Insomniac.

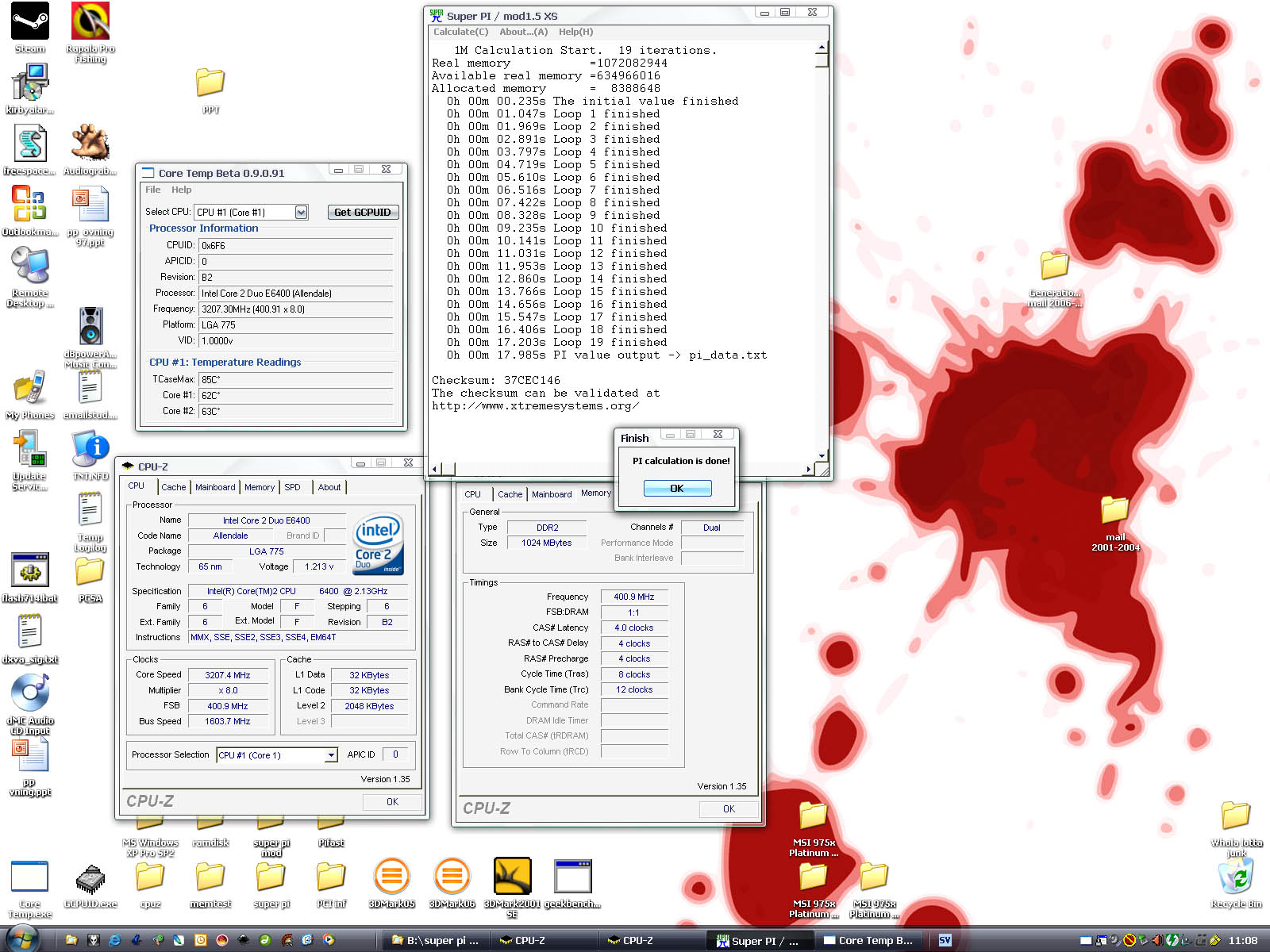

Just flashed with 7.1 official and i managed to do a sub 18 sec run in 1M S-PI and that kind of compansates my SATA-II issues for the moment :).
http://generationer.se/NONGENPIX/OC@...BIOS%207.1.jpg
Might go past 400 with this BIOS but i'm to lazy to try it out right now besides i still use stock cooling which makes my CPU's run quite hot so i dare not raise VCore any more. I'm very happy with my current sys. though and i can live with the reboot issues.
I looked into this, haven't actualy done it. First I believe you must install the driver for ICH8R, this can be found on the Utility disk MSI provides. There is also a readme there that explains it. You need to do it on a fresh install or with the F6 option. Then you need to install the Intel Matrix storage manager, which is also on the disk.
http://www.intel.com/support/chipsets/imsm/
Quote:
Originally Posted by Insomniac34
Doesn't the MSI board use ICH7? I tried install ICH7R and ICH8R and both times I was told I didn't meet the minimum requirements to install. I was totally unaware that when Windows asks you to press F6 when install Windows, that those drivers were necessary for SATA HDs to function properly.Quote:
Originally Posted by kman540
I tried hooking up the HD to the SATA 5 header, which is JMicron's SATA header. The HD ran at UDMA Mode 6, which is ATA-133. I noticed boot speeds were increased heavily from UDMA Mode 5, so it's clear that the problem is real and not just a bad reading. Unfortunately, I won't keep the HD on this header since I don't get temp readings off it.
I get that same message, I think it's because your the drivers aren't installed.
Try installing the drivers first. This is where I get confused:
http://www.intel.com/support/chipset.../CS-012304.htm
"ICH8, ICH7 and ICH6-based chipsets, as well as ICH5 and ICH5R-based chipsets, do not use AHCI"
If the only options in the BIOS are IDE, AHCI, and RAID, I will just buy another raptor and install RAID. BTW there is a thread dedicated to this at MSI Forums with no resolution yet.
Quote:
Originally Posted by Insomniac34
Thanks for the info. While it sucks other people are having the problem, I'm kinda glad it's not just an issue on my end :DQuote:
Originally Posted by kman540
Ok, I checked out the forums, and apparently it's true, that you have to install RAID/AHCI drivers upon Windows installation to get SATA HDs to work OK. Of course I had just got done installing everything onto Windows when I find this out, but oh well. I guess this also explains why my old SATA-I drive was always under-performing on my old P4 Abit IC7-Max II board, because I never installed those drivers. If it becomes a major issue to me then I'll spend one of my days off re-installing Windows. Thanks to everyone who helped me figure this out :)
Hi.
I just installed the 7.22 bios, and I seem to be getting the same problem that some other users here is getting. When I tried to set the ram to 5-5-5-15, it ended up 5-5-6-15. A bit annoying. Anybody know the solution, or whats up with these new bioses from MSI?
Currently I am stability testing at
3428 @ 1.51v
and 5-5-6-15 @ 380.
I am running
Intel Core 2 Duo E6600
MSI 975x PowerUp edition
OCZ DDR2 2048MB Platinum XTC Dual Channel PC2-6400 Review here
Are these chips good enough to be configuered with 4.5.4.15 up to 400mhz fsb on the e6600?
Hey, do you guys know what the default CPU voltage is on this board? I know the lowest CPU voltage is 1.21 V when I go to the Cell Menu, but is this the default voltage as well? I ask this because I manually set the voltage to 1.21 and I think the temp dropped 2-3 C. And if 1.21 V is not the default voltage, is it still safe to run at this value?
It's fine to run it under stock voltage. Just make sure it's stable :).
Yeah, I figured it would be fine if it's stable, I just wasn't sure if 1.21 V was the stock voltage. Does anyone know what stock voltage is? Overall I've dropped about 5 C on idle, haven't tested on load yet. CoreTemp now reports about 35 C, SpeedFan reports 28 C, and MSI's software reports 178 C (which I'll pretty much disregard :D)Quote:
Originally Posted by NickS
With the 7.22 BIOS I finally got my system stable @3.6GHz/1.34V and the memory @1:1 and 720MH 3-3-3-8 (setting through Memset)... it's finally stable... :) :)
I just got this motherboard back from RMA. They sent me a brand new board, I can't get it to run at 400 FSB at all where as my old one could :( using the official 7.1 bios.
