P04 is out
http://www.evga.com/forums/tm.asp?m=332217
Printable View
P04 is out
http://www.evga.com/forums/tm.asp?m=332217
GAR!!!! you beat me by 2 mins haha, was coming to post it lol!
Anyways interesting changelog!
-----
P04 BIOS is available now, the major highlights are listed below:
Fix CAS reporting
Fix issue with Xonar sound cards
Improved FSB and memory stability and overclocking
Increase allowed FSB range to 3000
Add P1/P2 settings (See below for P1/P2 Notes)
Improve nForce fan speed reporting and control
Enjoy eVGA users :)
Please report results!!!
lets just hope its a good bios, i will be home in 3 hours, i will test it then and report back.
oh its good...it is basically the same as P03R2 from what i have checked thus far. clocking appears to be the same as P03R2 for FSB and Memory and performance with P1/P2 enabled at high FSB is nearly identical. i am fully confident everything else will be the same as well. but don't expect any miracles as far as the corruption issues goes guys...just enjoy the performance and clocking :D
i just started stability testing the FSB but this is exactly what was 12 hr OCCT stable on P03R2, i even turned down FSB voltage a notch. this is on P04 thus far...
click for full size
http://3oh6.com/forum_posted/reviews...00_8-7-6-1.png
I actually haven't tried negative values (Although I have considered them).Quote:
try using those settings with GTL values in positive figures (instead of -30 use 30)
assuming you are limited by FSB
otherwise what is the issue with your setup again
What I did try were values ranging from +10 up to +35mv. I have a bit of experience with GTL values working with the DFi boards, so I know it's about finding that sweet spot.
However to be honest I started to feel like I was p*ssing in the wind with the 790i.lol. Which is why I swapped to the P5E Deluxe. Quad up to 3.82ghz @ 1.5v stable.
My memory which i paid what 90 pounds for OCZ 8500 golds DDR 3(1066) 7-7-7-21-1T, I managed to memtest at 1700mhz 7-7-7-21-2N @ 1.94v. So components seem to be just fine. As mentioned previously the P5E has been a breeze to work with.
Now P4 bios is out however, it's time to swap back and have another blast. Fingers crossed;)
RLM
Let me help ya there.Quote:
Originally Posted by RLM
You meant to say "I started to feel like I was p*ssing against the wind".
Now LOL properly :D
P04 is a GOD!!!!!!!!!!!!
got 3000+ bandwidth and latency is now at 49ns, passed prime blend for a bit as well..............so far so good......this board will finally shine like it was meant to be.
im running 450x8 memory at 1800mhz sync with fsb at 1800mhz as well.
Nice to hear that Gar :)
I search to boot with QX9650 on XFX NF790i board but i can't with 01 and 03 rom.
Have you ever to pass YOrkfield CPU on this board? :confused:
I am running stable with the voltages below, but someone mentioned my VCORE (Auto - 1.32v) should be manually set to 1.20v or lower since my E8400 OC is rather mild.
Can I get some more opinions on this?
CPU Core - 1.32v (Auto)
CPU FSB - 1.35v (Manual)
SPP - 1.40v (Manual)
MCP - 1.50v (Manual)
CPU temps are 36C idle and 49C Load.
I stand corrected.;)Quote:
You meant to say "I started to feel like I was p*ssing against the wind".
Now LOL properly
Well swapped in the 790i with a stinking hangover, and have to say much happier. Don't want to temp fate, but I think the clever chappies have cracked it with P04.
Passed memtest. Volts on ram @ 1.85v p1 p2 enabled
http://img225.imageshack.us/img225/6121/3dmark06va3.jpg
The P5E Deluxe was a great board, however even with the q6600 cranked to 4ghz I could barely make 19,000.
It seems where this board excels is in the HDR tests, especially Canyon Flight.
Cpu volts droop to 1.5v under load, which is really what I want permanently. Have to set 1.6v in bios. Not sure whether to enable c1e. If they could introduce voltage calibration into the next release that would be top.
Now a question. Is it possible to install Raid using a USB floppy Drive?
Cheers
RLM
dami1stm I search to boot with QX9650 on XFX NF790i board but i can't with 01 and 03 rom.
Have you ever to pass YOrkfield CPU on this board?
yes i have QX9770 and just now with new bios P04 run at 4.1
--------------------------------------------------------------------------
EVGA 790i Ultra
QX9770 G1 4.1 ghz @ 1.48v
2GB shellshock DDR 3 1822 mhz 7 6 6 21 @ 2.0v
2XGeForce 9800GTX SLI
SoundBlaster X-Fi elite pro
3x150gb wd Raptors Raid-0
2x1TB segate Raid
Tagan 950 watt
Watercooling
don't use auto vcore
always set it manually ;)
and you should be able to be stable at 4GHz with that much vcore so drop it a bit i'd say :up:
Has anyone been able to set FSB over 425 stably with both P1 and P2 enabled with a quad processor? I managed to boot once at 445 and got around 12200MB/s read, but then it never happened again...:rolleyes:
Above 425 till about 430 is possible but if I restart the system reset to default settings..... and above that if I get it to post (with 1.4V VTT) it would say some OS file corrupt, and I had to reduce the FSB to start windows again.
My 9800 isn't the best overclocker. In fact pretty poor compared. Even so having a bit of fun:D
http://img135.imageshack.us/img135/9...k06rlm1bx6.jpg
Certainly happy with these sticks so far
RLM
Enabled P1 and P2 in QX9770 with 450 fsbQuote:
Originally Posted by eternal_fantasy
--------------------------------------------------------------------------
EVGA 790i Ultra
QX9770 4 ghz @ 1.42v
2GB shellshock DDR 3 1800 mhz 7 6 6 21 @ 2.0v
2XGeForce 9800GTX SLI
SoundBlaster X-Fi elite pro
3x150gb wd Raptors Raid-0
2x1TB segate Raid
Tagan 950 watt
Watercooling

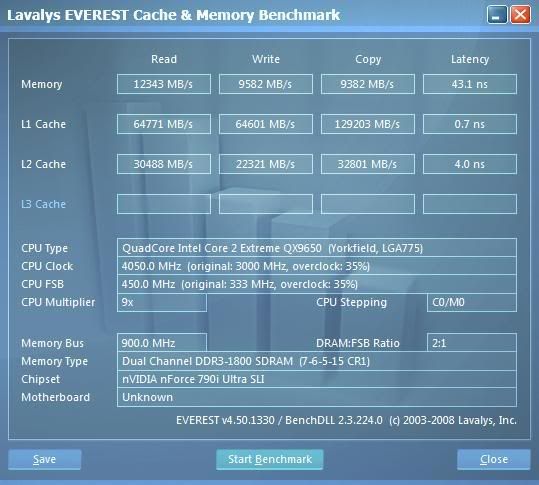

I was able to post at 450 with P1 enabled P2 Auto;
http://i225.photobucket.com/albums/d...asy_86/450.jpg
Than BIOS resetted after restart :ROTF:
Does that setting stick after restart from Windows? if so what is your memory and voltage settings? :DQuote:
Originally Posted by evildimitris
Memory is the CellShock 1800 - 2.0 voltQuote:
Originally Posted by eternal_fantasy
i do restart always and never have any problems! never i lose the fsb or ghz on cpu
Here is my settingsQuote:
Originally Posted by eternal_fantasy
memory clock mode (linked)
memory ratio(sync mode)
mhz 1800
P1 enabled
P2 enabled
memory timing setting
7
6
6
19
1T
all other AUTO
system voltages
cpu core 1.4185
cpu fsb 1.35
memory 2.00
nforce spp 1.45
nforce mcp 1.65
all gtlvref AUTO
i hope to help you
-------------------------------------------------------------------------
EVGA 790i Ultra
QX9770 4.05 ghz - 1.42v
2GB shellshock DDR 3 1800 mhz 7 6 6 21 1T - 2.0v
2XGeForce 9800GTX SLI
SoundBlaster X-Fi elite pro
3x150gb wd Raptors Raid-0
2x1TB Seagate Raid
Tagan 950 watt
Watercooling
my bios never resetedQuote:
Originally Posted by eternal_fantasy
This bios is amazing, rock solid at 450fsb, and 900mhz mem 7-7-7-24-2t 2.0v, loving it
did you ever rock the P03R2 BIOS? if so, has P04 improved on it?Quote:
Originally Posted by GAR
with an E8400, i am finding absolutely no difference in P03R2 and P04, performance or overclockability wise. P03R2 was really solid and clocked better than could have been expected and P04 is just as good thus far.
Yes, it seems that the p04 is better than the P03, we are experiencing it with Dami1stm. The board works with the QX9650.
But we have another problem. We have installed the 174.74 for Quad SLI 9800GX2 but it appears that there is only one card which is detected (same problem with SLI 8800GTS). The performances are the same as a single GTS, Rivatuner don't recognize more than one gpu.
We are using a Win XP 32bits, which OS is required to bench correctly this board?
Thanks a lot :bows:
You know i never tried P03R2 so i couldnt tell you, i can tell you P04 is amazing so far.Quote:
Originally Posted by 3oh6
