Innovation Cooling's Diamond 7 TIM test results

Printable View

Show 100 post(s) from this thread on one page

01-31-2009, 10:25 PM
tastymannatees

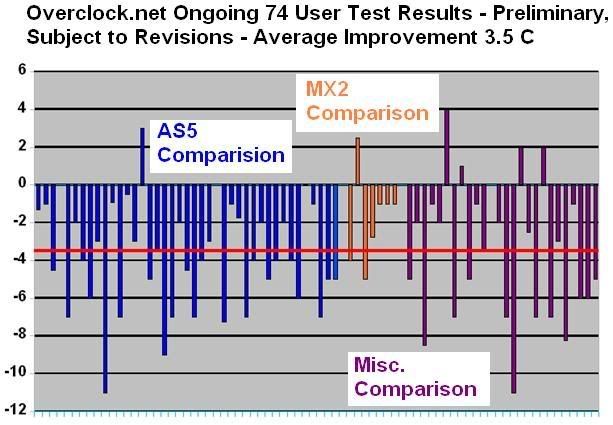

Latest results tally - the guys at overclockers.net are giving me the highest sample/return ratio yet. Although I think XtremeSystems really put me though the wringer more than any other forum.

http://i291.photobucket.com/albums/l...y7-74tests.jpg

Quote:

User- Comparison paste-Result AS5
jacksknight -1.3 C
Enyalius -1
hiiyah777 -4.5
tofunater "0" change
trexxcrap -7 **idle only reported?
chink -2
Sukach -4C
BIGWORM -6
KarmaKiller -3c
xXkeyboardkowboyXx -11
rx7racer -.91 C
Danbeme32 -7C
intelfan -0.5C
theCanadian -3
XxBeNigNxX +3 C
P£P§! -5
dicko505 -3.75
pun3D -9
spaceballsrules -7
bremaine -2
Microsis -4.5
BlackOmega -7
catmmm -4C
Ammocache -3
Fossil 0.0
ProjecT TimeZ -7.25
s7j3 -1
BLKKROW -1.75
zomgiwin-7
Grizzly Adams -4 Edited gain since initial install
KamuiRSX-2
mortimersnerd-5
Ricdeau-4
tkl.hui-2
lemans81-4
Pheoxs-6
Max302-.05
Grunion-1
BlackOmega-7
Show4Pro-5
BIGWORM -5
Timxirish-1
User- Comparison paste-Result mx-2
Jeffmizrahi -4c
ljason8eg +2.5
bulmung -5c
dicko505 -2.75
DIRTYDUCK -1
Mikecdm-1
User- Comparison paste-Result Misc. Compounds
Enjoi -5C * Geil
Yomny -2 * Ultra Gel**
Emperor -8.5 Zalman grease
dicko505 OCZ -1
dicko505 ceramique -2
shnoops + 4 Shin Etsu x23
error10 -7Shin Etsu G-751
TnB= Gir +1 OCZ Freeze
nitd_kim -5 stock compound
tindolos -1 TG-1 No ambient reported
spaceballsrules -3.5 Noctau NT-H1
spaceballsrules 0.0 C - OCZ Freeze
FlAwLeSS_666 -2 Shin Etsu G-751
HaXXoR -7 Stock HP Paste
Polska -11 C ZM - STG1
savagebunny + 2 Shin Etsu x23
lsdmeasap -2.5 TX2
sabermetrics -7 OCZ Freeze
stumped +2 Shin Etsu x23
savagebunny-7 Shin x23
Ricdeau-3 OC freeze
Show4Pro -8.24 Chill Factor
ChrisB17 -1 TX-2
Snoopy83 -6 stock paste
Locool676 -6 AS Ceramic
Spart -5 OCZ
02-07-2009, 06:19 PM
tastymannatees

1 Attachment(s)

Total Tally of 7 forum giveaway's to date
02-12-2009, 08:04 AM
Avan

I'm planning on picking up a tube of this stuff soon for my new build. After reading the thread, I just wanted to confirm that on an i7 the agreed best application method is a pea size drop? Also I read mixed ideas about giving the HSF a small twist in each direction, what do you all think about the twisting?

Thanks
02-12-2009, 08:07 AM
[XC] Hicks121

I always give the HSF a twist after installation. I have tried with & without the twist. It helps spread out the tim.
02-12-2009, 08:10 AM
Bail_w

I twist the heatsink before mounting, that way it help spread out the TIM then when apply pressure; its perfect.
02-12-2009, 08:15 AM
Avan

wow thanks alot for the quick replies guys.
02-25-2009, 07:41 PM
tastymannatees

Pressure testing

I thought I would post some raw image results from overclock.net along with thermals. Nice clean prints. The 8A was a before a "washer mod" and 8B was after the "washer mod"

The increase in performance matches nicely with the increased contact and pressure (actually is as good as a couple of the better ones I have on file)

It's a nice illustration which you people already know and reinforces probably the most recommended forum troubleshooting solution to cpu thermal problems - Lap and tighten/balance the sink.

Thanks tkl.hui for the extra effort, much appreciated

http://i291.photobucket.com/albums/l...age8a8bocn.jpg
03-01-2009, 07:58 AM
tastymannatees

Started another IC Diamond Giveaway @ MaximumPC today if you missed the last one here and are a member of the MaximumPC forums you might qualify for a free tube.
03-07-2009, 05:57 PM
tastymannatees

I have not forgotten our Canadian brothers if you missed our giveaway here

I have a Canadian giveaway in the works and somebody to sell it:D
03-07-2009, 06:04 PM
Movieman

Mr. tastee;
Free stuff is always nice but there are those things in life you buy that are just excellent items and worth what you pay for them. Yours is one.
It's a no BS just plain works as designed item..
Now I have an order coming in from Petra's this week and you can see what heads the list.
Thanks again for an excellent product.

Name Code Qty Each Options
------------------------------------------------------------------------
IC Diamond 24 Carat IC24-TIM 1 19.99
Thermal Compound (~5g)
(Shipped)
UPS Tracking Number:
1Z018R8R0341094511
XSPC Delta V3 Universal XSPC-DELTAV3 2 41.99
CPU Waterblock (775,
1366, AM2, etc.)
(Shipped)
UPS Tracking Number:
1Z018R8R0341094511
Danger Den/Bits Power G14DBFB12 4 2.50
"Fat Boy" Fitting (G 1/4"
Thread, 1/2" OD)
(Shipped)
UPS Tracking Number:
1Z018R8R0341094511
1-1/4" Black-Oxide Steel TCHILL-SCR-BLK 4 0.75
Thermochill/BIP/BIX Fan
Screws (Pack of 4)
(Shipped)
UPS Tracking Number:
1Z018R8R0341094511
Swiftech SmartCoils 625 SMRTCLS625-UVBLU 1 2.95
(for 5/8" OD Tubing) - UV
Ocean Blue
(Shipped)
UPS Tracking Number:
1Z018R8R0341094511
Subtotal 119.92
Shipping 10.83
Tax 0.00
Total 130.75
03-07-2009, 06:33 PM
David_L6

Well put Dave. :up:

I've had good results with the Diamond 7 (so good that I shipped some of the free Diamond 7 that tastymannatees gave us to test to our friend in Belgium). Next time I need some TIM I'll be buying some more Diamond 7.
03-10-2009, 01:21 PM
tastymannatees

Hey, thanks for the feedback always appreciated

How is this for ambitious? 44 pastes tested

http://i291.photobucket.com/albums/l...REVIEWLABS.jpg
03-10-2009, 01:27 PM
Movieman

Quote:

Originally Posted by tastymannatees

Hey, thanks for the feedback always appreciated

How is this for ambitious? 44 pastes tested

http://i291.photobucket.com/albums/l...REVIEWLABS.jpg

Just shows what we already know.
I can understand, has to be tough breaking into this market where every 16 year older thinks AS5 is the ONLY thing to use..
Over all my machines plus the ones I've built for people your product averages 4C better.
4C when your tossing together a high end Nehalem that to get just down to the low 60's on air is tough is where your product shines.
Also nice when your doing a cheapo P4 netburst in some midtower thats marginal for flow.
That 4C just adds that little "edge"..
Many Thanks for making this.:up:
03-10-2009, 04:24 PM
tastymannatees

Quote:

Originally Posted by Movieman

Just shows what we already know.
I can understand, has to be tough breaking into this market where every 16 year older thinks AS5 is the ONLY thing to use..
Over all my machines plus the ones I've built for people your product averages 4C better.
4C when your tossing together a high end Nehalem that to get just down to the low 60's on air is tough is where your product shines.
Also nice when your doing a cheapo P4 netburst in some midtower thats marginal for flow.
That 4C just adds that little "edge"..
Many Thanks for making this.:up:

:D A couple of pounds more pressure.... maybe, just maybe and I coulda rolled into first place.
03-10-2009, 10:11 PM
Brother Esau

Just bought me a Giganormous Tube From Petra's:D

Hopin I set a all ne world Record Temp Drop.....anythings gotta work better then Mayo!:p::rofl:
03-11-2009, 11:57 AM
littleowl

I ordered a tube of this cool laboratory liquid pro just to try because I have went to D7 on everything I run now. That liquid pro stuff seems like it could work good but God is it a pain in the butt. I feel tim should be put on and be done with it. This liquid tim you have to do an hr worth of work to get ready to apply it. I like the way it looks but I am not impressed with the results at all.
I will stay with my D7! It works better then anything else I have ever used.
03-11-2009, 12:04 PM
Jaco

Quote:

Originally Posted by David_L6

Well put Dave. :up:

I've had good results with the Diamond 7 (so good that I shipped some of the free Diamond 7 that tastymannatees gave us to test to our friend in Belgium). Next time I need some TIM I'll be buying some more Diamond 7.

Big thanks for that :up:

I've been an ICD7 convert ever since.
03-11-2009, 02:34 PM
Brother Esau

Got my tube today:) Whats general results for burn in time frame from you guys please?
03-11-2009, 03:24 PM
[XC] Hicks121

From my experience, no real burn in time. The more pressure the better. This is good stuff. :up:
03-15-2009, 02:24 PM
annihilus

I am not going to use ic diamond again, it left quite ugly pits in both the cpu and heatsink (both lapped). So after taking it off I had to lap them both again, could be because copper is quite soft and diamonds are ... well ... hard as diamonds. I don't understand the 44 tim round up, metalpad should, if applied correctly, perform on par with liquid pro. I just put in on my gpu, will report back with temps
03-15-2009, 02:29 PM
Movieman

Quote:

Originally Posted by Brother Esau

Got my tube today:) Whats general results for burn in time frame from you guys please?

Really none.. a slight decrease in temps after a few hours but basically what you see is what you get..
I noticed a almost standard 4c drop over AS5 across the board..I do a thin line vertically and another horizontally and then move HS back and forth gently as if seating a brick into cement. Gives me a nice spread on the TIM.

Quote:

Originally Posted by annihilus

I am not going to use ic diamond again, it left quite ugly pits in both the cpu and heatsink (both lapped). So after taking it off I had to lap them both again, could be because copper is quite soft and diamonds are ... well ... hard as diamonds. I don't understand the 44 tim round up, metalpad should, if applied correctly, perform on par with liquid pro. I just put in on my gpu, will report back with temps

Surprised to hear this. I used this on one lapped cpu and saw no effect on the cpu itself.
Sorry this happenned to you.
Possibly something left on the cpu other than the TIM?
03-15-2009, 02:44 PM
annihilus

I don't think it had anything to do with residu, they where absolutely clean when I applied. I had pits in a circle at the end of the spread of the tim, quite ugly. This happened as well on my gpu. Could be I had a bad batch or something like that with the diamond powder not fine enough or sticking together maybe?
03-15-2009, 02:48 PM
Movieman

Quote:

Originally Posted by annihilus

I don't think it had anything to do with residu, they where absolutely clean when I applied. I had pits in a circle at the end of the spread of the tim, quite ugly. This happened as well on my gpu.

Ok, very sorry to hear this but please understand this is the first time we've heard this after literally thousands of uses so I thought there might be something else that contributed to the problem.
03-15-2009, 03:02 PM
annihilus

Yes, I have not red anything like what happened to me, so I guess it is a specific problem related to me. Could also be because I polish after lapping and this makes the surface too soft for ic diamond? What is the shelflife of the product because i remember pushing like a madman to get some out, could it have dried out?
03-15-2009, 03:06 PM
Movieman

Quote:

Originally Posted by annihilus

Yes, I have not red anything like what happened to me, so I guess it is a specific problem related to me. Could also be because I polish after lapping and this makes the surface too soft for ic diamond? What is the shelflife of the product because i remember pushing like a madman to get some out, could it have dried out?

Possibly on the polishing.. The stuff is pretty hard to get out so I doubt it was na age issue.
My one suggestion would be for bigger "ears" on the tube to get a better grip especially for us folks with big hands.
I can palm a basketball and use both hands to get it out and control the location of where the tim goes..
