Just a fan on them :)Quote:
Originally Posted by CoolZone
Printable View
Just a fan on them :)Quote:
Originally Posted by CoolZone

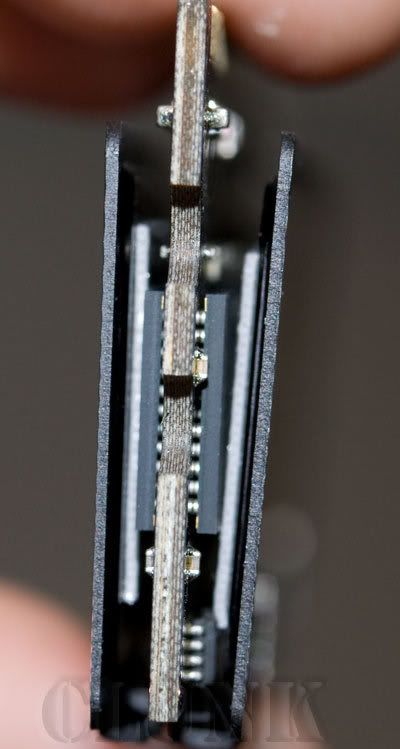

How I fixed: I placed 5 1in binder on them then let a overnight Memtest #5 on tight timmings and high speed.
Now with the tape re-glued by the heat I only need 2 binders on each module and it will fit the 4 sticks without touching each other.
All with active cooling (OCZ XTC).
:up: Fixed:
http://i32.tinypic.com/2yvnltw.jpg
Sorry to be a pain, but I was hoping someone could answer my question regarding a vCore limit to the 45nm Quads ... in my case the Xeon 3360 ... :confused:
I am slowly working into this board and proc with 4GB OCZ Reaper PC2 8500. I can't quite seem to get a decent range of voltages that will let me go above 445FSB with either the 8 or 8.5 multi ... any suggestions? At 440 FSB with the 8.5 multi, and vCore around 1.36v she'll boot into Windows (XP 64) without a hitch, but as soon as I try to run Prime95, the first two cores halt immediately , yet the second two keep on working ... really weird shyt! I can bring it back down to stock volts and not a single problem with all four cores ... :confused:
Those Prime95 issues can be due to wrong GTL settings or disabled.Quote:
Originally Posted by AKHandyman
Did you try to tweak GTL'S acording to Cluncks chart?
It's not always vcore that your processor is asking for.
I have been working with them today ... I started all over from scratch and now I am in a Prime run with settings as follows: vCore-1.26v(real 1.24v); CPU VTT-1.1v(same); NB-1.462v(real 1.45v); DRAM-2.19v(real 2.16v); 8.5 multi x 400 FSB, DRAM Target speed is 333/800, GTL is disabled for the time being ...
I have had it up higher and did some preliminary benching with SuperPi but what is the fault when the error says "NOT IN ROUND" or "NOT IN CONVERGENCE" or something to that effect? Do I need more or less of whatever?
thanks, now im really worried lolQuote:
Originally Posted by Clunk
i checked them they dont look like there pealing yet. and they seemed stable with all 4 at 1140mhz . but then today i got the c1 error and it wouldnt boot , i restarted and it boot ok. so im getting worried. and im too scared to run a memtest on them incase i get bad results. lol
Silly question, are the green and yellow board connectors UV reactive?
If X48 is like X38, then memory clocks maybe sensitive to clock fine delay values once oc'd - might want to fine tune the values for your memory http://i4memory.com/showthread.php?t=4743 which can product very dramatic gains in some cases!Quote:
Originally Posted by adya
thanks eva thats awsome info there. ill read through it soon and get into changing some of those fine tune settings. i did notice fine tune in bios before but wasnt sure what i should set them to.Quote:
Originally Posted by eva2000
thanks again.
Greetings all,
Can't seem to get my X48, Q6600, or G.Skill PC28000 2gbx2 stable at anything past 3.6 on 333/800, or anything reasonable on 333/677. I know the chip can boot into windows at 4.2, and the memory clocks to around 1030. Would I use 333/667? When I do get anything remotely stable, I have corruption on downloads and random crashes in small applications (Firefox, pidgin), but they can OCCT for 30 min+.
Here are my current settings I'm using to achieve 3.6 barely stable.
Any help appreciated, as I have a sweet WC setup and want to hit 4 :up:Code:CPU Feature Page
Thermal Management Control................Disabled
PPM (EIST) Mode...........................Disabled
Limit CPUID MaxVal........................Disabled
CIE Function..............................Disabled
Execute Disable Bit.......................Disabled
Virtualization Technology.................Disabled
Core Multi-Processing.....................Enabled
Main BIOS Page
Exist Setup Shutdown......................Mode 1
Shutdown After AC Loss....................Enabled
O. C. Fail Retry Counter..................0
CLOCK VC0 Divider.........................Auto
CPU Clock Ratio...........................8x
CPU Clock.................................450 MHz
Boot Up Clock.............................Auto
DRAM Speed................................333/800
PCIE Clock................................100 MHz
PCIE Slot Config..........................1X 1X
CPU Spread Spectrum.......................Disabled
PCIE Spread Spectrum......................Disabled
SATA Spread Spectrum......................Disabled
Voltage Setting Page
CPU VID Control...........................1.4V
CPU VID Special Add.......................Auto
DRAM Voltage Control......................2.1V
SB Core/CPU PLL Voltage...................1.510V
NB Core Voltage...........................1.504V
CPU VTT Voltage...........................1.327V
VCore Droop Control.......................Enabled
Clockgen Voltage Control..................3.45V
GTL+ Buffers Strength.....................Strong
Host Slew Rate............................Weak
GTL REF Voltage Control...................Disabled
CPU GTL1/3 REF Volt.......................N/A
CPU GTL 0/2 REF Volt......................N/A
North Bridge GTL REF Volt ................N/A
DRAM Timing Page
Enhance Data Transmitting.................Fast
Enhance Addressing........................Fast
T2 Dispatch...............................Enabled
Clock Setting Fine Delay..................Listed Below
CAS Latency Time (tCL)....................5
RAS# to CAS# Delay (tRCD).................5
RAS# Precharge (tRP)......................3
Precharge Delay (tRAS)....................15
All Precharge to Act......................4
REF to ACT Delay (tRFC)...................48
Performance Level.........................8
Read Delay Phase Adjust...................Listed Below
MCH ODT Latency...........................2
Write to PRE Delay (tWR)..................14
Rank Write to Read (tWTR).................11
ACT to ACT Delay (tRRD)...................3
Read to Write Delay (tRDWR)...............8
Ranks Write to Write (tWRWR)..............4
Ranks Read to Read (tRDRD)................5
Ranks Write to Read (tWRRD)...............4
Read CAS# Precharge (tRTP)................3
ALL PRE to Refresh........................4
Read Delay Phase Adjust Page
Channel 1 Phase 0 Pull-In.................Enabled
Channel 1 Phase 1 Pull-In.................Enabled
Channel 1 Phase 2 Pull-In.................Enabled
Channel 1 Phase 3 Pull-In.................Enabled
Channel 1 Phase 4 Pull-In.................Enabled
Channel 2 Phase 0 Pull-In.................Enabled
Channel 2 Phase 1 Pull-In.................Auto
Channel 2 Phase 2 Pull-In.................Enabled
Channel 2 Phase 3 Pull-In.................Enabled
Channel 2 Phase 4 Pull-In.................Enabled
Clock Setting Fine Delay Page
Ch1 Clock Crossing Setting................More Aggressive
DIMM 1 Clock fine delay...................Current 89ps
DIMM 2 Clock fine delay...................Current 456ps
DIMM 1 Control fine delay.................Current 534ps
DIMM 2 Control fine delay.................Current 289ps
Ch 1 Command fine delay...................Current 801ps
Ch2 Clock Crossing Setting................More Aggressive
DIMM 3 Clock fine delay...................Current 89ps
DIMM 4 Clock fine delay...................Current 400ps
DIMM 3 Control fine delay.................Current 367ps
DIMM 4 Control fine delay.................Current 356ps
Ch 2 Command fine delay...................Current 801ps
Ch1Ch2 CommonClock Setting................More Aggressive
Ch1 RDCAS GNT-Chip Delay..................Auto
Ch1 WRCAS GNT-Chip Delay..................Auto
Ch1 Command to CS Delay...................Auto
Ch2 RDCAS GNT-Chip Delay..................Auto
Ch2 WRCAS GNT-Chip Delay..................Auto
Ch2 Command to CS Delay...................Auto
edit: I also have tinkered a bit with gtls, and maybe that was one of the reasons I hit 4.2 and posted one time. Any recommendations for 4.0-4.2ghz gtls and corresponding vtt?
double edit: I am no longer even stable at 3.6 for long periods, ater a while I get app crashes then bsod.
I just checked im my blue led case, and I didn't see much glow off of the sata plugins. Everything else lights up I think.Quote:
Originally Posted by Bitgod
I just got all my new parts up and running but i keep getting random system freezes while playing games (Pro Street, Supreme Commander).
Running XP 32, 8.2 Catalyst. Rest is in signature. Not to sure if its related to voltage settings in the bios. Even with everything at the defaults in the Bios it still freezes.
Any help would be great.
Have you run 3dmark 06 yet ??
Yeah i did. Multiple times. Supposedly there is a compatibility issue with DFI X38 and 3870X2. Guess the problem was brought accross to the X48. Anyone know of a sure fire fix for this?
eva, ive been reading through that link,( since i just discovered im not occt stable).Quote:
Originally Posted by eva2000
my question is wouldnt setting fine delay to relaxed have the same effect? or am i better of reducing memory speed abit then reseting fine delay to match stable settings?
edit* relaxed settings didnt do anything, so forget that q's . still unstable with occt. im trying what u said and i reduced my memory speed. but i had to reduce fsb to reduce memory speed. how can i reduce memory speed only? it doesnt seem to have a separate setting for reducing memory speed? i overclocked using strap settings and increasing fsb i didnt increase memory manually.
also is occt to strict? seems stable with prime but looses out with occt.
For OCing and WCing, is it ok to stick with the stock SB heatsink? I'd expect so, since if I recall what I read somewhere, 2 of the things the SB is responsible for is the JMicron and the on-board sound, neither of which I'll be using I expect, plus that high intake fan on the TJ09 will probably put air right on it. I'm just in planning to order parts mode and wanted to see if I needed to snag something like an Enzotech SLF-1.
SB heatsink works well, doesn't really get very hot.Quote:
Originally Posted by Bitgod
Can't hurt to give it a repaste though :D
i reduced my fsb/memory to 450/1080 ive been running occt for 1 1/2 hours seems stable , so ill go into bios when its finished and note down fine delay settings. then increase fsb/memory back to 475/1140 with stable fine delay setting on manual.
edit* ok i did it , but the stable "current" settings wont match the manual settings? sometimes by more than 50. i had to use the closest figure. any way of setting it to the exact figure?
damn i cant get it stable at 475/1141 . becuase i cant set fine delay to the exact stable settings.
is it better to just keep lowering it till its stable? lower= stable? its a shame this bios wont allow me to set it manually properly.
I just ran prime95 for 11 hours straight with my q6600,
9x420 = 3780MHz
strap 400/800
vcore 1.392v
VTT 1,312v
NB 1.504v
And now I installed another 4 gigs of ram, let's see how high I can go with 8gb :) Now benching 9x425
mines prime stable for 5 hours but fails with occt. i think occt is either way to strict with its testing or prime is weak. has to be one or the other.Quote:
Originally Posted by Jultsu
did u test with occt at all?
damn lol i dont test prime more than 1 hour no more
puts too much stress on components for my taste
9 hours i bet you stable:rofl:
Nope, I use just prime.
425fsb gives a BSOD within 30 minutes. If the CPU isn't getting enough juice, shouldn't the prime worker threads just halt to an error? So, is this a memory/NB -related issue?
test with memtest to see if its memory relatedQuote:
Originally Posted by Jultsu
try 1.45cpu n 1.4 cpuvtt try setting correct glt settings
4 sticks you ganna need 1.5v++on nb
@zsamz_ - How did you put the X48 BIOS on your DFI X38 board?
