Water Cooled Case Gallery

nice cosmos :up:

can we get more pics how you mounted the rad in the top?

I love the look of those boards. That looks amazing spoony. You should replace the stock gold galaxy fan guard with a silver or painted black one. :). Well, maybe not usually fan guard mods make the general mod look bad, so maybe the gold should stay. Just a thought.:up:

Quote:

---

Originally Posted by Jamestuk

What radiator have you got in there Zeus? is it on the front?

---

It's a thermochill PA 120.2 with 4x Yate loon push-pull in the front of the case.
You can actually see the 2 illuminated Yate loons in the front in some of the pictures.

A 120.3 should have been better but it's not possible to fit it in unless i bin the optical drive. Not an option really.

I want everything inside the case so i have to make do with this.

Quote:

---

Originally Posted by spoony

Here is my first wc rig. I originally planned on two loops. I actually have everything for two loops but was unable to get it all in the case, so I opted for a single loop just to see how things go. I still have to add some lights and get my window for the cosmos, but this will be ok for now. My temps so far go from 30 to 41 degrees Celsius on my CPU, and stay around the same on the gpu's. I haven't ran anything like prime to test the temps out yet, maybe I will in the future, but I don't really have intention on overclocking.

http://img.photobucket.com/albums/v2...new_comp02.jpg

http://img.photobucket.com/albums/v2...new_comp01.jpg

---

I've been out of the overclocking loop for a while...What case is this?

Quote:

---

Originally Posted by fearo

I've been out of the overclocking loop for a while...What case is this?

---

Quote:

---

Originally Posted by spoony

I still have to add some lights and get my window for the cosmos,

---

Quote:

---

Originally Posted by dubtown

nice cosmos :up:

---

Coolermaster Cosmos :p:

sick rig spoony. the galaxy looks awesome :D

Nice rig spoony but why the elbow just after the pump? Did the video cards get in the way of the bend?

Not so innovative here.

Seems that money talks :welcome:

hey spoony what kinda brand that radiator of yours is ?

Quote:

---

Originally Posted by Voo Doo

Nice rig fearo but why the elbow just after the pump? Did the video cards get in the way of the bend?

---

Yeh, looks very hurtfull to your flow,

You set up is so beuatifull thought :eek:

Quote:

---

Originally Posted by Janno

nice one! :up:
i hope mine will look the same eventually

but tell me... were the pre-cut tubing holes really that useless, you had to drill new ones?
i really don't want to do that, as my drill is a biatch :(

---

Hey Thanks ! As Waymond said you'll dig into trouble if you intend to use the holes that came with the antec, you can turn the rad upside down but it's really simple to make that holes...

As some ppl requested here are some new pics on the antec 900 adventure ;)

http://img520.imageshack.us/img520/6...eradxw7.th.jpg

http://img181.imageshack.us/img181/1...rad1vw1.th.jpg

http://img186.imageshack.us/img186/2...led1nr2.th.jpg

http://img241.imageshack.us/img241/7...ketsmu5.th.jpg

http://img502.imageshack.us/img502/9...est1jl3.th.jpg

http://img376.imageshack.us/img376/2...est2la0.th.jpg

http://img516.imageshack.us/img516/7...eat1yu9.th.jpg

http://img261.imageshack.us/img261/5...eat2vd4.th.jpg

http://img356.imageshack.us/img356/6872/fansee5.th.jpg

http://img519.imageshack.us/img519/1...bleskd1.th.jpg

http://img257.imageshack.us/img257/4...ado1qa1.th.jpg

Cheers !!! Sergio

Thanks for the replies guys. I am glad you like it.

The radiator is just a swiftech mcr320 QP. I will post pictures of how it is mounted when I get home this afternoon. I really was worried about the EK supreme causing flow problems so I have two MCP355 pumps with XPC res tops in the loop. According the flow rate estimator I am getting about 1.4 gpm.

The case is just a coolermaster cosmos. I painted the inside flat black because I didn't like the metal look on the inside.

looks awesome spoony very sleek very clean just the way i like my pc's :)

I see you sleeved your 6pin and mobo power connectors must of been a pita ?

Looks great though One of my fav cosmos!

I like the outcome of the sleeving process, but about halfway through it I was beginning to doubt my efforts. It is very time consuming and hurts the fingers. I ended up just buying new connectors, pins, and a crimping tool to do the job.

yeh those pins are a bugger to get out, so i had to splice and re wire mine, the outcome in your build looks awesome tho

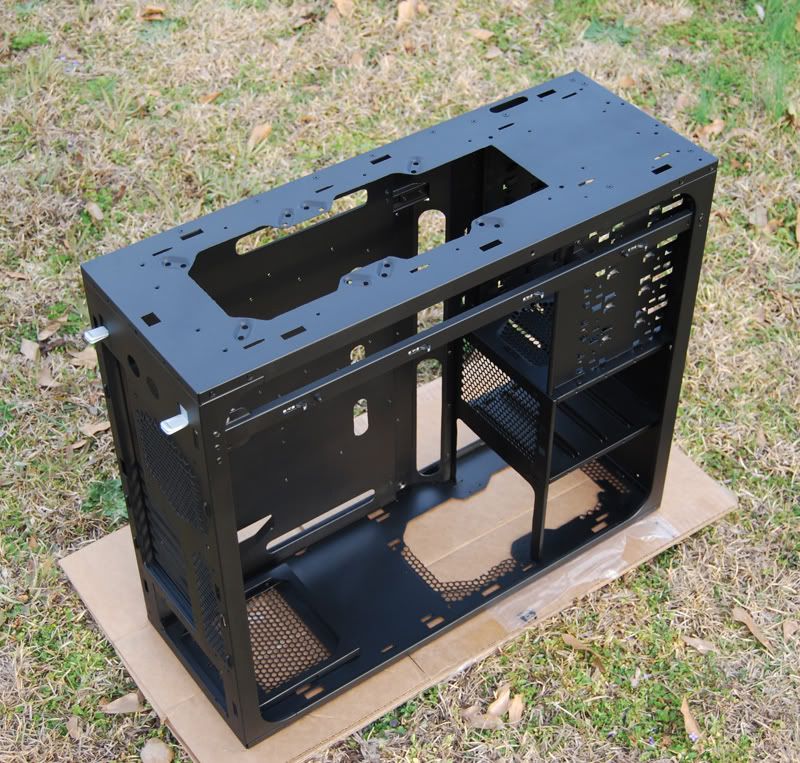

This is the best picture I have as to how I mounted the radiator. I just cut a piece out that would allow air to flow through the entire radiator and drilled holes to mount it. You can also see where I cut a spot in the bottom to house the pa120.2. My rookie building, modding, wc'ing showed up when I started to put the two loops in only to find out it wasn't going to work the way I wanted it to. I ended up having to fabricate a piece to cover up the hole I had cut in the bottom.

http://img.photobucket.com/albums/v2...new_comp03.jpg

excellent work on the paint job looks flawless

sergio, very nice work there :up:


I took a few more, this is the best i could do without major case mods :p:

I was going to drill holes in the back of the case for the tubing, i went to two hardware stores and couldn't find the right size bits :down:

http://i151.photobucket.com/albums/s...1/DSCF2596.jpg

http://i151.photobucket.com/albums/s...1/DSCF2573.jpg

leak free!
http://i151.photobucket.com/albums/s...1/DSCF2527.jpg

the reservoir is on the other side panel, and that ugly poster is covering up a hole in the wall i need to fix :up:

Quote:

---

Originally Posted by ThatGuy16

sergio, very nice work there :up:


I took a few more, this is the best i could do without major case mods :p:

I was going to drill holes in the back of the case for the tubing, i went to two hardware stores and couldn't find the right size bits :down:

http://i151.photobucket.com/albums/s...1/DSCF2596.jpg

http://i151.photobucket.com/albums/s...1/DSCF2573.jpg

leak free!
http://i151.photobucket.com/albums/s...1/DSCF2527.jpg

the reservoir is on the other side panel, and that ugly poster is covering up a hole in the wall i need to fix :up:

---

Thanks pal yours also and brave to make things order in that case, seems smaller than mine...
I also couldn' find the right things till a friend that works on electrical give me the gaskets that fit...

What temps you have ?

You have my same LCD :=)

Cheers and Thanks for you comments
Sergio

Quote:

---

Originally Posted by spoony

Here is my first wc rig. I originally planned on two loops. I actually have everything for two loops but was unable to get it all in the case, so I opted for a single loop just to see how things go. I still have to add some lights and get my window for the cosmos, but this will be ok for now. My temps so far go from 30 to 41 degrees Celsius on my CPU, and stay around the same on the gpu's. I haven't ran anything like prime to test the temps out yet, maybe I will in the future, but I don't really have intention on overclocking.

http://img.photobucket.com/albums/v2...new_comp02.jpg

http://img.photobucket.com/albums/v2...new_comp01.jpg

---

Very Clean work pal !!

Congrats !!!

Sergio

Quote:

---

Originally Posted by andressergio

Thanks pal yours also and brave to make things order in that case, seems smaller than mine...
I also couldn' find the right things till a friend that works on electrical give me the gaskets that fit...

What temps you have ?

You have my same LCD :=)

Cheers and Thanks for you comments
Sergio

---

Thanks, my temps are great. With this E8400, the core reading seem to be buggy. So i go by the "CPU" temp (Tcase?). At stock voltage and clocks, my temp goes up 1c on load. At 4ghz, it goes from 21c to 36c.

Oh yeah, i love my monitor :up:

Quote:

---

Originally Posted by spoony

Here is my first wc rig. I originally planned on two loops. I actually have everything for two loops but was unable to get it all in the case, so I opted for a single loop just to see how things go. I still have to add some lights and get my window for the cosmos, but this will be ok for now. My temps so far go from 30 to 41 degrees Celsius on my CPU, and stay around the same on the gpu's. I haven't ran anything like prime to test the temps out yet, maybe I will in the future, but I don't really have intention on overclocking.

http://img.photobucket.com/albums/v2...new_comp02.jpg

http://img.photobucket.com/albums/v2...new_comp01.jpg

---

What tubing is this? Also, pump and reservoir do you have? All I can say is that is amazing! I really like the black coolant!

Quote:

---

I really like the black coolant!

---

It's black tubing...

Regarding the pics, I love the black on black! Looks real classy too.

Quote:

---

Originally Posted by Waymon3X6

It's black tubing...

Regarding the pics, I love the black on black! Looks real classy too.

---

eh?

its black coolant... cant you see the stuff in the res?
