10-02-2006, 03:51 AM
Grinch

Quote:

Originally Posted by scoobysix

Depending on how hard you're pushing the ram frequency, maybe relax your ram timing? Additionally also look at NB/SB/FSB term/ICH voltages?

I set my ram to like 5-6-6-16 at like 2.4V and raised all the voltages as high as you could go...
10-02-2006, 04:14 AM
Viss

Wil the cpu do over 445 fsb using lower multi ?
10-02-2006, 04:25 AM
Smartguy

for my P5B new beta bios(0706) was a relief. Now I can reach fsb500 with no problem. Actually now my memory cant go any further. :)
10-02-2006, 05:05 AM
Grinch

Quote:

Originally Posted by loc.o

Wil the cpu do over 445 fsb using lower multi ?

oh yeah....no probs with 8,7,6

http://s2.supload.com/thumbs/default/500fsb.JPG

http://valid.x86-secret.com/show_oc?id=126547
10-02-2006, 05:29 AM
ghettotech

Well my e6400 is ordered and for the time being i am using my 805d in the Asus P5b-d wifi. One thing i have noticed is that i cant hard set my memory to ddr2-700 but if i leave it to auto then it works fine at 1:1 350mhz which is the same thing. can anyone explain this? happens in either slots 1 or 2 sticks. Timmings set at 3-4-4-10. Passed memx86 for about an hour with no probs on auto.
10-02-2006, 08:12 AM
eyes.only

Quote:

Originally Posted by eyes.only

Hmm, that was short: My config gave up on me,

Lowered the multiplier to 7 (instead of 8) and pumped up the fsb to 450 to see what this could do, Vcore=1.4, memvolt=2.1. Running memtest and after 2 minutes the system restarted and was continuesly try to reboot. (thought I smiled something strange:confused: ). Cut the power and started it again 10 minutes later, but still no go. System isn't continuesly restarting but starts but no boot, only fans keep turning. Took memory sticks out and tried it. Same problem; system starts but still no boot (even no beeps).

Gonna RMA this, but what is damaged??????
I've got noone where I can test for instance my mem or cpu.

Can anybody tell me what the p5b deluxe does when nothing is inserted and turned on? I'm mean only both powerconnectors connected without cpu, vidcard, mem. I;m thinking you will get at least beeping errors.
I need this info to no for sure my board is broken.

Thanks:toast:
10-02-2006, 08:32 AM
Ace-a-Rue

have you tried to pull the battery and clear CMOS for about 5-10 minutes...to make sure the bios code is reset and all capacitors are cleansed of any static electricity...pull your ATX power plug from the board when you do this.
10-02-2006, 08:51 AM
ssabripo

sounds like you got the same deal I got...check a page back or so...probably a burnt FET, which means RMA time! :o

sorry to hear...I was in your same exact shoes bud; should get the new board today
10-02-2006, 09:05 AM
eyes.only

Quote:

Originally Posted by ssabripo

sounds like you got the same deal I got...check a page back or so...probably a burnt FET, which means RMA time! :o

sorry to hear...I was in your same exact shoes bud; should get the new board today

Yep!
The first thing the board was doing after the fatal crash is continuesly rebooted like on,off,on,off, etc. After turning down the power for sometime it didn't go on,off anymorel it stayed on, but that's about it, no post, no beeps, no nothing:confused: Oyeah, during/just after the board crashed it smelled like something was burning. Any pictures of the burnt " fet"?
What's that by the way:confused:

Any word from asus?
Bad batch??
10-02-2006, 09:31 AM
ssabripo

Quote:

Originally Posted by eyes.only

Yep!
The first thing the board was doing after the fatal crash is continuesly rebooted like on,off,on,off, etc. After turning down the power for sometime it didn't go on,off anymorel it stayed on, but that's about it, no post, no beeps, no nothing:confused: Oyeah, during/just after the board crashed it smelled like something was burning. Any pictures of the burnt " fet"?
What's that by the way:confused:

Any word from asus?
Bad batch??

no word from Asus...i've called and never heard back. there is an FET close to the wifi board. I looked at them and they visually seem ok, but you never know by just looking.

I would just RMA it and start fresh.
10-02-2006, 10:33 AM
Concorde Rules

Quote:

Originally Posted by deathman20

Its not a bad board everyone has it going up past a certain FSB or Voltage I forgot which. A guy answered this over at OCForums had a response from an Asus rep said it was normal for it to do that. I think mine was good up to 333Mhz FSB thats when it started to kick in, but I'd have to test that again.

I find it annoying.

Oh come on, wtf are Asus thinking.

This double restart is a load of ****, its stressing the PSU, harddisks etc needlessly.

I wonder when either my 74Gb Raptor or 600W S-12 gives up ill send the bill to asus :rolleyes:
10-02-2006, 10:51 AM
aamsel

Only problem is, if you RMA a motherboard you will not normally receive a new board as replacement. You are going to get a refurb back from ASUS, which may be fine, or may have an issue that went undiagnosed. This is true of just about every computer-electronics component RMA.

So, you may or may not be "starting fresh".

Andrew

Quote:

Originally Posted by ssabripo

no word from Asus...i've called and never heard back. there is an FET close to the wifi board. I looked at them and they visually seem ok, but you never know by just looking.

I would just RMA it and start fresh.
10-02-2006, 11:03 AM
ssabripo

Quote:

Originally Posted by aamsel

Only problem is, if you RMA a motherboard you will not normally receive a new board as replacement. You are going to get a refurb back from ASUS, which may be fine, or may have an issue that went undiagnosed. This is true of just about every computer-electronics component RMA.

So, you may or may not be "starting fresh".

Andrew

if within 30 days, I would return it for a refund (which is what I did with mine), and just order another one...that way, you are assured a new one, and also save some time when returning, etc.
10-02-2006, 11:14 AM
hotchoc

My comp restarts halfway in a game or the game just exit to windows

currently running pci express frequency at = 100

363FSB X 9
Vcore 1.55

It passed the 32M SUperPi tests though

Any ideas ?
10-02-2006, 11:56 AM
JoeBar

Quote:

Originally Posted by Smartguy

for my P5B new beta bios(0706) was a relief. Now I can reach fsb500 with no problem. Actually now my memory cant go any further. :)

Are u having an unmodded board? With what chipset voltage?
10-02-2006, 12:17 PM
Grinch

I am running at 500 X 7 with an unmodded P5B Deluxe no probs here at all..

http://valid.x86-secret.com/show_oc?id=126632
1.4375V CPU
2.25V Ram
1.3V FSB
1.25V NB
Auto SB
Auto ICH

Now I am just trying to hit 4ghz
10-02-2006, 02:07 PM
Viss

510 fsb on air with unmodded board. Sloooow :D times had a few open while running spi.

Btw cannot use clockgen while cpuz 1.37 is open, gives "device driver already running" error...

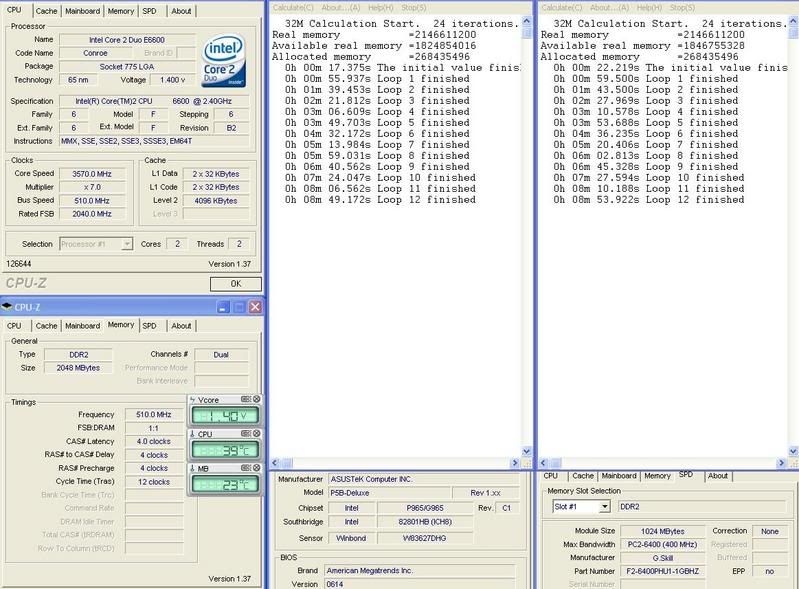

12
http://img.photobucket.com/albums/v6...M510loop12.jpg

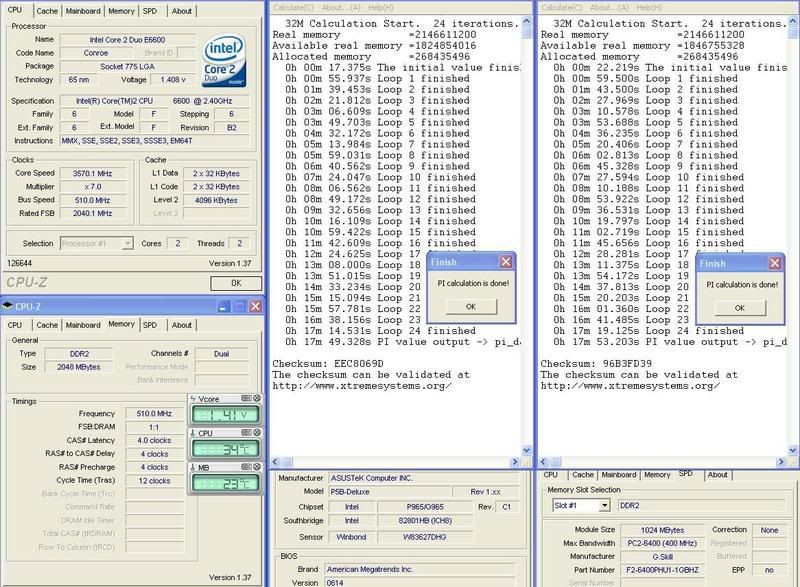

Done
http://img.photobucket.com/albums/v6...10dualdone.jpg
10-02-2006, 07:04 PM
ssabripo

Guys....I DID IT!!!:eek: :banana: :woot: :D

after 2 bad/burned boards, PSU issues, yada yada yada, I finally was able to achieve this!! e6300 conroe over air:

http://pichostwizard.com/img/285262.jpg

I'm at 50C under no load, so I'm not liking that, so I think for everyday 24/7 use, I will drop down to just 3.0ghz, and drop the Vcore from 1.4875 to 1.475.

thanks to everyone for all their guidance and help!!! you guys rock! :toast:
10-02-2006, 07:16 PM
rob725

Quote:

Originally Posted by hotchoc

My comp restarts halfway in a game or the game just exit to windows

currently running pci express frequency at = 100

363FSB X 9
Vcore 1.55

It passed the 32M SUperPi tests though

Any ideas ?

32m superpi is not much of a stress test. Try some 3dmark and orthos.

While all chips are different, 1.55 vcore should be more than enough to run at 3.27ghz; seems a little high actually.

Check your temps during orthos. Coretemp has a log file you can look at as well to see what it was when you fail in the game.
10-02-2006, 07:34 PM
Grinch

Quote:

Originally Posted by loc.o

510 fsb on air with unmodded board. Sloooow :D times had a few open while running spi.

Btw cannot use clockgen while cpuz 1.37 is open, gives "device driver already running" error...

12
http://img.photobucket.com/albums/v6...M510loop12.jpg

Done
http://img.photobucket.com/albums/v6...10dualdone.jpg

what are all of your voltages..etc?
10-02-2006, 07:50 PM
ssabripo

so I ran 3d marks to see how it is...dunno what the numbers should be...is this ok?
all x1900xt and other settings at default...just my first run for sanity testing.

how are my temps? seems a little high...mid 50's to upper 50's under load, 50 with no load... :confused:
http://pichostwizard.com/img/285286.jpg
10-02-2006, 09:16 PM
heikis

Quote:

Originally Posted by ssabripo

so I ran 3d marks to see how it is...dunno what the numbers should be...is this ok?
all x1900xt and other settings at default...just my first run for sanity testing.

how are my temps? seems a little high...mid 50's to upper 50's under load, 50 with no load... :confused:
http://pichostwizard.com/img/285286.jpg

my e6400 @ 3200MHz and x1900xt 256mb @ stock and I scored 11,5k in mark05. i dunno if your score is cpu limited or not.
10-02-2006, 11:37 PM
n91htmare

Quote:

Originally Posted by ssabripo

Guys....I DID IT!!!:eek: :banana: :woot: :D

after 2 bad/burned boards, PSU issues, yada yada yada, I finally was able to achieve this!! e6300 conroe over air:

I'm at 50C under no load, so I'm not liking that, so I think for everyday 24/7 use, I will drop down to just 3.0ghz, and drop the Vcore from 1.4875 to 1.475.

thanks to everyone for all their guidance and help!!! you guys rock! :toast:

Why such High voltage?
Here is mine.....

http://members.cox.net/picchost/e6300oc3150.JPG
10-02-2006, 11:38 PM
Viss

Quote:

Originally Posted by Grinch

what are all of your voltages..etc?

Vcore: 1.4625
Vdimm: 2.35
FSB: max
NB: 1.55
SB: 1.8
ICH: auto
10-02-2006, 11:44 PM
Random

Quote:

Originally Posted by n91htmare

Why such High voltage?
Here is mine.....

http://members.cox.net/picchost/e6300oc3150.JPG

WoW such low voltage... im going to try this NOW. :D
