11-02-2008, 02:59 PM
C-N

Quote:

Originally Posted by kitfit1

@ C-N, do you think you could post up a bios template of your settings for 600fsb. Although we all have different ram and setups, it would still be usefull to show peeps in the important bits that need to be worked on ?

Sure here you go.

Code:

>CPU Feature: Thermal Management Control.......... - Disabled PPM(EIST) Mode...................... - Disabled Limit CPUID MaxVal.................. - Disabled CIE Function........................ - Disabled Execute Disable Bit................. - Disabled Virtualization Technology........... - Disabled Core Multi-Processing............... - Enabled >DRAM Timing: Enhance Data transmitting........... - Fast Enhance Addressing.................. - Fast T2 Dispatch......................... - Auto >Clock Setting Fine Delay Press Enter: DLL And RCOMP Settings.............. - Auto Ch1 Dram Defaul Skew................ - Model 3 Ch2 Dram Defaul Skew................ - Model 3 RCOMP Settings...................... - Model 1 Fine Delay Step Degree.............. - 70ps Ch1 Clock Crossing Setting.......... - Relaxed DIMM1 Clock Fine Delay.............. - Current[2396ps] DIMM2 Clock Fine Delay.............. - Current[2396ps] Ch1 Control0 Fine Delay............. - Current[268ps] Ch1 Control1 Fine Delay............. - Current[268ps] Ch1 Control2 Fine Delay............. - Current[268ps] Ch1 Control3 Fine Delay............. - Current[268ps] Ch1 Command Fine Delay.............. - Current[394ps] Ch2 Clock Crossing Setting.......... - Relaxed DIMM3 Clock Fine Delay.............. - Current[2066ps] DIMM4 Clock Fine Delay.............. - Current[2066ps] Ch2 Control0 Fine Delay............. - Current[48ps] Ch2 Control1 Fine Delay............. - Current[48ps] Ch2 Control2 Fine Delay............. - Current[48ps] Ch2 Control3 Fine Delay............. - Current[48ps] Ch2 Command Fine Delay.............. - Current[394ps] Ch1 Ch2 Common Clock Setting........ - Relaxed Ch1 RDCAS GNT-Chip Delay............ - Auto Ch1 WRCAS GNT-Chip Delay............ - Auto Ch1 Command To CS Delay............. - Auto . Ch2 RDCAS GNT-Chip Delay............ - Auto Ch2 WRCAS GNT-Chip Delay............ - Auto Ch2 Command To CS Delay............. - Auto Flex Memory Mode..................... - Auto CAS Latency Time (tCL)............... - 5 RAS# to CAS# Delay (tRCD)............ - 5 RAS# Precharge (tRP)................. - 5 Precharge Delay (tRAS)............... - 12 All Precharge to Act................. - 5 REF to ACT Delay (tRFC).............. - 30 Performance Level.................... - Auto >Read delay phase adjust Press Enter: Channel 1 Phase 0 Pull-In........... - Auto Channel 1 Phase 1 Pull-In........... - Auto Channel 1 Phase 2 Pull-In........... - Auto Channel 1 Phase 3 Pull-In........... - Auto Channel 1 Phase 4 Pull-In........... - Auto Channel 2 Phase 0 Pull-In........... - Auto Channel 2 Phase 1 Pull-In........... - Auto Channel 2 Phase 2 Pull-In........... - Auto Channel 2 Phase 3 Pull-In........... - Auto Channel 2 Phase 4 Pull-In........... - Auto Write to PRE Delay (tWR)............ - 13 Rank Write to Read (tWTR)........... - 12 ACT to ACT Delay (tRRD)............. - 3 Read to Write Delay (tRDWR)......... - 8 Ranks Write to Write (tWRWR)........ - Auto Ranks Read to Read (tRDRD).......... - Auto Ranks Write to Read (tWRRD)......... - Auto ALL PRE to Refresh.................. - Auto >Voltage Settings: CPU VID Control..................... - 1.33125V CPU VID Special Add................. - Enabled CPU VID Special Add................. - Auto DRAM Voltage Control................ - 2.27v SB Core/CPU PLL Voltage............. - 1.55v NB Core Voltage..................... - 1.455v CPU VTT Voltage..................... - 1.24v Vcore Droop Control................. - Enabled Clockgen Voltage Control............ - 3.60v GTL+ Buffer Strength................ - Strong CPU GTL 0 REF Volt.................. - 0.6225 CPU GTL 2 REF Volt.................. - 0.6225 CPU GTL 1 REF Volt.................. - 0.6225 CPU GTL 3 REF Volt.................. - 0.6225 North Bridge GTL 0 REF Volt......... - 0.6275 North Bridge GTL 1 REF Volt......... - 0.6275 FSB Vref............................ - Auto Genie BIOS Settings: Exist Setup Shutdown................ - Mode 2 Exist Shutdown After AC loss........ - Enabled AC Shutdown Free.................... - Enabled O.C Clock Fail Retry Counter........ - 0 O.C Clock Fail CMOS Reloaded........ - Disabled CPU Clock Ratio..................... - 6 Target CPU Clock.................... - 3303MHz CPU Clock........................... - 550 Boot Up Clock....................... - Auto CPU Clock Amplitude................. - 800mV CPU Clock0 Skew..................... - 200ps CPU Clock1 Skew..................... - 0ps DRAM Speed.......................... - 333/667 Target DRAM Speed................... - 1101MHz PCIE Clock.......................... - 100mhz PCIE Slot Config.................... - 1x 1x CPU Spread Spectrum................. - Disabled PCIE Spread Spectrum................ - Disabled
11-02-2008, 03:01 PM
C-N

Quote:

Originally Posted by vws

Cool! Is that the tiny one next to the south bridge as shown in this picture?

Yup thats it :up:
11-02-2008, 03:50 PM
C-N

Quote:

Originally Posted by zsamz_

can you do a 510-525 fsb run with everest score 333/800 divider
ty

333/800 running fine duno what I was doing wrong the other day :shrug:

Kinda makes you wonder what the DDR3 board would be like dont it :D

520 x 8

http://i106.photobucket.com/albums/m...ache/520x8.jpg

530 x 8

http://i106.photobucket.com/albums/m...ache/530x8.jpg

540 x 8

http://i106.photobucket.com/albums/m...ache/540x8.jpg

550 x 8

http://i106.photobucket.com/albums/m...ache/550x8.jpg

560 x 8

http://i106.photobucket.com/albums/m...ache/560x8.jpg
11-02-2008, 06:44 PM
emoners

@C-N: seems like you're enjoying this board :D
11-02-2008, 07:27 PM
zsamz_

Quote:

Originally Posted by C-N

333/800 running fine duno what I was doing wrong the other day :shrug:

Kinda makes you wonder what the DDR3 board would be like dont it :D

nice verry nice the scores are not far off the ut p35
it has the best bandwidth i seen in 45 if dfi doesnt drop the ball it can be better than the ut p35 in 6 months
tks C_N
:mad:you givin me the itch for another dfi board
11-02-2008, 09:04 PM
nugzo

Will a TRUE fit this board? That NB HS looks real tall.
11-02-2008, 09:30 PM
MacClipper

Quote:

Originally Posted by nugzo

Will a TRUE fit this board? That NB HS looks real tall.

Fits both directions with no problems at all.
11-02-2008, 11:58 PM
DJSUB

wow very nice result c-n :D
i'm gonna buy this board :up:
11-03-2008, 01:04 AM
radaja

@c-n, those everest scores look awesome! think i might get this board soon!
11-03-2008, 01:40 AM
C-N

Quote:

Originally Posted by emoners

@C-N: seems like you're enjoying this board :D

Oh yes its a nice piece of work 4 sure worth the wait to get everything so spot on.

Quote:

Originally Posted by zsamz_

nice verry nice the scores are not far off the ut p35
it has the best bandwidth i seen in 45 if dfi doesnt drop the ball it can be better than the ut p35 in 6 months
tks C_N

Its right up there with the P35 for me already, I just wish I had a q9650 to really give her some stick.

Quote:

:mad:you givin me the itch for another dfi board

:rolleyes: :hehe:

Quote:

Originally Posted by DJSUB

wow very nice result c-n :D
i'm gonna buy this board :up:

He he you don't mess about do ya, see you on the track mate :D

Quote:

Originally Posted by radaja

@c-n, those everest scores look awesome! think i might get this board soon!

You cant go wrong just dial it in & it works.

CN :)
11-03-2008, 06:44 AM
DJSUB

Quote:

He he you don't mess about do ya, see you on the track mate

i'm waiting for that ut p45 for a long time but unfortunately lanparty jr is the 1st one arrive. i already sell my p45 JR and now it's time for the UT P45 :D :up:
11-03-2008, 08:30 AM
bito

Looking forward to Q9650 on this 'board vs Maximus II :D
11-03-2008, 01:12 PM
C-N

E8500 @ 4.5GHZ DDR1186 9.5H Prime Blend Stable

Got round to running 1 loop of Prime blend today, same 3D, Everest as before.

CN :)

======

DFI LANPARTY UT P45-T2RS (BIOS 1007)

INTEL CORE 2 DUO E8500 WOLFDALE 3.16GHZ 6M L2 CACHE (Q807A273 / C0)

OCZ PC2-8500 SLI 2 x 1GB PN:OCZN1066SR2GK

GECUBE HD4870X2 1GB (8.11 BETA DRIVERS)

1 X HITACHI DJ 80GB HD'S

SONY DUAL LAYER DVD RW (DRU-820A)

OCZ GAMEXTREAM 700W PSU

WINDOWS XP PRO SP3

CPU COOLING: WATER 1/2" TUBING, D-TEK FUZION V1 (4.5MM NOZZLE), LAING D5 VARIO, PA130.3, 3 X 100CFM PANAFLO 120MM FANS

Code:

>CPU Feature: Thermal Management Control.......... - Disabled PPM(EIST) Mode...................... - Disabled Limit CPUID MaxVal.................. - Disabled CIE Function........................ - Disabled Execute Disable Bit................. - Disabled Virtualization Technology........... - Disabled Core Multi-Processing............... - Enabled >DRAM Timing: Enhance Data transmitting........... - Fast Enhance Addressing.................. - Fast T2 Dispatch......................... - Auto >Clock Setting Fine Delay Press Enter: DLL And RCOMP Settings.............. - Auto Ch1 Dram Defaul Skew................ - Model 3 Ch2 Dram Defaul Skew................ - Model 3 RCOMP Settings...................... - Model 1 Fine Delay Step Degree.............. - 70ps Ch1 Clock Crossing Setting.......... - Nominal DIMM1 Clock Fine Delay.............. - Current[2396ps] DIMM2 Clock Fine Delay.............. - Current[2396ps] Ch1 Control0 Fine Delay............. - Current[268ps] Ch1 Control1 Fine Delay............. - Current[268ps] Ch1 Control2 Fine Delay............. - Current[268ps] Ch1 Control3 Fine Delay............. - Current[268ps] Ch1 Command Fine Delay.............. - Current[394ps] Ch2 Clock Crossing Setting.......... - Nominal DIMM3 Clock Fine Delay.............. - Current[2066ps] DIMM4 Clock Fine Delay.............. - Current[2066ps] Ch2 Control0 Fine Delay............. - Current[48ps] Ch2 Control1 Fine Delay............. - Current[48ps] Ch2 Control2 Fine Delay............. - Current[48ps] Ch2 Control3 Fine Delay............. - Current[48ps] Ch2 Command Fine Delay.............. - Current[394ps] Ch1 Ch2 Common Clock Setting........ - More Aggressive Ch1 RDCAS GNT-Chip Delay............ - Auto Ch1 WRCAS GNT-Chip Delay............ - Auto Ch1 Command To CS Delay............. - Auto . Ch2 RDCAS GNT-Chip Delay............ - Auto Ch2 WRCAS GNT-Chip Delay............ - Auto Ch2 Command To CS Delay............. - Auto Flex Memory Mode..................... - Auto CAS Latency Time (tCL)............... - 5 RAS# to CAS# Delay (tRCD)............ - 5 RAS# Precharge (tRP)................. - 5 Precharge Delay (tRAS)............... - 10 All Precharge to Act................. - 5 REF to ACT Delay (tRFC).............. - 28 Performance Level.................... - Auto >Read delay phase adjust Press Enter: Channel 1 Phase 0 Pull-In........... - Auto Channel 1 Phase 1 Pull-In........... - Auto Channel 1 Phase 2 Pull-In........... - Auto Channel 1 Phase 3 Pull-In........... - Auto Channel 1 Phase 4 Pull-In........... - Auto Channel 2 Phase 0 Pull-In........... - Auto Channel 2 Phase 1 Pull-In........... - Auto Channel 2 Phase 2 Pull-In........... - Auto Channel 2 Phase 3 Pull-In........... - Auto Channel 2 Phase 4 Pull-In........... - Auto Write to PRE Delay (tWR)............ - 12 Rank Write to Read (tWTR)........... - 11 ACT to ACT Delay (tRRD)............. - 3 Read to Write Delay (tRDWR)......... - 8 Ranks Write to Write (tWRWR)........ - Auto Ranks Read to Read (tRDRD).......... - Auto Ranks Write to Read (tWRRD)......... - Auto ALL PRE to Refresh.................. - Auto >Voltage Settings: CPU VID Control..................... - 1.53125V CPU VID Special Add................. - Disabled CPU VID Special Add................. - Auto DRAM Voltage Control................ - 2.21v SB Core/CPU PLL Voltage............. - 1.55v NB Core Voltage..................... - 1.369v CPU VTT Voltage..................... - 1.24v Vcore Droop Control................. - Enabled Clockgen Voltage Control............ - 3.60v GTL+ Buffer Strength................ - Strong CPU GTL 0 REF Volt.................. - 0.6225 CPU GTL 2 REF Volt.................. - 0.6225 CPU GTL 1 REF Volt.................. - 0.6225 CPU GTL 3 REF Volt.................. - 0.6225 North Bridge GTL 0 REF Volt......... - 0.6275 North Bridge GTL 1 REF Volt......... - 0.6275 FSB Vref............................ - Auto Genie BIOS Settings: Exist Setup Shutdown................ - Mode 2 Exist Shutdown After AC loss........ - Enabled AC Shutdown Free.................... - Enabled O.C Clock Fail Retry Counter........ - 0 O.C Clock Fail CMOS Reloaded........ - Disabled CPU Clock Ratio..................... - 9.5 Target CPU Clock.................... - 4493MHz CPU Clock........................... - 473 Boot Up Clock....................... - Auto CPU Clock Amplitude................. - 800mV CPU Clock0 Skew..................... - 200ps CPU Clock1 Skew..................... - 0ps DRAM Speed.......................... - 266/667 Target DRAM Speed................... - 1186MHz PCIE Clock.......................... - 100mhz PCIE Slot Config.................... - 1x 1x CPU Spread Spectrum................. - Disabled PCIE Spread Spectrum................ - Disabled

PRIME95 + 3x CPU-Z

http://i106.photobucket.com/albums/m...86/95HStop.jpg

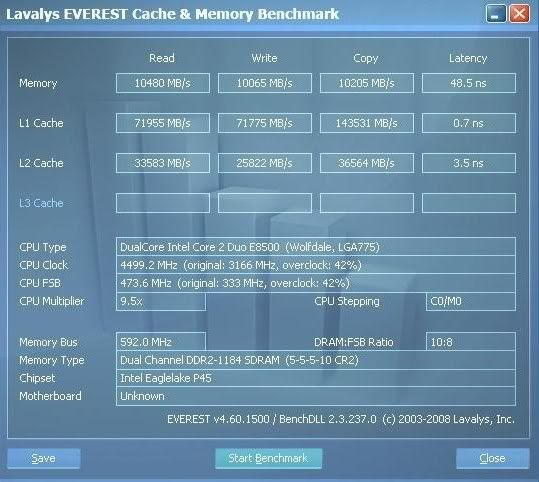

EVEREST CACHE & MEMORY:(READ 10480MBS LATENCY 48.5NS)

http://i106.photobucket.com/albums/m...45266Strap.jpg

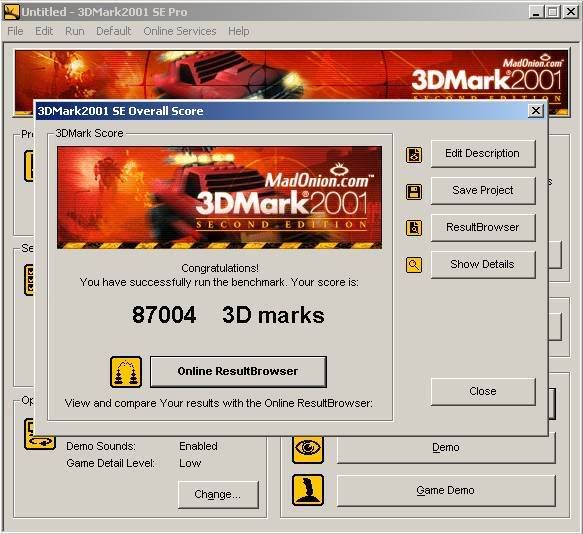

3DMARK2001:(SCORE 87004)

http://i106.photobucket.com/albums/m...6/3DMARK01.jpg

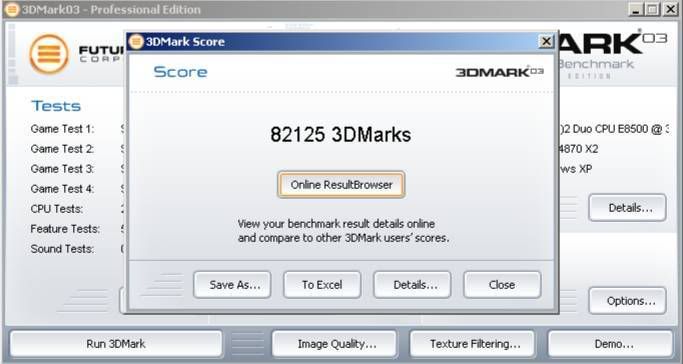

3DMARK2003:(SCORE 82125)

http://i106.photobucket.com/albums/m...6/3DMARK03.jpg

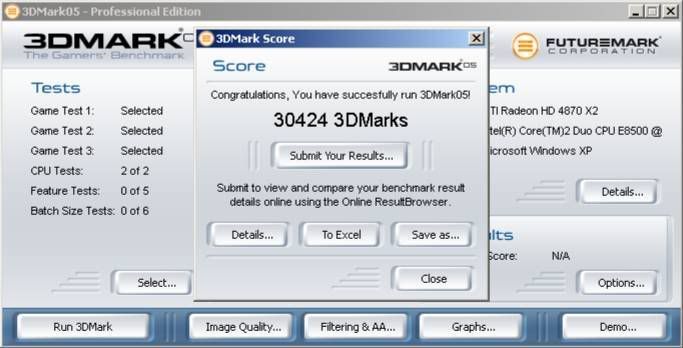

3DMARK2005:(SCORE 30424)

http://i106.photobucket.com/albums/m...6/3DMARK05.jpg

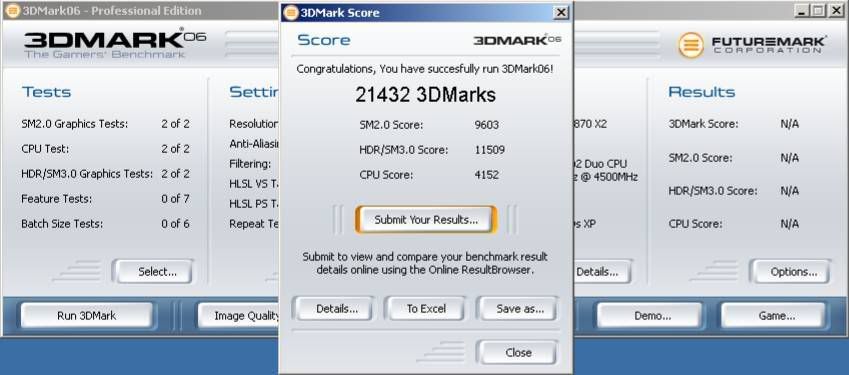

3DMARK2006:(SCORE 21432)

http://i106.photobucket.com/albums/m.../3dDMARK06.jpg

AQUAMARK 3:(SCORE 268,526)

http://i106.photobucket.com/albums/m...6/Aquamark.jpg

SHORT DESCRIPTION:
473 x 9.5 = 4500MHz @ 1.45v
5-5-5-10 2T @ 2.21V DDR 1186
11-03-2008, 01:22 PM
Sumanji

Would this be a better board to get over the DFI X48?

It seems to be about £30 more and not sure why...
11-03-2008, 01:49 PM
politenessman

its more than the lp dk x48, but not the lt or ut. i had that board (dk x48) several months ago and was not impressed. i guess the extra cost is for the digital pwm, the extra pcie "16" slot and the extra bundle. i just got my ut p45 from newegg an hour ago, and had a little trouble getting it to run dual channel, but figured it out. had the tpower the last few months and it took a few minutes to get used to fine granulation on the voltage and working with a decent selection of straps/dividers. i ordered this board after newegg had it for sale less than an hour, and guess what, it had been used. scratches on the heat sinks and the metal frame that clamps on the socket, plastic bags openned and scotch taped(!!) shut, bios settings saved on the "cmos loaded" slots, etc. somebody in the warehouse must have taken it home for a day or 2 and/or set it up in the warehouse. i will check everything out and see if it worx before i decide to send it back or not. seems like a nice board, not as easy and flat out spectacular as the ut p35, but has potential. will start posting some results tonight with my average e8500 c0, another coming tomorrow, maybe e0, and a q9550 the day after that.

thanx for the bios settings, c-n.

edit i checked and this board is actually $10 less than the dk x48 t2rs, and $30 less than the dk t2rsb.
11-03-2008, 02:28 PM
SNiiPE_DoGG

I guess this is good because now I have a backup board if the Avenger is indeed not released :D

Is there going to be a ddr3 revision of this board??????? if so then CHA-CHING $$$ jackpot :D
11-03-2008, 03:36 PM
zsamz_

Quote:

Originally Posted by Sumanji

Would this be a better board to get over the DFI X48?

It seems to be about £30 more and not sure why...

actually the ut p35 is better than the dfi x38-x48
and this board lookin better than the x48 so far
in my book its worth more than the x48;)
11-03-2008, 06:04 PM
Clunk

Started a Living Review here, I'll update here with my findings tomorrow :)

Click image for full size, high resolution.

http://www.images.clunk.org.uk/revie...45-t2rs-sm.jpg

http://www.images.clunk.org.uk/revie...s/IMG_5912.jpg

:up:
11-04-2008, 12:51 AM
C-N

Quote:

Originally Posted by Clunk

Started a Living Review here, I'll update here with my findings tomorrow :)

Very very nice work Clunk :up:, looking forward to your results.

I'll add the link to the first post if thats ok.

CN :)

P.S I must go sign up at your place :D
11-04-2008, 06:59 AM
Clunk

Thanks mate, looks like a great board so far, I'm interested to know what it'll make of this E8600. :up:
11-04-2008, 08:25 AM
RNeon

Quote:

Originally Posted by C-N

I put up some BIOS screen shots on the 1st page.

Here are a couple of Everest Cache & Memory benches, The first is just something I happened to run last night & the second is where I think I will be able to run daily & complete a loop of Prime.

http://i106.photobucket.com/albums/m...yBenchmark.jpg

http://i106.photobucket.com/albums/m...45266Strap.jpg

I have also attached a tweaked Smartguardian skin free for anyone that wants it.

CN :)

Hello,

how can i get to work this smart guardian?
11-04-2008, 08:50 AM
BiTsCrEaM

Download the skin, unzip it (if it's zipped, IDRC), drag into proper Smartguardian folder (something along the lines of skins etc. will check for sure later as my main PC is down ATM).
11-04-2008, 08:51 AM
C-N

Quote:

Originally Posted by RNeon

Hello,

how can i get to work this smart guardian?

Download the RAR & unpack it, Close SG, Copy & paste the background & smart.ini into the ITE/SG folder then re open SG.

CN :)
11-04-2008, 09:00 AM
RNeon

there are 3 files alle the three i have to copy it in the sm folder? and wich version do you mean ? and how do coretemp run over smart guardian. im sorry io dont understand.
11-04-2008, 09:16 AM
RNeon

PLease help me i don´t understand how did you made it. i have copied the bachground and the smart.ini but i have a too small window and the coretemp window is not included. wich version of smart guardian i have to use?
