Looks like a tj07 :)
Printable View
Looks like a tj07 :)
:upset: :upset: :upset: :argue: :shoot:
Edit:
Can't wait till wednesday! :D
Sure does!Quote:
Originally Posted by starlon
Probably because, It is! *said in a sarcastic voice* ;)Quote:
Originally Posted by Nate P.
your res, do u use acrylic holder at bottom and zip tie at top?Quote:
Originally Posted by evil-98
did u broke top acrylic?
evil-
i can't send you pm's can you tell me which program u use for your border's etc and which one to put your name on there mate
cheers
sexy looking rig can't wait til wednesday
As it's a simple question, I think there's no reason for a new topic...here you go:
I bougth a MCW60 to put my GTS G92 on water, but the MCR320 can't handle the heat with the San Aces @ 5v on hot days.
http://img245.imageshack.us/img245/2623/dsc09278cm5.jpg
Just bought a MCR120 to mount on exaust Fan. The loop order was:
Res -> pump -> MCR320 -> FuZion -> MCW60 -> Res
And now will be like that:
Res -> Pump -> MCR320 -> FuZion -> MCR120 -> MCW60 -> Res.
What should I expect? Lower temps on VGA only, or CPU too? If someone tried that, please show your results :)
Thanks!
Rbs.
:wave:
Depends on how much restriction it adds, but ur temps should be better. and the order looks good too, although what ever requires less tubing is best, as im sure u know.
your vga tmeps might drop abit doubt your cpu temps will though..
you can run your san aces @ 7v due to psu? what psu do you have
:up:Quote:
Originally Posted by Pedalmonkey
It's Thermaltake 1KW, it just refuses to turn on with 2 or more San Aces @ 7v config :(Quote:
Originally Posted by disruptfam
Rbs.
:wave:
When I took the picutres I had not re-bled the system yet after installing it so just ignore the air bubbles. Specs @ http://www.gt-clan.net/kuhlas_stuff/specs_wpage/ I really need to update my sig :p:
http://www.gt-clan.net/kuhlas_stuff/specs_wpage/2.jpg
http://www.gt-clan.net/kuhlas_stuff/specs_wpage/3.jpg
http://www.gt-clan.net/kuhlas_stuff/specs_wpage/4.jpg
http://www.gt-clan.net/kuhlas_stuff/specs_wpage/5.jpg
Where did you get those cables from!?!?!?!?Quote:
Originally Posted by evil-98
^^ i made them :), just some sleeving thats all, and i added that SATA power connector to to my molex line on my PSU
@disruptfam: everything is done in photoshop, aside from computers im a professional graphic artist (ie. 3D, CAD, Photography) comes in handy for presentation purpose.
@rioja: yea i broke the took one, but i ordered some new clips which are coming in with the wed shipment
@everyone else: why yes, it is a TJ07 :)
which one did you order?Quote:
yea i broke the took one, but i ordered some new clips which are coming in with the wed shipment
i wonder haw many ppl broke those acryl holders, they are so fragile
i broke mine too :(
Same... Really sucks, gonna buy some of the black ones looks more sturdy. Or its heavy strips.Quote:
Originally Posted by rioja
Just installed my watercooling system over the past few weeks. Its the first MAJOR mod I've done yet.
I have to say the original rev of the P180 is a HUGE pain to modify and cable management is even worse.
Specs:
Core2 Duo X6800
Antec P180 (first rev)
xfx 8800gt
P5W DH Deluxe
500W Enermax Liberty
2x Yate loon orange 120mm slow speeds
1x stock trispeed P180 fan set on low.
Cooling kits:
(Petra'sTech CoolKit GPU Elite)
(1) D-TEK FuZion
(1) Swiftech MCW60-R GPU Waterblock
(1) Laing DDC-3.2 Pump w/Petra'sTech DDCT-01s Acetal Top
(1) Swiftech MCR220-QP Dual 120mm Radiator
(3) Yate Loon D12SL-12120mm x 25mm Fans
(10') 7/16" ID (5/8" OD) Masterkleer Tubing
(1) 1/2" OD Polypropylene T-Fitting
(12) Stainless Steel Worm-Drive Hose Clamps
(1) Danger Den Machined Acetal Fillport/T-Line Cap
Modifications included:
-Cut radiator sized hole in the top of case
-Cut 2 holes near top of motherboard to allow better cable management.
-Cut out front and back fatty fan "grills" and install thinner grills
-Add black trim around radiator
-Paint the the beige dvd player faceplate black.
-Install felt bottomed feet to allow case to slide easier.
(Some don't have pics up yet, sorry.)
I'll try to add a work log when I'm able, but I haven't had the time just yet.
OLD: (minus the radiator sitting on top)

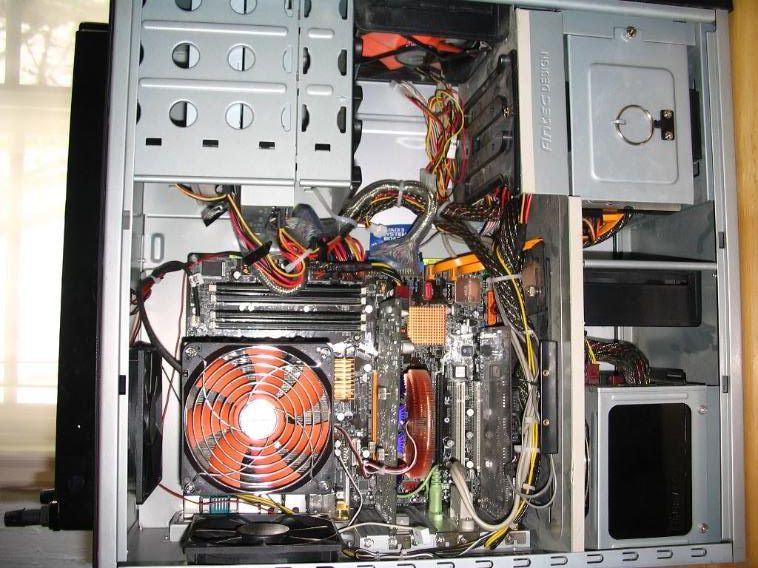

http://i272.photobucket.com/albums/j...sh/th_Old2.jpg
Work in progress:

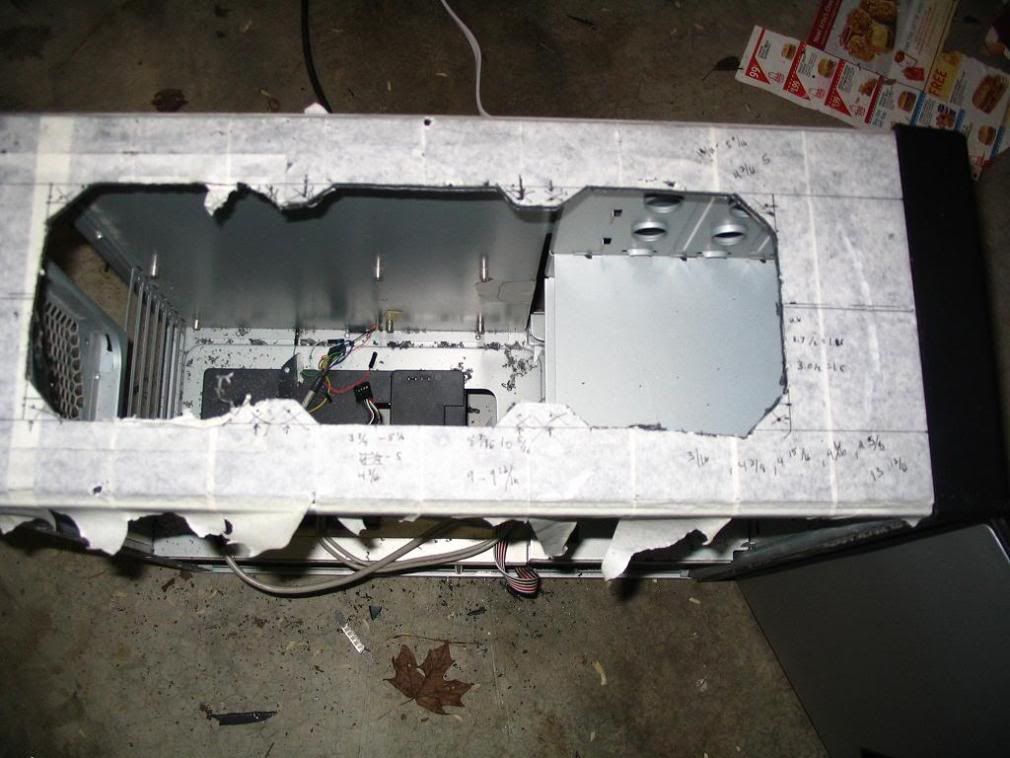

http://i272.photobucket.com/albums/j...ostcuttape.jpg

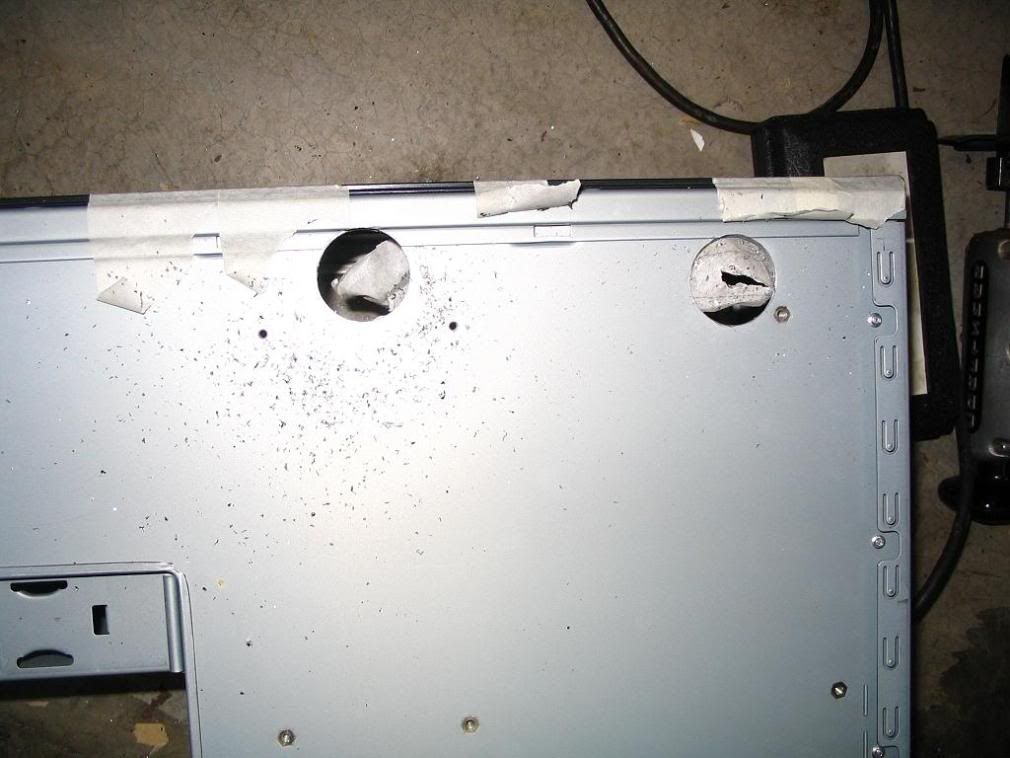

http://i272.photobucket.com/albums/j...plateholes.jpg

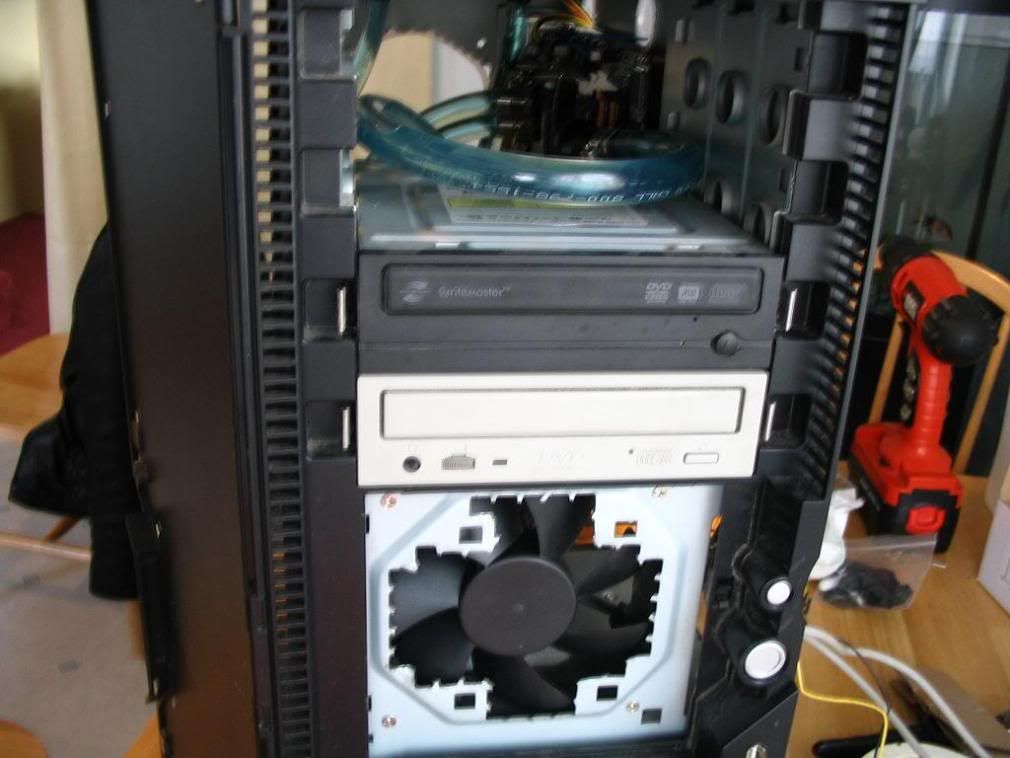

http://i272.photobucket.com/albums/j...llandtline.jpg
Finished:

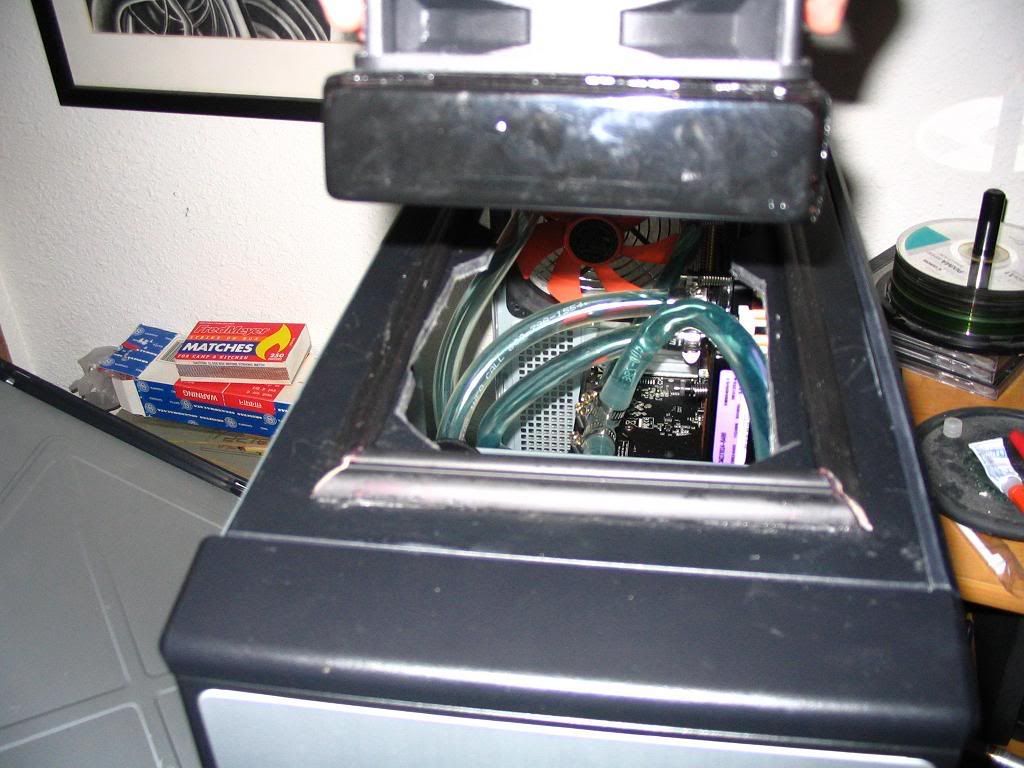

http://i272.photobucket.com/albums/j..._Radlifted.jpg

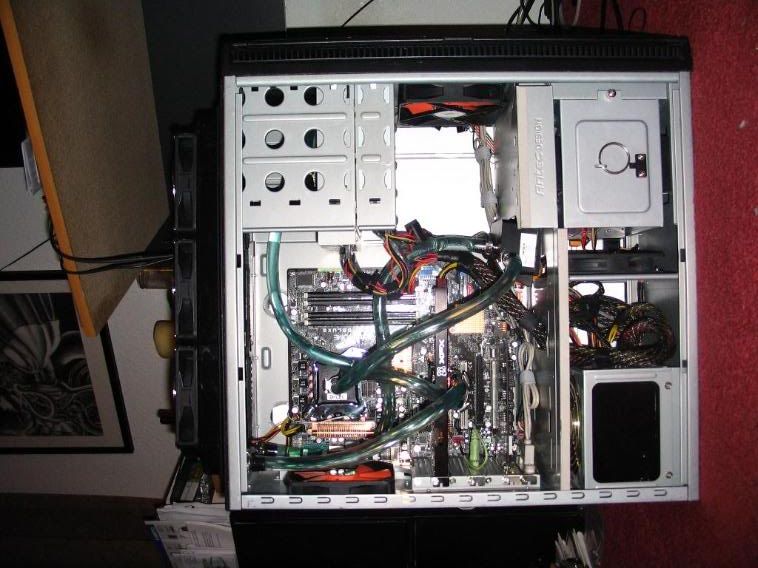

http://i272.photobucket.com/albums/j..._New-neat3.jpg

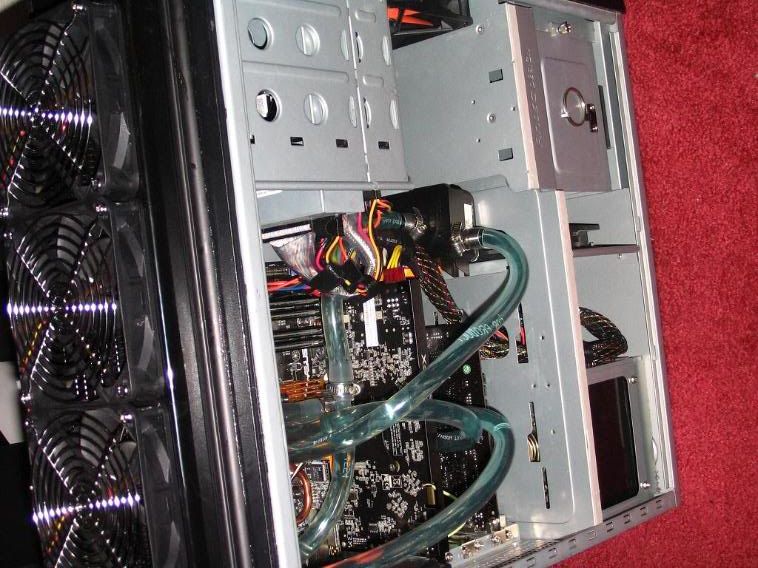

http://i272.photobucket.com/albums/j..._New-neat4.jpg
In addition to the case being a pain to mod, my CPU stopped working (between taking the parts out and booting it back up) and I ripped a capacitor off of my 7900gt. Luckily I hadn't lapped the processor yet so it was under warranty and I was planning to get a new GPU in a few month.
-Xiphoid
Looks good. I think your wire management looks good considering you have large power cables like I do and they are hard to hide. I am not sure how people run their power cable under the mother board. Mine is nearly 1" thick and there is no way it would fit under my motherboard without major modification or bending the board. Sucks about your processor and video card, now you have a good reason to upgrade to a newer card like the 9600GT, :D.
Utnorris
I actually ended up getting a xfx 8800gt 512. But... I'm thinking about getting a super fine solder tip and try to get the capacitor back on to ebay or craigslist it.Quote:
Originally Posted by Utnorris

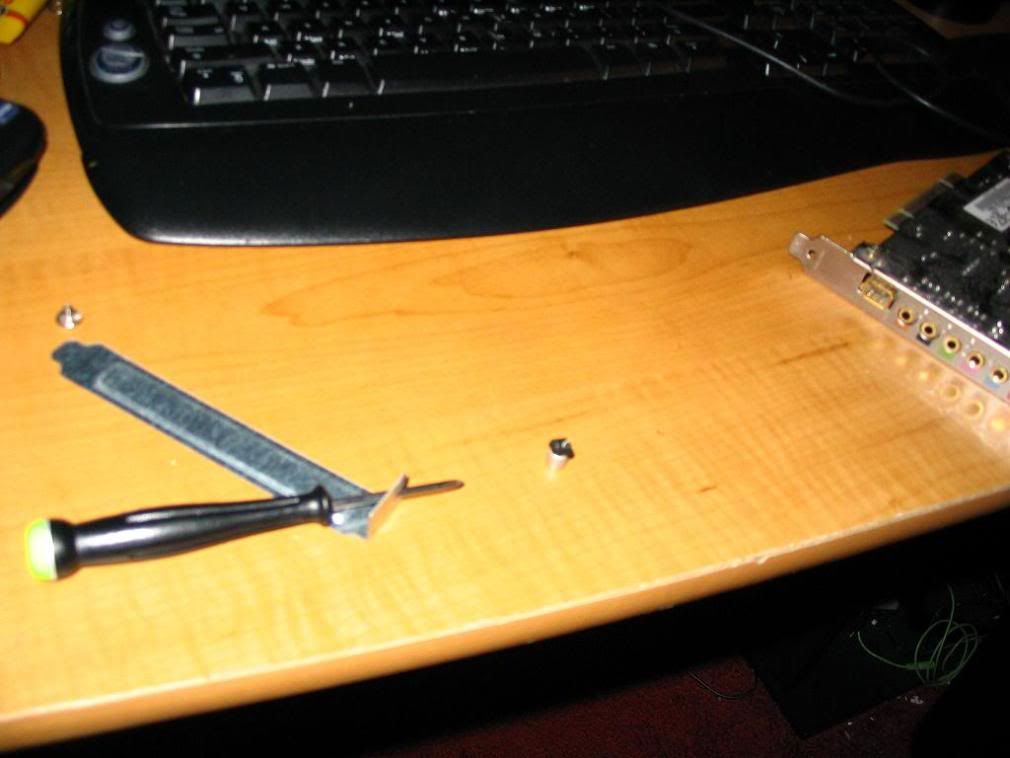

http://i272.photobucket.com/albums/j...okengpucap.jpg

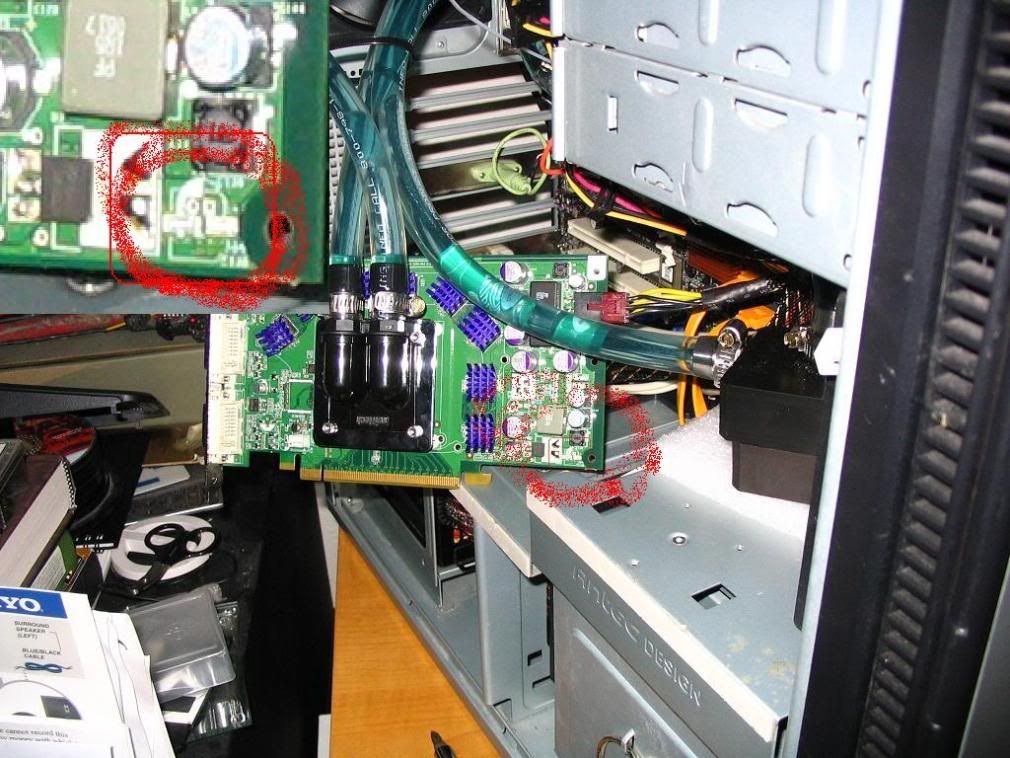

http://i272.photobucket.com/albums/j...missingcap.jpg
Also, fitting the side back on was a real pain without causing warping of the sidepanel. I had to dremel the plastic on some of the molex connections down a little thinner so the side wouldn't bow. (Bowing P180 panels isn't pretty.) I'll try to put up a picture of my current cables, but my rev1 version is below:
http://i272.photobucket.com/albums/j..._back-rev1.jpg
Congratz on an (-other) excellent build!Quote:
Originally Posted by elpibe10
I'm still struggling to get my first Soldam/Windy to the Netherlands, & you own 10!?! (or 12?).. that's not funny.. ;)
May I ask where you ordered or bought them? Tx.

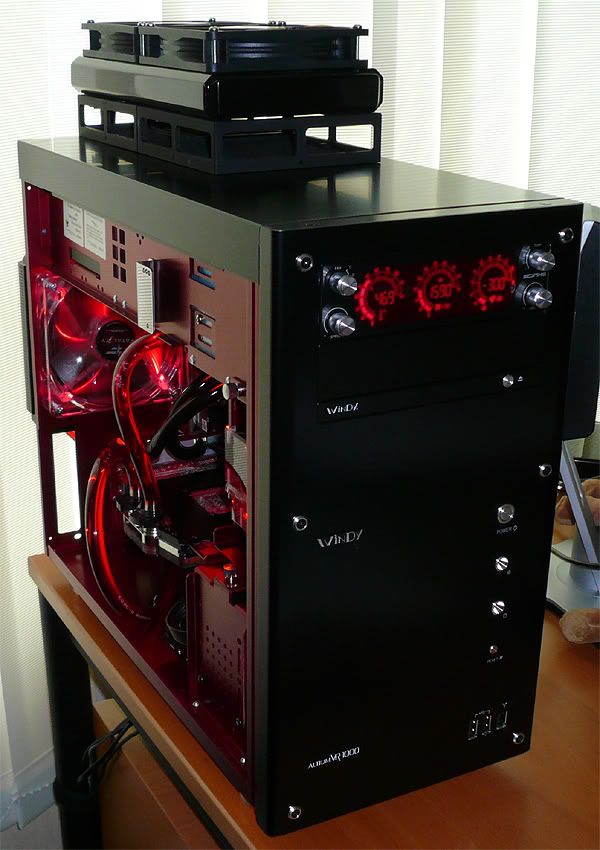

Amazing new systems on the last pages!!! Windy-Man: beautiful reds!
http://www.abload.de/img/dualbrain-mdpc-1g2v.jpg
I was thinking it leaked and destroyed his PC...Quote:
Originally Posted by WheelMan
Ok,
So i made a few minor changes like swapping out my coolant. Tell me what you think, obviously it isn't as nice as some of the ones on here, but I like to think of it as form with function. I am currently running at 3.6Ghz (8x450fsb) and my temps are at 37 celcius at idle and 55 celsius with Everest and P95 running. My ambient is around 23 celsius. I will take any criticism or suggestions and do what I can.
Thanks for looking,
Utnorris
P.S. This is my first true w/c system, I don't consider my Swiftech H120 compact that I ran for less than 2 weeks a true w/c system.
looks good utnorris!
Thank you, I wish I could do more with wire maintenance, but with this board and this case there just isn't a whole lot I can do without doing some major mods.
Anyways, thanks again,
Utnorris
What brand sleeving and where'd ya get it from? I hope your in the US...Quote:
Originally Posted by evil-98
