Update
3800Mhz @ 1.20v
200BCLK
1.235v QPi/VTT
http://img87.imageshack.us/img87/9391/3800120vev4.jpg
:up:
Printable View
Update
3800Mhz @ 1.20v
200BCLK
1.235v QPi/VTT
http://img87.imageshack.us/img87/9391/3800120vev4.jpg
:up:
I will follow you on this one, my goal was 4.0Ghz 8 cores (4 threads for the WCG 24/7) and 4 Threads for the system. The temperatures reach 90c 8 threads priming but I doubt 8 threads will ever be working at full. So at the end 4 threads 24/7 will be at maximum 77c.Quote:
Originally Posted by Hornet331
Maybe it is just me, but I notice that I am either rock stable or BSOD. There is no in between where Prime95 is failing or getting glitches. If I can run Prime, then it seems to run forever and everything is good. Just a small tweak, and bang BSOD.
dj883u2, what sort of cooling are you using? Are you on air or water there???
They are air. Using the ASUS Triton 81.:up:Quote:
Originally Posted by Hot'n'Chilly
Download the latest Realtemp program and you are going to be very surprised.Quote:
Originally Posted by Aberration
Right on guys I finished my 24/7 crunch system:
Air Cooling True Copper lapped:
First lets see 4.0Ghz 8 threads ran for almost 20 minutes maximum 88c.
http://ssyybg.blu.livefilestore.com/...YQULyeDA/7.jpg
4Ghz 20 Minutes 8 threads =
Maximum: 88c
Average Maximum: 85c
http://ssyybg.blu.livefilestore.com/...201.168%20.jpg
3.7Ghz 8 threads 7 Hours Prime 95 =
Maximum: 73c
Average Maximum: 72
Load minimum and maximum average: 2 hours = 540 / 8 = 67.5
3.8Ghz should be a little higher.
4Ghz to 4.2Ghz means:
200Mhz x 8 cores = 1600Mhz which is converted into heat into heat.
So it looks like is a general problem for aircooling users, this chip is too hot. The only way to get 4.2 Ghz to work with 8 threads is with a good watercooling.
By the way 1 fan 1300RPM 54CFM for me is better than 2 fans as the latter was explained.
This was an interesting week,
Thank you all who participated and contributed to this thread. This is a very good thread explaining many things about this amazing processor.
Well I will keep at 3.717Mhz 1.168V 24/7 8 threads mainly because my goal was to keep 4 to 6 logical processors for the World Community Grid xtremesystems team.
I will only use 4.2Ghz if I need to bench for any reason or if a game does not run at 60 frames per second and the same needs a CPU boost or to play the best Playstation 2 emulator PCSX2 at amazing frame rates which is a CPU eater.
I spent all my money building this system which I do not regret at all however if I only knew the best aircooling solution would not stand for 4.2Ghz then I would have built a water cooling solution. Well there are things we can not go back in the past. It was done and was for good.
I will change to water cooling in the next few months and keep at 4.2 Ghz 8 threads. I still think it is possible to keep such speed with a good water cooling solution. There are good radiators out there in the market.
The CPU-Z Validation: 3.7Ghz 8 threads 1.168

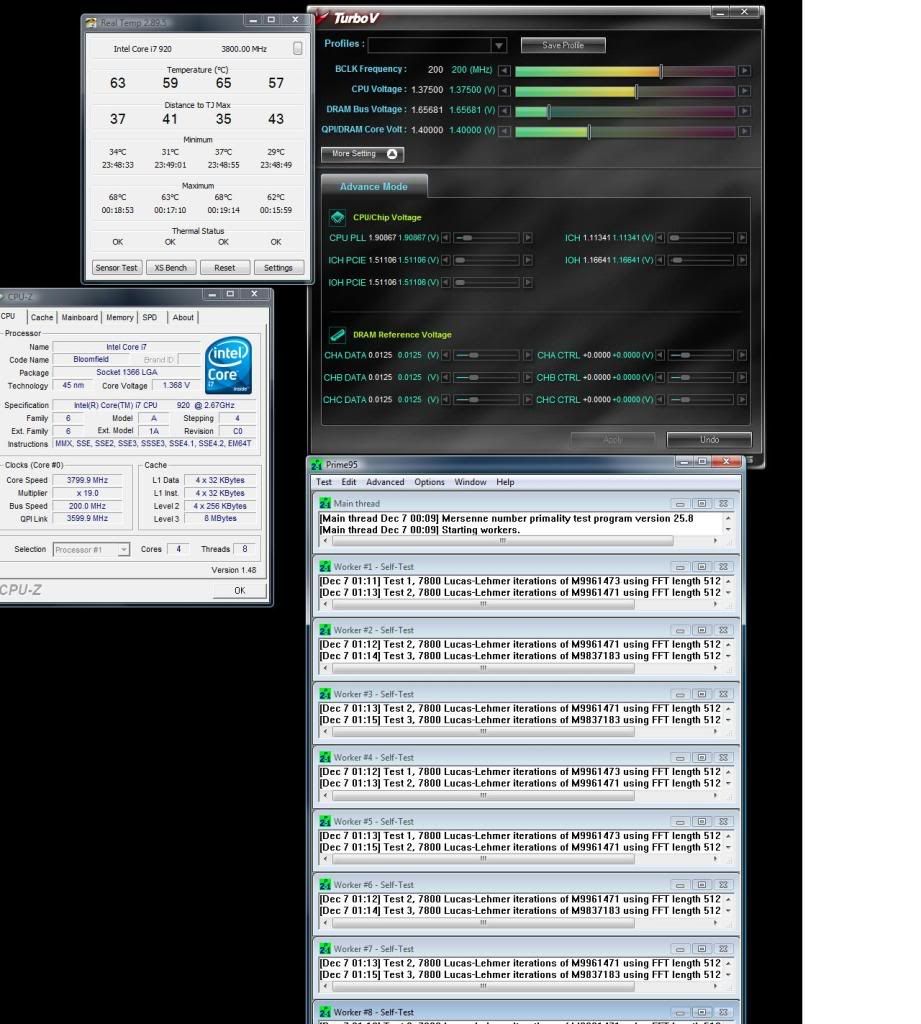

1st results withh my new Dual Loop Core I7 Heat Tamer
http://i293.photobucket.com/albums/m...1/corei728.jpg
here's my 24/7 setup in progress
http://users.telenet.be/nils-marleen/i920prime4.jpg
Cooling is a TRUE with MX2 batch is
http://users.telenet.be/nils-marleen/PICT1252.JPG
It's not a superchip but not bad also i think....
The perfect gaming system: 4.2Ghz 4 Threads 90c maximum.
http://ssyybg.blu.livefilestore.com/...ghz%201.35.JPG
Real Temp 2.70 is the latest version i see on google. do you have a link to version 2.90?Quote:
Originally Posted by Metroid
Edit i found it. Not much differance in temp readings more even if anything.
http://img360.imageshack.us/img360/1740/48526068kp8.jpg
http://img360.imageshack.us/img360/4...jpg/1/w652.png
http://www.google.com/search?q=realt...ient=firefox-aQuote:
Originally Posted by X.T.R.E.M.E_ICE
With "Turbo"on! :)
Prime 95 - 4011Mhz - 1.18v! No problem!:)
http://img201.imageshack.us/img201/7...5241dt4.th.jpg
:up:
Let it priming. Have you tried 1.10V 8 Threads 3.7Ghz :p:Quote:
Originally Posted by dj883u2
My case is, it boots at 4.0Ghz 1.18V 21x191 = 4.009 Mhz then it freezes after 30 minutes priming.
lol why search google, when the official real temp thread is here? :ROTF:Quote:
Originally Posted by derektm
:rofl::rofl::rofl:Quote:
Originally Posted by Hornet331
I would say the same, if they could only see XS Bench they would understand that the official thread is a sticky for the same reason.
By the way hornet what do you think of my WCG system?
looks very good, 3.7ghz with 8 threads and only 70°C under prime is awesome. :up:Quote:
Originally Posted by Metroid
Maybe you could try 3.8ghz, since the WCG WUs usually produce much less heat then prime. :yepp:
btw. why do you run the NB only with the 16x multi?
Super Pi 1Mb - 4218Mhz - FSB a "222x19" - V.core 1.23v....:)
http://img178.imageshack.us/img178/7...2fsbae5.th.jpg
Validation:
CPU-Z Validator 3.0
:up:
Everybody uses Asus, Intel and Gigabyte Mobos but no DFI LANparty UT X58 why? Maybe too much settings? :D
cause you cant buy the board anywhere right now, etailers here list them avaible @ the 9th.Quote:
Originally Posted by GNU
But that was to late for me. :p:
I'm sure, some users like Tony or Eva2000 are testing it. (non public) :D
HiQuote:
Originally Posted by GNU
i think i will receive one DFI X58 to review !
If I receive one then i post the results here in the forum !
regards
Thanks. I hope, you will reach good results with the X58. :)Quote:
Originally Posted by mascaras
Best wishes.
For some of you guys using higher clocks, what are your other voltages at? I am just playing with CPU vCore cause i am not sure what everything else is for. And I crash after about an hour.
