11-22-2007, 08:13 AM
w2richwood

Quote:

Originally Posted by tompl

i cant downgrade form 2206 to 2004, it says that bios is too old. i tried from bios and dos but both didnt help. what can i do ?

you need to use afudos 2.11 or earlier google it i make a boot disk then afudos and bios on the other
Rich
11-22-2007, 08:16 AM
w2richwood

Quote:

Originally Posted by MrMonstah

Hey guys,
I recently Flashed my Bios to the latest 2304 version, and my CPU fan now only goes at 250rpm max. Where as before it use to go to 1500rpm.

I have the TT 120 Ultra eXtreme, with an Arctic 7 120mm fan attached to it.

Anyone know of a fix?

disable all fan controls in bios monitor rich fan should run full speed
Rich
11-22-2007, 08:48 AM
Lurker246

Quote:

Originally Posted by gwolfman

Hi, I'm in a dilemma. I currently have obtained the following:
What's the FSB wall for the quadcores? I had trouble getting over ~380FSB with my dual core E6600 when I had that.

Any help or advice would be greatly appreciated!
-GWolfman

I've done much investigating with this board and Quads. As it's a 975x mobo the FSB wall is generally between 340 - 360 depending on luck.

I can run my Q6600 G0 at 355 X 9 max but it causes the onboard audio to freak out from time to time- causing a horrible high pitch whine.

It should definitely run 333 x 9 completely stable.
11-22-2007, 02:57 PM
MrMonstah

Thanks for the replies, I figured it out. IT was the CPU Q fan option. I changed it to performance mode and it now is up to speed. Just a question though, if i were to disable it, what happens?
11-22-2007, 03:04 PM
Gig4moller

Then your cpu fan will run at full speed all the time.
11-22-2007, 06:11 PM
MrMonstah

Is that a bad thing?? Its not noisy at all, in fact i cant even hear it at 1500rpm....
11-23-2007, 03:43 AM
~aoe~

It's not a bad thing. If you're happy with the noise levels, then it will keep the cpu a tad cooler and use a tad more power.

Good spot by w2richwood - I didn't think of the Q-fan function causing the problem.
11-23-2007, 07:25 AM
gwolfman

Quote:

Originally Posted by Khalmyr

I wouldn't count on getting high FSBs in this mobo with a Quad man.. I'd stick with the one you already have.

I was worried about that. I might have to look into another motherboard and keep this one for my HTPC.
11-23-2007, 07:37 AM
lawrywild

2406 Bios released. Link in a second..

http://rapidshare.com/files/71733677...eluxe-2406.rar
11-23-2007, 08:19 AM
gwolfman

Quote:

Originally Posted by lawrywild

2406 Bios released. Link in a second..

http://rapidshare.com/files/71733677...eluxe-2406.rar

What does the 2406 add/change/fix? Any idea? I wish they would release a changelog.
11-23-2007, 09:02 AM
DrSlump

Quote:

Originally Posted by gwolfman

What does the 2406 add/change/fix? Any idea? I wish they would release a changelog.

I've just installed the 2403 version and it resolved all the 2302 issues.. what changes could the 2406 introduce??
Maybe the penryn support (in my hardest dreams)?
11-23-2007, 10:52 AM
gwolfman

Quote:

Originally Posted by DrSlump

I've just installed the 2403 version and it resolved all the 2302 issues.. what changes could the 2406 introduce??
Maybe the penryn support (in my hardest dreams)?

Did they fix the problem where the on-board audio couldn't be disabled?
11-23-2007, 01:10 PM
Gig4moller

Quote:

Originally Posted by DrSlump

I've just installed the 2403 version and it resolved all the 2302 issues.. what changes could the 2406 introduce??
Maybe the penryn support (in my hardest dreams)?

Penryn is supported since 2302.
11-23-2007, 03:25 PM
DrSlump

Quote:

Originally Posted by gwolfman

Did they fix the problem where the on-board audio couldn't be disabled?

Well i didn't verify this issue because i effectively use the onboard audio, but it resolved al other issues as:

speedstep always turned off
serial port always turned on
11-23-2007, 03:26 PM
DrSlump

Quote:

Originally Posted by Gig4moller

Penryn is supported since 2302.

In the asus compatibility list, the p5w dh as been removed :shrug:
11-24-2007, 07:16 AM
Gig4moller

Quote:

Originally Posted by DrSlump

In the asus compatibility list, the p5w dh as been removed :shrug:

Youre right - I swear it was on their list before.

Goddamn lame :/ Now I do have to buy a new mobo.... Hmm, Asus P5E or DFI LP X38..
11-24-2007, 07:32 AM
w2richwood

Being the worldwide motherboard leader, ASUS offers a wide range of high-performance motherboards that can take advantage of Intel's 45nm next-generation processors. Providing awesome performance for today's and tomorrow's thread-intensive games and applications, the cutting-edge 45nm processors offer a significant performance boost while providing an overall more energy efficient platform.

--------------------------------------------------------------------------------

Extreme Performance for Games and Applications

The 45nm CPU introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency. By increasing transistor switching speeds, this breakthrough will enable higher core and bus clock frequencies, allowing more performance in the same power and thermal envelope.

45nm Ready Motherboards

The chart below shows the ASUS motherboards that are currently 45nm CPU support ready. ASUS will always stay in step with the latest developments and provide hardware and firmware for optimal performance and functionality. More 45nm Ready ASUS motherboards are expected to be announced soon
it may its not out yet
11-24-2007, 07:56 AM
Gig4moller

Quote:

Originally Posted by w2richwood

it may its not out yet

We can always hope, but the fact that it WAS on there but now removed doesn't tell much good.
11-24-2007, 08:22 AM
w2richwood

yeah i dont understand the p5b.s are on there but not the p5w dh
11-24-2007, 08:38 AM
MacClipper

All the 975 mobos have been bumped off the list but they are not alone, go read about the recent hooha about the nVidia chipset mobos and Yorkfield support too.

Meanwhile, we can only hope P5W makes it back somehow.
11-24-2007, 10:24 AM
w2richwood

i'm not gonna complain p5w dh has served use well it's lived a long live thru many upgrades so i'm happy with it
Rich
11-25-2007, 01:27 AM
MacClipper

Quote:

Originally Posted by Funky

hey guys, has anyone plugged 8800GT in this board...

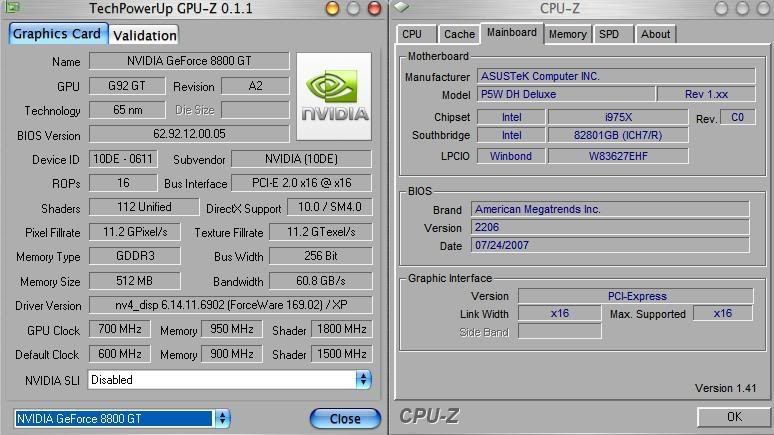

Just tried it out today, no problem at all.

http://i173.photobucket.com/albums/w...T/88GT_GPU.jpg

A touch over 14K on 3DMarks06,
http://service.futuremark.com/compare?3dm06=3892816
11-25-2007, 09:17 PM
malik22

Can this mobo handle 4gb of ram well and how far can it oce a Q6600?
11-25-2007, 10:53 PM
alexlyc

Quote:

Originally Posted by Lurker246

I've done much investigating with this board and Quads. As it's a 975x mobo the FSB wall is generally between 340 - 360 depending on luck.

I can run my Q6600 G0 at 355 X 9 max but it causes the onboard audio to freak out from time to time- causing a horrible high pitch whine.

It should definitely run 333 x 9 completely stable.

Quote:

Originally Posted by malik22

Can this mobo handle 4gb of ram well and how far can it oce a Q6600?

I am currently running my Q6600 G0 with 4GB of G.Skill DDR2800 HZ ram @ 380FSB and x8 multiplier, it use to be @ 355 and x9, 1:1 on both configuration ... I am sure this is all becuz of the active cooling I had on the NB/SB ;)
11-26-2007, 02:31 AM
Phoenix_TT

Tried 2406 BIOS. No new BIOS options, however this BIOS for me is really bad, as I couldn't overclock at all. Anything I tried for manual settings didn't work and machine wouldn't boot.

I'm now back on 2403 and running at 3.0Ghz on a E6600 with CPU Vcore = 1.325v, mem = 2.1v and memory running with 4-4-4-12 timings.
