thanks for the reply!!Quote:
Originally Posted by ben805
actually the Zalman CNPS 9500 does fit alongside the optional ASUS fan fine but I'm still not going to install the extra fan...I was tempted to install it after hearing about it supposedly lowering CPU/mobo temps...
here are a few pics of the Zalman cooler + ASUS fan...
*the pics are for reference only and not from my system
http://img246.imageshack.us/img246/442/fan13ti.jpg
http://img246.imageshack.us/img246/1129/fan29xo.jpg
Well...if you can get it to fit, then maybe it's worth leaving it on? have you noticed any improvement with the optional fan? check the temperature with and without it....
where's Craig with his phase results? He received the board i sold him yesterday. He said he was putting on nail polish and stuff. Wonder how it went. I hope everything is alright.
can you take a picture of the xp-120 on your board by any chance?Quote:
Originally Posted by qdemn7
This board is crap. Warm boot issues @ 250Mhz with GSkill ZX sticks, Infineon CE-6 chips. Tried both 703 and 805 bios.
Even with 166 Divider and auto memory timings. I don't know what all the hype is about, this board has serious issues.
Chilly1 has my cascade, so there arn't many results from me. Right now I'w working on maxing out the memory, I'm probably going to do a 3.3V == Vdimm mod, 3.2V isn't nearly enough. I hope the VTT tracks.
There's only one VTT regulator, but it's not the same one used on the DFI so it might be fine. I need to solder some wires to various places to begin modding this mobo.
My board has a 10/27 bios on it, I think I should dump it.
Did you double check to make sure EEC is disabled? That was the source of the warm boot issues I had. The board defaults to EEC enabled, after every optimized default reset you have to go and disable it.Quote:
Originally Posted by HKPolice
Yes, I made sure it was disabled everytime, and that the APM page was not empty.Quote:
Originally Posted by Blue078
On a cold boot, it'll run 250x11 no probs, but warm boots = no POST. After that happens, it won't even post after I save changes in BIOS, I have to reset setup defaults before it posts again, and sometimes even that won't work and I'll have to reset CMOS.
This BIOS is pure CRAP.
Here you go. http://img526.imageshack.us/img526/1...arge8mt.th.jpgQuote:
Originally Posted by safan80
you know what? I just ordered an ASUS after having this problem with my DFI SLI-DR and I tried avery single damned bios out there, official, beta or modded. It seems bios corrupts and needs to be cleared...Quote:
Originally Posted by HKPolice
Oh well I had hoped that might help you too. I wont argue with you on the BIOS :) Asus needs to get on the stick and get a 1000 Bios out with tons of fixes.Quote:
Originally Posted by HKPolice
Well... got optie 175 and dual priming at stock volt (hmmm 1.42 is stock volt on this? interesting) 2.6ghz so far on stock air... trying to find unstable point so I can burn in this cpu properly. Only problem I have right now is my pair of ballistix is not even stable @ 200mhz... Thing is, this is the stick that was used in DFI that died and took my X2 3800 with it.... so could be joepardized... had OCZ plat 2gb set I was going to RMA as it didn't work with divider at all on DFI which works fine on this board for some strange reason... so I think I can use this for my backup for time being. But before I send ballistix for RMA I want to double check... what did you use on mobo settings for ballistix Ben? I do suspect the memory has been degraded a lot, but want to give it final go before I consider... RIP.
No warm boot issue here. Just done a test 255X11=2805MHz 1.35V, mem 1:1, no problem at all. My memory is Mushkin 2X1GB redline xp-4000, ce-6 chip too. BIOS revision 0703.Quote:
Originally Posted by HKPolice
The mushins use a different model of BP PCB, and you're on a single core chip. What settings are you using for memory and chipset, etc etc?Quote:
Originally Posted by bobov

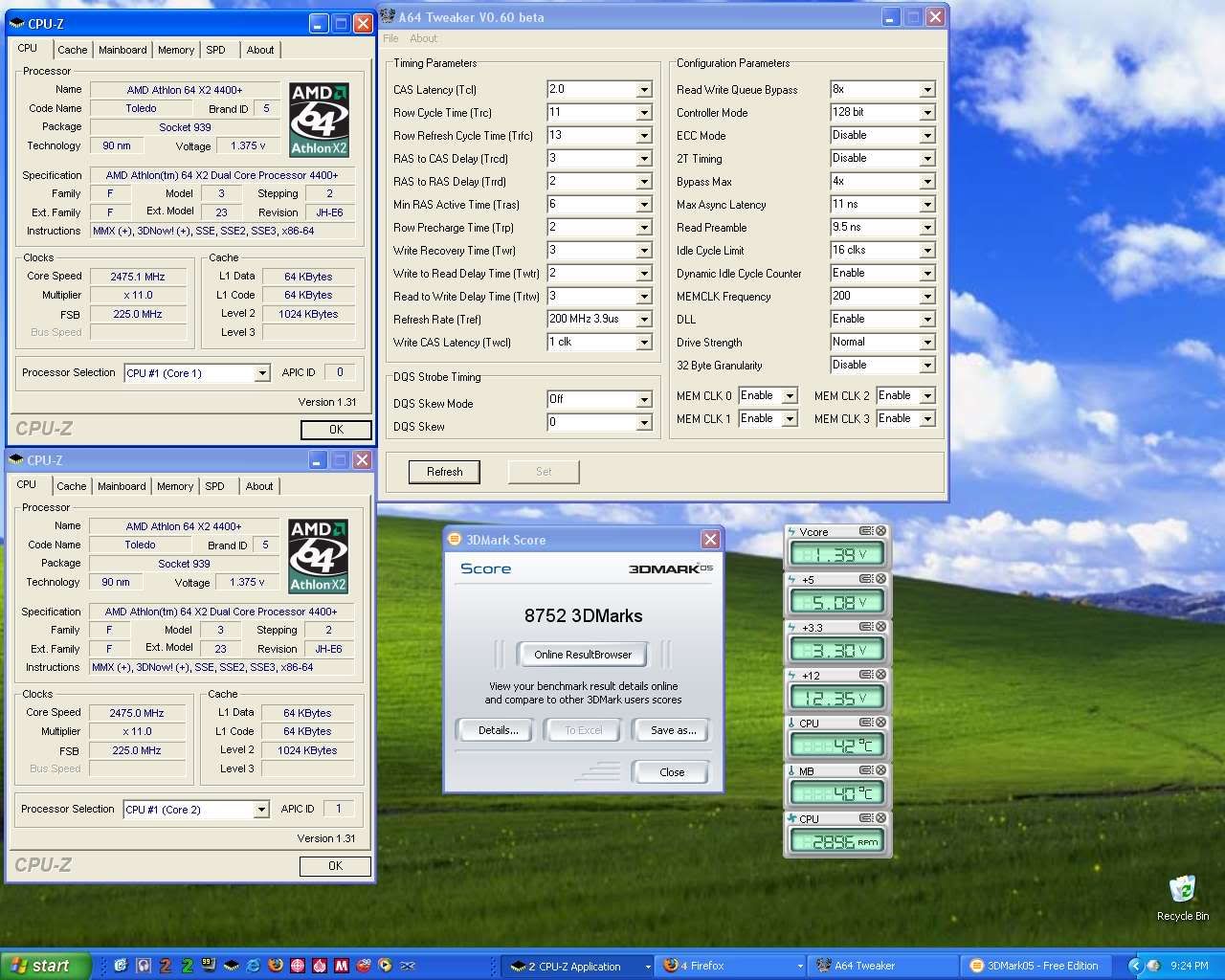

my results so far....
http://img.photobucket.com/albums/v2...208-212436.jpg
http://img.photobucket.com/albums/v2...208-213557.jpg
Vcore is currently set at 1.3875 and Asus Probe is reporting it at 1.42 and CPU-Z is reporting it at 1.375. Had to up the Vcore so it would pass Prime 95. I know neither are really accurate, but my temps seem fine. At idle my processor and mobo are at 39 degrees celcius. Isnt that a little warm for a motherboard?
I think the Asus reads a little high. Stock vcore at 2.7ghz with my 170 reads close to 50c with watercooling. Radiator is cold to the touch.
It sounds like the memory timing still need some tweak to be done, leave the data strength alone but play with the TREF, MAL and Preamble, use the 703 official bios and take your time to try different combination of things....have you try different ram and see what happen?Quote:
Originally Posted by HKPolice
It's very possible that your Ballistix is dying....I had to RMA both pairs and sold all of them as soon as I get the new one back from newegg, try this:Quote:
Originally Posted by jinu117
use Bios 703, 250 x10, set vdimm to 2.8v
Limit
200
Manual
3
8
4
4
3
8
18
3
manual
3.9, also try 7.8
1
8
4
256
Disabled
Normal
Disabled
3clk
Disabled
Disabled
Manual
10ns
7ns
Auto
4 beats
Disabled
run superpi 1m, if it passed, shoot for 32m, if it passed.....then you can start tighten up your timing one at a time and slowly increase your memclock and see what happen. if spi failed....use 2T, if spi 1m/32m passed....your Ballistix still has some life left but won't last too long, I'd say couple weeks top. If it failed under 2T....they're hopeless. If I were you I'd still RMA them either way :lol:
Just installed mine tonight with Corsair 3500PRO LL DDR. I'm totally blown away by the BIOS and so far it's working flawlessly. Running an Opteron 175 at 2.5GHz stable as can be. My A8N SLi Premium that I upgraded from is being RMA'd tomorrow.
Pics of my install:
http://homepage.mac.com/jtrussell7/h...toAlbum22.html
I've switched my R404 cooler to R134, but it's still too cold. I can only reliably run if I boot up the system at least -5C and very quickly put a load on it. I'm feeding it 1.7V just for the extra heat because the mobo won't let me drop the drive stength low enough to compensate.
What are you guys doing to get over the cold bug on this mobo? This is with a Sandy too, not a Venice. I really don't want to put my 4000+ back in, it has a very crappy memory contoller and doesn't even clock much past 3.1GHz on R404. I've seen the Sandy do 3.3 to 3.4GHz on R134 and it has handled 2GB of memory no problem too. The Claw has a hard time with 1GB.
Quote:
Originally Posted by HKPolice
I have no problems with the Mushkin CE-6 [already reported above].
I was running 260HTT @ 3328 1T and 2.8V... everything else auto.
testing a new chip so... gotta play more!
Hi guys. Just setting up my system right now and I have a question that doesn't seem clear enough in the manual.
Do you have to connect the EZ_Plug if you're using 2 GPUs?
Or is it an optional alternative to plugging in a PCI-E ATX cable into each card?
Or do you need both the individual PCI-E ATX cables and the EZ_Plug connected?
I'm using an Enermax Liberty PSU and x2 EVGA 7800 GTX KO's
You should plug it in and the 2xPCI-E connectors. Especially with those GPUs....maybe not with like 6600 or 6800GS.
Finally tried the 805 bios hoping for better clocks using the alt+f2 method and.....
it sucks. Wouldn't even post using same settings so dropped them back to 2.5...no post....2.4...no post...2.3 posts but wouldn't boot windows.
Went back to 703 revision and all is well again. 2.65 joy :)
The 'update' to 805 bios went very smooth using ezflash but the 'downgrade' to 703 gave me a bit of a fright as after it flashed the pc hung:eek: :eek: :eek:
Had to unplug the psu for 30seconds before it would boot again...oh the relief:D
I'll wait now until Asus release an 'official' bios before upgrading again...someone else can be asus's guinea pig tbfh.
For those who are having problems using Asus Update (failed to load NT service..please reboot or BF.dll error) then the problem stems from using the XFI soundcard driver. I have uninstalled the driver but it has made no difference (must some registry entry that isn't reverted). The only solution is to re-install windows and install ASUS update and update the bios BEFORE you install the XFI drivers as it wont work after you have installed them. I will just have to use EZflash or afudos until a fix is released by either asus or creative:(
Yeah I'd just really like to avoid it if I can. My cables are messy enough without having to add another modular cable with 4 connectors on it, for just one lone plug.Quote:
